DS567 G80 Forged Steel Liftboat Master Link with Handles, Lifting Gear

  • DAWSON/OEM
  • DS567
  • 1000pcs
Quantity:

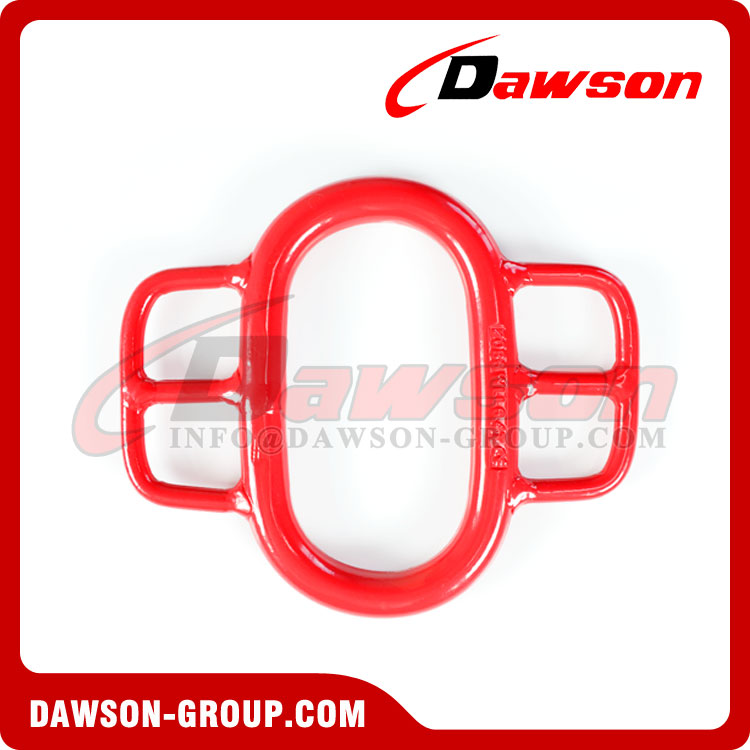

DS567 G80 Forged Steel Liftboat Master Link with Handles for Wire Rope Slings, Lifting Gear
Grade 80 Master Link with Handles
- Dawson China

DS567 G80 Forged Steel Liftboat Master Link with Handles, Grade 80 Rigging Hardware - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS567 G80 Forged Steel Liftboat Master Link with Handles - Dawson Group Ltd. - China Manufacturer, Factory, Supplier   DS567 G80 Forged Steel Liftboat Master Link with Handles - Dawson Group Ltd. - China Manufacturer, Factory

G80 lifeboat master link with handles or as customer requirement

Safe working load: 6.4T, 8T, 11.4T

Safety factor: 4 : 1

Finish: Power coated

Painted; Galvanized


ITEM NO. Weight/kg WLL/T B.L/T A±6 B±6 C±3 D Ф

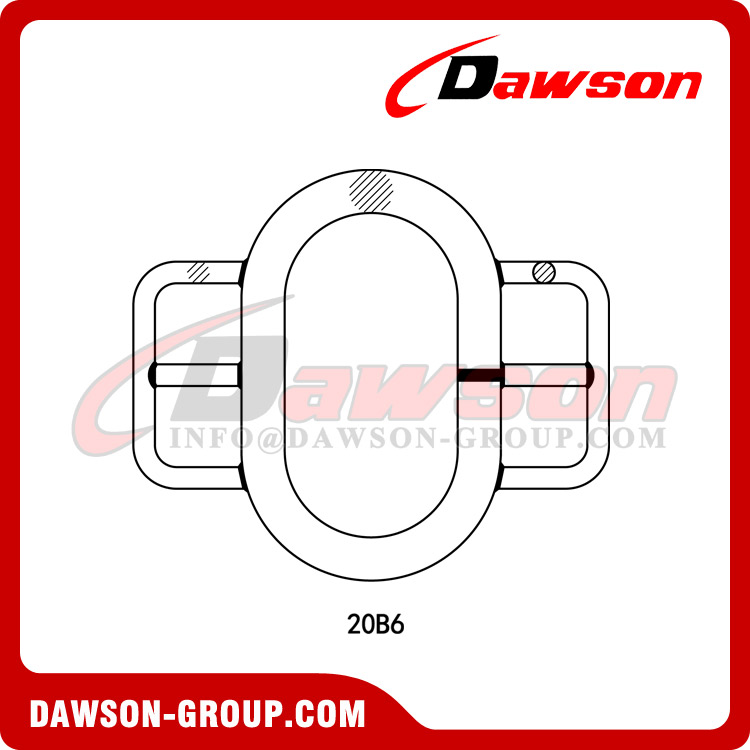

8-DS567-20B6 1.38 6.4 25.4 80 150 105 50 20
8-DS567-28B7 4.5 8 32 147 270 130 57 28
8-DS567-32B6 5.81 11.4 45.6 145 273 150 61 32


Manufactured in accordance with EN1677-4, ASME B30.26 and AS3776-2015


The Dawson range of master links c/w handles are designed specifically for the lifting and lowering of lifeboats. The master links are manufactured from triple alloy steel in accordance with EN1677, they are individually proof load tested to 2.5 times working load limit in accordance with EN1677 and they are all supplied with charpy impact values of in excess of 42 Joules at -40°C. The links are suitable for use in a temperature range of -40°C up to 200°C without reduction in working load limit.



MPF = Manufacturing Proof Force = 2.5 x 9.81 x Working Load Limit (kN) (min.)

BF = Break Force = WLL x Factor of Safety

WLL = Working Load Limit (tonne) @ 45° to vertical

Factor of Safety = 4 : 1

Embossing - As per Description G80, WLL, DAWSON, CE and Batch Number

Manufactured in accordance with EN1677-4

Design air temperature -40° min.

Average impact energy (charpy) 42 Joules minimum impact resistance at -40°C up to 50mm diameter

Operational temperature range is -40° C to + 200°C


Welcome to buy the newest and cheap DAWSON DS567 G80 Forged Steel Liftboat Master Link with Handles for Wire Rope Slings, Lifting Gear from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
