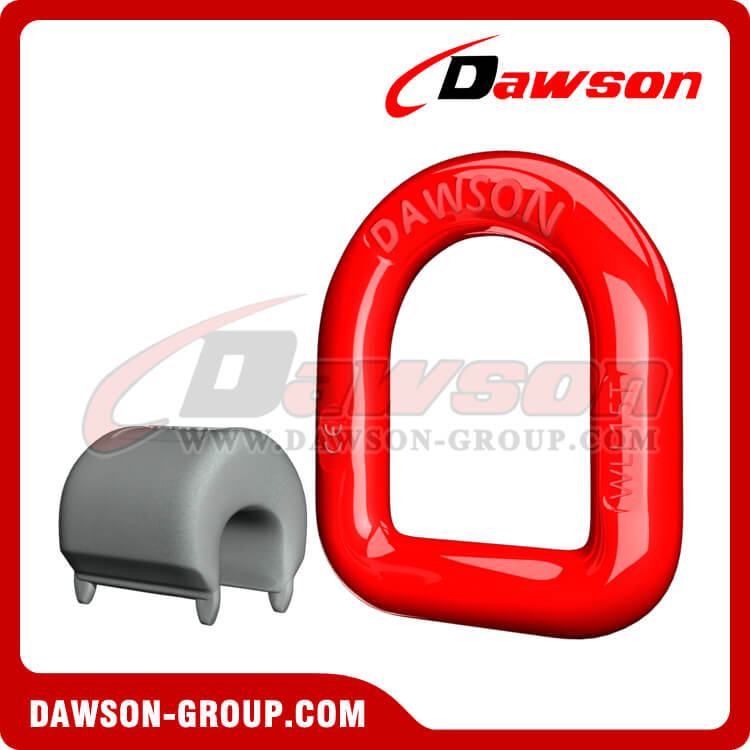

DS344 G80 Weld on Lifting D Rings, Grade 80 Weld-on Pivoting D Link
Forged super alloy steel - Quenched and Tempered. Breakage test. 100% Magnaflux Crack Detection. Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020. With spring inside for better pivoting control. Welding is to be performed by a qualified welder.
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Forged super alloy steel - Quenched and Tempered.
Breakage test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
With spring inside for better pivoting control.
Welding is to be performed by a qualified welder.
Item No.
Weight/kg
WLL/T
B.L/T
A±2
B±3
D±2
M±1.5
H±0.3
8-DS344-1T
0.4
1.12
4.48
41
78.5
13
37
33.5
8-DS344-2T
0.47
2
8
42
88
14
38
35.5
8-DS344-3T
0.69
3.15
12.8
45
94
17
43.5
39
8-DS344-5T
1.46
5.3
21.2
55
118
22
50
49
8-DS344-8T
2.5
8
32
70
141
26.5
70.5
54
8-DS344-10T
3.6
10
40
85
165
28
78
63.5
8-DS344-15T
5.8
15
60
97
188
34
90
72
Ultimate load is 4 times the Working Load Limit.
Welcome to buy the newest and cheap DAWSON G80 Weld-on Pivoting D Ring from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
WARNING!!!
For welding
Pay attention to the following points during welding:
_ The welding should be carried out by a qualified welder acc. To DIN EN 287-1.
_ Material of welding block is St 52-3 (1.0570).
_ The connecting surfaces must be free from dirt, oil, colour, etc.
_ Do not weld at the red, powder coated tempered load ring.
_ The complete construction can be annealed stress-free for several times at 600°C without reduction of WLL.
_ The welding spot has to be suitable for the corresponding force introduction.
_ The distance lugs assist in achieving the required root weld (approx. 3 mm).
Important
By the arrangement of weld (continuous HV), the following requirements are fulfilled:
DIN 18800 for steel building prescribes
At outdoor sites or in case of special danger of corrosion, the welds should only be designed as continuous, fillet welds. The HV weld at the LBS assures a connection via the whole cross section of the material. This corresponds to the closed weld showing no signs of corrosion.
