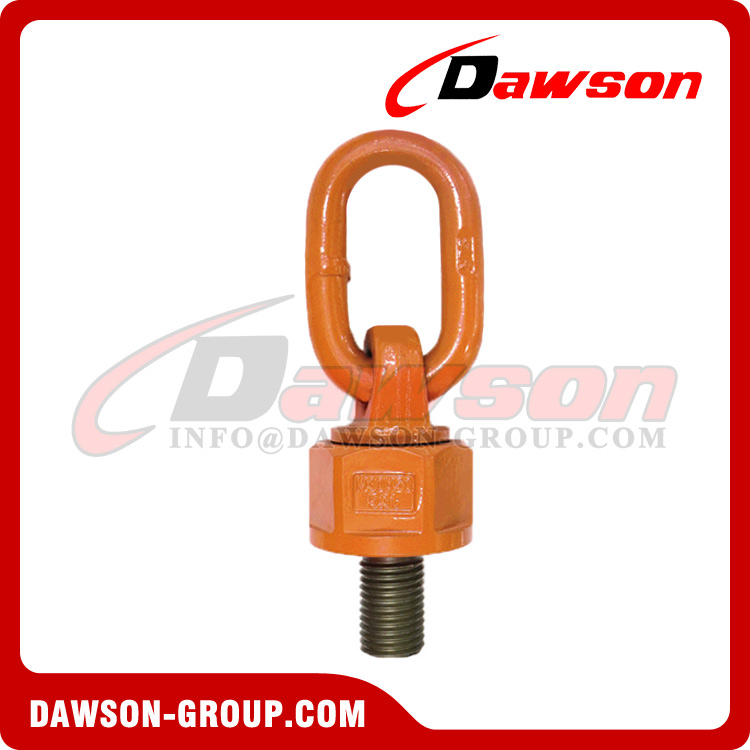

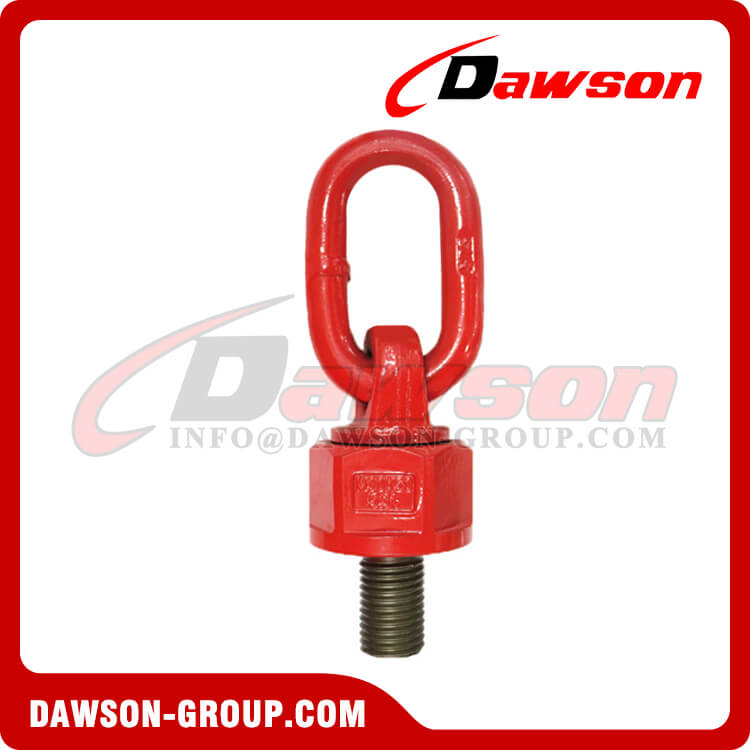

DS304 G80 M8-M150 Lifting Screw Point

Forged super alloy steel - Quenched and Tempered.
Breakage test.
100% magnaflux crack detection.
Surface finish: Powder plastified.
Colour code:Red RAL3020/Yellow RAL1003

  • DAWSON/OEM

  • DS304 G80 Lifting Screw Point

  • M8 - M150

Availability:
Quantity:
Inquire Add to Basket

DS304 G80 M8-M150 Lifting Screw Point, G80 Alloy Steel Swivel Hoist Ring for Lifting, Grade 80 Screw Type Swivel Lifting Point

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DS304 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Supplier   DS304 G80 Lifting Screw Point, Grade 80 Lifting Points - Dawson Group Ltd. - China Manufacturer, Factory

DS304 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Supplier   DS304 G80 Lifting Screw Point, Grade 80 Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS304 G80 Lifting Screw Point, Grade 80 Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier

Safety factor: 4:1

High-quality alloy steel material, professional forging technology

The specifications are complete and can meet customized needs

Traceable production process, raw materials, and so on

Easy to install

Bolt grade: 10.9

Standard: DIN EN 1677-1

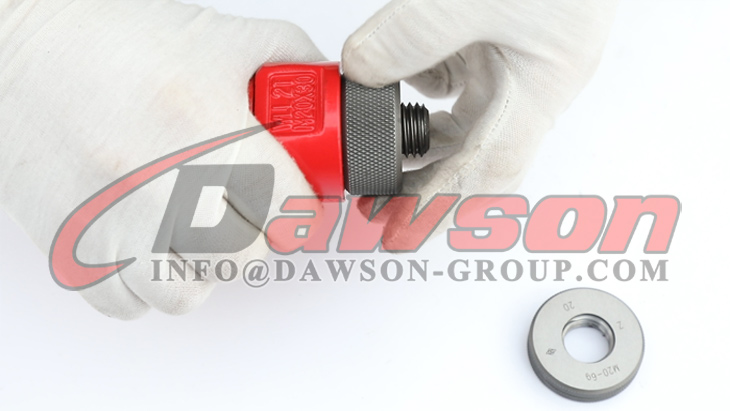

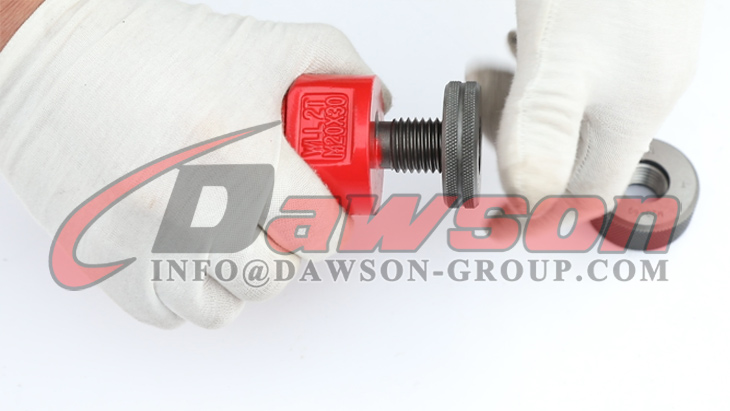

Inspect with 6g go/no-go gauge

Metric Thread:

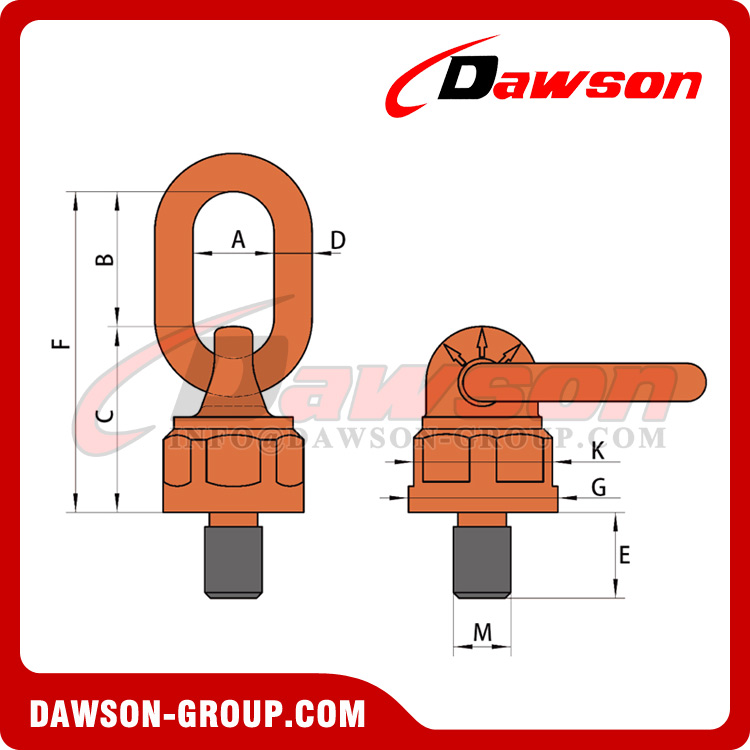

ITEM NO. WLL/T Thread/M Dimensional Parameters   mm Locking Torque/Nm Weight/Kg
E A±2 B±3 C D F±3 G K
8-DS304Y-M8 0.4 M8×1.25 12 30 43.5 54 12 97.5 40 37 10-40 0.43
8-DS304Y-M10 0.6 M10×1.5 19 30 43.5 54 12 97.5 40 37 10-40 0.44
8-DS304Y-M12S 0.7 M12×1.75 19 30 43.5 54 12 97.5 40 37 15-40 0.44
8-DS304Y-M14 1.25 M14×2.0 31.8 30 43.5 54 12 97.5 40 37 30-100 0.46
8-DS304Y-M16S 1.5 M16×2.0 31.8 30 43.5 54 12 97.5 40 37 45-130 0.47
8-DS304Y-M12B 1.05 M12×1.75 19 34 54.5 78 16 132.5 59 54.5 15-40 1.3
8-DS304Y-M16B 1.9 M16×2.0 30 34 54.5 78 16 132.5 59 54.5 45-130 1.3
8-DS304Y-M18S 1.9 M18×2.5 30 34 54.5 78 16 132.5 59 54.5 100-170 1.4
8-DS304Y-M20S 2 M20×2.5 30 34 54.5 78 16 132.5 59 54.5 100-170 1.4
8-DS304Y-M22S 2 M22×2.5 30 34 54.5 78 16 132.5 59 54.5 100-170 1.4
8-DS304Y-M24S 3.15 M24×3.0 30 34 54.5 78 16 132.5 59 54.5 190-280 1.4
8-DS304Y-M18B 2 M18×2.5 38.1 40 67 93 20 160 70 64.5 100-170 2.3
8-DS304Y-M20B 2.5 M20×2.5 38.1 40 67 93 20 160 70 64.5 100-170 2.3
8-DS304Y-M22B 2.5 M22×2.5 38.1 40 67 93 20 160 70 64.5 100-170 2.3
8-DS304Y-M24B 4 M24×3.0 38.1 40 67 93 20 160 70 64.5 190-280 2.4
8-DS304Y-M27 4 M27×3.0 38.1 40 67 93 20 160 70 64.5 250-500 2.4
8-DS304Y-M30S 5 M30×3.5 35 40 67 93 20 160 70 64.5 270-600 2.4
8-DS304Y-M30B 6 M30×3.5 50 51 95 111 22 206 79 74 270-600 3.8
8-DS304Y-M33 7.5 M33×3.5 50 51 95 111 22 206 79 74 270-600 3.8
8-DS304Y-M36 10 M36×4.0 54 51 95 111 22 206 79 74 270-600 3.9
8-DS304Y-M39 10 M39×4.0 58 51 95 111 22 206 79 74 350-800 4
8-DS304Y-M42 13 M42×4.5 63 65 108 122.5 26 230.5 93 85 350-800 5.9
8-DS304Y-M45 13 M45×4.5 68 65 108 122.5 26 230.5 93 85 350-800 6.1
8-DS304Y-M48 14 M48×5.0 68 65 108 122.5 26 230.5 93 85 350-800 6.2
8-DS304Y-M52 20 M52×5.0 84 70 120 158 32 278 105 95 350-900 10
8-DS304Y-M56 20 M56×5.5 84 70 120 158 32 278 105 95 350-900 10
8-DS304Y-M60 20 M60×5.5 90 70 120 158 32 278 105 95 350-900 10.5
8-DS304Y-M64 20 M64×6.0 95 70 120 158 32 278 105 95 500-1000 10.7
8-DS304Y-M72S 25 M72×6.0 108 80 123 210 40 333 158 142 500-1200 25.4
8-DS304Y-M80S 30 M80×6.0 120 80 123 210 40 333 158 142 500-1200 26.5
8-DS304Y-M90S 35 M90×6.0 135 80 123 210 40 333 158 142 500-1500 28.4
8-DS304Y-M100S 35 M100×6.0 135 80 123 210 40 333 158 142 500-1700 30
8-DS304Y-M72B 31.5 M72×6.0 108 90 138 230 48 368 169 155 500-1400 33.8
8-DS304Y-M80B 35 M80×6.0 120 90 138 230 48 368 169 155 500-1500 35
8-DS304Y-M90B 40 M90×6.0 135 90 138 230 48 368 169 155 500-1500 37
8-DS304Y-M100B 40 M100×6.0 135 90 138 230 48 368 169 155 500-1700 38.3
8-DS304Y-M110 50 M110×6.0 135 90 138 230 48 368 169 155 500-1700 40.3
8-DS304Y-M120 50 M120×6.0 135 90 138 230 48 368 169 155 500-1700 42.2
8-DS304Y-M130 50 M130×6.0 135 90 138 230 48 368 198 155 500-1700 46.2
8-DS304Y-M140 50 M140×6.0 135 90 138 230 48 368 198 155 500-1700 48.4
8-DS304Y-M150 50 M150×6.0 135 90 138 230 48 368 198 155 500-1700 50.7

Safety factor 4:1; Bolt length and thread specifications can be made according to requirements. B is the general structure, S is the small body structure.

Lifting method Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier, Factory G80 Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier, Factory lifting points - Dawson Group Ltd. - China Manufacturer, Supplier, Factory G80 lifting points - Dawson Group Ltd. - China Manufacturer, Supplier, Factory Grade 80 Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier, Factory G80 Swivel Hoist Ring - China Supplier Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier, Factory Grade 80 lifting points - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Number 1 2 1 2 2 2 3-4 3-4
Angle 0° 0° 90° 90° 0-45° 45-60° asymmetric 0-45° 45-60° asymmetric
Item No. Thread/M WLL/T
8-DS304Y-M8 M8×1.25 0.6 1.2 0.4 0.8 0.6 0.4 0.4 0.8 0.6 0.4
8-DS304Y-M10 M10×1.5 0.9 1.8 0.6 1.2 0.8 0.6 0.6 1.3 0.9 0.6
8-DS304Y-M12S M12×1.75 1.2 2.4 0.7 1.4 1.0 0.7 0.7 1.5 1.1 0.7
8-DS304Y-M14 M14×2.0 2.0 4.0 1.25 2.5 1.8 1.3 1.3 2.6 1.9 1.3
8-DS304Y-M16S M16×2.0 2.6 5.2 1.5 3.0 2.1 1.5 1.5 3.2 2.3 1.5
8-DS304Y-M12B M12×1.75 1.6 3.2 1.05 2.1 1.5 1.1 1.1 2.2 1.6 1.1
8-DS304Y-M16B M16×2.0 3.0 6.0 1.9 3.8 2.7 1.9 1.9 4.0 2.9 1.9
8-DS304Y-M18S M18×2.5 3.0 6.0 1.9 3.8 2.7 1.9 1.9 4.0 2.9 1.9
8-DS304Y-M20S M20×2.5 3.5 7.0 2.0 4.0 2.8 2.0 2.0 4.2 3.0 2.0
8-DS304Y-M22S M22×2.5 3.5 7.0 2.0 4.0 2.8 2.0 2.0 4.2 3.0 2.0
8-DS304Y-M24S M24×3.0 5.0 10.0 3.15 6.3 4.4 3.2 3.2 6.6 4.7 3.2
8-DS304Y-M18B M18×2.5 3.6 7.2 2.0 4.0 2.8 2.0 2.0 4.2 3.0 2.0
8-DS304Y-M20B M20×2.5 4.0 8.0 2.5 5.0 3.5 2.5 2.5 5.3 3.8 2.5
8-DS304Y-M22B M22×2.5 4 8 2.5 5 3.5 2.5 2.5 5.3 3.8 2.5
8-DS304Y-M24B M24×3.0 7 14 4 8 5.6 4 4 8.4 6.0 4
8-DS304Y-M27 M27×3.0 7 14 4 8 5.6 4 4 8.4 6.0 4
8-DS304Y-M30S M30×3.5 7 14 5 10 7.0 5 5 10.5 7.5 5
8-DS304Y-M30B M30×3.5 10 20 6 12 8.4 6 6 12.6 9.0 6
8-DS304Y-M33 M33×3.5 15 30 7.5 15 10.5 7.5 7.5 15.8 11.3 7.5
8-DS304Y-M36 M36×4.0 15 30 10 20 14.0 10 10 21 15.0 10
8-DS304Y-M39 M39×4.0 15 30 10 20 14.0 10 10 21 15.0 10
8-DS304Y-M42 M42×4.5 17 34 13 26 18.2 13 13 27.3 19.5 13
8-DS304Y-M45 M45×4.5 17 34 13 26 18.2 13 13 27.3 19.5 13
8-DS304Y-M48 M48×5.0 18 36 14 28 19.6 14 14 29.4 21.0 14
8-DS304Y-M52 M52×5.0 25 50 20 40 28 20 20 42 30 20
8-DS304Y-M56 M56×5.5 28 56 20 40 28 20 20 42 30 20
8-DS304Y-M60 M60×5.5 28 56 20 40 28 20 20 42 30 20
8-DS304Y-M64 M64×6.0 28 56 20 40 28 20 20 42 30 20
8-DS304Y-M72S M72×6.0 31.5 63 25 50 35 25 25 52.5 37.5 25
8-DS304Y-M80S M80×6.0 38 76 30 60 42 30 30 63 45.0 30
8-DS304Y-M90S M90×6.0 40 80 35 70 49 35 35 73.5 52.5 35
8-DS304Y-M100S M100×6.0 40 80 35 70 49 35 35 73.5 52.5 35
8-DS304Y-M72B M72×6.0 40 80 31.5 63 44.1 31.5 31.5 66.2 47.3 31.5
8-DS304Y-M80B M80×6.0 40 80 35 70 49 35 35 73.5 52.5 35
8-DS304Y-M90B M90×6.0 50 100 40 80 56 40 40 84 60 40
8-DS304Y-M100B M100×6.0 50 100 40 80 56 40 40 84 60 40
8-DS304Y-M110 M110×6.0 50 100 50 100 70 50 50 105 75 50
8-DS304Y-M120 M120×6.0 50 100 50 100 70 50 50 105 75 50
8-DS304Y-M130 M130×6.0 50 100 50 100 70 50 50 105 75 50
8-DS304Y-M140 M140×6.0 50 100 50 100 70 50 50 105 75 50
8-DS304Y-M150 M150×6.0 50 100 50 100 70 50 50 105 75 50


UNC Thread:

ITEM NO. WLL/T Thread Dimensional Parameters   mm Locking Torque/Nm Weight/Kg
M TPI E A±2 B±3 C D F±3 G K
8-DS304Y-5/16 0.4 5/16 18 12 30 43.5 54 12 97.5 40 37 10-40 0.43
8-DS304Y-3/8 0.6 3/8 16 19 30 43.5 54 12 97.5 40 37 10-40 0.43
8-DS304Y-1/2 0.7 1/2 13 19 30 43.5 54 12 97.5 40 37 15-40 0.45
8-DS304Y-5/8 1.5 5/8 11 31.8 30 43.5 54 12 97.5 40 37 45-130 0.47
8-DS304Y-1/2B 1.05 1/2 13 19 34 54.5 78 16 132.5 59 54.5 15-40 1.3
8-DS304Y-5/8B 1.9 5/8 11 30 34 54.5 78 16 132.5 59 54.5 45-130 1.3
8-DS304Y-3/4S 1.9 3/4 10 30 34 54.5 78 16 132.5 59 54.5 45-130 1.3
8-DS304Y-7/8S 2 7/8 9 30 34 54.5 78 16 132.5 59 54.5 100-170 1.4
8-DS304Y-1S 3.15 1 8 30 34 54.5 78 16 132.5 59 54.5 190-280 1.4
8-DS304Y-3/4B 2 3/4 10 38.1 40 67 93 20 160 70 64.5 45-130 2.3
8-DS304Y-7/8B 2.5 7/8 9 38.1 40 67 93 20 160 70 64.5 100-170 2.3
8-DS304Y-1B 4 1 8 38.1 40 67 93 20 160 70 64.5 190-280 2.4
8-DS304Y-1-1/4 6 1-1/4 7 50 51 95 111 22 206 79 74 270-600 3.8
8-DS304Y-1-1/2 10 1-1/2 6 54 51 95 111 22 206 79 74 270-600 4
8-DS304Y-1-3/4 13 1-3/4 5 68 65 108 122.5 26 230.5 93 85 350-800 6
8-DS304Y-2S 14 2 4.5 68 65 108 122.5 26 230.5 93 85 350-800 6.3
8-DS304Y-2B 17 2 4.5 84 70 120 158 32 278 105 95 350-800 9.8
8-DS304Y-2-1/4 20 2-1/4 4.5 84 70 120 158 32 278 105 95 350-900 10.2
8-DS304Y-2-1/2 20 2-1/2 4 95 70 120 158 32 278 105 95 350-900 10.8
8-DS304Y-3S 25 3 4 108 80 123 210 40 333 158 142 500-1400 25.75
8-DS304Y-3-1/2S 35 3-1/2 4 135 80 123 210 40 333 158 142 500-1400 28.4
8-DS304Y-4S 35 4 4 135 80 123 210 40 333 158 142 500-1700 30.4

Safety factor 4:1; Bolt length and thread specifications can be made according to requirements. B is the general structure, S is the small body structure.

Lifting method Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier, Factory G80 Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier, Factory lifting points - Dawson Group Ltd. - China Manufacturer, Supplier, Factory G80 lifting points - Dawson Group Ltd. - China Manufacturer, Supplier, Factory Grade 80 Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier, Factory G80 Swivel Hoist Ring - China Supplier Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier, Factory Grade 80 lifting points - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Number 1 2 1 2 2 2 3-4 3-4
Angle 0° 0° 90° 90° 0-45° 45-60° asymmetric 0-45° 45-60° asymmetric
Item No. Thread/UNC WLL/T
8-DS304Y-5/16 5/16 0.6 1.2 0.4 0.8 0.6 0.4 0.4 0.8 0.6 0.4
8-DS304Y-3/8 3/8 0.9 1.8 0.6 1.2 0.8 0.6 0.6 1.3 0.9 0.6
8-DS304Y-1/2 1/2 1.2 2.4 0.7 1.4 1.0 0.7 0.7 1.5 1.1 0.7
8-DS304Y-5/8 5/8 2.6 5.2 1.5 3.0 2.1 1.5 1.5 3.2 2.3 1.5
8-DS304Y-1/2B 1/2 1.6 3.2 1.05 2.1 1.5 1.1 1.1 2.2 1.6 1.1
8-DS304Y-5/8B 5/8 3.0 6.0 1.9 3.8 2.7 1.9 1.9 4.0 2.9 1.9
8-DS304Y-3/4S 3/4 3.0 6.0 1.9 3.8 2.7 1.9 1.9 4.0 2.9 1.9
8-DS304Y-7/8S 7/8 3.5 7.0 2.0 4.0 2.8 2.0 2.0 4.2 3.0 2.0
8-DS304Y-1S 1 5.0 10.0 3.15 6.3 4.4 3.2 3.2 6.6 4.7 3.2
8-DS304Y-3/4B 3/4 3.6 7.2 2.0 4.0 2.8 2.0 2.0 4.2 3.0 2.0
8-DS304Y-7/8B 7/8 4.0 8.0 2.5 5.0 3.5 2.5 2.5 5.3 3.8 2.5
8-DS304Y-1B 1 7.0 14.0 4.0 8.0 5.6 4.0 4.0 8.4 6.0 4.0
8-DS304Y-1-1/4 1-1/4 10.0 20.0 6.0 12.0 8.4 6.0 6.0 12.6 9.0 6.0
8-DS304Y-1-1/2 1-1/2 15.0 30.0 10.0 20.0 14.0 10.0 10.0 21.0 15.0 10.0
8-DS304Y-1-3/4 1-3/4 17.0 34.0 13.0 26.0 18.2 13.0 13.0 27.3 19.5 13.0
8-DS304Y-2S 2 18.0 36.0 14.0 28.0 19.6 14.0 14.0 29.4 21.0 14.0
8-DS304Y-2B 2 25.0 50.0 17.0 34.0 23.8 17.0 17.0 35.7 25.5 17.0
8-DS304Y-2-1/4 2-1/4 25.0 50.0 20.0 40.0 28.0 20.0 20.0 42.0 30.0 20.0
8-DS304Y-2-1/2 2-1/2 28.0 56.0 20.0 40.0 28.0 20.0 20.0 42.0 30.0 20.0
8-DS304Y-3S 3 31.5 63.0 25.0 50.0 35.0 25.0 25.0 52.5 37.5 25.0
8-DS304Y-3-1/2S 3-1/2 40.0 80.0 35.0 70.0 49.0 35.0 35.0 73.5 52.5 35.0
8-DS304Y-4S 4 40.0 80.0 35.0 70.0 49.0 35.0 35.0 73.5 52.5 35.0

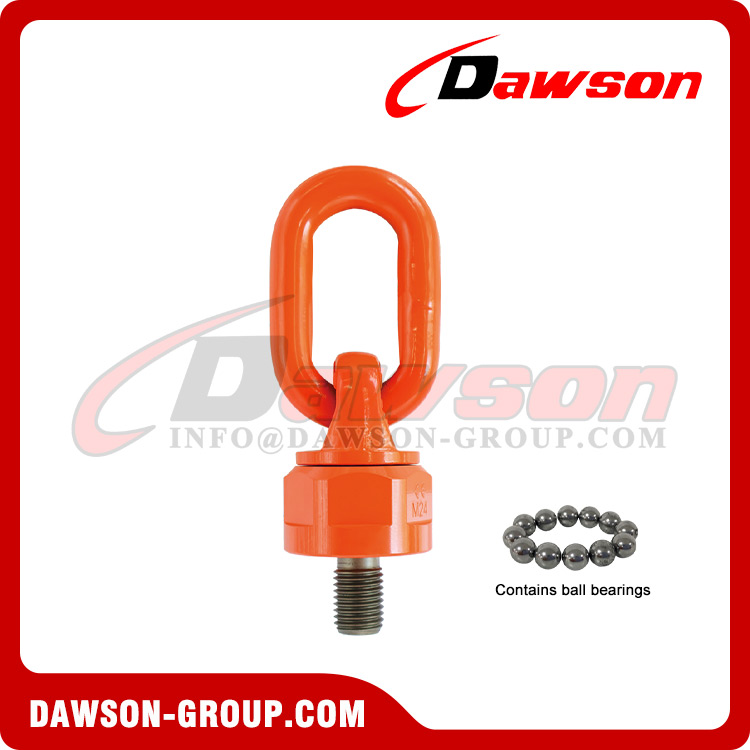

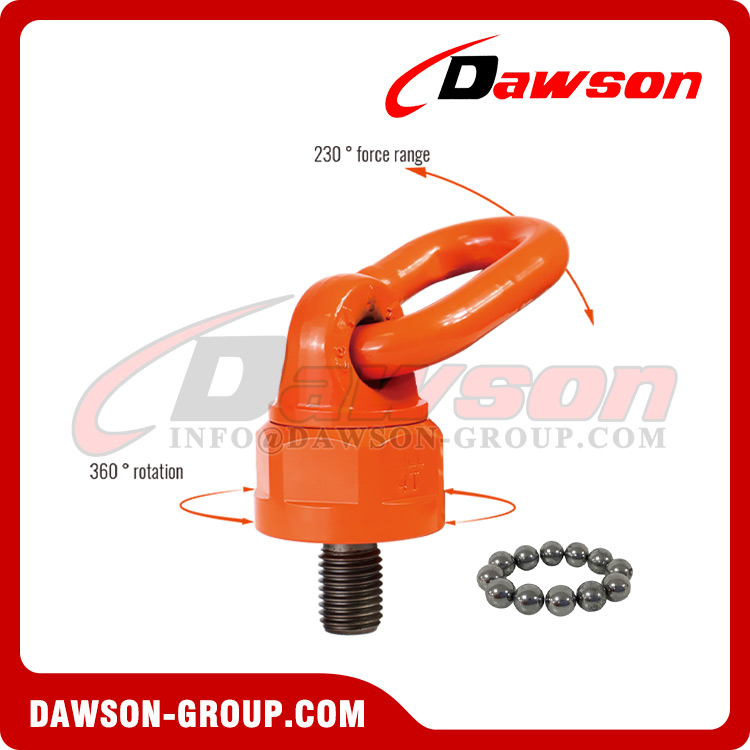

360 ° rotation&230 ° force range, built-in ball structure, uniform force distribution, smooth rotation. When the direction of force changes, the lifting ring rotates with the direction of force without twisting.

The load that can be lifted varies depending on the direction of force, but a safety factor of 4 is guaranteed.

High strength, the bolts are made of precision forged alloy steel, and the tensile strength after quenching and tempering is greater than 1080 MPa. The surface of the lifting ring is electrostatically sprayed to improve its anti-corrosion ability.

Complete thread specifications and wide rated load range (M8-M150, 0.4T-50.0T): Thread sizes can be customized according to customer requirements (extended, shortened, coarse, fine, metric, American, etc.).

The hexagonal design of the lifting ring base allows for easy installation of the lifting point on the lifted object.

After passing the inspection with a 6g plug gauge, it is suitable for precision threaded holes. Mark the rated load and thread diameter on the lifting ring.


Product specifications:

M8 G80 Lifting Screw Point, M10 G80 Lifting Screw Point, M12S G80 Lifting Screw Point, M14 G80 Lifting Screw Point, M16S G80 Lifting Screw Point, M12B G80 Lifting Screw Point, M16B G80 Lifting Screw Point, M18S G80 Lifting Screw Point, M20S G80 Lifting Screw Point, M22S G80 Lifting Screw Point, M18B G80 Lifting Screw Point, M20B G80 Lifting Screw Point, M22B G80 Lifting Screw Point, M24B G80 Lifting Screw Point, M27 G80 Lifting Screw Point, M30S G80 Lifting Screw Point, M30B G80 Lifting Screw Point, M33 G80 Lifting Screw Point, M36 G80 Lifting Screw Point, M39 G80 Lifting Screw Point, M42 G80 Lifting Screw Point, M45 G80 Lifting Screw Point, M48 G80 Lifting Screw Point, M52 G80 Lifting Screw Point, M56 G80 Lifting Screw Point, M60 G80 Lifting Screw Point, M64 G80 Lifting Screw Point, M72S G80 Lifting Screw Point, M80S G80 Lifting Screw Point, M90S G80 Lifting Screw Point, M100S G80 Lifting Screw Point, M72B G80 Lifting Screw Point, M80B G80 Lifting Screw Point, M90B G80 Lifting Screw Point, M100B G80 Lifting Screw Point, M110 G80 Lifting Screw Point, M120 G80 Lifting Screw Point, M130 G80 Lifting Screw Point, M140 G80 Lifting Screw Point, M150 G80 Lifting Screw Point

M8 Grade 80 Swivel Hoist Ring, M10 Grade 80 Swivel Hoist Ring, M12S Grade 80 Swivel Hoist Ring, M14 Grade 80 Swivel Hoist Ring, M16S Grade 80 Swivel Hoist Ring, M12B Grade 80 Swivel Hoist Ring, M16B Grade 80 Swivel Hoist Ring, M18S Grade 80 Swivel Hoist Ring, M20S Grade 80 Swivel Hoist Ring, M22S Grade 80 Swivel Hoist Ring, M18B  80Grade Swivel Hoist Ring, M20B Grade 80 Swivel Hoist Ring, M22B Grade 80 Swivel Hoist Ring, M24B Grade 80 Swivel Hoist Ring, M27 Grade Swivel Hoist Ring, M30S Grade 80 Swivel Hoist Ring, M30B Grade 80 Swivel Hoist Ring, M33 Grade 80 Swivel Hoist Ring, M36 Grade 80 Swivel Hoist Ring, M39 Grade 80 Swivel Hoist Ring, M42 Grade 80 Swivel Hoist Ring, M45 Grade 80 Swivel Hoist Ring, M48 Grade 80 Swivel Hoist Ring, M52 Grade 80 Swivel Hoist Ring, M56 Grade 80 Swivel Hoist Ring, M60 Grade 80 Swivel Hoist Ring, M64 Grade 80 Swivel Hoist Ring, M72S Grade 80 Swivel Hoist Ring, M80S Grade 80 Swivel Hoist Ring, M90S Grade 80 Swivel Hoist Ring, M100S Grade 80 Swivel Hoist Ring, M72B Grade 80 Swivel Hoist Ring, M80B Grade 80 Swivel Hoist Ring, M90B Grade 80 Swivel Hoist Ring, M100B Grade 80 Swivel Hoist Ring, M110 Grade 80 Swivel Hoist Ring, M120 Grade 80 Swivel Hoist Ring, M130 Grade 80 Swivel Hoist Ring, M140 Grade 80 Swivel Hoist Ring, M150 Grade 80 Swivel Hoist Ring

Products Show:

DS304 G80 Lifting Screw Point - Dawson Group Ltd. - China Factory
DS304 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Supplier
DS304 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Factory
DS304 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer
DS304 G80 Lifting Screw Point - Dawson Group Ltd. - China Supplier, Factory
DS304 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS304 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Supplier

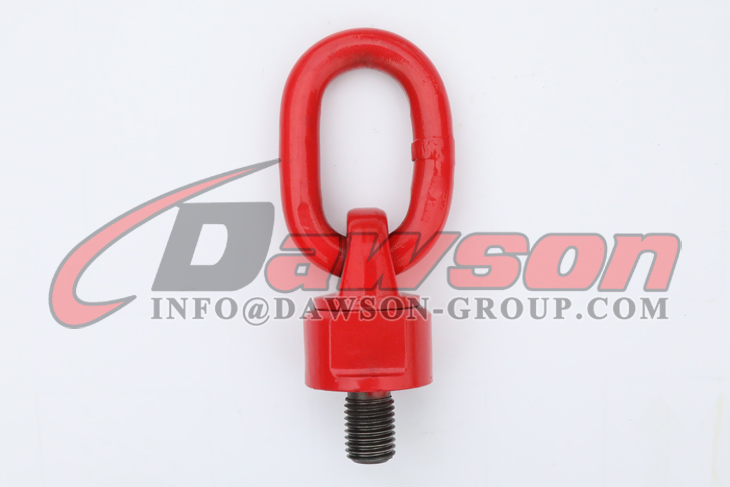

G80 Lifting Screw Point, G80 Alloy Steel Swivel Hoist Ring for Lifting, Grade 80 Screw Type Swivel Lifting Point - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
G80 Alloy Steel Swivel Hoist Ring for Lifting, Grade 80 Screw Type Swivel Lifting Point - Dawson Group Ltd. - China Supplier, Manufacturer, Factory
G80 Lifting Screw Point, G80 Alloy Steel Swivel Hoist Ring for Lifting, Grade 80 Screw Type Swivel Lifting Point - Dawson Group Ltd. - China Supplier, Manufacturer, Factory
Grade 80 Screw Type Swivel Lifting Point, G80 Lifting Screw Point - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
Grade 80 Screw Type Swivel Lifting Point, G80 Lifting Screw Point - Dawson Group Ltd. - China Supplier, Manufacturer, Factory

G80 Lifting Screw Point, G80 Alloy Steel Swivel Hoist Ring for Lifting, Grade 80 Screw Type Swivel Lifting Point - Dawson Group Ltd. - China Factory, Manufacturer, Supplier

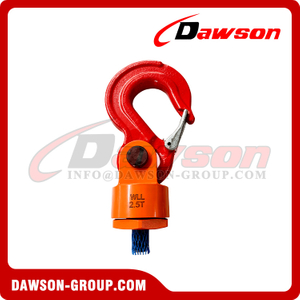

Universal Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
G80 Lifting Screw Point, G80 Alloy Steel Swivel Hoist Ring for Lifting, Grade 80 Screw Type Swivel Lifting Point - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
G80 Lifting Screw Point, G80 Alloy Steel Swivel Hoist Ring for Lifting, Grade 80 Screw Type Swivel Lifting Point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

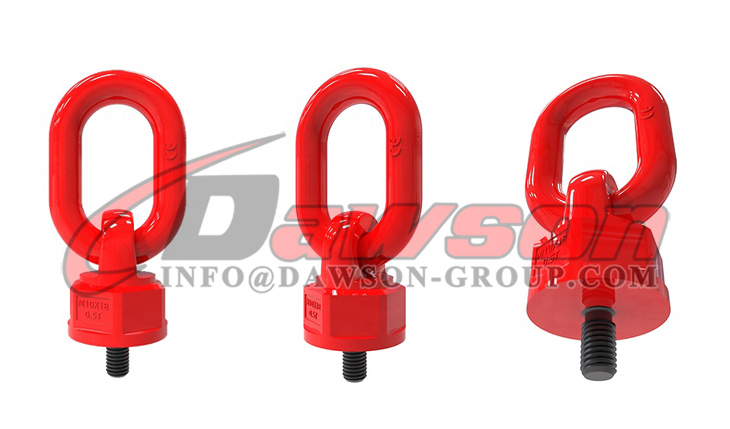

DS304 G80 Lifting Screw Point - Dawson Group Ltd. - China Supplier, Factory
DS304 G80 Lifting Screw Point - Dawson Group Ltd. - Supplier, Factory

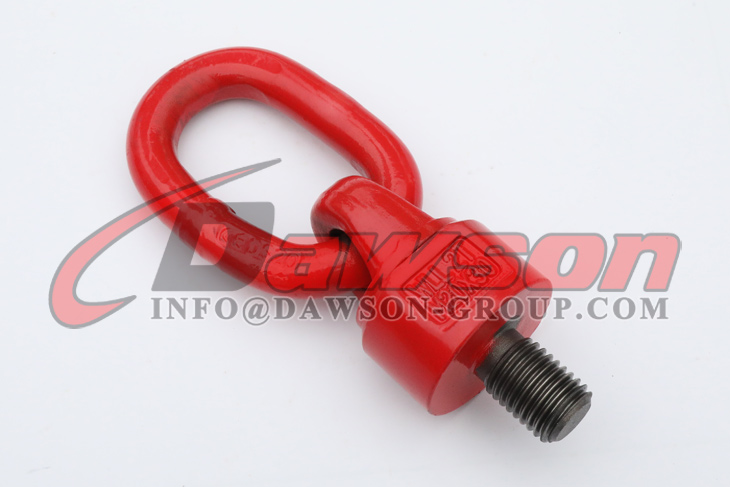

G80 Alloy Steel Swivel Hoist Ring for Lifting, Grade 80 Screw Type Swivel Lifting Point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Grade 80 Screw Type Swivel Lifting Point, G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Grade 80 Screw Type Swivel Lifting Point, G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
Grade 80 Screw Type Swivel Lifting Point, G80 Lifting Screw Point, G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
G80 Lifting Screw Point - Dawson Group Ltd. - China Supplier, Manufacturer, Factory
G80 Lifting Screw Point - Dawson Group Ltd. - China Supplier, Manufacturer
G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Factory, Supplier

G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
Grade 80 Screw Type Swivel Lifting Point, G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Factory, Manufacturer, Supplier

Other Related Products Show:

G80 Swivel Hoist Ring, Duplex Stainless Steel Eye Bolt, Welded Lifting Lug, Angular Contact Bearing Swivels, Pivoting Lifting Screw - Dawson Group Ltd. - China Factory
G80 Swivel Hoist Ring, Duplex Stainless Steel Eye Bolt, Welded Lifting Lug, Angular Contact Bearing Swivels, Pivoting Lifting Screw - Dawson Group Ltd. - China Supplier
DAWSON G80 Lifting Points, Grade 80 Swivel Hoist Ring, Eye Type Rotating Ring, Welded Hook - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DAWSON G80 Eye Type Rotating Ring with Key Wrench, New Design Swivel Hoist Ring, Grade 80 Lifting Points - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DAWSON DS173 G80 M8-M64 Pivoting Lifting Screw, G80 Lifting Points - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
G80 Lifting Points - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
G80 Lifting Points, Grade 80 Lifting Point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DAWSON Metric Thread G80 Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS173 G80 Pivoting Lifting screw - Dawson Group Ltd. - China Manufacturer, Factory
G80 Lifting Screw Point - Dawson Group Ltd. - Manufacturer, Factory
G80 Motor Rotating Hoist Ring - Dawson Group Ltd. - China Manufacturer, Factory
DAWSON Metric Thread G80 Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS173 G80 Pivoting Lifting screw - Dawson Group Ltd. - China Manufacturer, Factory,Supplier

G80 Lifting Points Catalogues Download:

G80 Lifting Points - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Application Of G80 Lifting Screw Point:

Application for DS304 G80 Lifting Screw Point, Grade 80 Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
application DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

application of DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Supplier

application of DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

application of DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China exporter

application of DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China factory

application of DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China manufacturer

application of DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China supplier

DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Factory

Package of G80 Products:

Package for G80 Grade 80 Forged Alloy Eye Hook, Cleivs Hooks, Master Links - Dawson Group Ltd. - China Manufacturer Supplier, Factory

DAWSON Testing Center:

DAWSON Testing Center - Dawson Group Ltd. - China Manufacturer, Supplier

About DAWSON:

DAWSON About us - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DAWSON Organization - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DAWSON Certificate - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DAWSON Factory - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DAWSON Package - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DAWSON Testing - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DAWSON Products - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DAWSON Operate Globally - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DAWSON FAQ - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

We have any other related products, if you have any intrest, please contact us, info@dawson-group.com!

G80 Lifting Screw Point - China Factory  G80 Swivel Hoist Ring - China Factory - Dawson Group Ltd. - China Manufacturer, Factory, Supplier  G80 Lifting Screw Point Female Type - China Factory
DS292 G80 Lifting Eye Screw with Omega Link - Dawson Group Ltd. - China Supplier, Factory  G80 Pivoting Lifting Screw, Alloy Steel Rotation Side Pull Lifting Points - China Manufacturer Supplier  G80 Motor Rotating Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Grade 80 Eye Type Rotating Ring, G80 Swivel Hoist Ring, Lifting Points - China Supplier, Factory  DAWSON M8-M100 UNC & Metric Thread Double Swivel Shackle G80 Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier, Factory  G80 Heavy Duty Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Factory, Supplier


Previous:
Next:
