DS231 Welded Swivel

Sales Models: Wholesale
Min Order: 10pcs
Ultimate load is 4 times the Working Load Limit.

  • DAWSON/OEM
  • DS231
  • 0.85-4.9kg
Weight/kg:
WLL/T:
B.L/T:
Quantity:

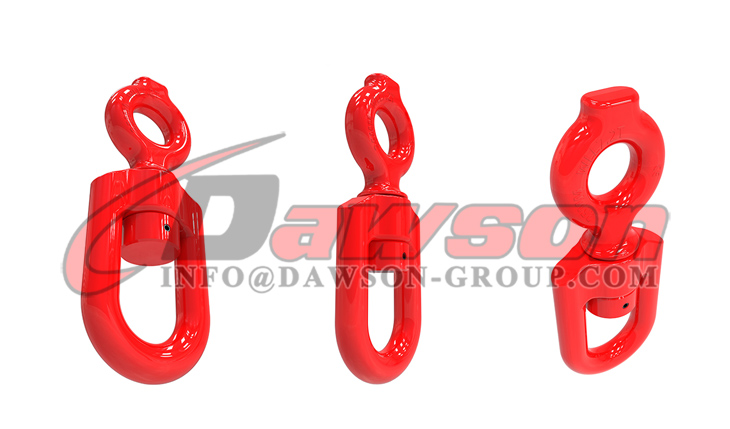

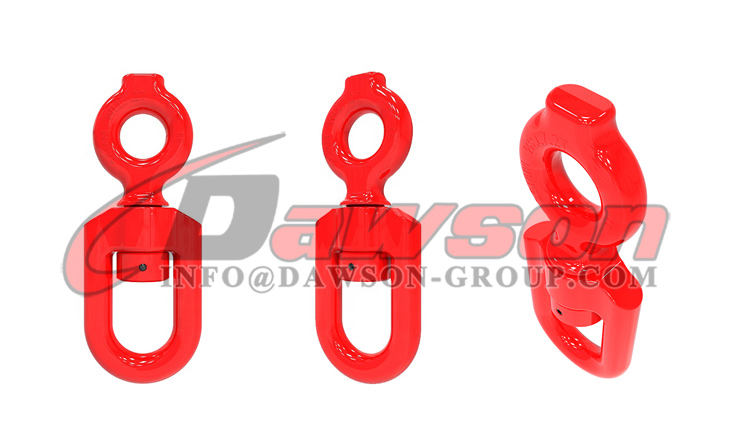

DS231 Welded Swivel
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

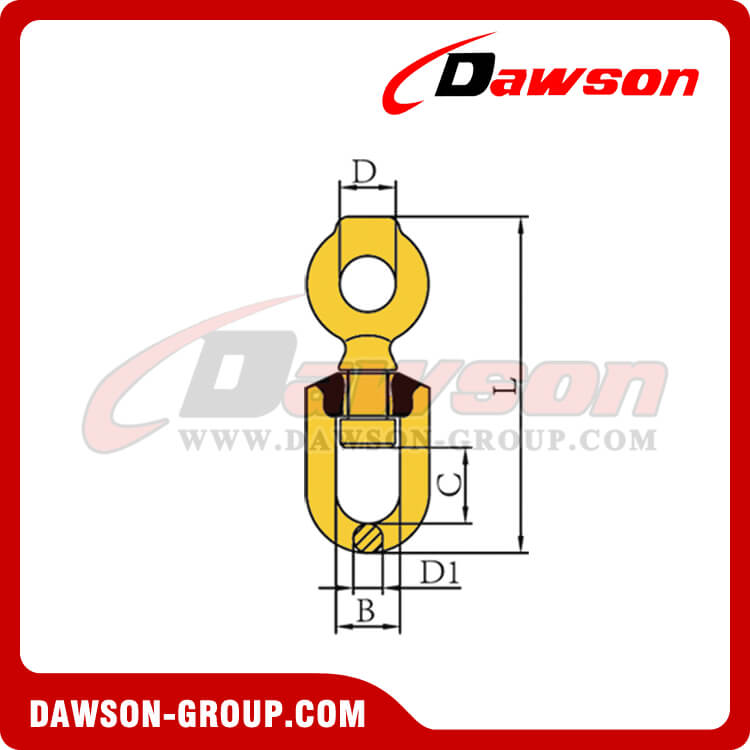

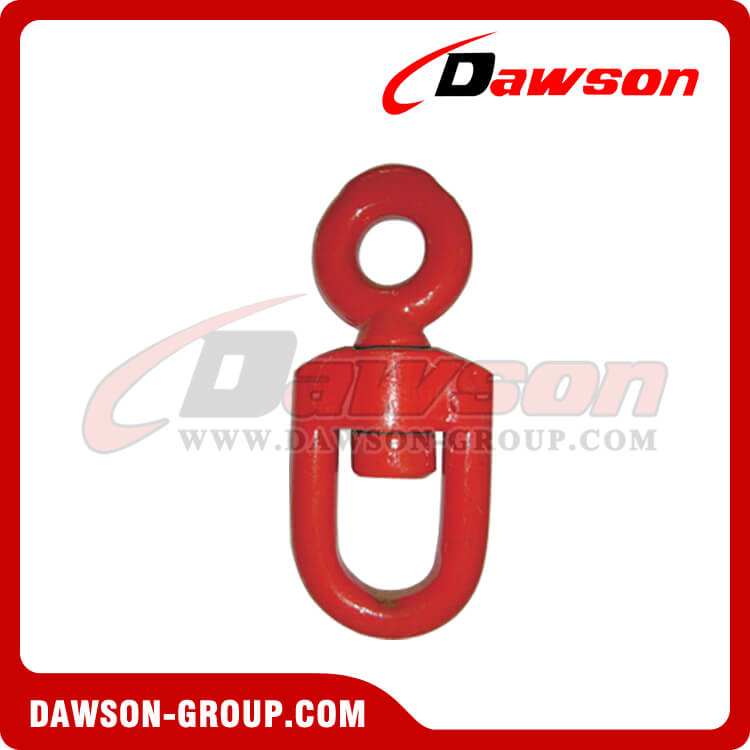

DS231 WELDED SWIVEL      DS231 WELDED SWIVEL DAWSON-GROUP

Item No. Weight/kg WLL/T B.L/T D±1 B±1.5 C±2 D1±1 L±2
DS-231-16 0.85 2.4 12 22 32 32 16 150
DS-231-19 1.33 3.8 19 28 40 42.5 19 188
DS-231-22 2.56 5.3 26.5 47 48 57 22 250
DS-231-25 4.0 7.2 36 37 53 63 25 265
DS-231-28 4.9 9.0 45 37 52 65 28 280
Ultimate load is 4 times the Working Load Limit.

Forged ring and swivel
Supply only on special request.Not for recommendation.
For further information,please contact us.Email:info@dawson-group.com

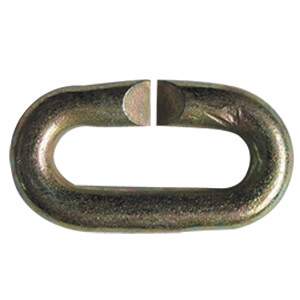

DS407

DS407

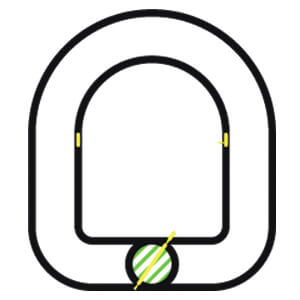

DS693

DS693

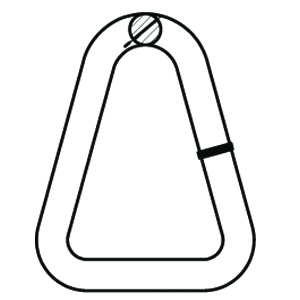

DS408

DS408


Other Related Products:

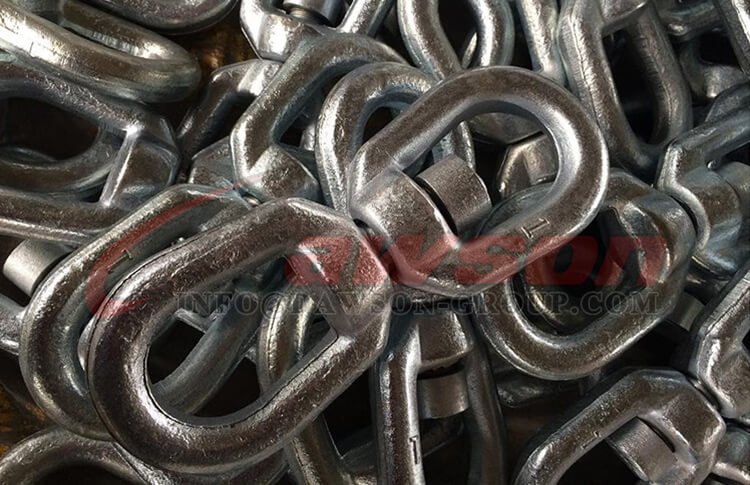

DS246 Forged Swivel China

DS246 Forged Swivel

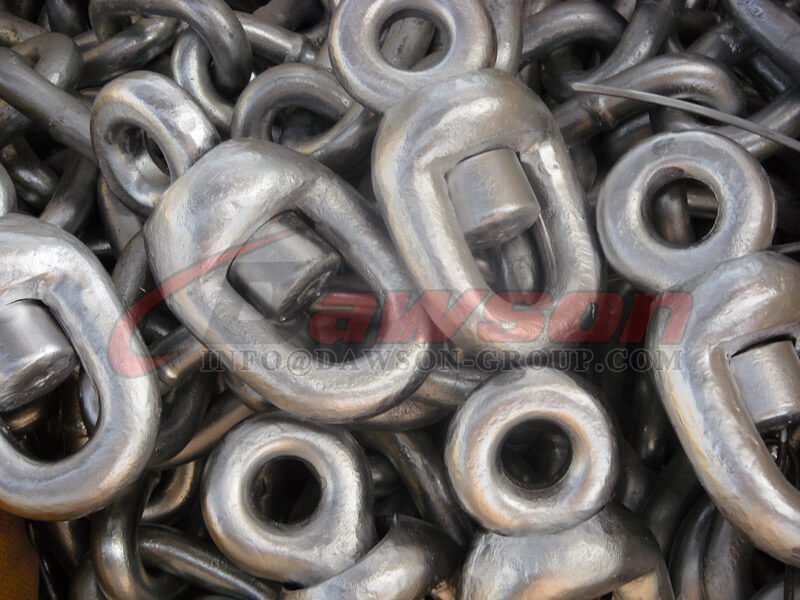

swivel (SW)

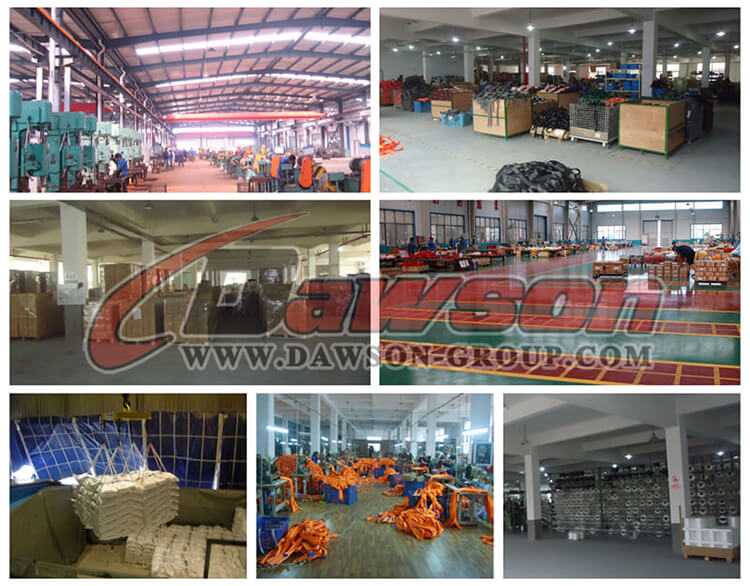

Factory of Welded Swivel - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

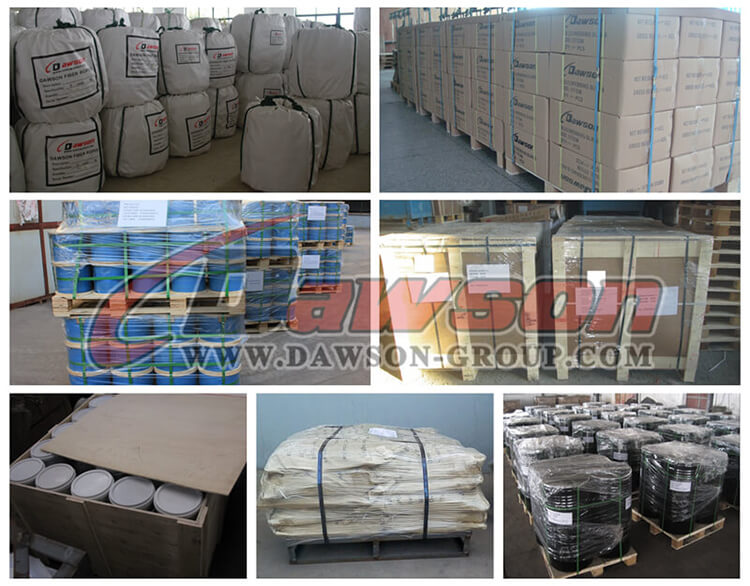

Package of Welded Swivel - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
