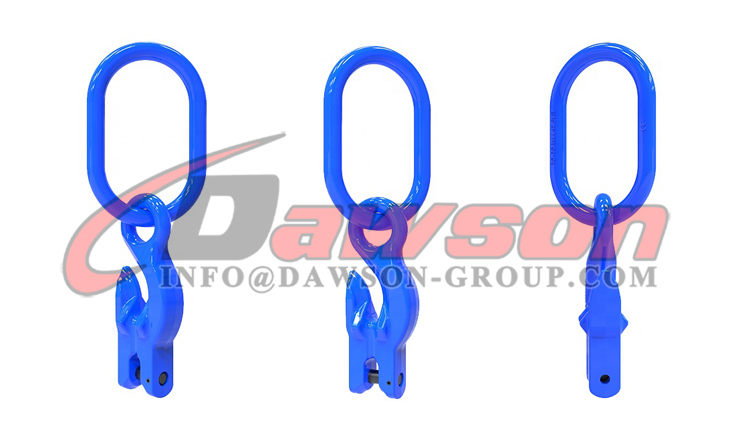

DAWSON/OEM
DS1073
6-20MM
Availability: | |
---|---|
Quantity: | |
Surface finish: Power plastified.
Colour: blue RALcode: RAL5015, other colour is available as per request.
All load pin are 100% individually inspected and tested.
Item No. | Weight(KG) | WLL(T) | B.L(T) | A | B | φD | Fitting 1 | Fitting2 |
10-DS1073-6 | 0.64 | 1.4 | 4.8 | 110 | 60 | 13 | Master Link | DS-1051 6-10 ×1 |
10-DS1073-8 | 1.12 | 2.5 | 10 | 120 | 70 | 14 | Master Link | DS-1051 8-10 ×1 |
10-DS1073-10 | 2.08 | 4 | 16 | 140 | 80 | 17 | Master Link | DS-1051 10-10 ×1 |
10-DS1073-13 | 3.84 | 6.7 | 26.8 | 160 | 95 | 22 | Master Link | DS-1051 13-10 ×1 |
10-DS1073-16 | 6.75 | 10 | 40 | 190 | 110 | 25 | Master Link | DS-1051 16-10 ×1 |
10-DS1073-20 | 13.47 | 16 | 64 | 230 | 130 | 32 | Master Link | DS-1051 16-10 ×1 |
Product specifications:
6MM G100 Master Link, 8MM G100 Master Link, 10MM G100 Master Link, 13MM G100 Master Link, 16MM G100 Master Link, 20MM G100 Master Link
6MM Grade 100 Master Link, 8MM Grade 100 Master Link, 10MM Grade 100 Master Link, 13MM Grade 100 Master Link, 16MM Grade 100 Master Link, 20MM Grade 100 Master Link
Grade 100 Rigging Hardware
All the G100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
Welcome to buy the newest and competitive price DAWSON G100 / Grade 100 Master Link with Eye Grab Hook with Clevis Attachment for Adjust Chain Length forged super alloy steel from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

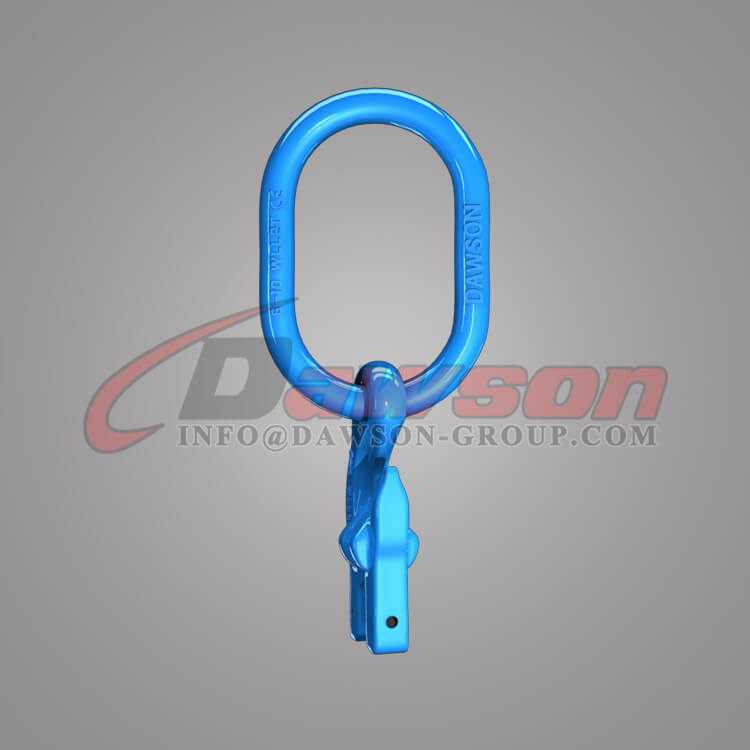

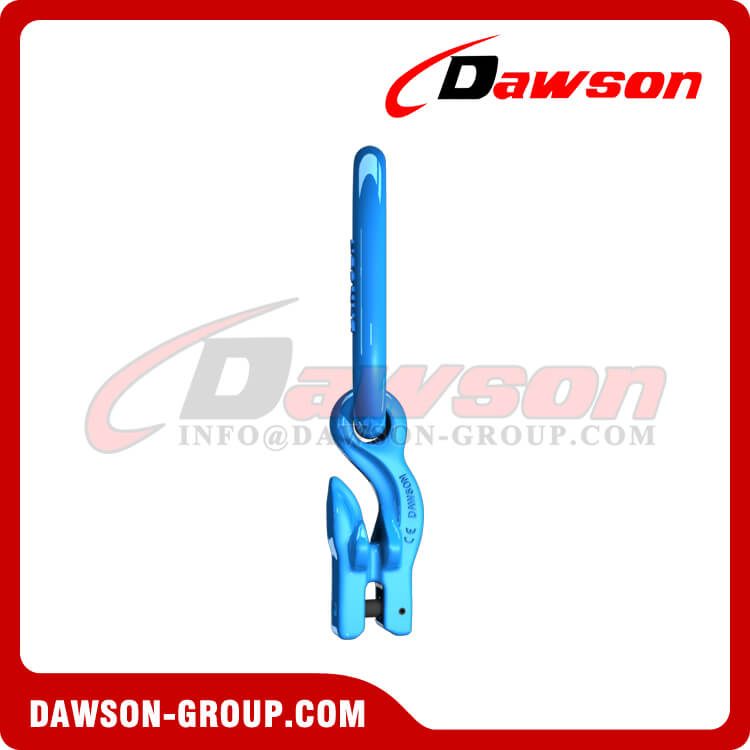

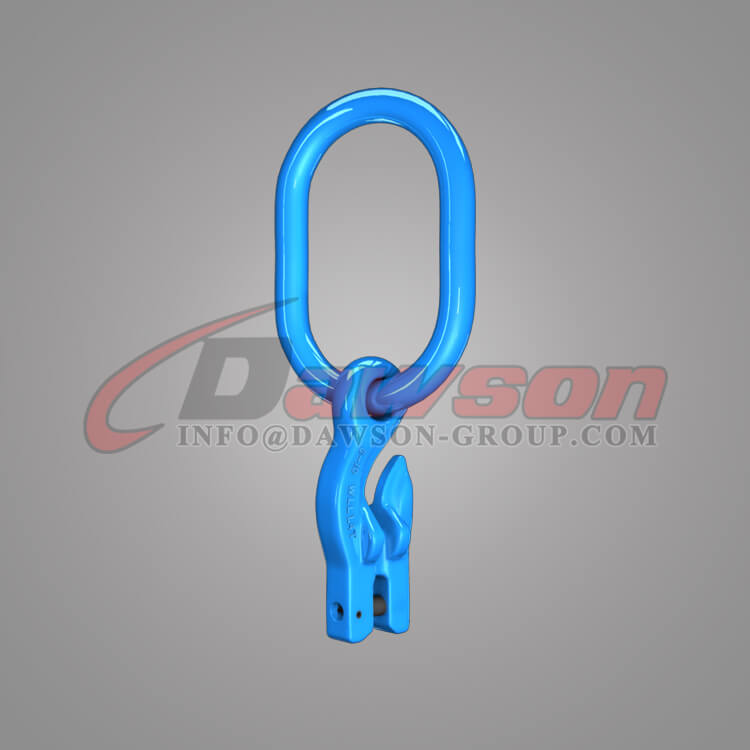

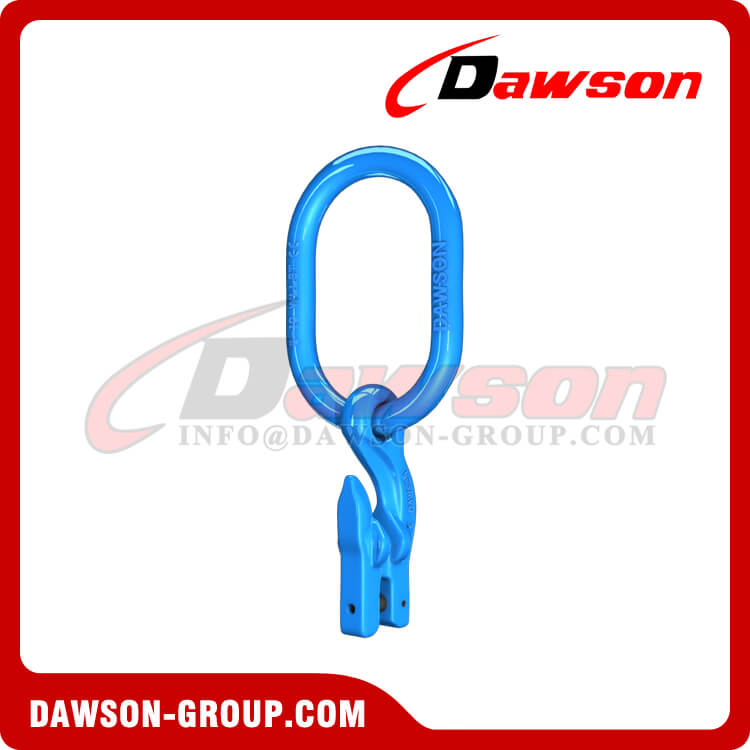

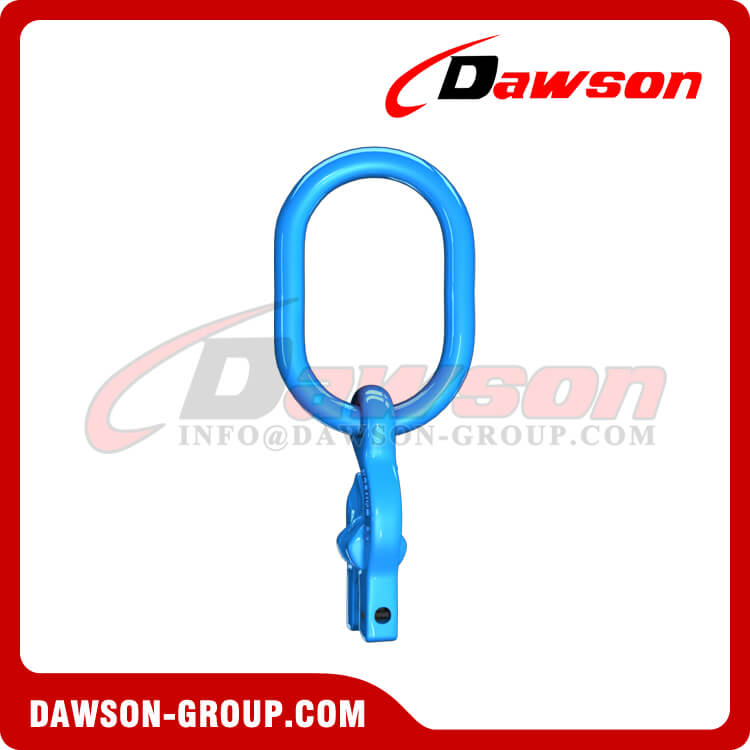

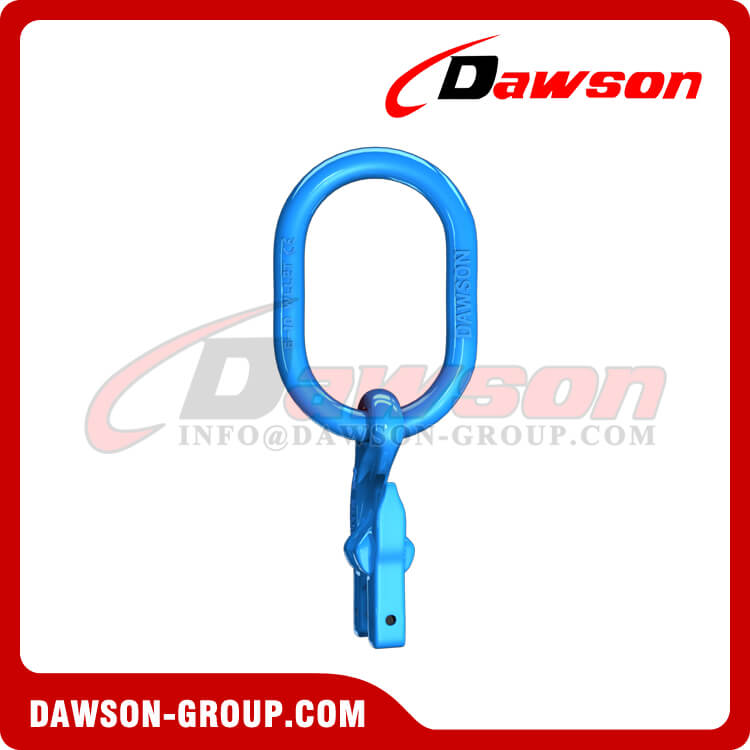

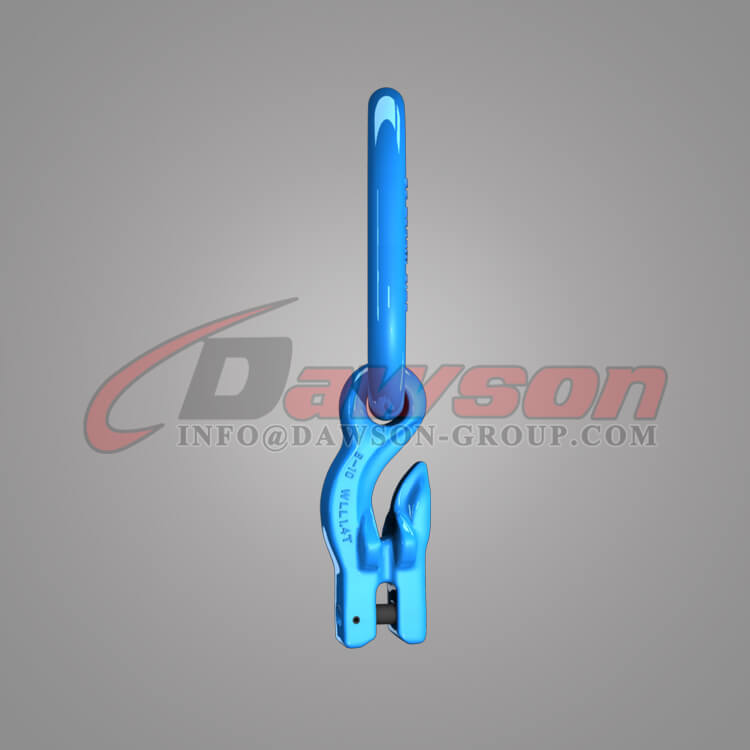

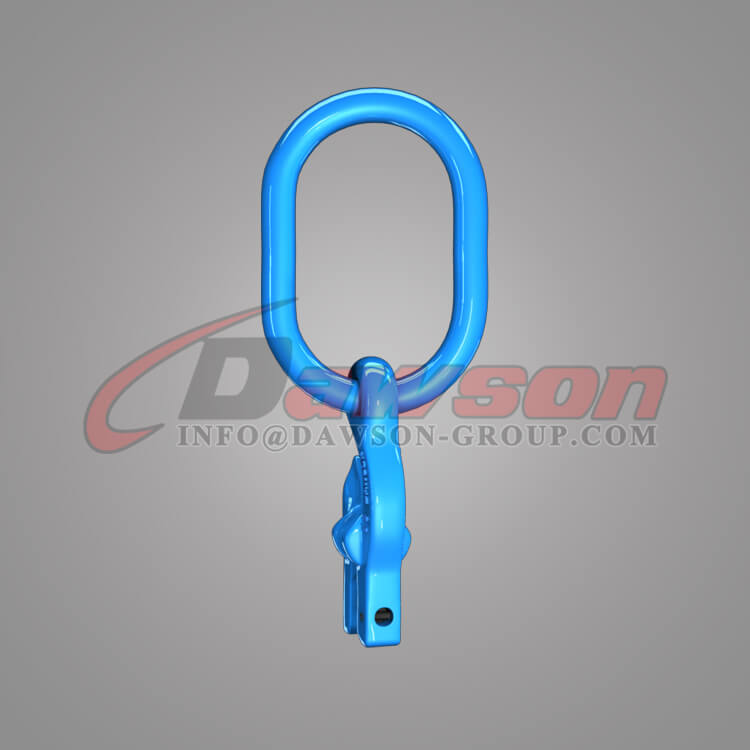

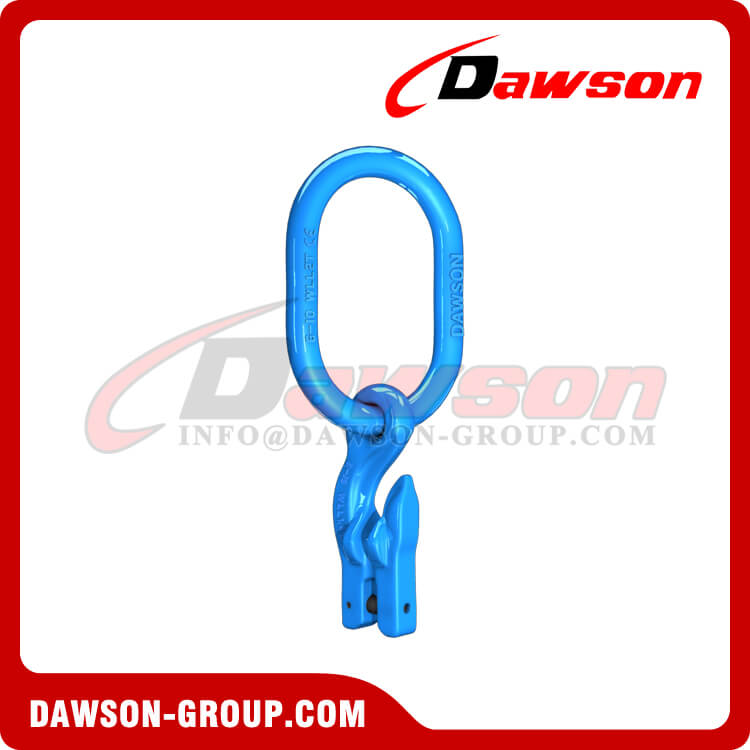

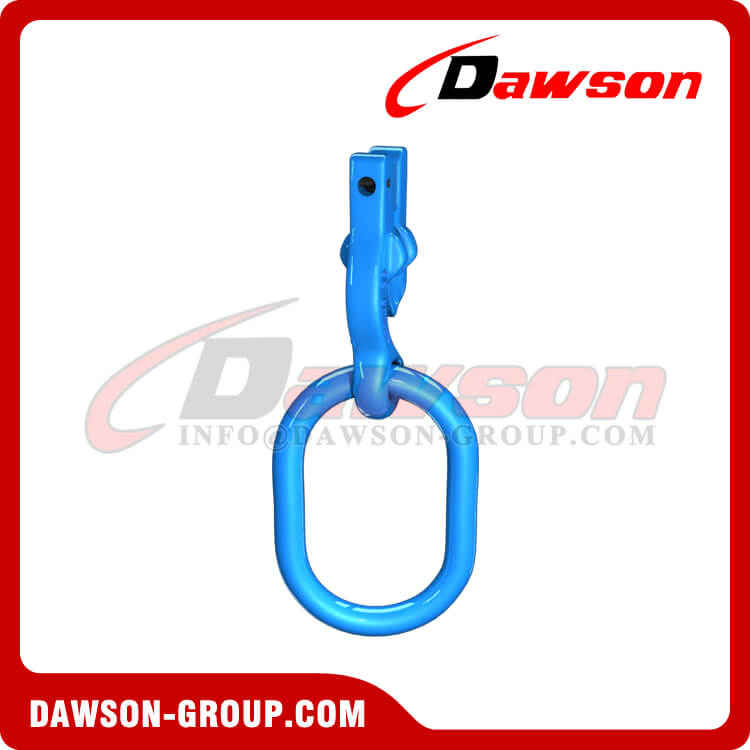

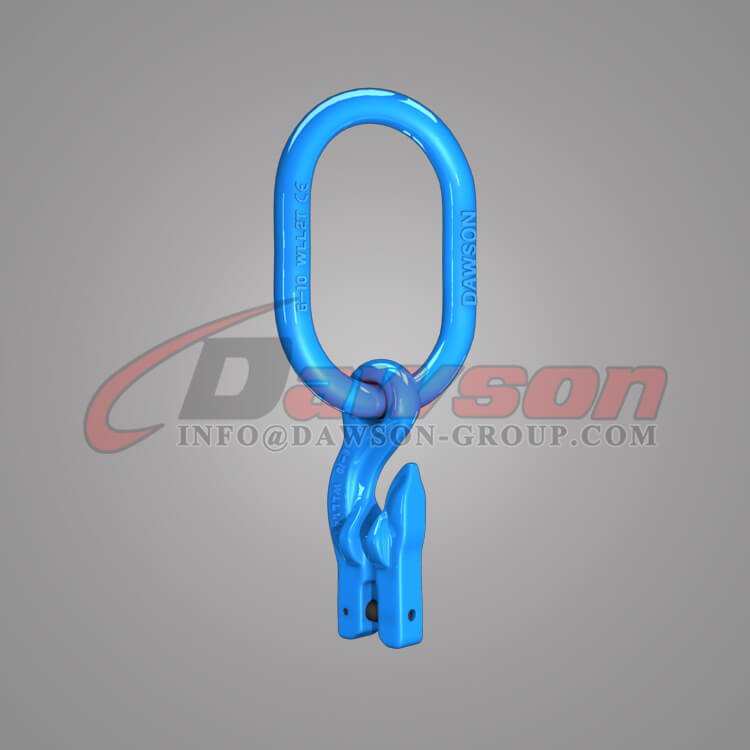

Products Show:
Hot Tags: Master Link, G100 Master Link, Grade 100 Master Link, Master Link for Wire Rope Lifting Slings, Master Link for Adjust Chain Length, Master Link with Grab Hook China Supplier, Master Link Assembly with Grab Hook China Factory, Master Link Assembly China Manufacturer, Forged Alloy Master Link China Exporter, Low Price Master Link with Hook, Master Link with Eye Grab Hook In Stock, Master Link Assembly Free Sample, Cheap Price G100 Master Link, Wholesale Grade 100 Master Link for Chain Slings, Eye Grab Hook with Clevis Attachment, G100 Eye Grab Hook with Clevis Attachment, Grade 100 Eye Grab Hook with Clevis Attachment, Eye Grab Hook with Clevis Attachment for Adjust Chain Length, China Eye Grab Hook with Clevis Attachment Supplier, Eye Grab Hook with Clevis Attachment In Stock, China Eye Grab Hook with Clevis Attachment Manfuacturer, Buy Discount Eye Grab Hook with Clevis Attachment, Hot Sale Eye Grab Hook China, China Eye Grab Hook with Clevis Attachment Exporter
Other Related Products Show:

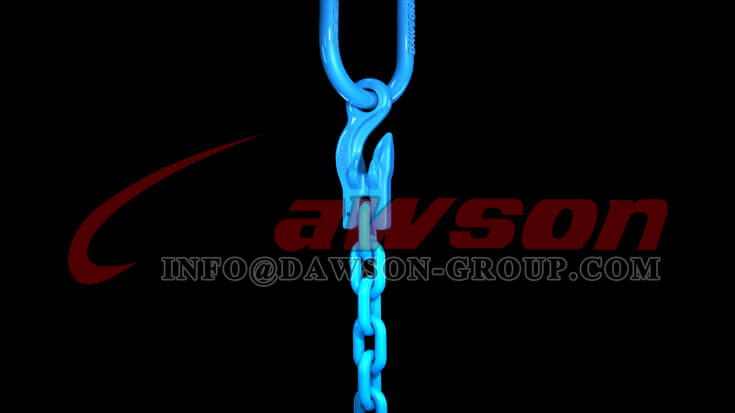

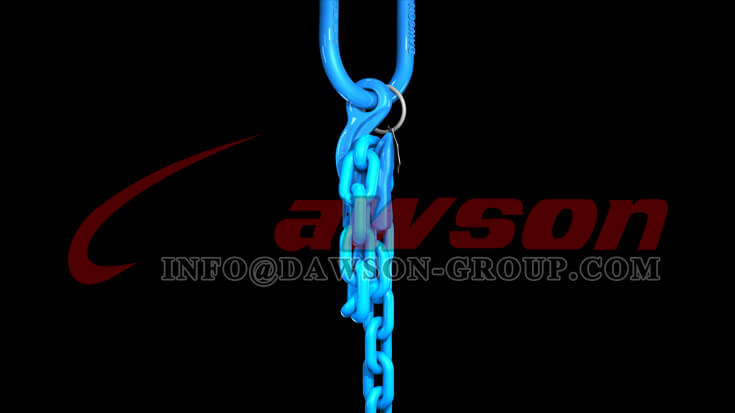

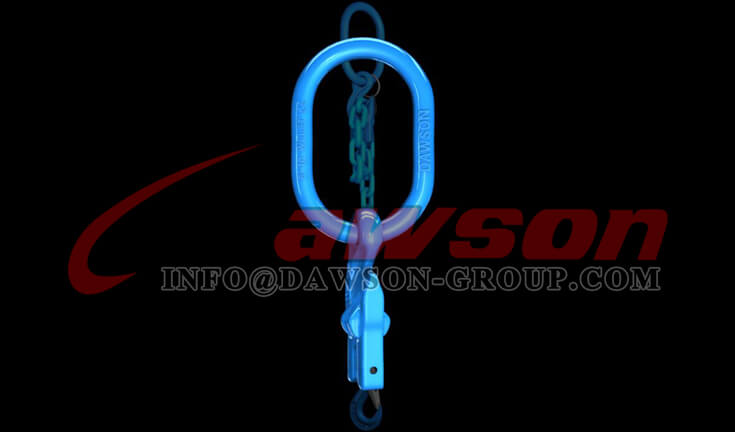

Application of G100 / Grade 100 Master Link with Eye Grab Hook with Clevis Attachment for Adjust Chain Length:
G100 Products Catalogues Download:
DAWSON Testing Center:
About DAWSON:
