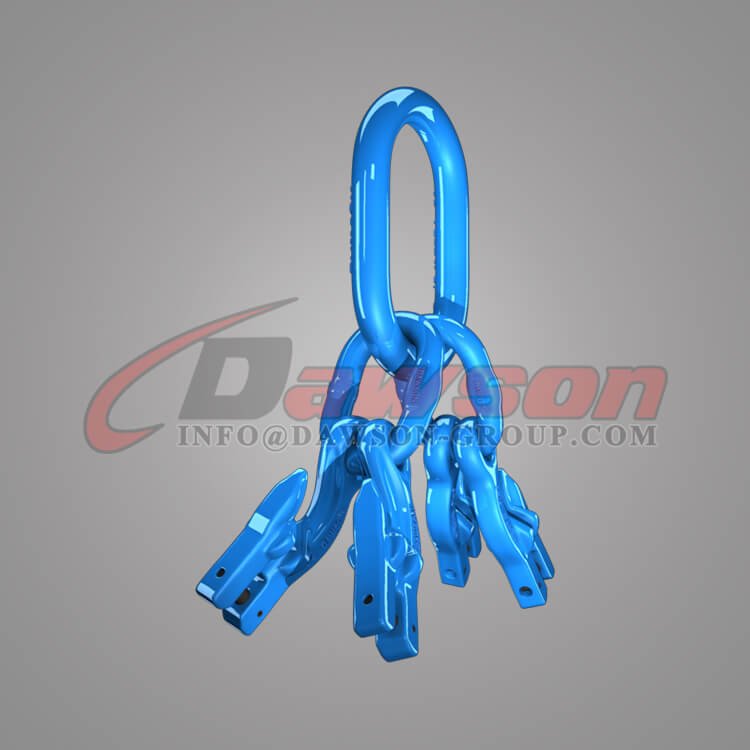

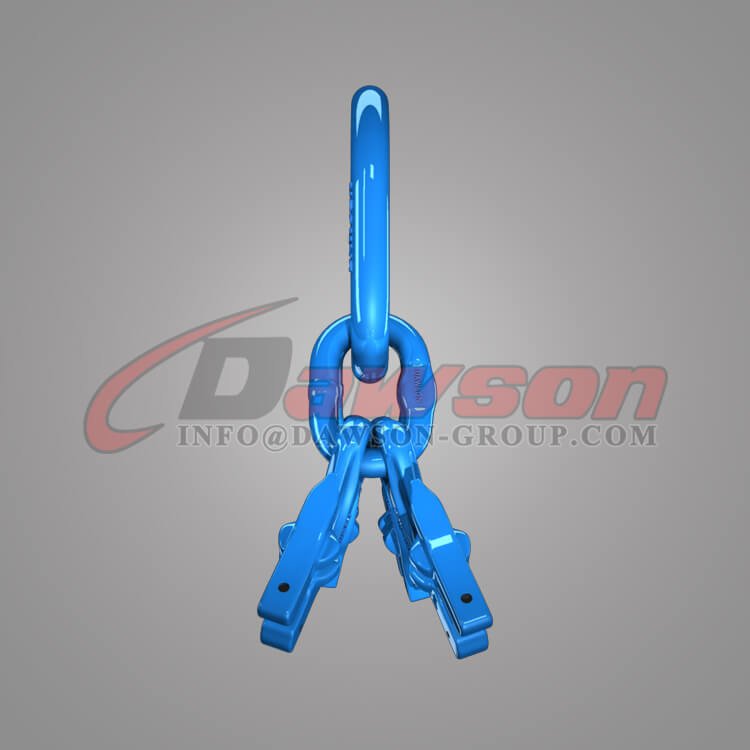

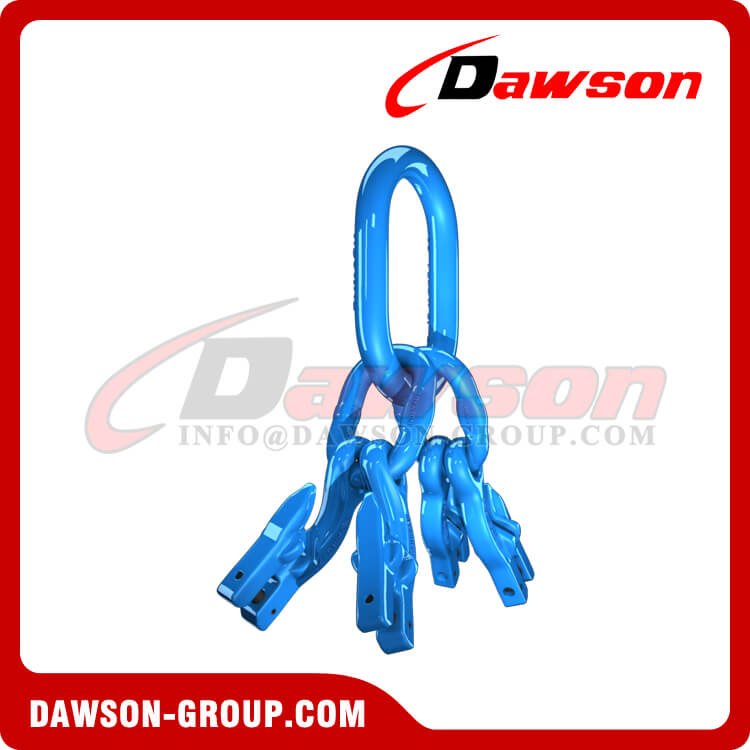

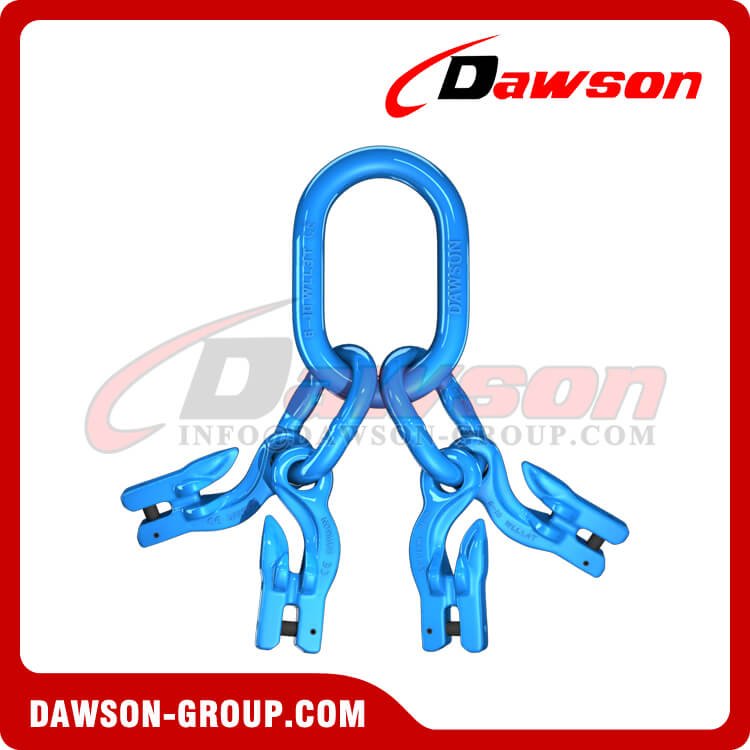

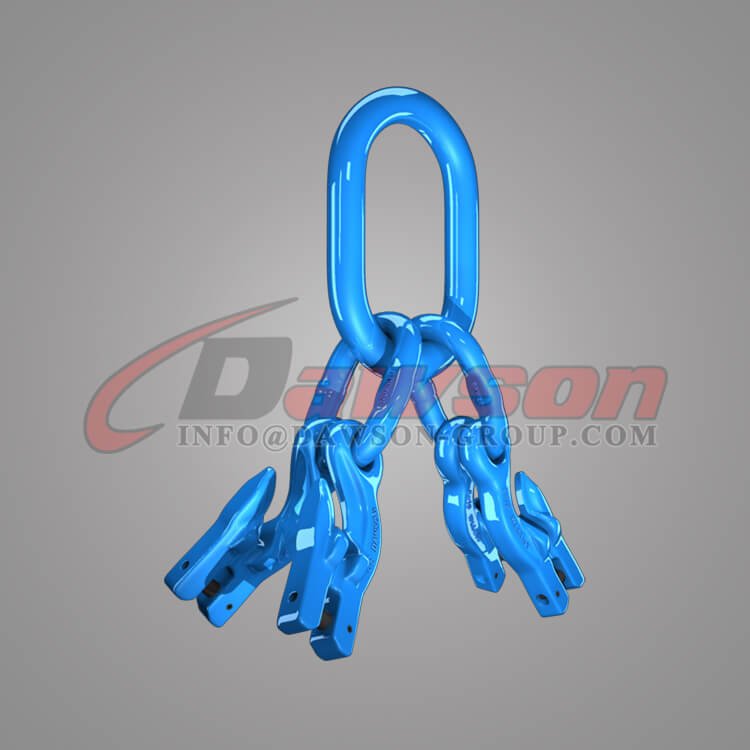

DS1068 G100 / Grade 100 Master Link Assembly + G100 Eye Grab Hook with Clevis Attachment for Adjust Chain Length × 4
Availability: | |
---|---|
Quantity: | |
25% stronger than G80.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Power plastified.
Colour: blue RALcode: RAL5015, other colour is available as per request.
All load pin are 100% individually inspected and tested.
Item No. | Weight(kg) | WLL(T) | B.L(T) | Fitting 1 | Fitting 2 | Master Link Assembly | Hooks |
10-DS1068-6 | 2.5 | 3 | 12 | DS-1012 6-10 Master Link Assembly | DS-1051 6-10 ×4 | 6-10 WLL3T CE DAWSON | 6-10 WLL1.4T CE DAWSON |
10-DS1068-8 | 5.09 | 5.3 | 21.2 | DS-1012 8-10 Master Link Assembly | DS-1051 8-10 ×4 | 8-10 WLL5.3T CE DAWSON | 8-10 WLL2.5T CE DAWSON |
10-DS1068-10 | 9.02 | 8 | 32 | DS-1012 10-10 Master Link Assembly | DS-1051 10-10 ×4 | 10-10 WLL8T CE DAWSON | 10-10 WLL4T CE DAWSON |
10-DS1068-13 | 15.94 | 14 | 48 | DS-1012 13-10 Master Link Assembly | DS-1051 13-10 ×4 | 13-10 WLL14T CE DAWSON | 13-10 WLL6.7T CE DAWSON |
10-DS1068-16 | 28.1 | 21.2 | 84.4 | DS-1012 16-10 Master Link Assembly | DS-1051 16-10 ×4 | 16-10 WLL21.2T CE DAWSON | 16-10 WLL10T CE DAWSON |
Product specifications:
6MM G100 Master Link Assembly, 8MM G100 Master Link Assembly, 10MM G100 Master Link Assembly, 13MM G100 Master Link Assembly, 16MM G100 Master Link Assembly
6MM Grade 100 Master Link Assembly, 8MM Grade 100 Master Link Assembly, 10MM Grade 100 Master Link Assembly, 13MM Grade 100 Master Link Assembly, 16MM Grade 100 Master Link Assembly
Grade 100 Rigging Hardware
All the G100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
Welcome to buy the newest and competitive price DAWSON G100 / Grade 100 Master Link Assembly + G100 Eye Grab Hook with Clevis Attachment for Adjust Chain Length × 4 forged super alloy steel from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

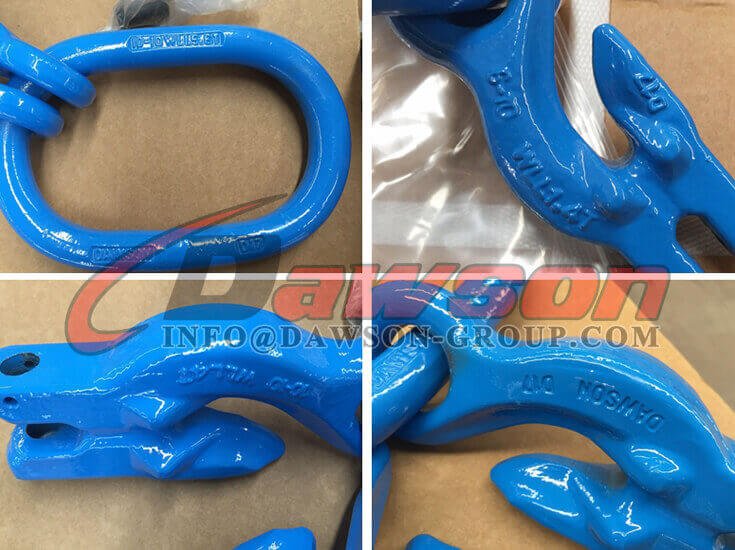

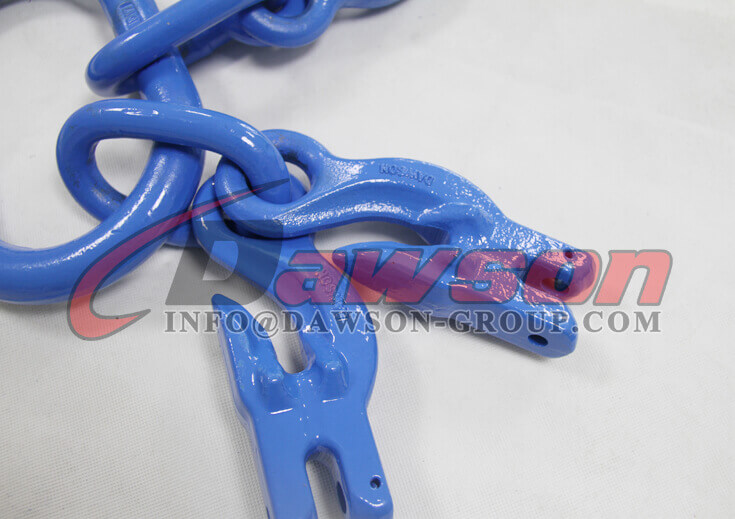

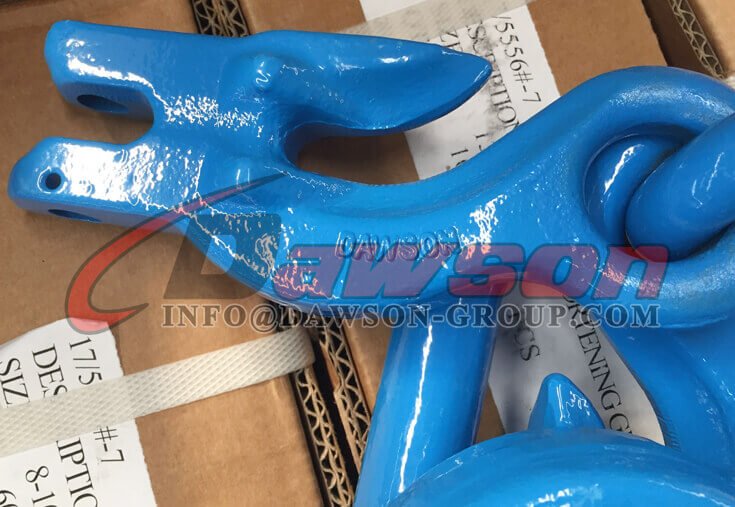

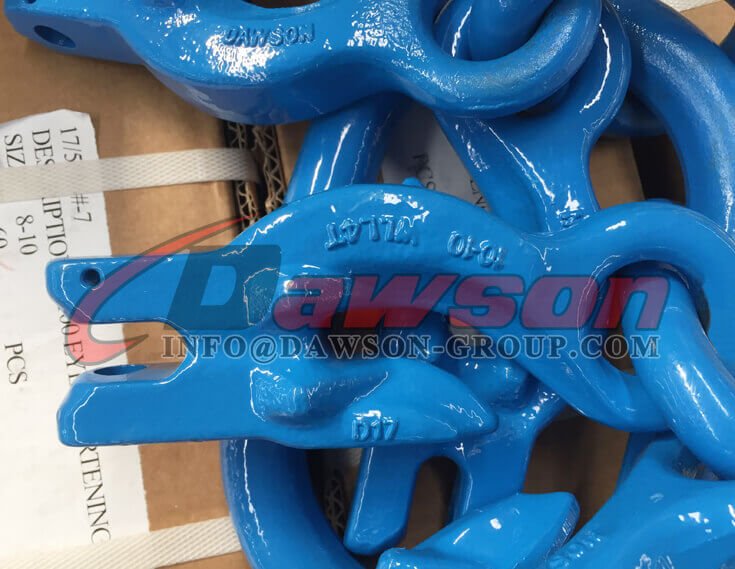

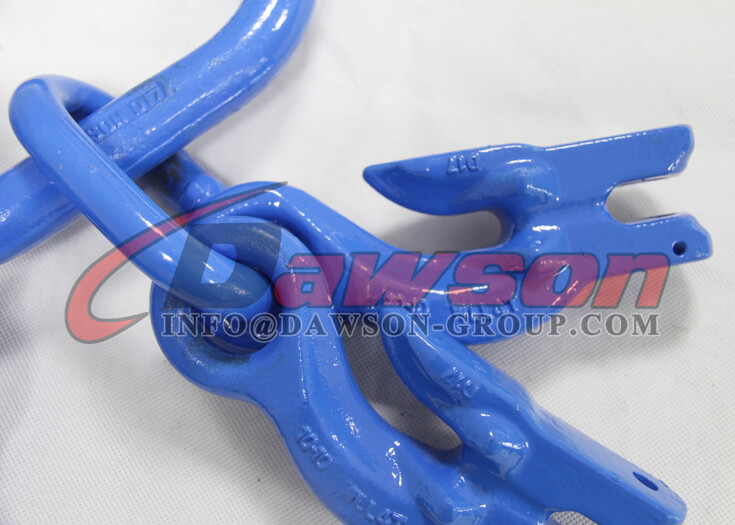

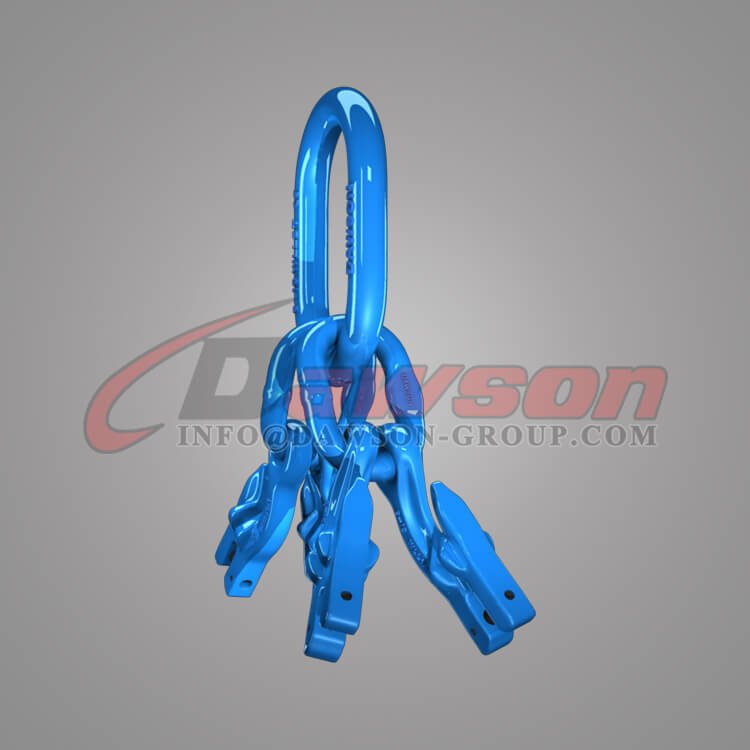

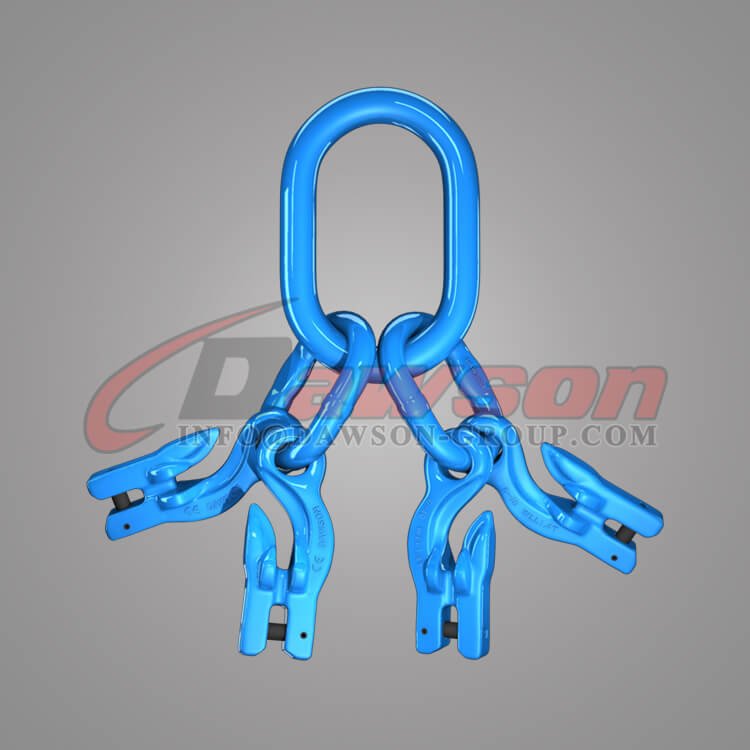

Products Show:

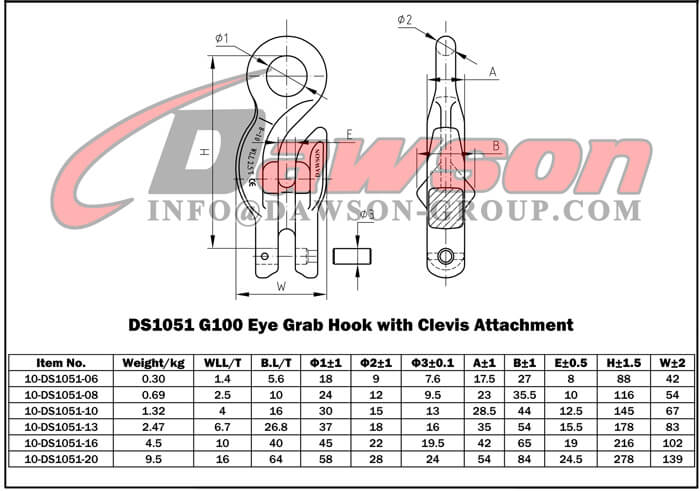

Other related products:

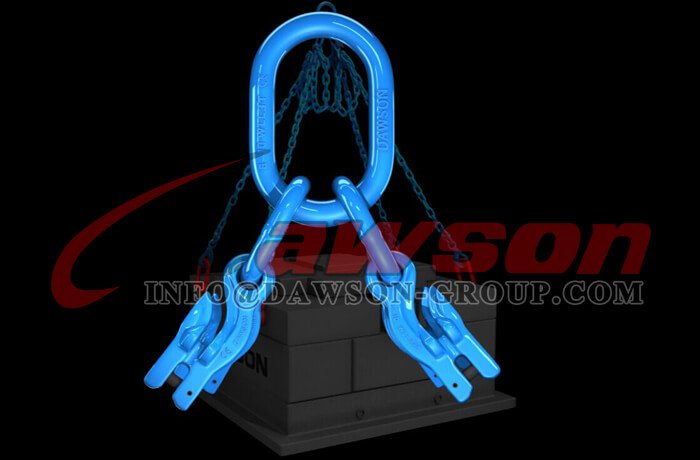

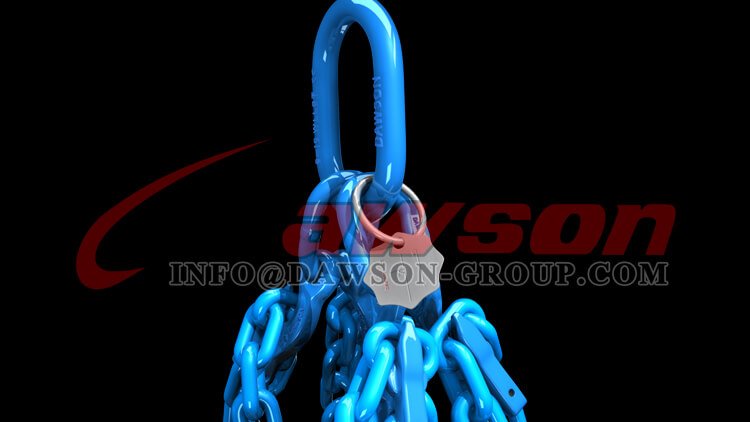

Application of G100 Master Link Assembly + G100 Eye Grab Hook with Clevis Attachment × 4
G100 Products Catalogues Download:

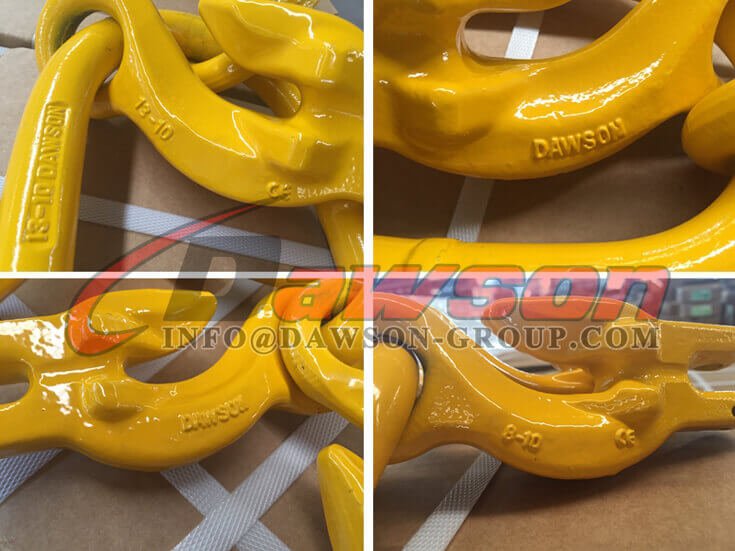

Package & Factory Show:
