25% stronger than G80.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Power plastified.
Colour: blue RALcode: RAL5015, other colour is available as per request.
All load pin are 100% individually inspected and tested.
|Item No.||Weight(kg)||WLL(T)||B.L(T)||A||B||φD||Fitting 1||Fitting2||Master Link||Hooks|
|10-DS1067-6||1.04||2||8||120||70||14||Master Link||DS-1051 6-10 |
|6-10 WLL2T CE DAWSON||6-10 WLL1.4T CE DAWSON|
|10-DS1067-8||2.12||3.55||14.2||140||80||17||Master Link||DS-1051 8-10 |
|8-10 WLL3.55T CE DAWSON||8-10 WLL2.5T CE DAWSON|
|10-DS1067-10||4.15||5.6||22.4||160||95||22||Master Link||DS-1051 10-10 ×2||10-10 WLL5.6T CE DAWSON||10-10 WLL4T CE DAWSON|
|10-DS1067-13||7||9.5||38||190||110||25||Master Link||DS-1051 13-10 ×2||13-10 WLL9.5T CE DAWSON||13-10 WLL6.7T CE DAWSON|
|10-DS1067-16||13.48||14||56||230||130||32||Master Link||DS-1051 16-10 ×2||16-10 WLL14T CE DAWSON||16-10 WLL10T CE DAWSON |
Grade 100 Rigging Hardware
All the G100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
Welcome to buy the newest and competitive price DAWSON G100 / Grade 100 Master Link + G100 Eye Grab Hook with Clevis Attachment for Adjust Chain Length × 2 forged super alloy steel from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

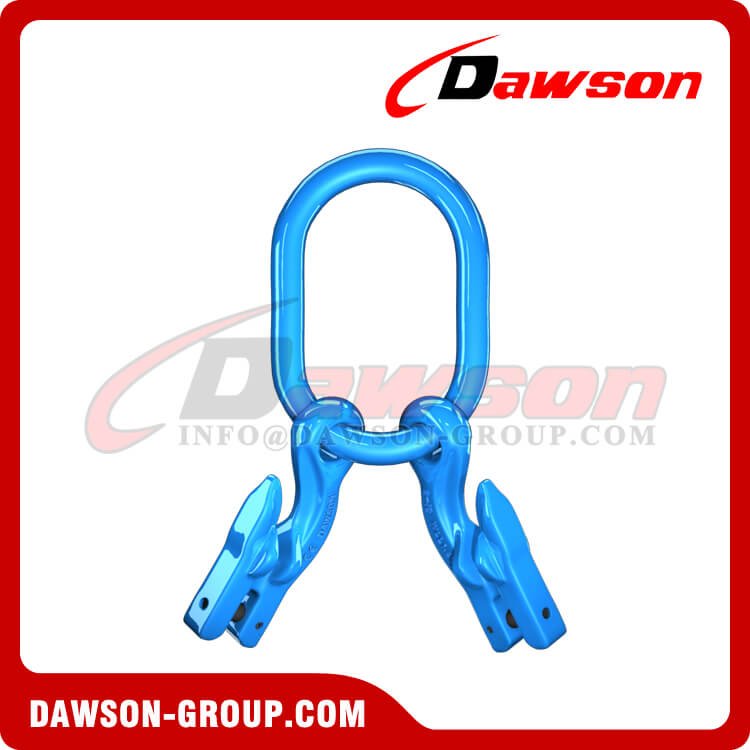

Application of G100 / Grade 100 Forged Master Link + G100 Eye Grab Hook with Clevis Attachment for Adjust Chain Length × 2
G100 Products Catalogues Download:
Package & Factory Show:
