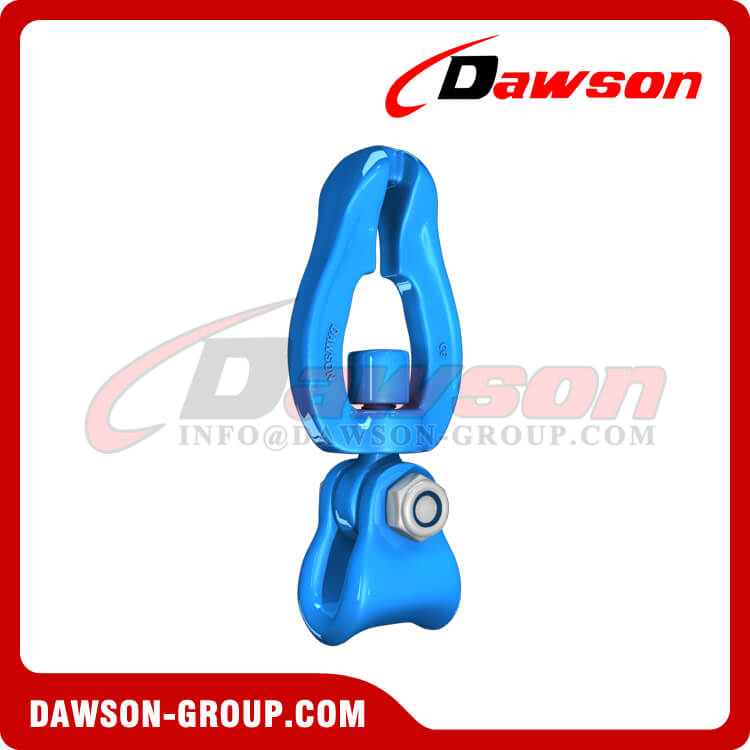

DS1059 G100 / Grade 100 Swivel Chain Connectors for Forestry Logging, Forestry Chain Assemblies
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Forged or welded super alloy steel.
Suitable for use with G100 chain.
25% stronger than G80.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Power plastified Colour: blue RALcode: RAL5015,
All load pin are 100% individually inspected and tested.other colour is available as per request.
| Item No. | Weight/KG | WLL/T | LC/KN | B.L/T | A±1 | B±1 | C±2 | D±1 | E±1 | M±1 | H | R | L±3 |
| 7/8-DS1059-10 | 1.06 | 2.5 | 49 | 10 | 10.5 | 32 | 70 | 28 | 18 | 23 | 32 | 6 | 196
|
Not for lifting, only for logging.
Grade 100 Rigging Hardware
All the G100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
Welcome to buy the newest and competitive price DAWSON G100 / Grade 100 Swivel Chain Connectors for Forestry Logging, Forestry Chain Assemblies from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Other Related G100 COMPONENTS
Supply only on special request. Not for recommendation.
For further information, please contact us. Email:info@dawson-group.com
DS1016 |
DS1017 |
DS1018 |
DS1025 |
DS1026 |
DS1019 |
DS1028 |
|
Products Show:
Hot Tags: Chain Connector, Swivel Chain Connector for Logging, G100 Swivel Connector, Grade 100 Swivel Connector, Forged Steel Swivel Connector In Stock, Swivel Connector for Forestry Logging China, G100 Chain Connector Manufacturer, Grade 100 Swivel Chain Connector Supplier, Chain Connector Factory China, Alloy Steel Chain Connector Exporter, Low Price Steel Chain Rope Connector, Cheap Price Swivel Chain Connector, Hot Sale Swivel Connector for Logging, Forestry Chain Assemblies, Wholesale Swivel Chain Connector
Applicaton of G100 / Grade 100 Swivel Chain Connectors for Forestry Logging, Forestry Chain Assemblies:
