G100 Rigging Hardware
All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.
● It can be matched with G100 chain.
● The performance is increased by 25% compared with G80 products.
● Each work piece should pass testing at 2.5 times of working load limit.
● We should carry out sampling and 20000 times of fatigue testing.
● We should carry out strict sampling and breakage testing for each batch of products.
● We should carry out 100% magnetic powder flaw detection.
● Surface treatment: plastics spraying.
● Color code: Blue RAL5015.
● All sizes are forged.

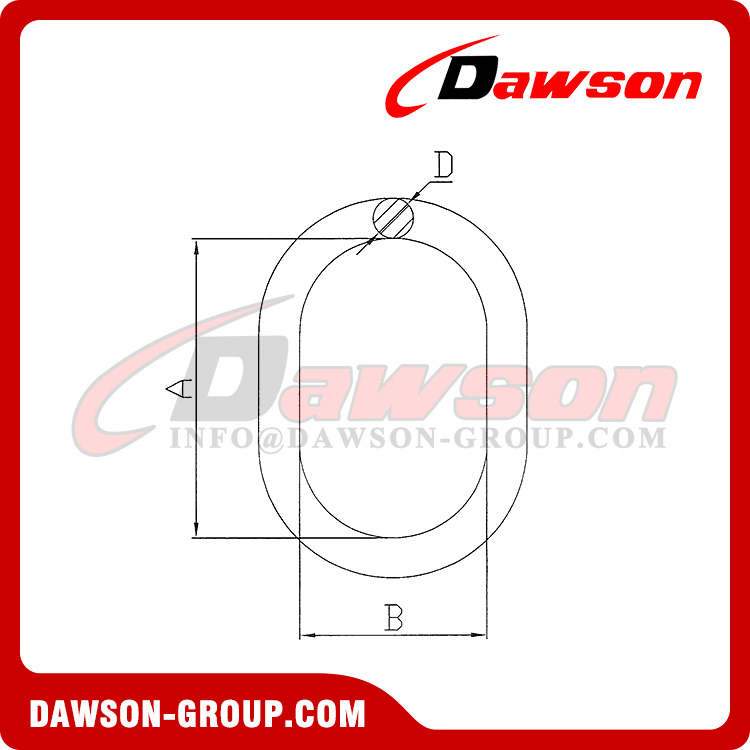

| Item No. | Weight(kg) | Chain | WLL 1 leg(T) | WLL 2 leg(0-45°)(T) | WLL Rope(T) | A | B | D |
| 10-DS1034-1/2 | 0.36 | 1/4 | 2 | 2.8 | 3.4 | 127±5 | 63.5±4 | 13±1 |
| 5/16 | 2.5 | / |
| 10-DS1034-5/8 | 0.7 | 5/16 | 2.5 | 3.55 | 4 | 152±5 | 76±4 | 16±1 |
| 3/8 | / | / |
| 10-DS1034-3/4 | 0.93 | 3/8 | 4 | / | 5.6 | 140±5 | 70±4 | 19±1 |
| 10-DS1034-7/8 | 1.5 | 3/8 | 4 | 5.6 | 6.9 | 160±5 | 90±4 | 22±1 |
| 1/2 | 6.7 | / |
| 10-DS1034-1 | 2.1 | 1/2 | 6.7 | 9.5 | 11.8 | 178±5 | 89±4 | 25±1 |
| 5/8 | 10 | / |
| 10-DS1034-1-1/4 | 4.23 | 5/8 | 10 | 14 | 17.7 | 222±6 | 110±5 | 32±1 |
| 3/4 | 14 | / |
| 10-DS1034-1-1/2 | 7.29 | 3/4 | 14 | 20 | 27.7 | 270±6 | 140±5 | 38+1 |
| 7/8 | 18.8 | 26.5 | 38-2 |
| 10-DS1034-1-3/4 | 11.55 | 7/8 | 18.8 | 26.5 | 38.5 | 305±7 | 152±5 | 45+1 |
| 1 | 26.5 | / | 45-2 |
| 10-DS1034-2 | 17.2 | 1 | 26.5 | 37 | 46.5 | 355±7 | 178±5 | 51±2 |
| 1-1/4 | / | / |
| 10-DS1034-2-1/4 | 24.5 | 1-1/4 | 40 | 56 | 64.9 | 406±10 | 203±6 | 57±2 |
| 10-DS1034-2-1/2 | 31.44 | / | / | / | 72.6 | 406±10 | 203±6 | 64±2 |
| 10-DS1034-2-3/4 | 39.5 | / | / | / | 98.4 | 406±10 | 241±6 | 70±2 |
| 10-DS1034-3 | 50.34 | / | / | / | 103 | 457±10 | 228±6 | 76±2 |
| 10-DS1034-3-1/4 | 66.54 | / | / | / | 119 | 508±10 | 254±6 | 83±2 |
| 10-DS1034-3-1/2 | 90.24 | / | / | / | 126 | 610±10 | 305±6 | 89±2 |
| 10-DS1034-3-3/4 | 89.27 | / | / | / | 152 | 508±10 | 254±6 | 95±2 |
| 10-DS1034-4 | 103.43 | / | / | / | 169 | 508±10 | 254±6 | 102±2
|

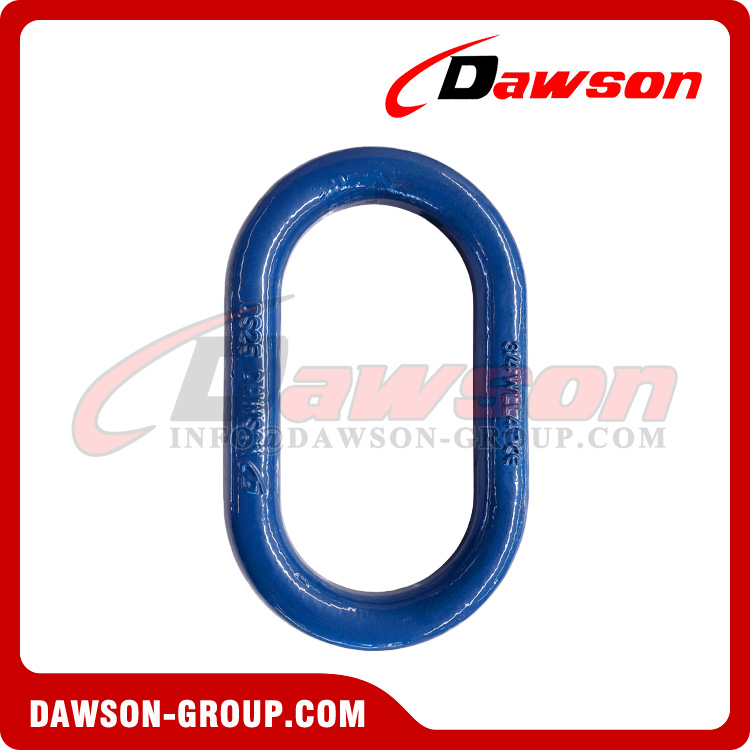

Welcome to buy the newest and competitive price DAWSON DS1034 G100 A-342 U.S. Type Master Link for Lifting Chain Slings & Wire Rope Slings from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

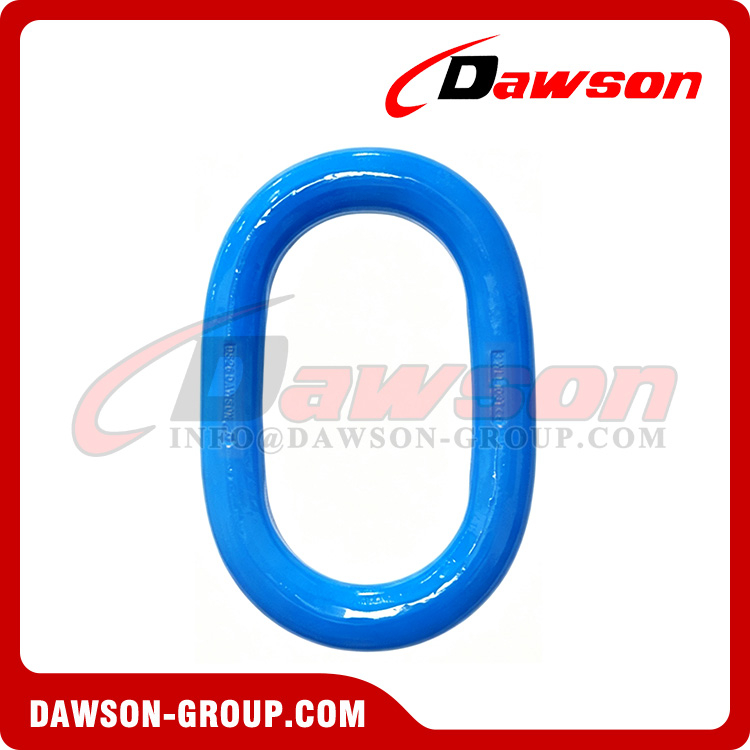

Products Show:
Hot Tags: forged master link,grade 100 forged master link,g100 master link,forged alloy master link,US type master link,A-342 master link,g100 A-342 master link,grade 100 master link for chain slings,g100 forged A-342 master link,master link for wire rope slings
Other Related Products:
Package of G100 Products:
Application of G100 Forged Master Link:
G100 Products Catalogues Download:
DAWSON Testing Center:
About DAWSON:
Other Related G100 COMPONENTS
Supply only on special request. Not for recommendation.
For further information, please contact us. Email:info@dawson-group.com
