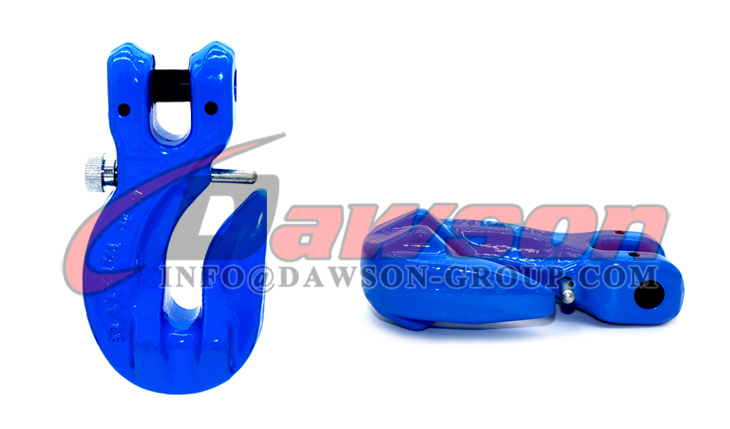

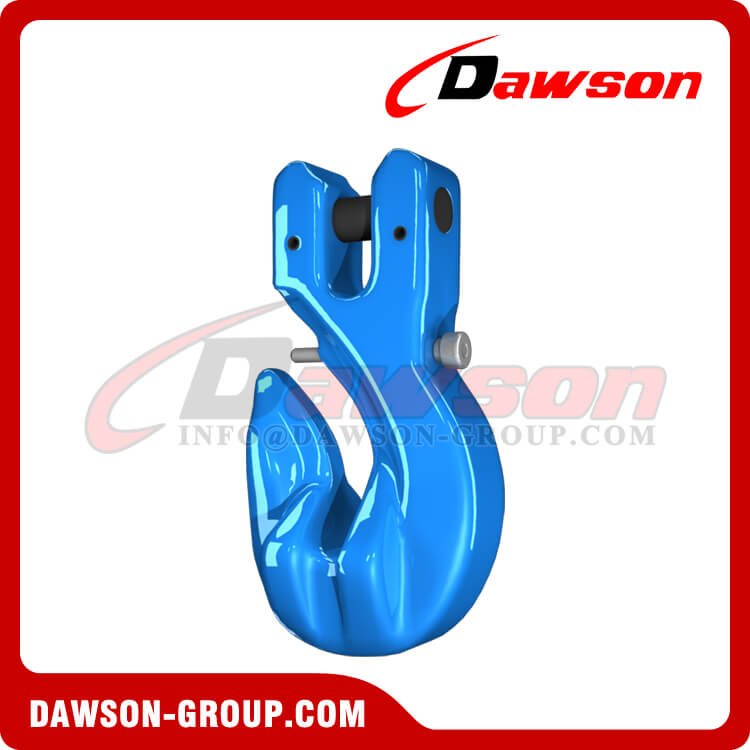

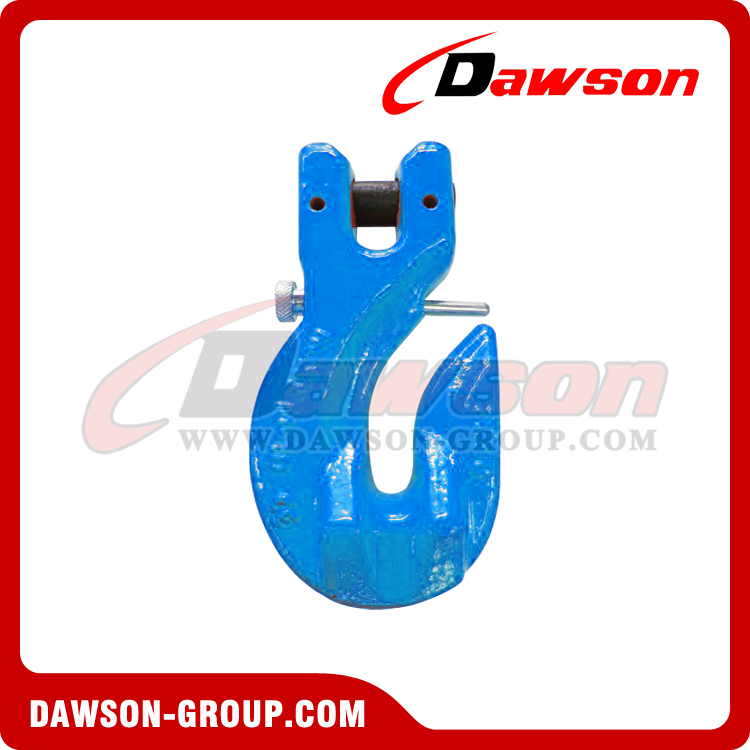

DS1024 G100 8-13MM Special Clevis Grab Hook With Safety Pin for Adjust Chain Length

Forged or welded super alloy steel.
Suitable for use with G100 chain.
25% stronger than G80.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Powder plastified
Colour: blue RALcode: RAL5015
All load pin are 100% individually inspected and tested.
  • DAWSON/OEM

  • DS1024

  • 0.62-2.6kg

Availability:
Quantity:

G100 / Grade 100 8-13MM Special Clevis Grab Hook With Safety Pin for Adjust Chain Length
DS1024 G100 Special Clevis Grab Hook With Safety Pin

G100 Special Clevis Grab Hook, Locking Pin Grab Hook

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DS1024 G100 Special Clevis Grab Hook With Safety Pin - Dawson Group Ltd. - China Manufacturer, Supplier, Factory      DS1024 G100 Special Clevis Grab Hook with Safety Pin - Dawson Group Ltd. - China Manufacturer
G100 Special Clevis Grab Hook with Safety Pin, Forged Steel Clevis Grab Hook for Chains - China Manufacturer      G100 Special Clevis Grab Hook with Safety Pin, Forged Alloy Steel Clevis Grab Hook for Chains - China Manufacturer, Supplier
G100 Special Clevis Grab Hook with Safety Pin, Grade 100 Forged Alloy Steel Clevis Grab Hook - China Factory, Exporter      G100 Special Clevis Grab Hook with Safety Pin, Grade 100 Forged Alloy Steel Clevis Grab Hook for Chains - China Supplier, Factory

Forged or welded super alloy steel.

Suitable for use with G100 chain.

25% stronger than G80.

Individually proof tested at 2.5 times Working Load Limit.

100% Magnaflux Crack Detection.

Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.

Meet standard EN1677.

Strict break load test.

Surface finish: Powder plastified
Colour: blue RALcode: RAL5015, other colour is available as per request.

All load pin are 100% individually inspected and tested.

Item No. Weight/kg WLL/T B.L/T A±1 B±0.8 C±1 R±1.5 D±0.5 E±0.5 2
10-DS1024-8 0.62 2.5 10 35.5 25 38 66 10 10.5 109
10-DS1024-10 1.16 4 16 44 32 46 82 12 13 134
10-DS1024-13 2.6 6.7 26.8 57 40 59.5 107 15 15.5 175.5

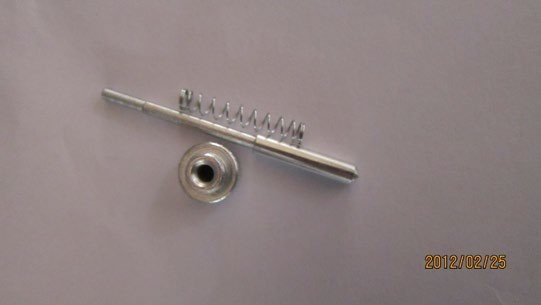

SP-DS1023&1024-SOARE PART FOR DS1023&1024(SAFETY PIN)

SP-DS1023 Item No. Size
SP-DS1023/4-8 8-10
SP-DS1023/4-10 1010
SP-DS1023/4-13 13-10



Product specifications:

8MM G100 Clevis Grab Hook, 10MM G100 Clevis Grab Hook, 13MM G100 Clevis Grab Hook

8MM Grade 100 Clevis Hook, 10MM Grade 100 Clevis Hook, 13MM Grade 100 Clevis Hook


1 SET = GALVANIZED SPRING + GALVANIZED PIN + GALVANIZED NUT


G100 Rigging Hardware

All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.


Welcome to buy the newest and competitive price DAWSON g100 special clevis grab hook with safety pin for adjust chain length forged super alloy steel from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

Products Show:

G100 Special Clevis Grab Hook with Safety Pin, Grade 100 Forged Clevis Grab Hook for Chains - China Supplier - Dawson Group Ltd.
Grade 100 Special Clevis Grab Hook with Safety Pin, G100 Alloy Steel Clevis Grab Hook - China Factory, Exporter - Dawson Group Ltd.   Grade 100 Special Clevis Grab Hook with Safety Pin, G100 Alloy Steel Clevis Grab Hook for Chains - China Factory, Supplier - Dawson Group Ltd.

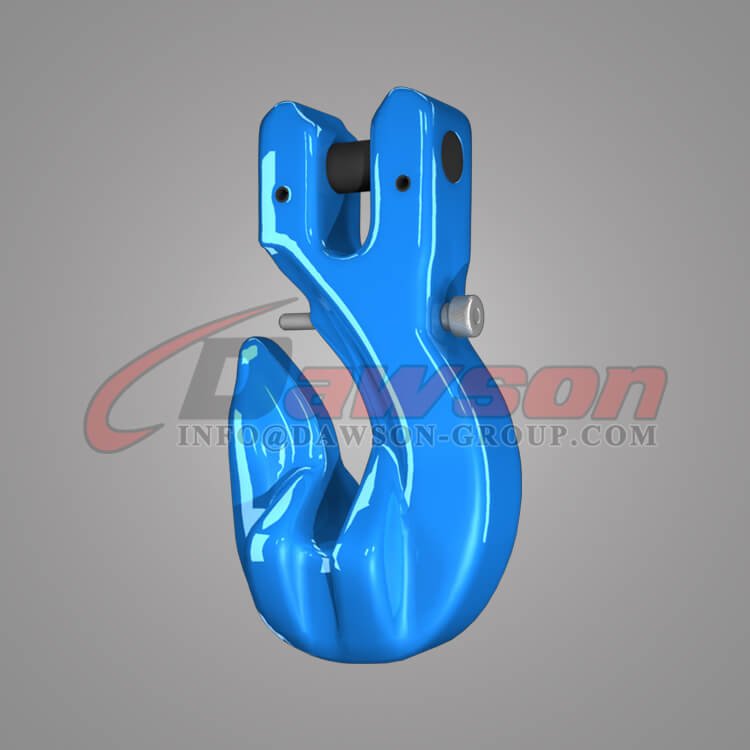

Grade 100 Special Clevis Grab Hook with Safety Pin, G100 Forged Steel Clevis Grab Hook for Chains - China Manufacturer, Supplier - Dawson Group Ltd.   Grade 100 Special Clevis Grab Hook with Safety Pin, G100 Forged Clevis Grab Hook for Lifting Chains - China Manufacturer, Supplier - Dawson Group Ltd.

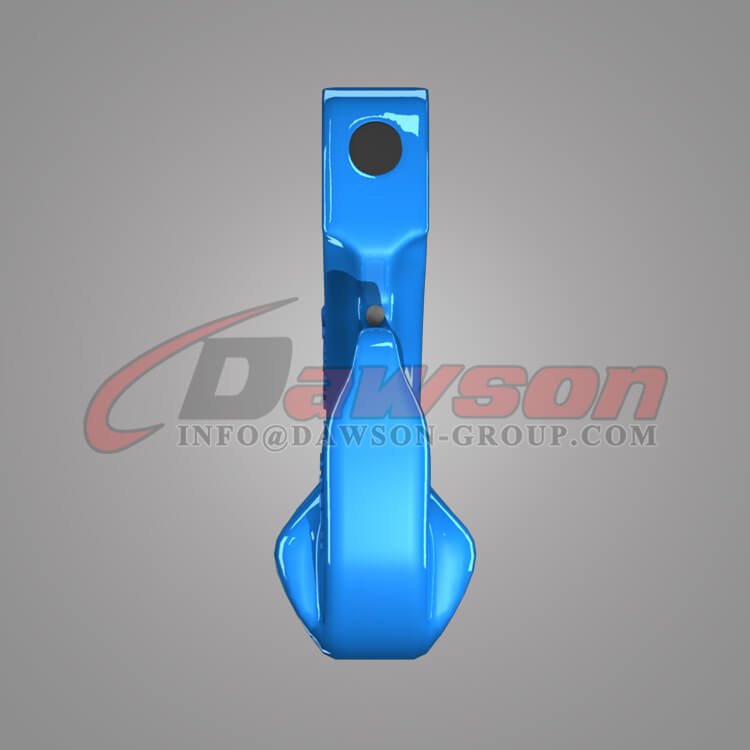

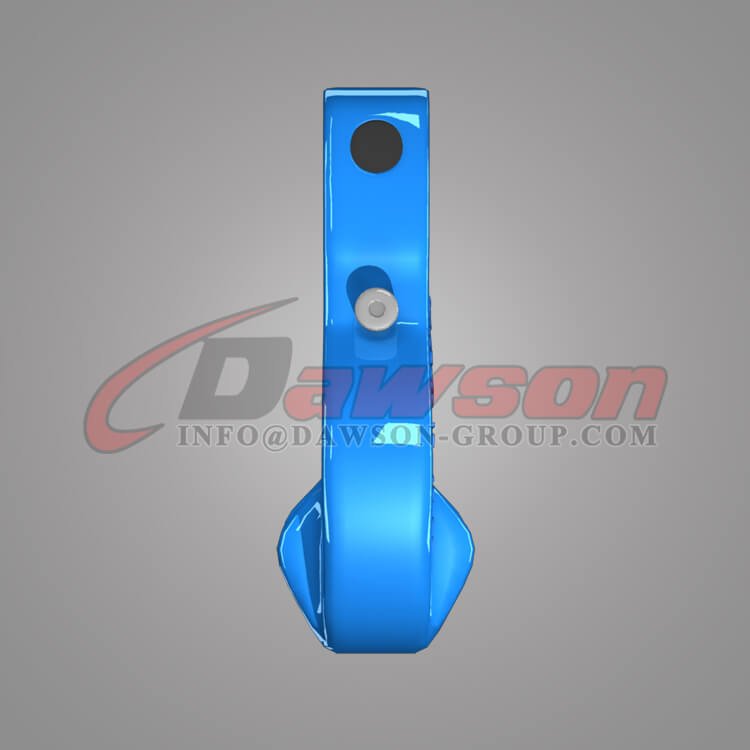

Grade 100 Special Clevis Grab Hook with Safety Pin, G100 Clevis Hook for Chains - China Factory, Exporter - Dawson Group Ltd.   Grade 100 Special Clevis Grab Hook with Safety Pin, G100 Clevis Hook for Chains - China Factory, Supplier - Dawson Group Ltd.

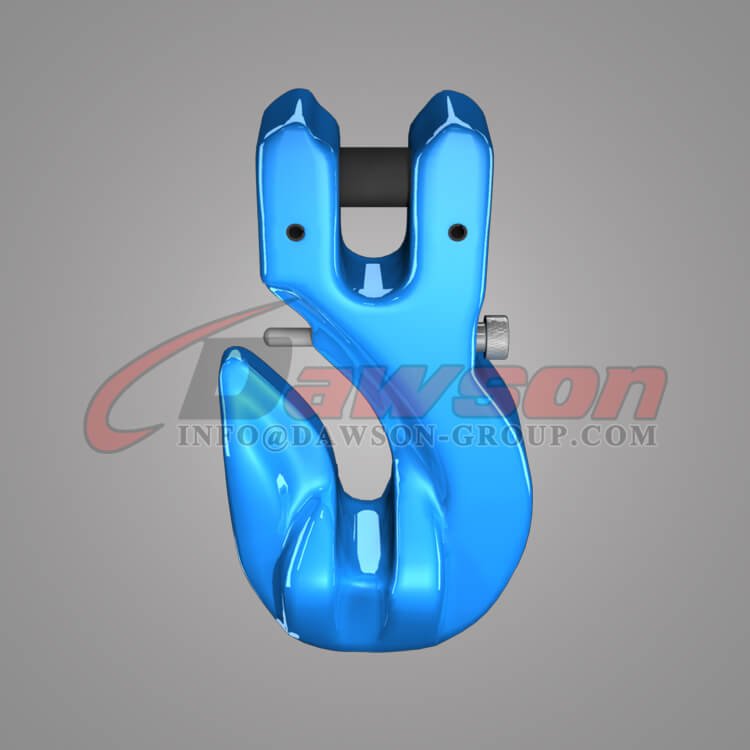

Grade 100 Special Clevis Grab Hook with Safety Pin, WLL 4T Forged Clevis Hook - China Factory, Exporter - Dawson Group Ltd.   Grade 100 Special Clevis Grab Hook with Safety Pin, WLL 4T Alloy Steel Clevis Hook for Chains - China Factory, Exporter - Dawson Group Ltd.

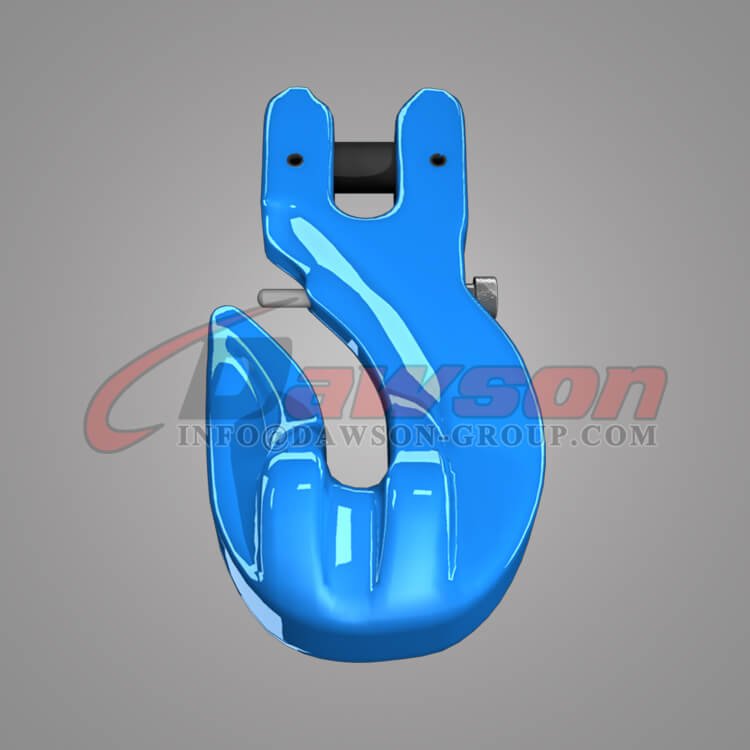

Grade 100 Special Clevis Grab Hook with Safety Pin, Clevis Grab Hook for G100 Lifting Chains - China Manufacturer, Supplier - Dawson Group Ltd.   Grade 100 Special Clevis Grab Hook with Safety Pin, Clevis Grab Hook for G100 Chain Slings - China Manufacturer, Supplier - Dawson Group Ltd.
DS1024 G100 Special Clevis Grab Hook With Safety Pin for Adjust Chain Length - Dawson Group Ltd. - China Supplier, Manufacturer
DS1024 G100 Special Clevis Grab Hook With Safety Pin for Adjust Chain Length- Dawson Group Ltd. - China Manufacturer, Supplier

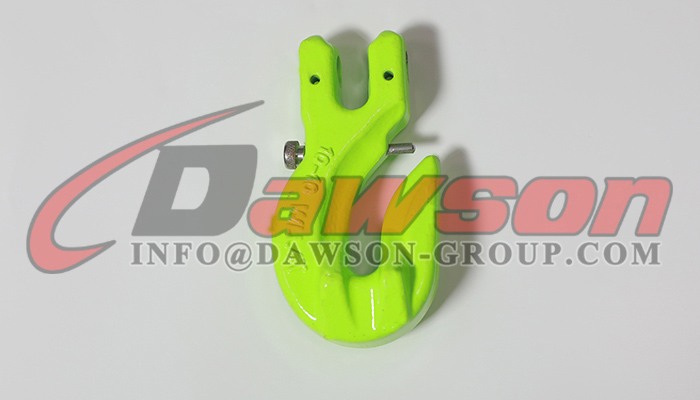

G100 Special Clevis Grab Hook With Safety Pin for Adjust Chain Length - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DS1024 G100 Special Clevis Grab Hook With Safety Pin - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

G100 Grade 100 Special Clevis Grab Hook With Safety Pin for Adjust Chain Length - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Other related products:

DAWSON Rigging Hardware - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Hot Tags: Clevis Grab HookSpecial Clevis Grab HookG100 Clevis Grab Hook with Safety PinGrade 100 Clevis Grab Hook for Adjust Chain LengthChina Special Clevis Grab HookGrade 100 Special Clevis Grab HookSpecial Clevis Grab Hook China SupplierSpecial Clevis Grab Hook ChinaLow Price Special Clevis Grab HookBuy Discount Special Clevis Grab HookCheap Price Special Clevis Grab HookHot Sale Special Clevis Grab HookSpecial Clevis Grab Hook In StockWholesale Special Clevis Grab HookChina Special Clevis Grab Hook ManufacturerLocking Pin Grab HookSpecial Grab HookGrade 100 Rigging HardwareSpecial Clevis Cradle Grab Hook Free Sample

Other Related G100  COMPONENTS

Supply only on special request. Not for recommendation.

For further information, please contact us. Email:info@dawson-group.com

DS1016 Eye Self-Locking Hook - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DS1016

DS1017 Clevis Self-Locking Hook - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DS1017

DS1018 Swivel Self-Locking Hook - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DS1018

DS1025 Clevis Sling Hook with Latch - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DS1025

DS1026 Eye Sling Hook with Latch - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DS1026

DS1019 Clevis Sling Hook with Latch - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS1019
DS1028 Clevis Forest Hook with Latch - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS1028

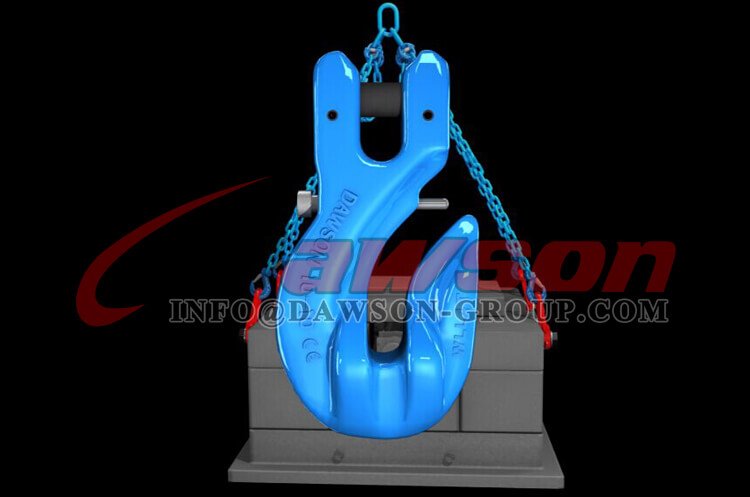

Application of G100 Special Clevis Grab Hook:

Application of G100 Special Clevis Grab Hook with Safety Pin - China Supplier, Factory
Application of G100 Special Clevis Grab Hook with Safety Pin, Grade 100 Forged Steel Clevis Grab Hook - China Supplier
Application of G100 Special Clevis Grab Hook with Safety Pin, Grade 100 Forged Alloy Steel Clevis Hook - China Factory

G100 Products Catalogues Download:

G100 Products Catalogues Down - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Package & Factory Show:

China Factory of DS1024 G100 Special Clevis Grab Hook With Safety Pin - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
China Package of DS1024 G100 Special Clevis Grab Hook With Safety Pin - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
