G100 Rigging Hardware
All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.
● It can be matched with G100 chain.
● The performance is increased by 25% compared with G80 products.
● Each work piece should pass testing at 2.5 times of working load limit.
● We should carry out sampling and 20000 times of fatigue testing.
● We should carry out strict sampling and breakage testing for each batch of products.
● We should carry out 100% magnetic powder flaw detection.
● Surface treatment: plastics spraying.
● Color code: Blue RAL5015.

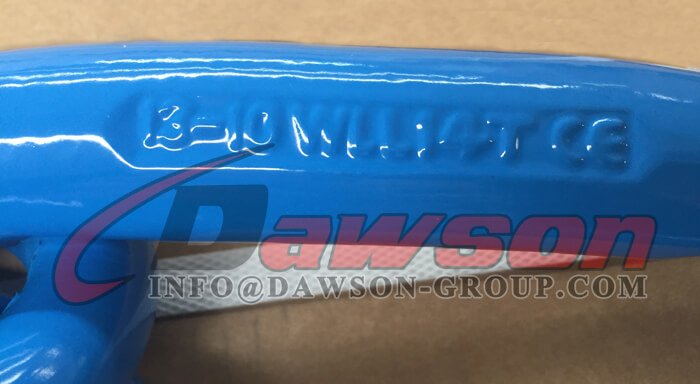

| Item No. | Weight/kg | WLL/T | A | B | D | a | b | d | S×H | Regular Mark | Material |
| 10-DS1012-6 | 1.26 | 3 | 135 | 75 | 18 | 54 | 25 | 14 | 7+0.5
×25 | 6-10
WLL3T | 23A |
| 10-DS1012-8 | 2.19 | 5.3 | 160 | 90 | 22 | 70 | 34 | 16 | 8+0.5
×28 | 8-10
WLL5.3T | 23A |
| 10-DS1012-10 | 3.6 | 8.4 | 180 | 100 | 27 | 85 | 40 | 18 | 11±0.5
×35 | 10-10
WLL8.4T | 23A |
| 10-DS1012-13 | 6.35 | 14 | 200 | 110 | 33 | 115 | 50 | 22 | 13±0.5
×43 | 13-10
WLL14T | 23A |
| 10-DS1012-16 | 10.61 | 21.2 | 260 | 140 | 36 | 140 | 65 | 28 | 17±0.5
×55 | 16-10
WLL21.2T | 23A |
| 10-DS1012-20 | 23.67 | 33.6 | 350 | 190 | 50 | 180 | 90 | 32 | - | 20-10
WLL33.6T | 23A |
| 10-DS1012-22 | 26 | 39.9 | 350 | 190 | 50 | 180 | 100 | 36 | - | 22-10
WLL39.9T | 23A |
| 10-DS1012-26 | 42.6 | 56 | 400 | 200 | 60 | 180 | 100 | 45 | - | 26-10
WLL56T | 23A |
| 10-DS1012-32 | 66.7 | 85 | 460 | 250 | 72 | 200 | 110 | 50 | - | 32-10
WLL85T | 23A
|
Ultimate load is 4 times the working load limit.
All sizes: Main Link: forged Sub Link:welded
According to EN1677-4.

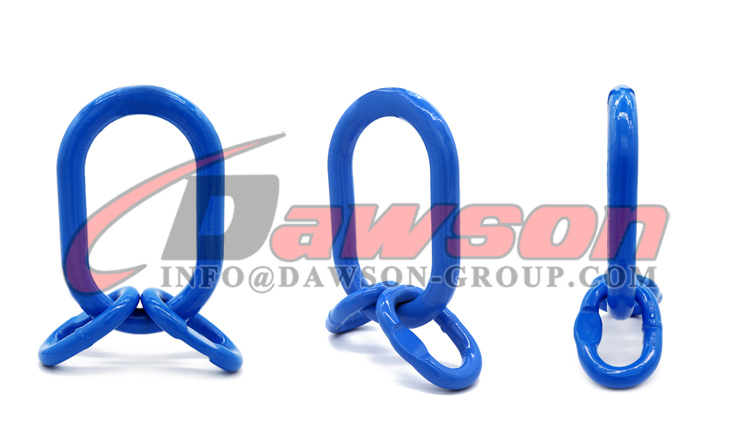

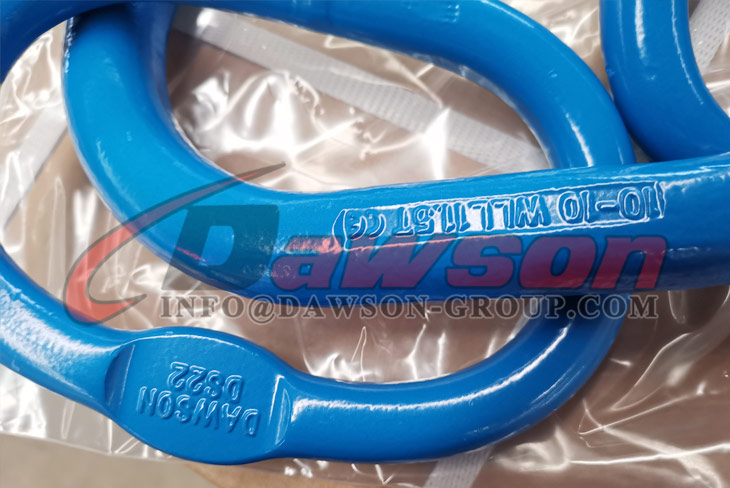

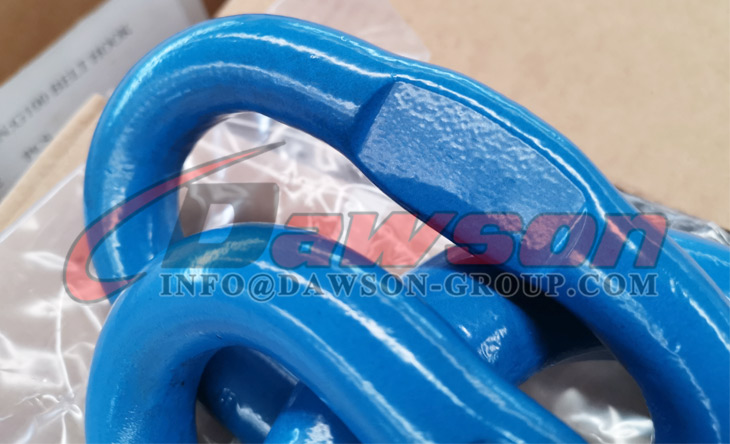

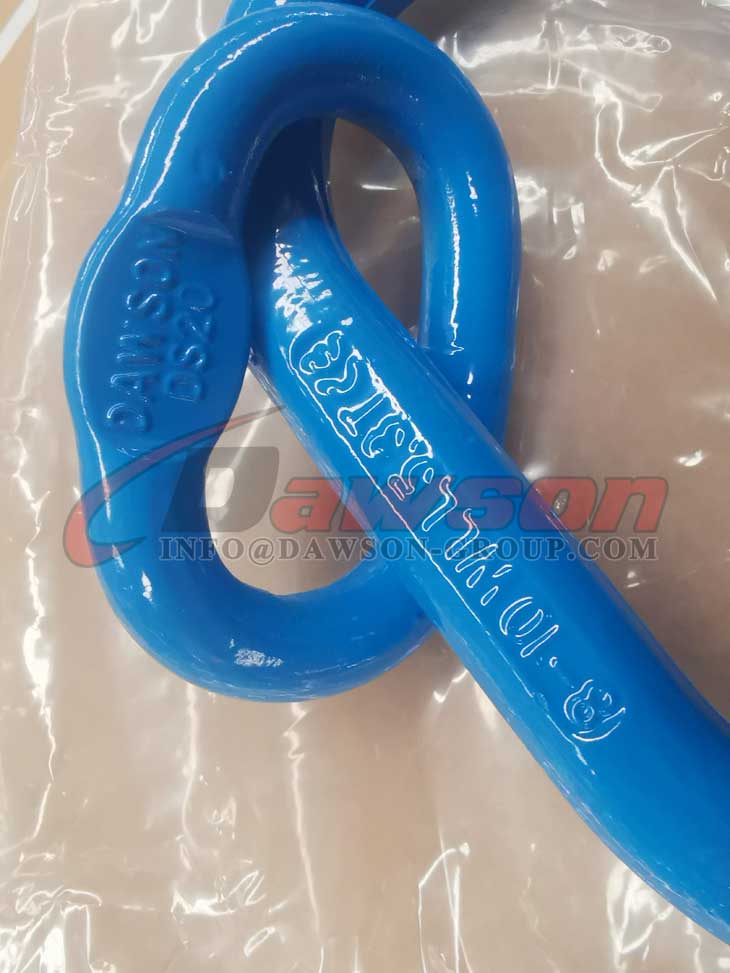

All sizes:there will be pressing flat only on request.
The pressing flat is for use with DS1027-G100 OMEGA LINK.

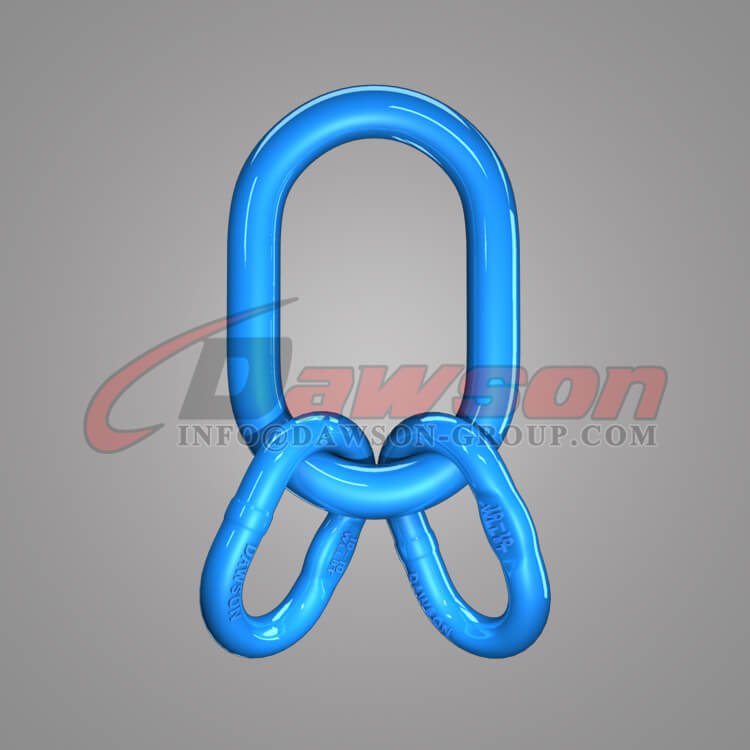

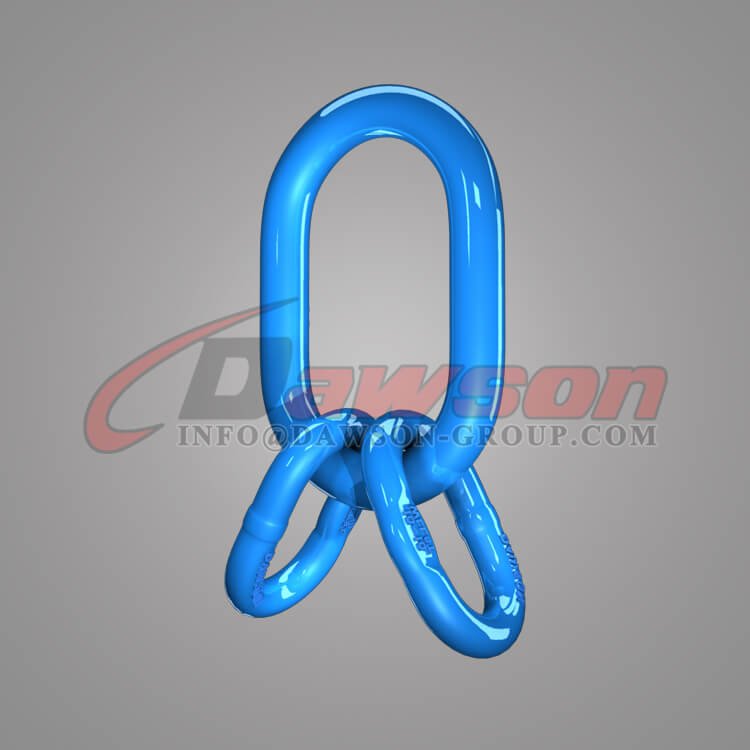

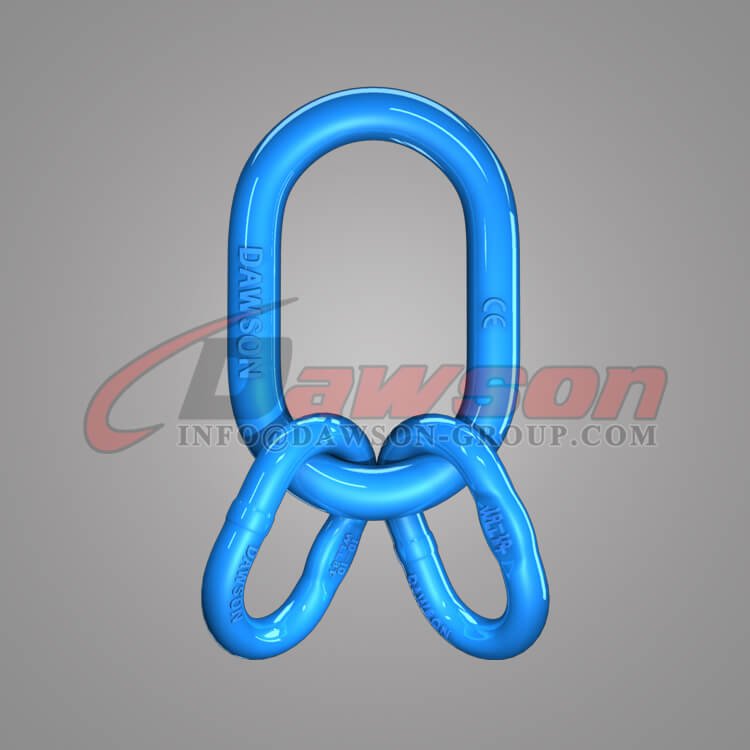

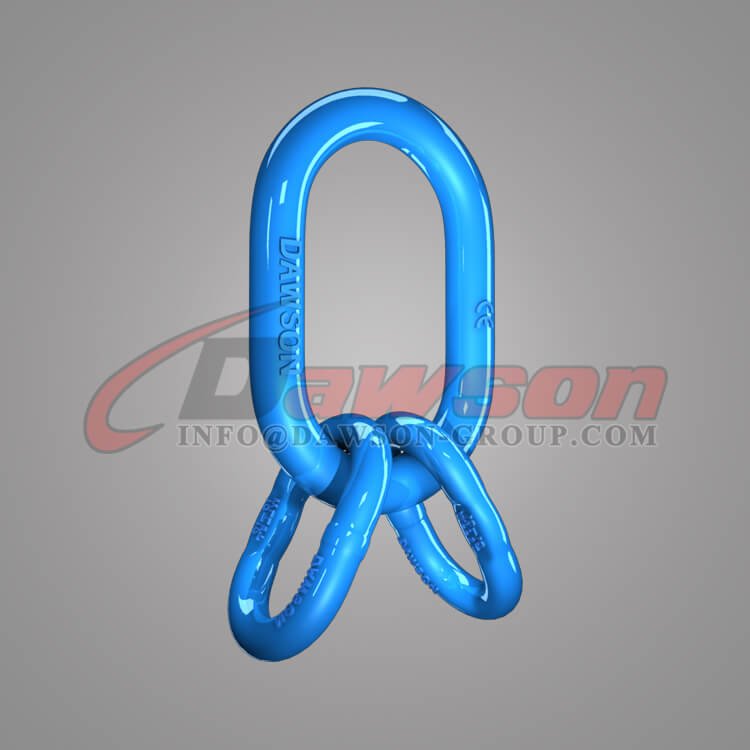

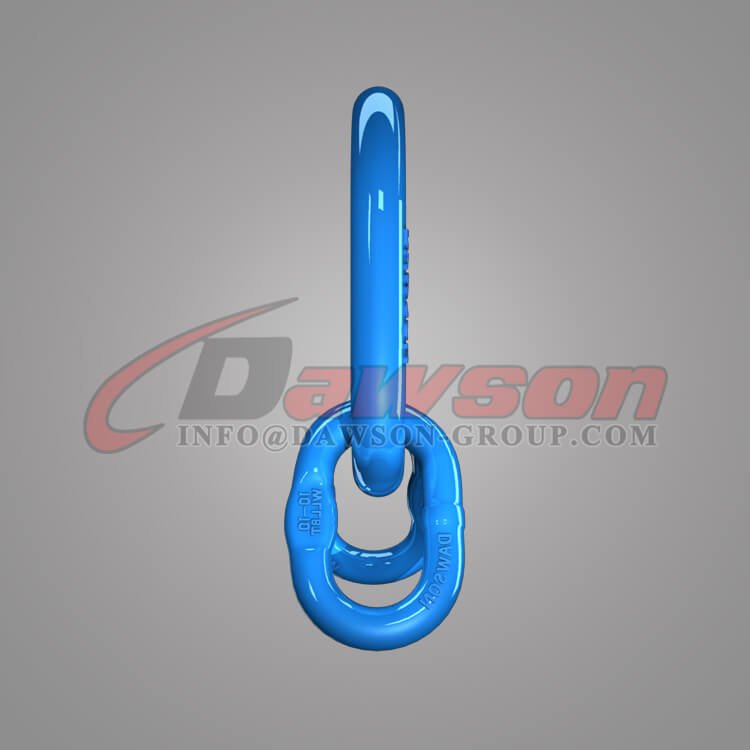

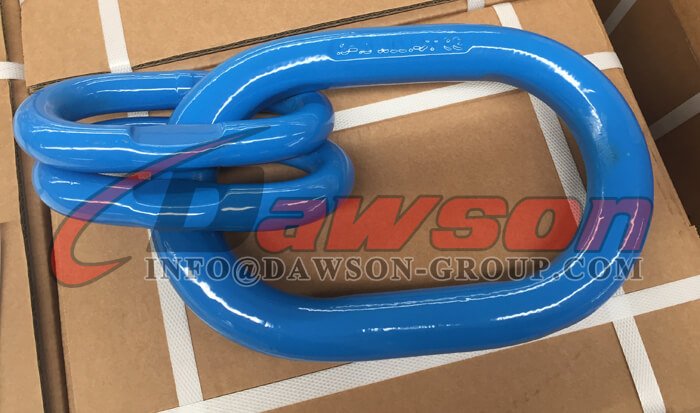

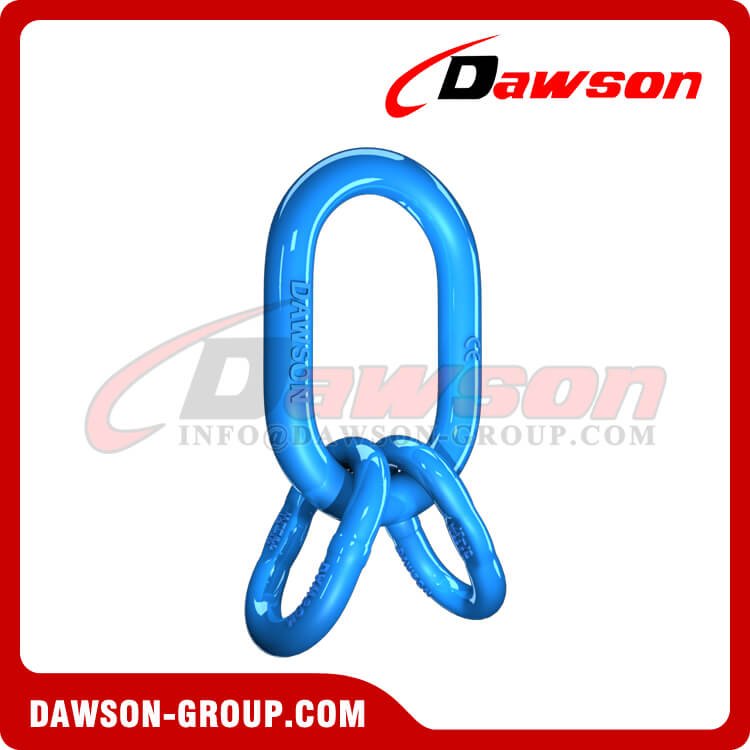

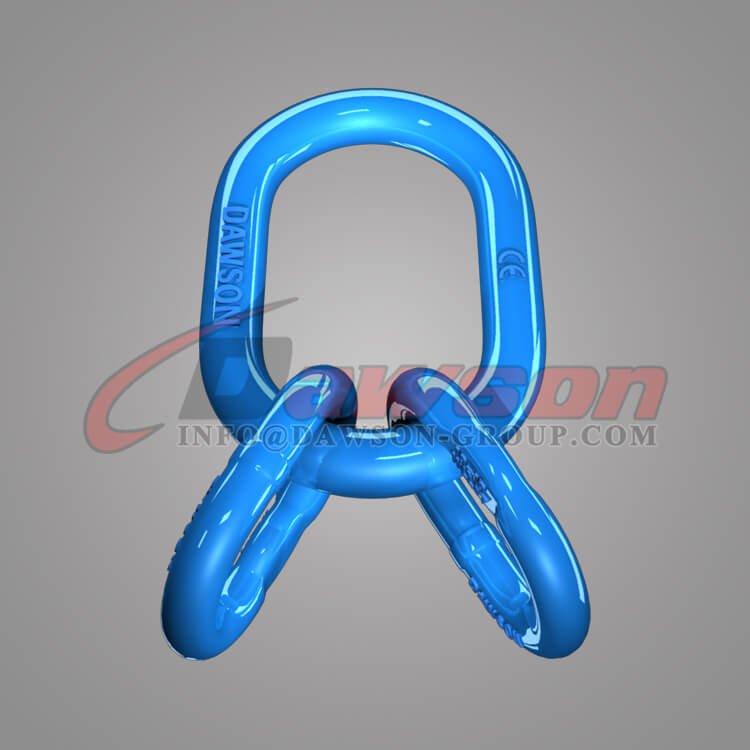

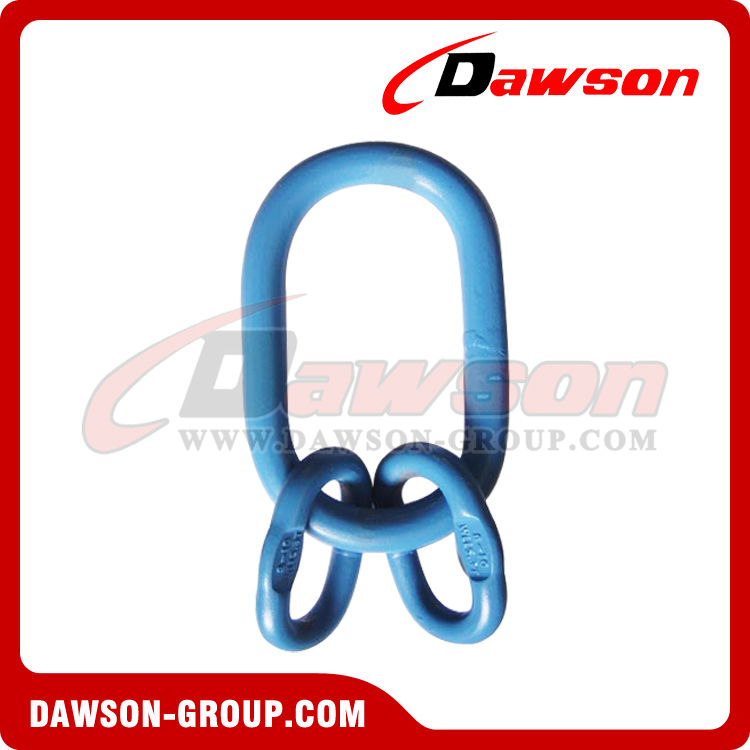

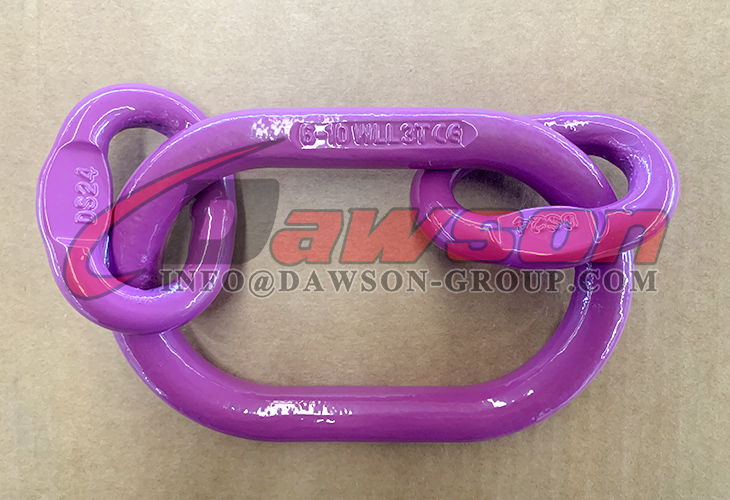

Master Link Assembly Grade 100, also known as Grade 100 Sub Master Link, G10 Multi-leg Master Link, Multi-leg Oblong Link, and some customers also called it Grade 100 QUAD Master Link.

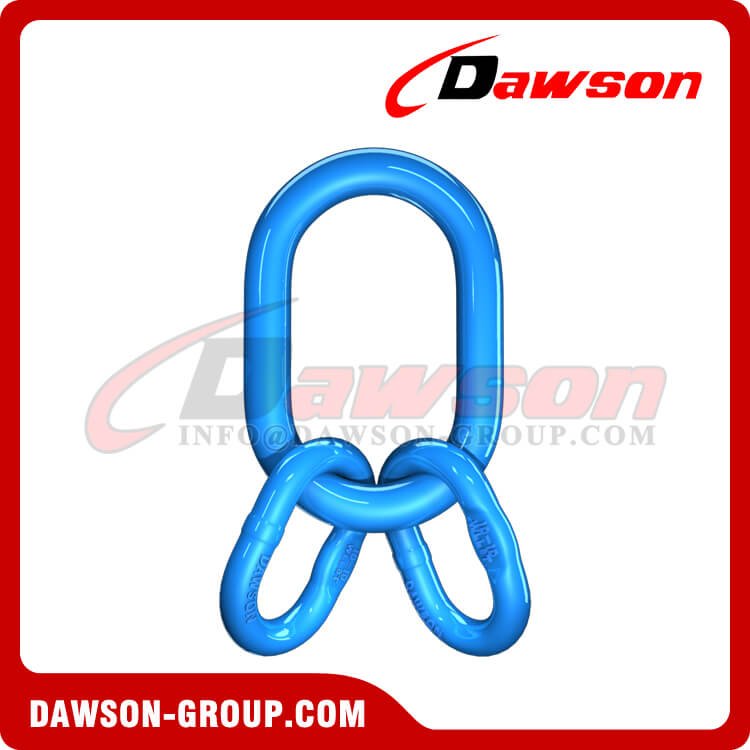

Multi-leg master link, designed with a large ring and two intermediate links to cater for two, three and four leg Chain Sling or Wire Rope Sling applications.
The Master Link Sub Assembly, manufactured using superior grade raw material alloy steel as per international qualitative standards.
Our range of Grade 100 QUAD Master Link is available in standard as well as customized sizes.
Product specifications:
6MM G100 Master Link Assembly, 8MM G100 Master Link Assembly, 10MM G100 Master Link Assembly, 13MM G100 Master Link Assembly, 16MM G100 Master Link Assembly, 20MM G100 Master Link Assembly, 22MM G100 Master Link Assembly, 26MM G100 Master Link Assembly
6MM Grade 100 Master Link, 8MM Grade 100 Master Link, 10MM Grade 100 Master Link, 13MM Grade 100 Master Link, 16MM Grade 100 Master Link, 20MM Grade 100 Master Link, 22MM Grade 100 Master Link, 26MM Grade 100 Master Link
Welcome to buy the newest and competitive price DAWSON g100 Forged Master Link Assembly for Chain Slings & Wire Rope Lifting Slings from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Products Show:
Hot Tags: Master Link Assembly , G100 Master Link Assembly, Grade 100 Master Link Assembly, China Master Link Assembly for Wire Rope Slings, Grade 100 Forged Master Link Assembly, Master Link Assembly China Supplier, Master Link Assembly Factory China, Low Price Master Link Assembly, Buy Discount Master Link Assembly, Cheap Price Master Link Assembly, Hot Sale Master Link Assembly, Master Link Assembly In Stock, Wholesale Master Link Assembly, China Master Link Assembly Manufacturer, G100 Chain Hardware, Master Link Assembly for Wire Rope Lifting Slings Other related products:
Other Related G100 COMPONENTS
Supply only on special request. Not for recommendation.
For further information, please contact us. Email:info@dawson-group.com
DS1016 |
DS1017 |
DS1018 |
DS1025 |
DS1026 |
DS1019 |
DS1028 |
|

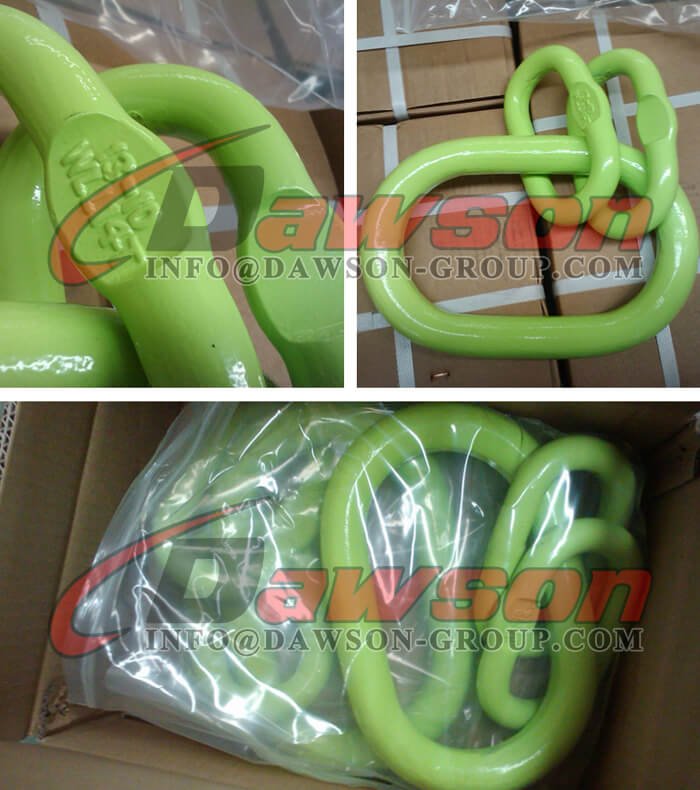

Package of G100 Products:

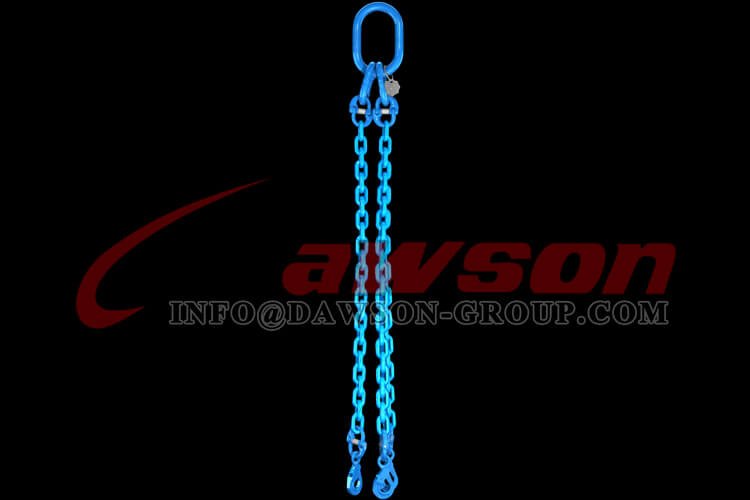

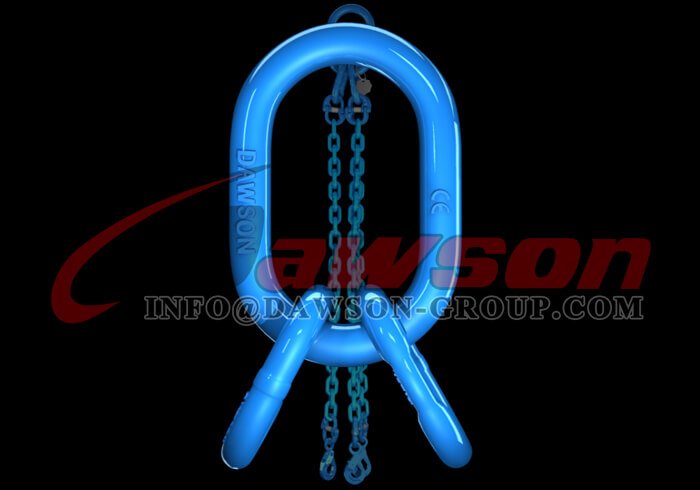

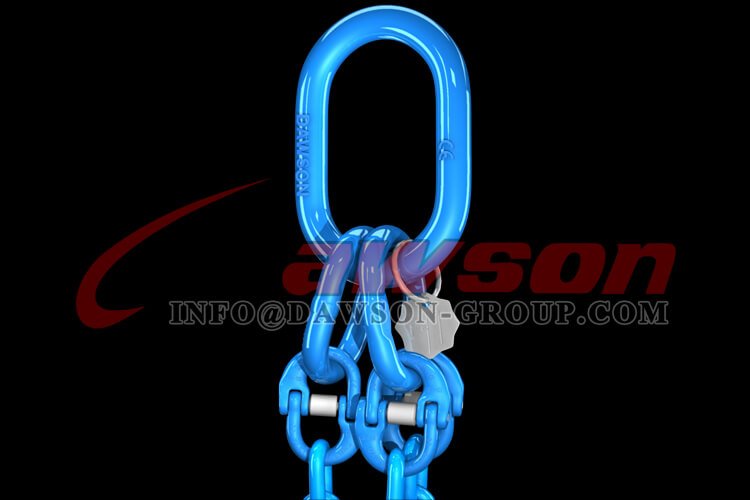

Application of G100 Master Link Assembly:
