G100 Rigging Hardware
All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
Features:
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.
● It can be matched with G100 chain.
● The performance is increased by 25% compared with G80 products.
● Each work piece should pass testing at 2.5 times of working load limit.
● We should carry out sampling and 20000 times of fatigue testing.
● We should carry out strict sampling and breakage testing for each batch of products.
● We should carry out 100% magnetic powder flaw detection.
● Surface treatment: plastics spraying.
● Color code: Blue RAL5015.
● All sizes are forged.

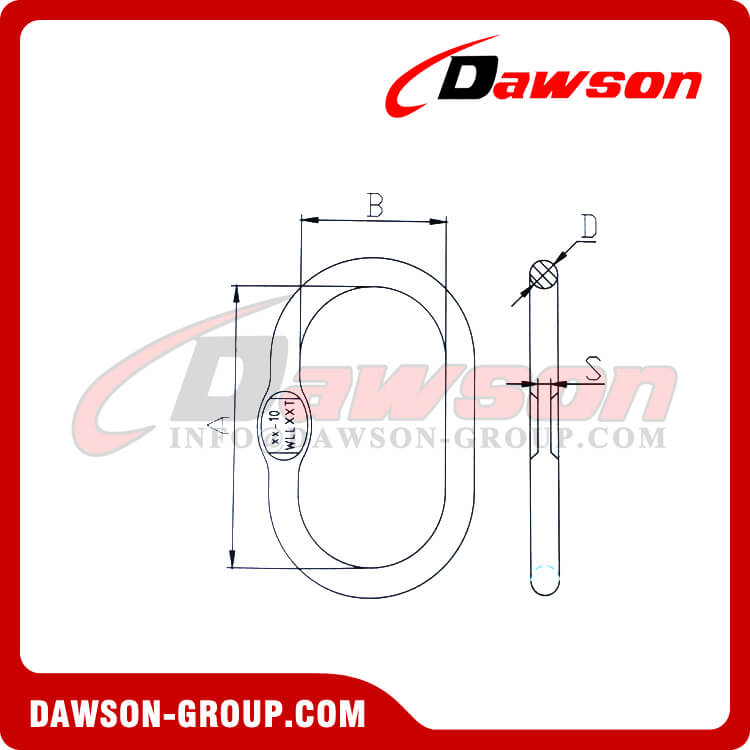

| Item No. | Weight/kg | WLL/T | A | B | D | S×H | Φ |
| 1leg | 2legs |
| 10-DS1011-05 | 0.14 | 1.4 | 80 | 50 | 10 | - | 5 | 5 |
| 10-DS1011-76 | 0.34 | 2.3 | 110 | 60 | 13 | 7+0.3×25 | 6-7 | 6 |
| 10-DS1011-87 | 0.53 | 3.5 | 110 | 60 | 16 | 7+0.5×25 | 8 | 7 |
| 10-DS1011-108 | 0.86 | 5 | 135 | 75 | 18 | 8+0.5×28 | 10 | 8 |
| 10-DS1011-1310 | 1.60 | 7.6 | 160 | 90 | 22 | 11±0.5×35 | 13 | 10 |
| 10-DS1011-1613 | 2.46 | 10 | 180 | 100 | 27 | 13±0.5×43 | 16 | 13 |
| 10-DS1011-1916 | 4.14 | 14 | 200 | 110 | 33 | 17±0.5×55 | 19 | 16 |
| 10-DS1011-2219 | 6.22 | 25.1 | 260 | 140 | 36 | 19±0.5×60 | 22 | 19 |
| 10-DS1011-2622 | 12.85 | 30.8 | 340 | 180 | 45 | - | 26 | 22 |
| 10-DS1011-3226 | 16.55 | 40 | 350 | 190 | 50 | - | 32 | 26 |
| 10-DS1011-0032 | 27.01 | 60 | 400 | 200 | 60 | - | - | 32 |
| 10-DS1011-72MM | 45 | 81.5 | 460 | 250 | 72 | - | - | -
|
Ultimate load is 4 times the working load limit.
All sizes are forged.
Item 10-DS1011-45 to 10-DS1011-50: there is no pressing flat.

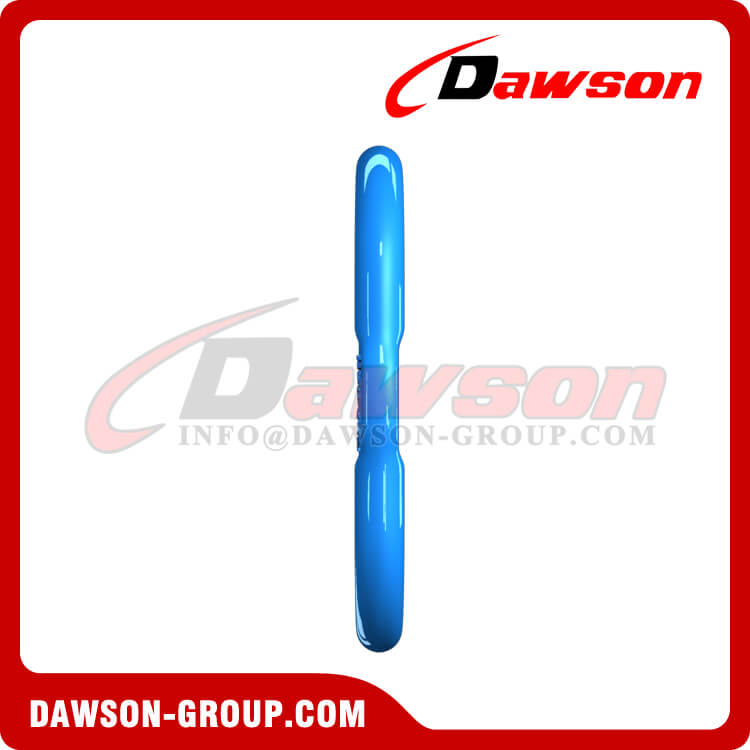

The pressing flat is for use with DS1027-G100 Omega Link

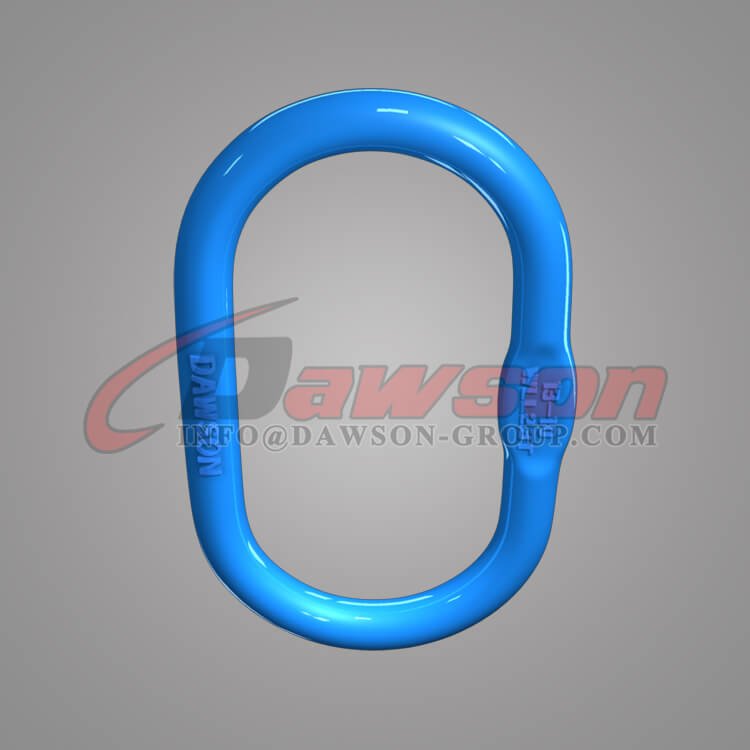

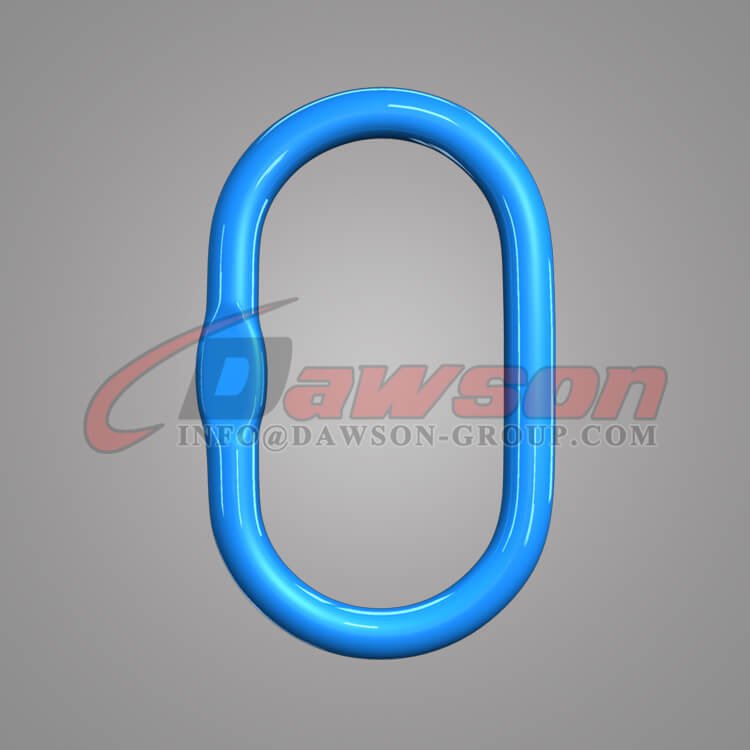

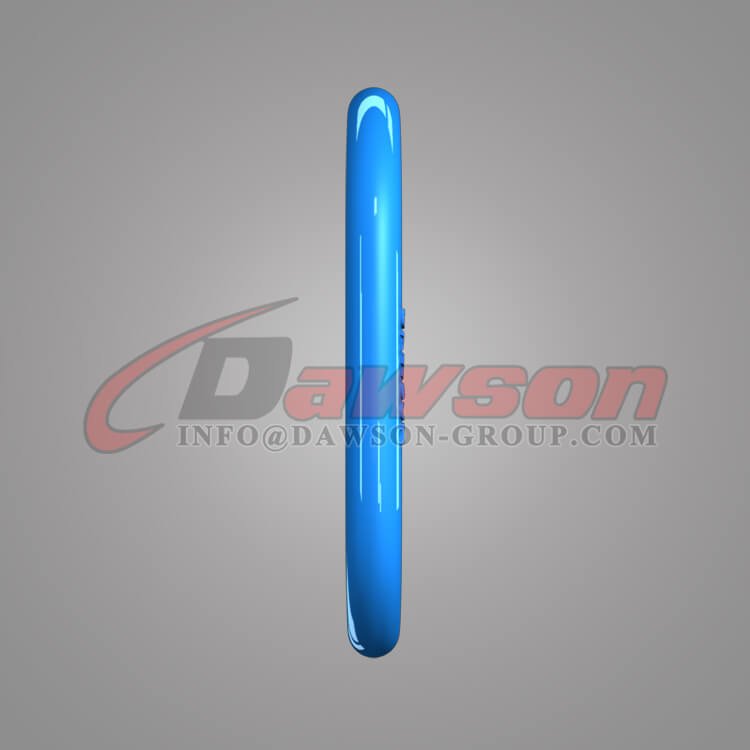

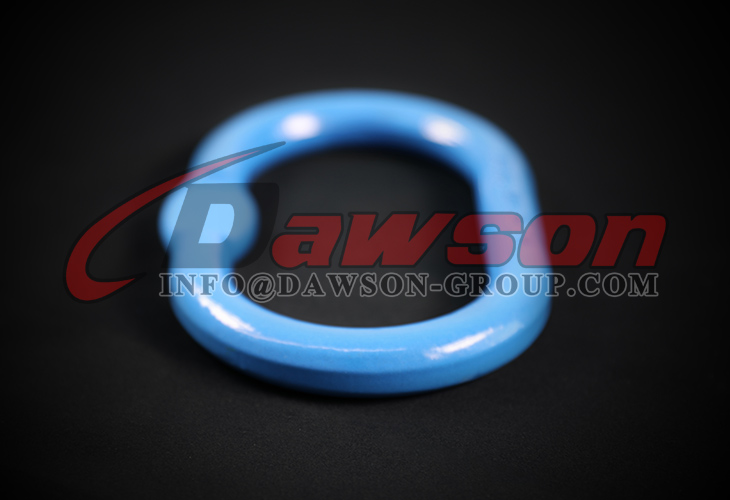

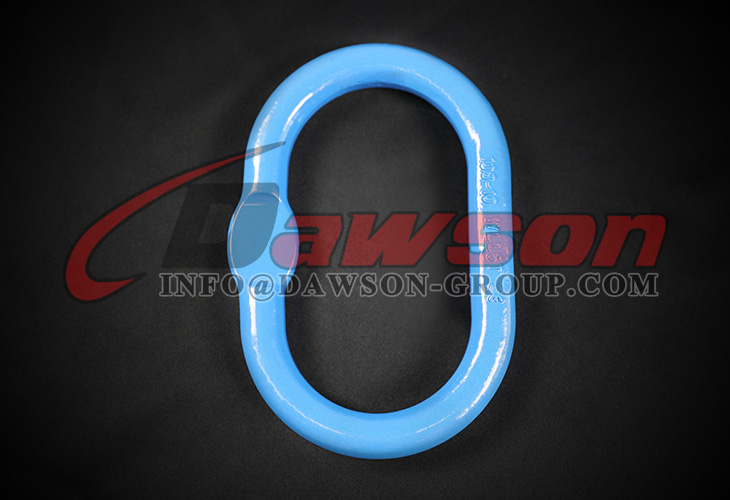

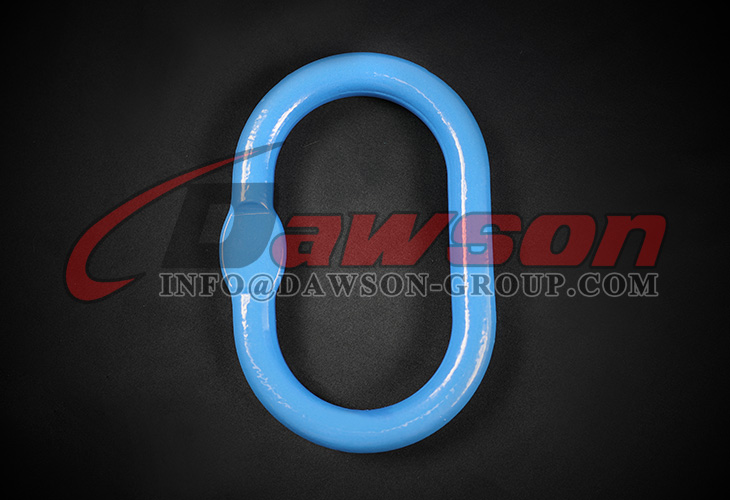

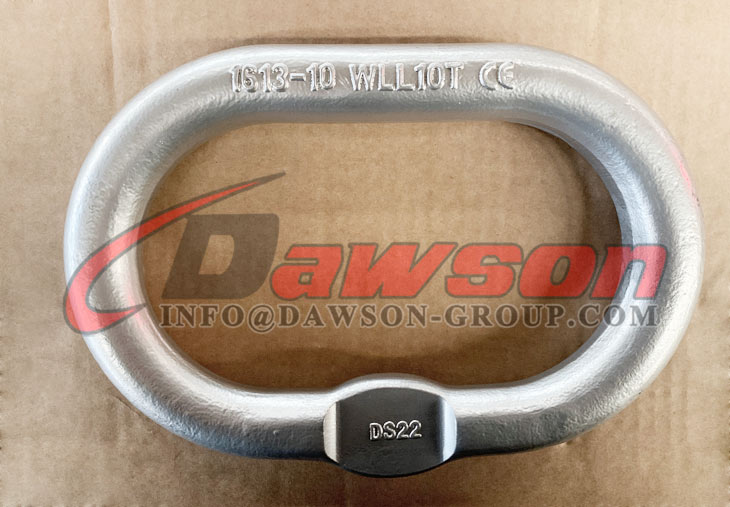

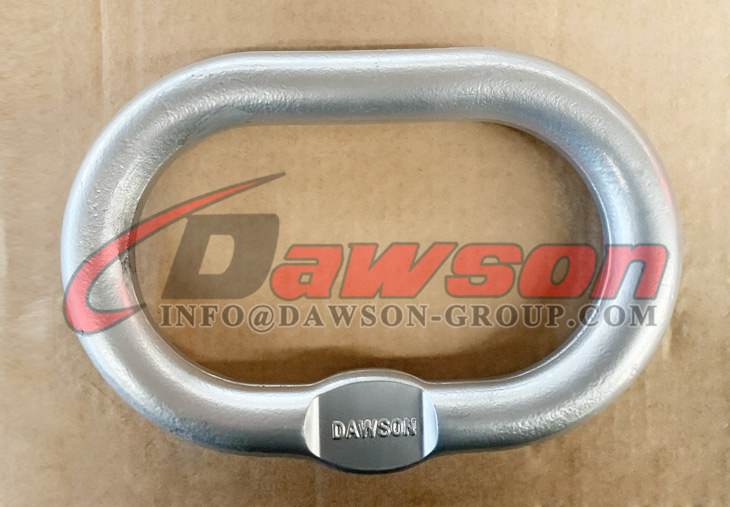

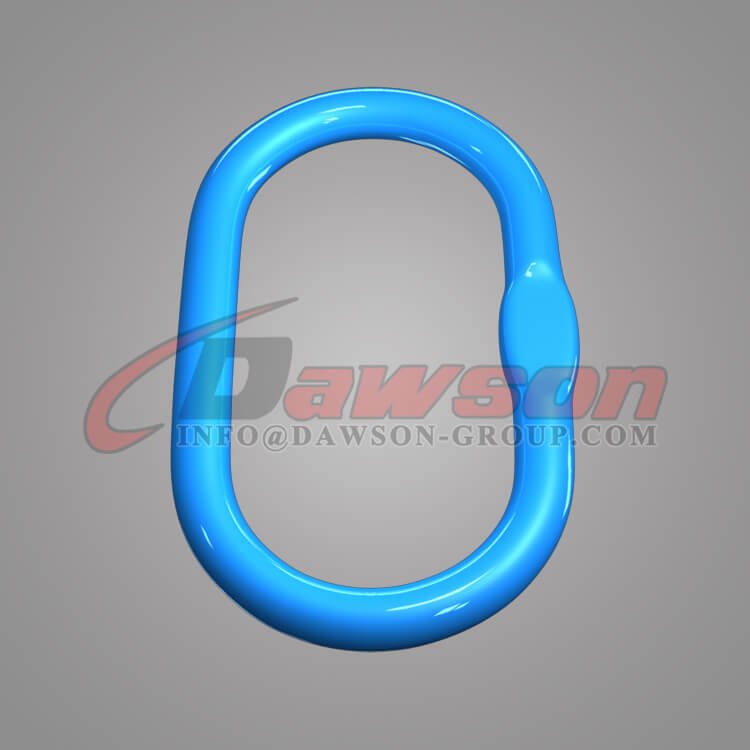

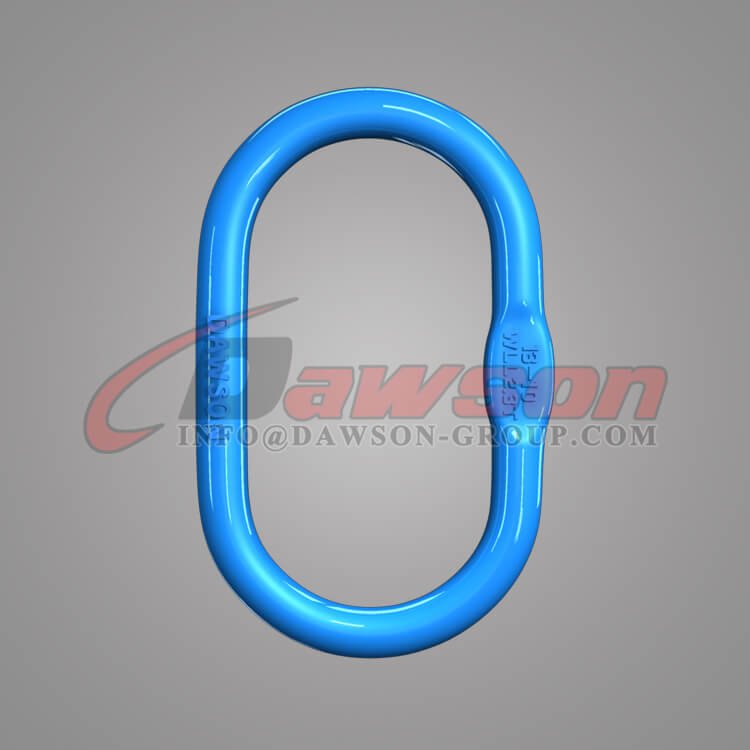

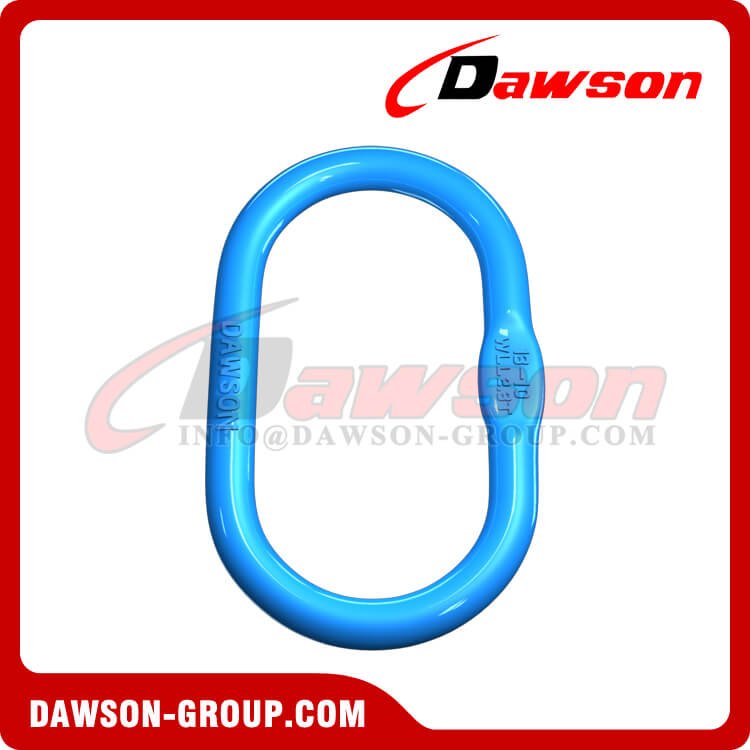

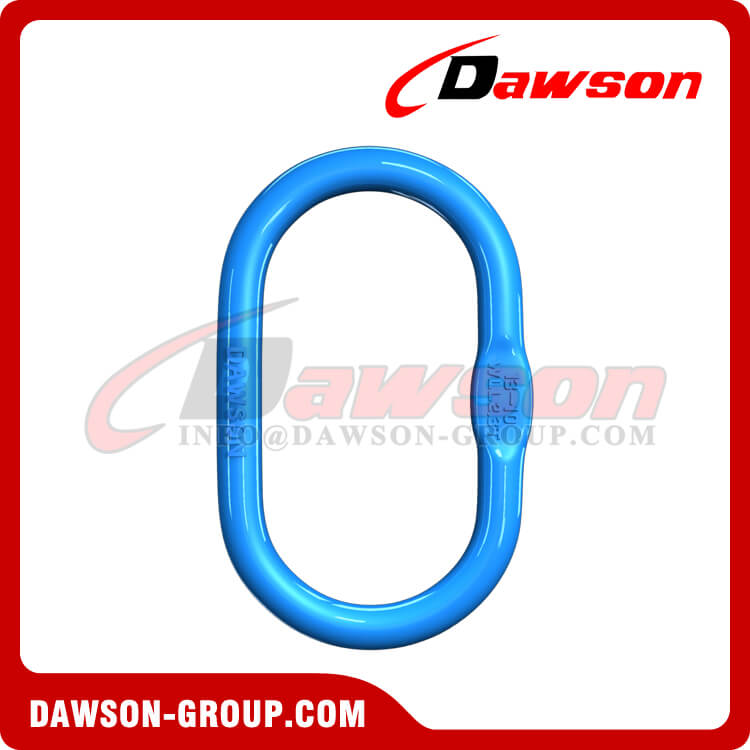

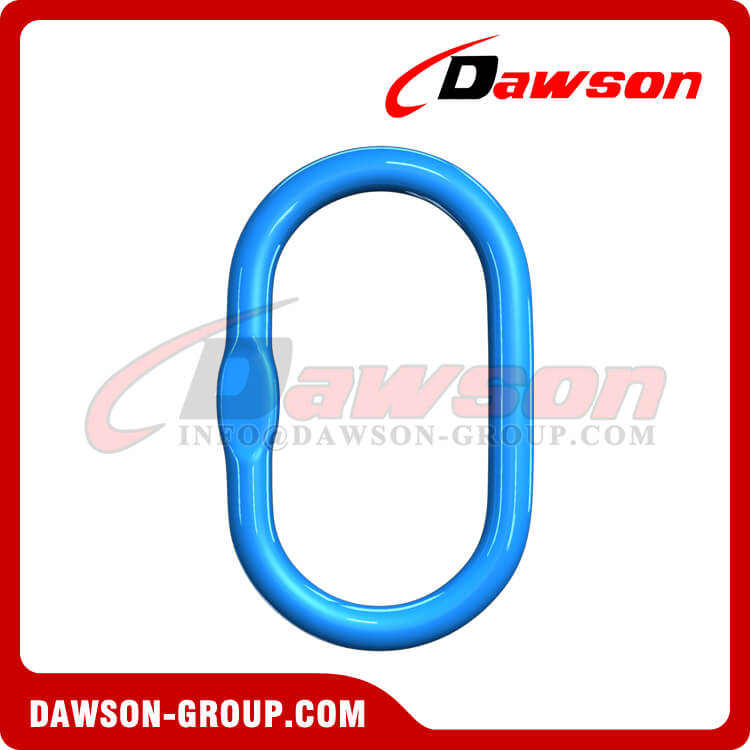

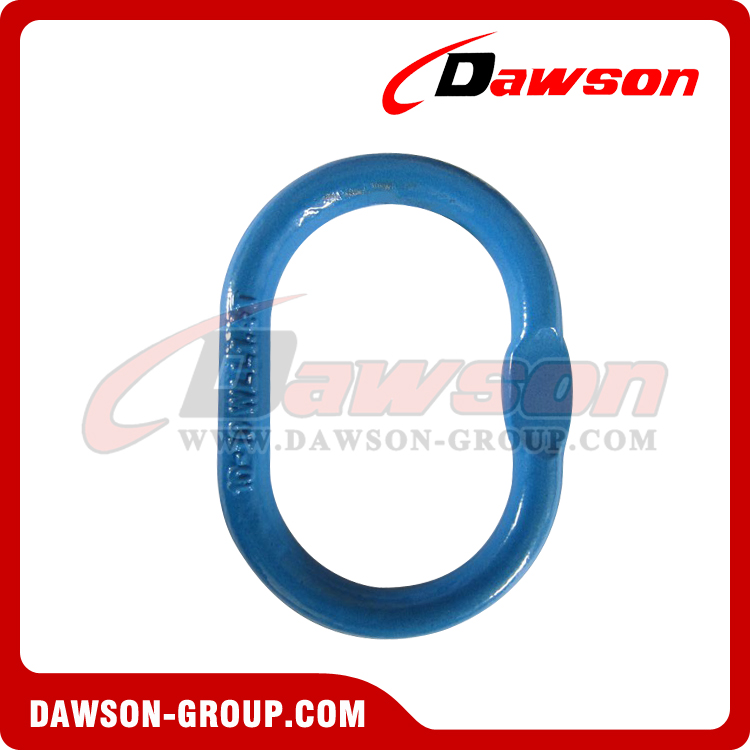

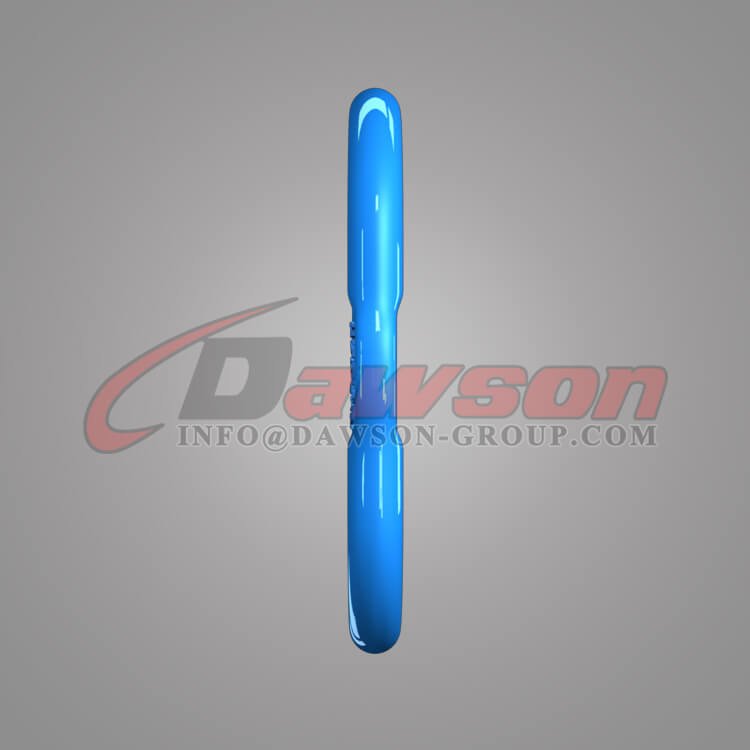

Grade 100 Forged Alloy Master Link, also known as G10 oblong master link, or Grade 100 Master Ring, Because it has flat, so some customers called it Recessed Master Link.

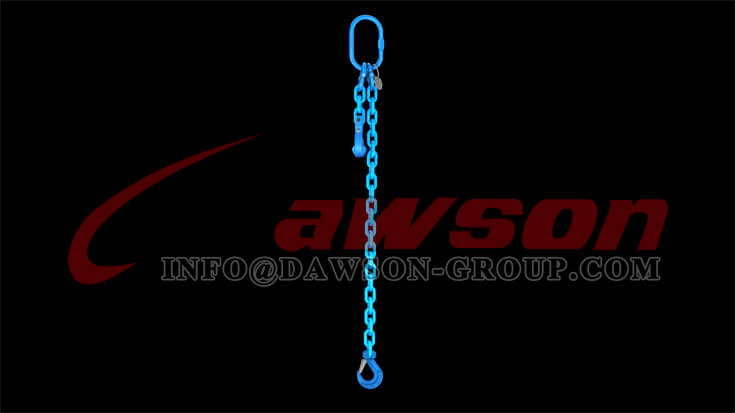

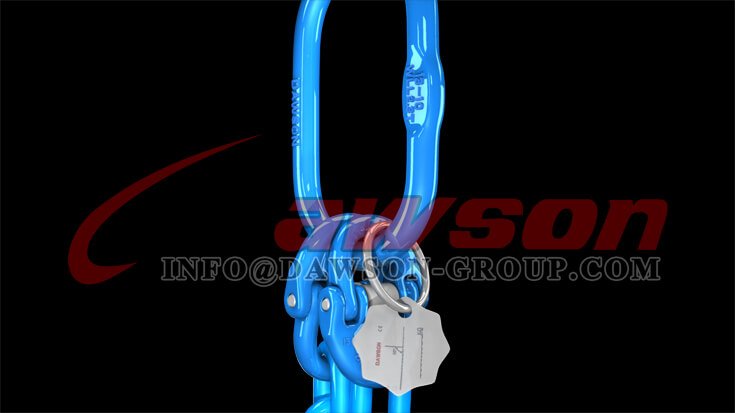

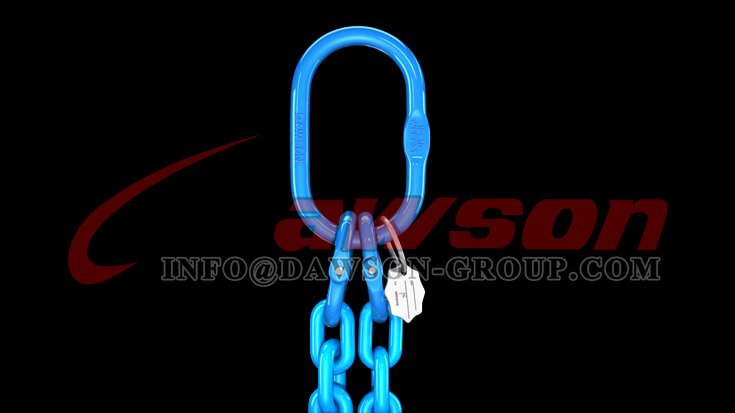

G100 master link forged alloy steel, is designed for both single and multiple leg slings.
The G100 oblong master link, manufactured using superior grade raw material as per international qualitative standards.
Our range of oblong master link turnbuckles is available in standard as well as customized sizes.
Product specifications:
05MM G100 Master Link, 76MM G100 Master Link, 87MM G100 Master Link, 108MM G100 Master Link, 1310MM G100 Master Link, 1613MM G100 Master Link, 1916MM G100 Master Link, 2219MM G100 Master Link, 2622MM G100 Master Link, 3226MM G100 Master Link, 0032MM G100 Master Link, 72MM G100 Master Link
05MM Grade 100 Master Link, 76MM Grade 100 Master Link, 87MM Grade 100 Master Link, 108MM Grade 100 Master Link, 1310MM Grade 100 Master Link, 1613MM Grade 100 Master Link, 1916MM Grade 100 Master Link, 2219MM Grade 100 Master Link, 2622MM Grade 100 Master Link, 3226MM Grade 100 Master Link, 0032MM Grade 100 Master Link, 72MM Grade 100 Master Link
Welcome to buy the newest and competitive price DAWSON g100 master link for Chain Slings & Wire Rope Lifting Slings from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Products Show:
Hot Tags: Master Link, G100 Master Link, Grade 100 Master Link, China Master Link for Wire Rope Slings, Grade 100 Forged Master Link, Forged Master Link China Supplier, Forged Master Link Factory China, Low Price Master Link, Buy Discount Forged Master Link, Cheap Price Forged Master Link, Hot Sale Forged Master Link, Forged Master Link In Stock, Wholesale Forged Master Link, China Forged Master Link Manufacturer, G100 Chain Hardware, Forged Master Link for Wire Rope Lifting Slings
Other related products:
Package of G100 Products:
Application of G100 Forged Master Link:
G100 Products Catalogues Download:
DAWSON Testing Center:
About DAWSON:
Other Related G100 COMPONENTS
Supply only on special request. Not for recommendation.
For further information, please contact us. Email:info@dawson-group.com
