G100 Rigging Hardware
All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chain;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying;
● Color code: Blue RAL5015.
| Item No. | Weight/kg | WLL/T | B.L/T | A | B | C | E | M | W | L’ | L |
| 10-DS1009-06 | 0.22 | 1.4 | 5.6 | 7.5±0.5 | 32±1.5 | 18±1 | 8±1 | 46.5±2 | 25.5±1.5 | 44.5±3 | 77.3±2 |
| 10-DS1009-08 | 0.34 | 2.5 | 10 | 9.5±0.5 | 36±1.5 | 24±1.5 | 11±1 | 54±2 | 33.5±1.5 | 53±3 | 93±3 |
| 10-DS1009-10 | 0.82 | 4 | 16 | 12.5±0.5 | 46±1.5 | 29.5±1.5 | 13.5±1.5 | 72±2 | 42±2 | 73±3 | 127±3 |
| 10-DS1009-13 | 1.75 | 6.7 | 26.8 | 15±1 | 59±1.5 | 37±1.5 | 15±1.5 | 96±2 | 53.5±2 | 92±4 | 164±4 |
| 10-DS1009-16 | 2.88 | 10 | 40 | 18.5±1 | 70±2 | 46±2 | 19±1.5 | 115±3 | 74±2.5 | 103±4 | 188±4 |
| 10-DS1009-20 | 4.84 | 16 | 64 | 24±1.5 | 85±2 | 52±2 | 25±2 | 145±3 | 87±2.5 | 123±5 | 223±5 |
| 10-DS1009-22 | 8.3 | 19 | 76 | 27±2 | 100±2.5 | 61±2.5 | 27±2 | 159±3 | 90±3 | 141±5 | 260±5 |
| 10-DS1009-26 | 13.72 | 26.5 | 106 | 30±2 | 110±2.5 | 70±2.5 | 34±2 | 190±4 | 110±3 | 187±5 | 320±5 |
| 10-DS1009-32 | 25.5 | 40 | 160 | 35±2 | 150±2.5 | 80±2.5 | 41±2 | 229±4 | 130±3 | 213±5 | 378±5
|
SP-DS1009-SPARE PART FOR DS1009(LOAD PIN)
| Item No. | Size | L±0.2 | Φ | Item No. | Size | L±0.2 | Φ |
| SP-DS1009-6 | 6-10 | 30 | 7.6 | SP-DS1009-20 | 20-10 | 83 | 24 |
| SP-DS1009-8 | 8-10 | 34 | 9.8 | SP-DS1009-22 | 22-10 | 97 | 28 |
| SP-DS1009-10 | 10-10 | 44 | 13 | SP-DS1009-26 | 26-10 | 116 | 33.5 |
| SP-DS1009-13 | 13-10 | 57 | 15.8 | SP-DS1009-32 | 32-10 | 146 | 40.7 |
| SP-DS1009-16 | 16-10 | 68 | 19.5 |
|
|
|
|
1 SET = BLACK PIN + 2 BLACK SPRING TYPE STRAIGHT PINS

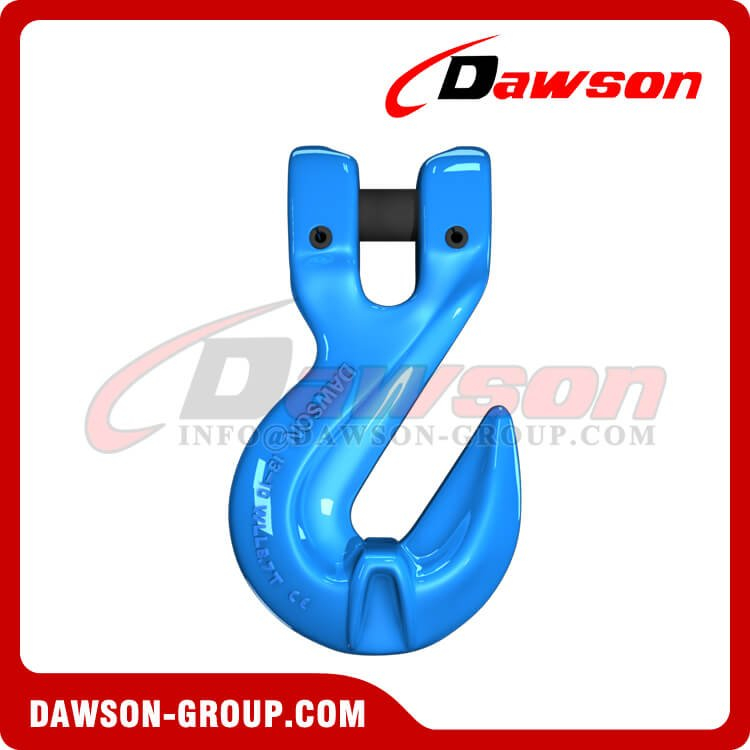

Welcome to buy the newest and competitive price DAWSON g100 clevis shortening cradle grab hook forged super alloy steel from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Other Related G100 COMPONENTS
Supply only on special request. Not for recommendation.
