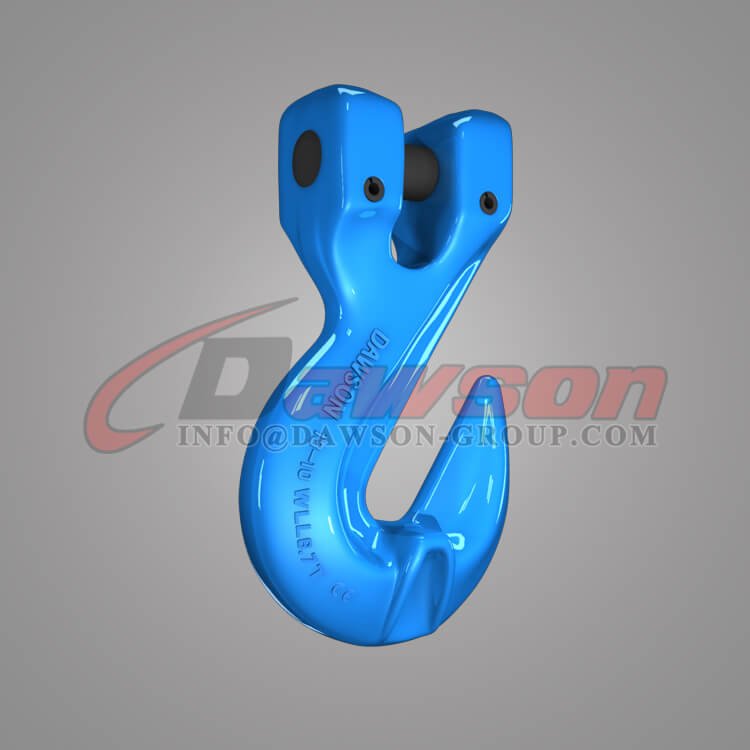

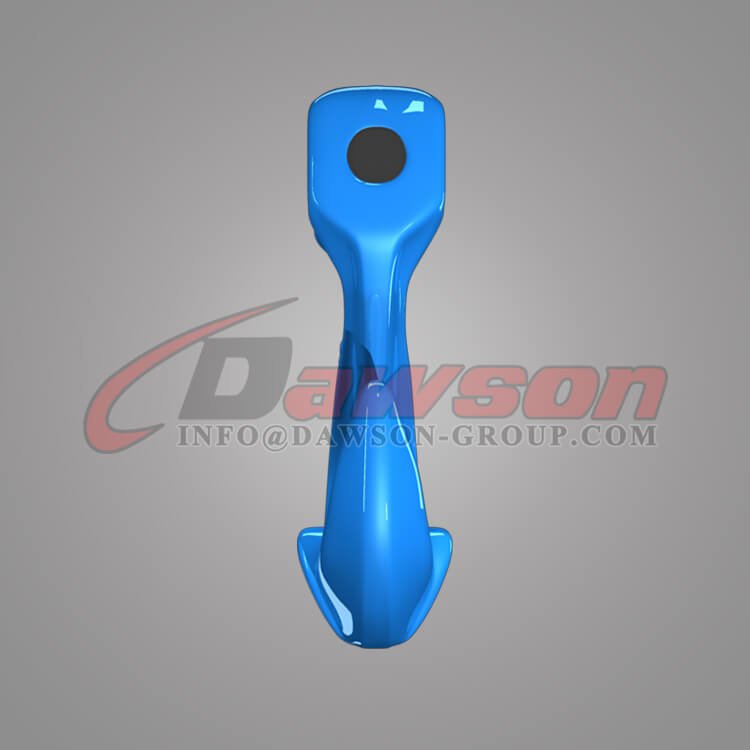

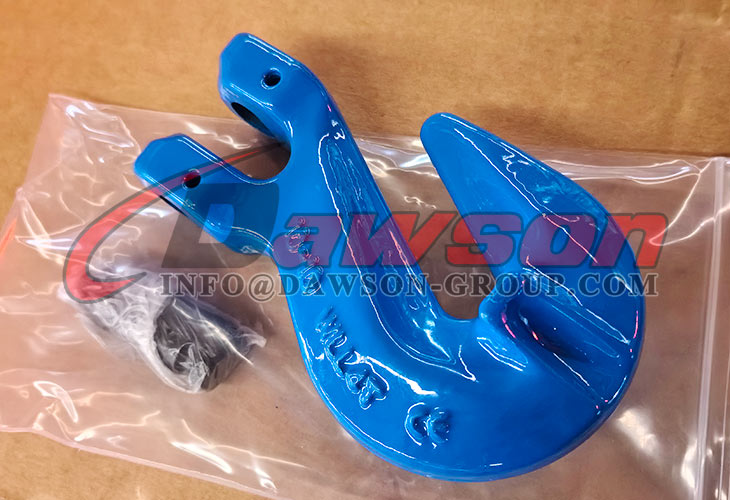

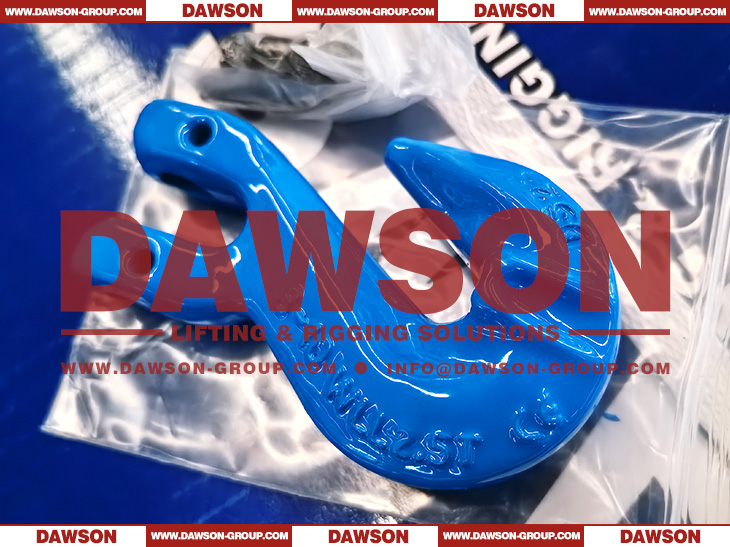

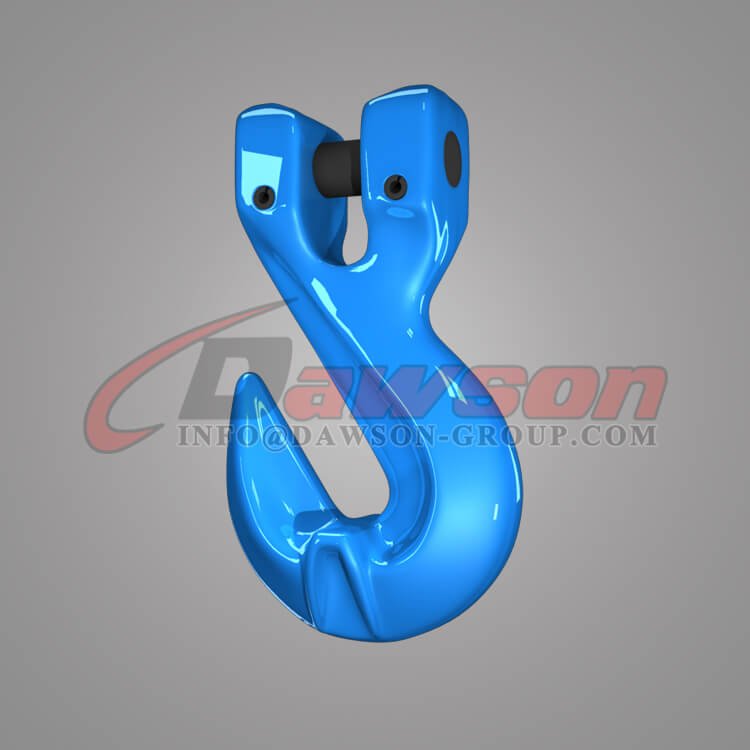

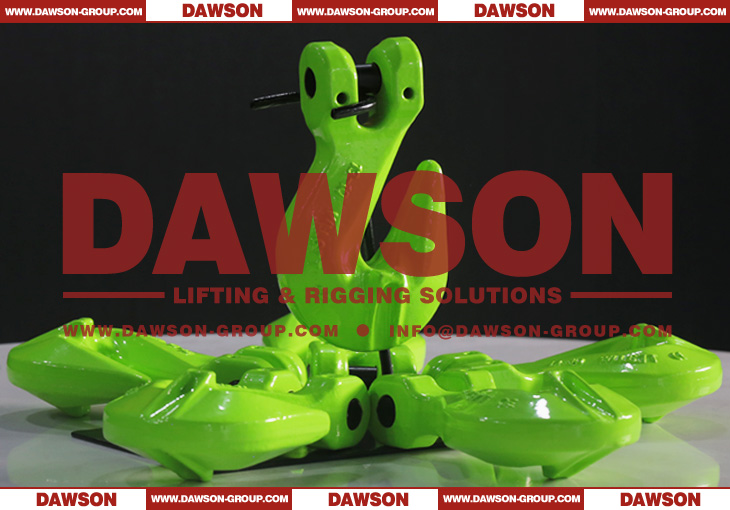

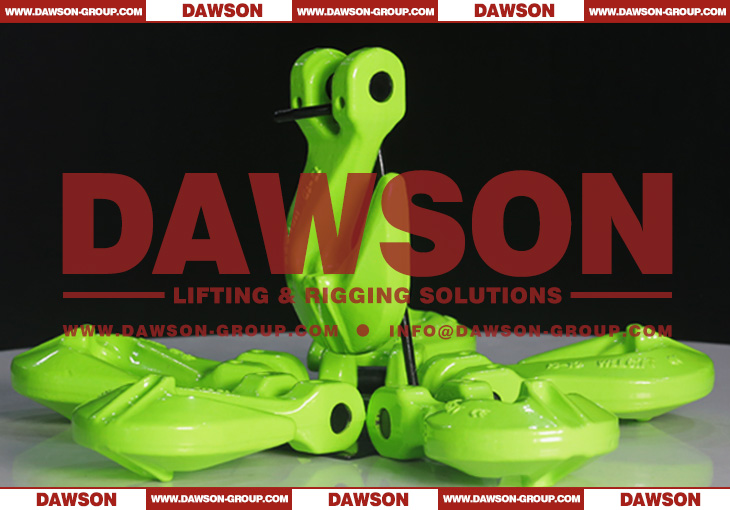

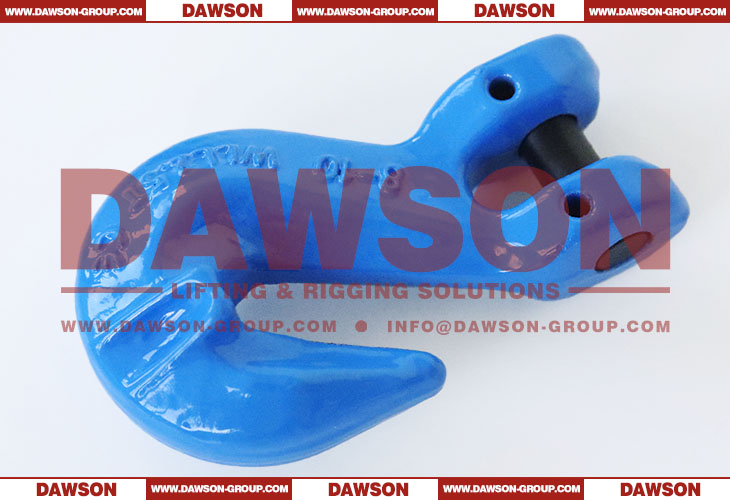

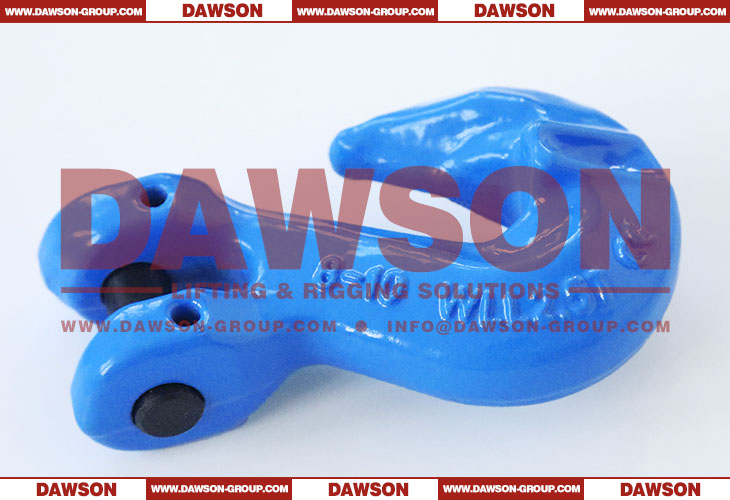

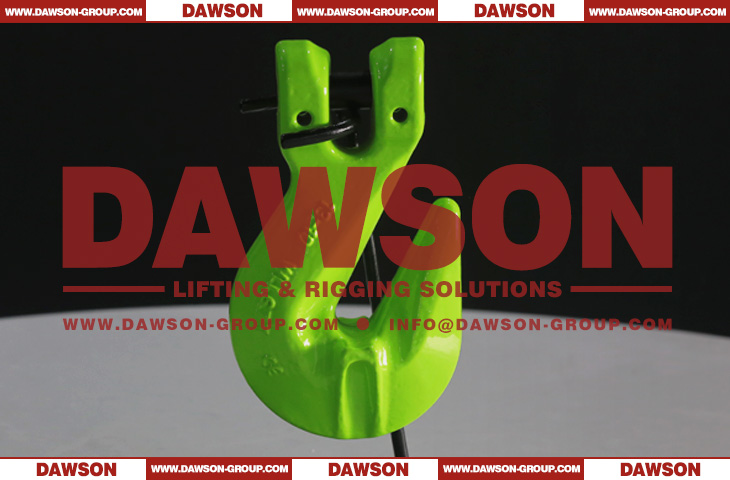

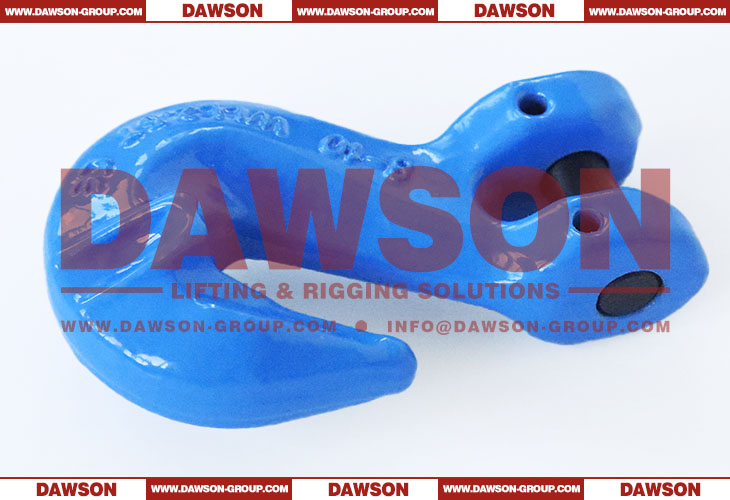

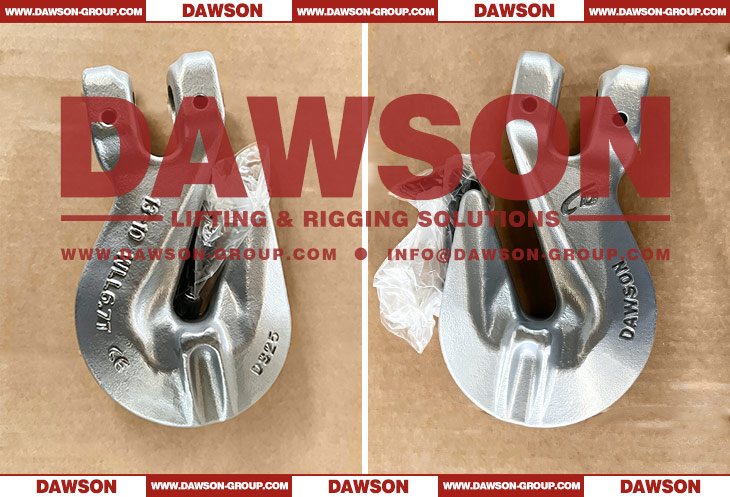

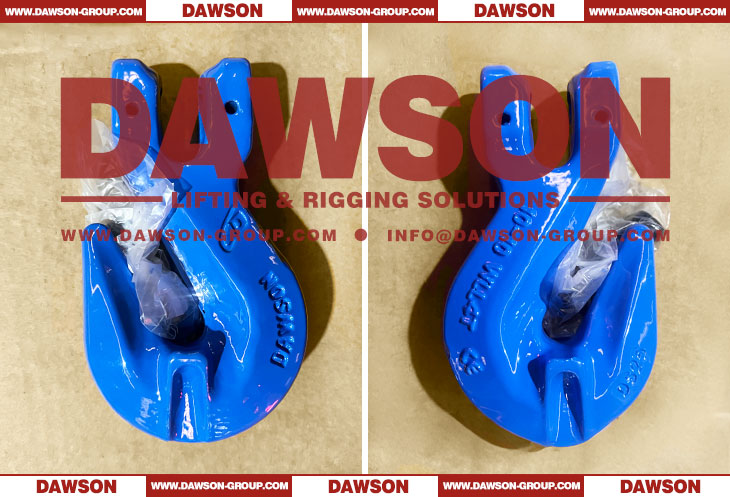

G100 Rigging Hardware
All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chain;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying;
● Color code: Blue RAL5015.
| Item No. | Weight/kg | WLL/T | B.L/T | A | B | C | E | M | W | L’ | L |
| 10-DS1009-06 | 0.22 | 1.4 | 5.6 | 7.5±0.5 | 32±1.5 | 18±1 | 8±1 | 46.5±2 | 25.5±1.5 | 44.5±3 | 77.3±2 |
| 10-DS1009-08 | 0.34 | 2.5 | 10 | 9.5±0.5 | 36±1.5 | 24±1.5 | 11±1 | 54±2 | 33.5±1.5 | 53±3 | 93±3 |
| 10-DS1009-10 | 0.82 | 4 | 16 | 12.5±0.5 | 46±1.5 | 29.5±1.5 | 13.5±1.5 | 72±2 | 42±2 | 73±3 | 127±3 |
| 10-DS1009-13 | 1.75 | 6.7 | 26.8 | 15±1 | 59±1.5 | 37±1.5 | 15±1.5 | 96±2 | 53.5±2 | 92±4 | 164±4 |
| 10-DS1009-16 | 2.88 | 10 | 40 | 18.5±1 | 70±2 | 46±2 | 19±1.5 | 115±3 | 74±2.5 | 103±4 | 188±4 |
| 10-DS1009-20 | 4.84 | 16 | 64 | 24±1.5 | 85±2 | 52±2 | 25±2 | 145±3 | 87±2.5 | 123±5 | 223±5 |
| 10-DS1009-22 | 8.3 | 19 | 76 | 27±2 | 100±2.5 | 61±2.5 | 27±2 | 159±3 | 90±3 | 141±5 | 260±5 |
| 10-DS1009-26 | 13.72 | 26.5 | 106 | 30±2 | 110±2.5 | 70±2.5 | 34±2 | 190±4 | 110±3 | 187±5 | 320±5 |
| 10-DS1009-32 | 25.5 | 40 | 160 | 35±2 | 150±2.5 | 80±2.5 | 41±2 | 229±4 | 130±3 | 213±5 | 378±5
|

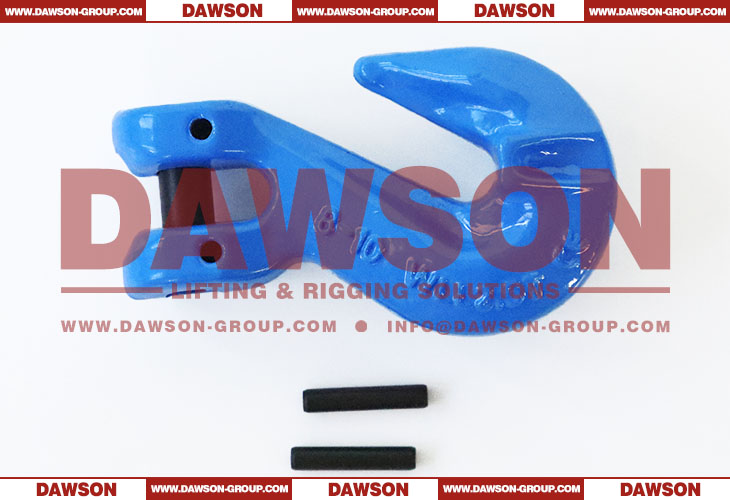

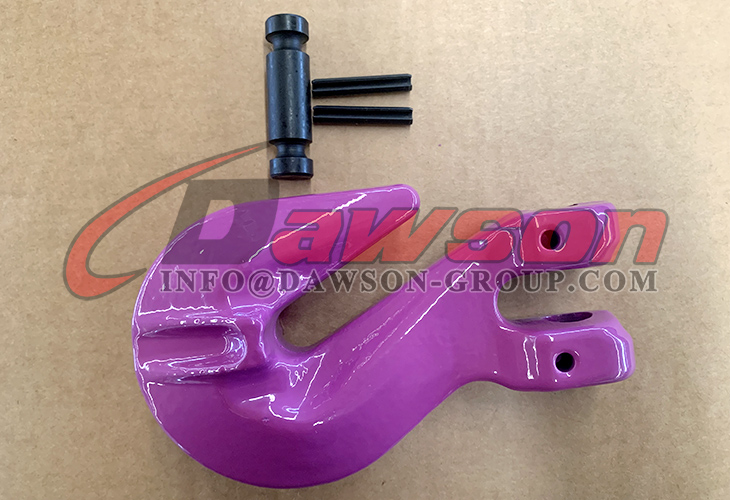

SP-DS1009-SPARE PART FOR DS1009(LOAD PIN)
| Item No. | Size | L±0.2 | Φ | Item No. | Size | L±0.2 | Φ |
| SP-DS1009-6 | 6-10 | 30 | 7.6 | SP-DS1009-20 | 20-10 | 83 | 24 |
| SP-DS1009-8 | 8-10 | 34 | 9.8 | SP-DS1009-22 | 22-10 | 97 | 28 |
| SP-DS1009-10 | 10-10 | 44 | 13 | SP-DS1009-26 | 26-10 | 116 | 33.5 |
| SP-DS1009-13 | 13-10 | 57 | 15.8 | SP-DS1009-32 | 32-10 | 146 | 40.7 |
| SP-DS1009-16 | 16-10 | 68 | 19.5 |
|
|
|
|

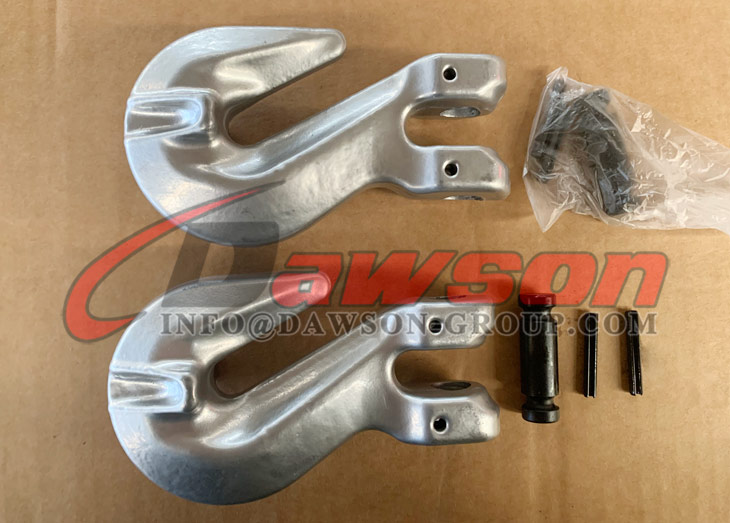

1 SET = BLACK PIN + 2 BLACK SPRING TYPE STRAIGHT PINS
Product specifications:
6MM G100 Clevis Grab Hook, 8MM G100 Clevis Grab Hook, 10MM G100 Clevis Grab Hook, 13MM G100 Clevis Grab Hook, 16MM G100 Clevis Grab Hook, 20MM G100 Clevis Grab Hook, 22MM G100 Clevis Grab Hook, 26MM G100 Clevis Grab Hook, 32MM G100 Clevis Grab Hook
6MM Grade 100 Clevis Hook, 8MM Grade 100 Clevis Hook, 10MM Grade 100 Clevis Hook, 13MM Grade 100 Clevis Hook, 16MM Grade 100 Clevis Hook, 20MM Grade 100 Clevis Hook, 22MM Grade 100 Clevis Hook, 26MM Grade 100 Clevis Hook, 32MM Grade 100 Clevis Hook
Welcome to buy the newest and competitive price DAWSON g100 clevis shortening cradle grab hook forged super alloy steel from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

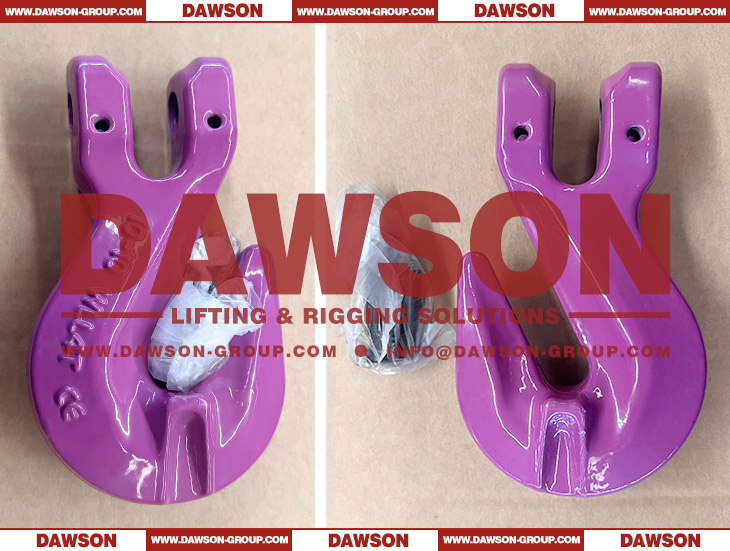

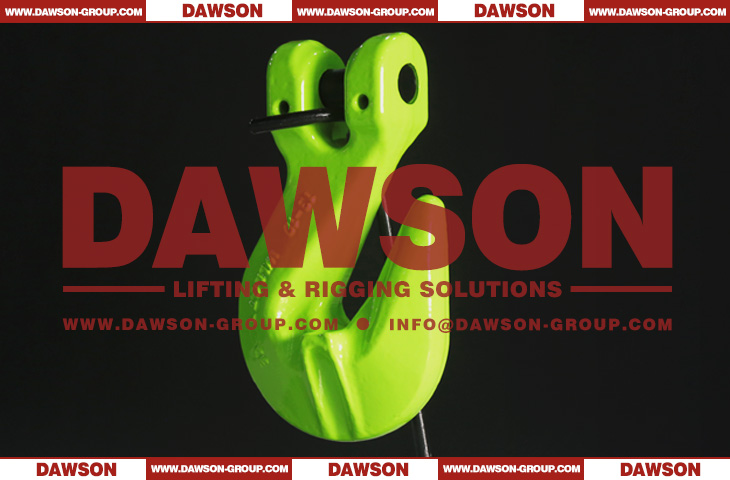

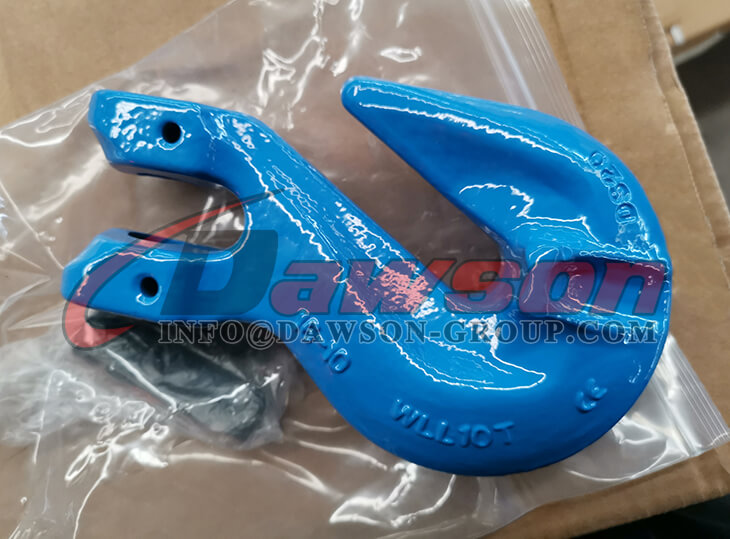

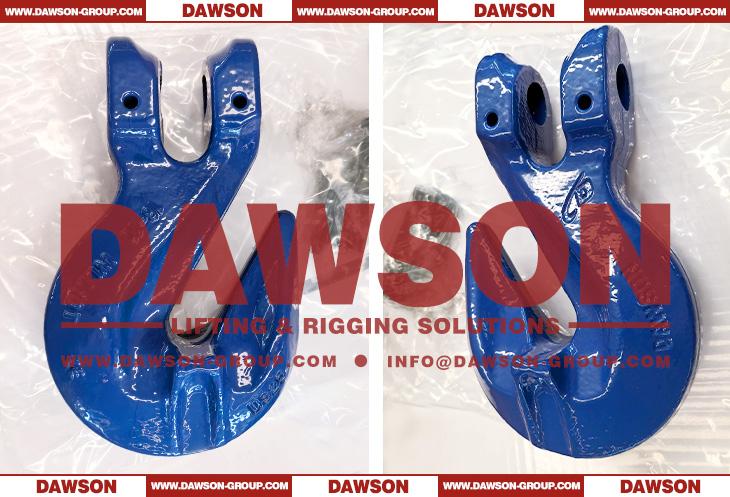

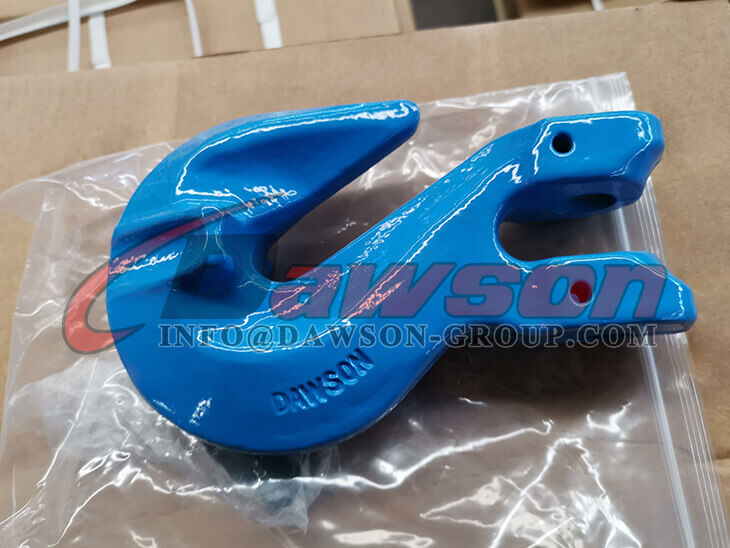

Products Show:
Hot Tags: Clevis Grab Hook, Cradle Grab Hook, G100 Clevis Shortening Grab Hook, Clevis Cradle Grab Hook with Wings, Grade 100 Clevis Grab Hook with Wings, Hot Sale Clevis Shortening Grab Hook, Clevis Shortening Grab Hook In Stock, China Clevis Shortening Grab Hook Supplier, Clevis Shortening Grab Hook China Manufacturer, Clevis Shortening Grab Hook Factory China, Low Price Cradle Grab Hook, Cradle Grab Hook Exporter China, Buy Discount Cradle Grab Hook, G100 Chain Hardware, Grade 100 Rigging Hardware, Cradle Grab Hook for Adjust Chain Length
Other related products:
Other Related G100 COMPONENTS
Supply only on special request. Not for recommendation.
For further information, please contact us. Email:info@dawson-group.com
DS1016 |
DS1017 |
DS1018 |
DS1025 |
DS1026 |
DS1019 |
DS1028 |
|
Package of G100 Products:

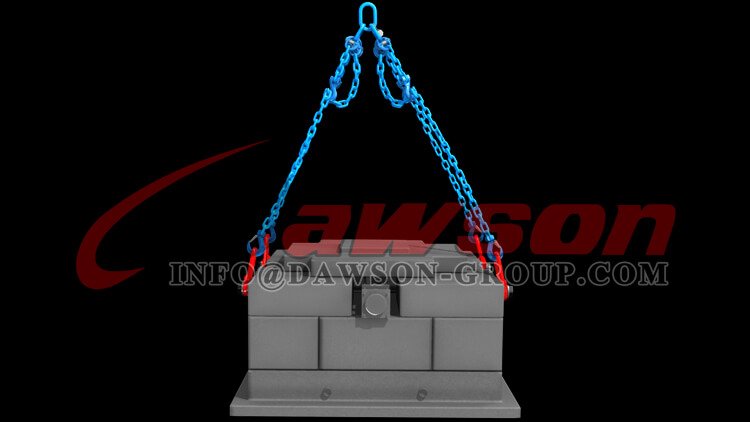

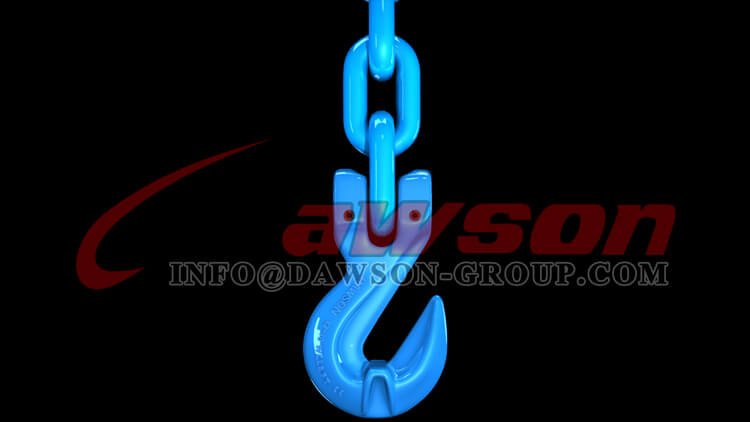

Application of G100 Clevis Shortening Cradle Grab Hook with Wings:
