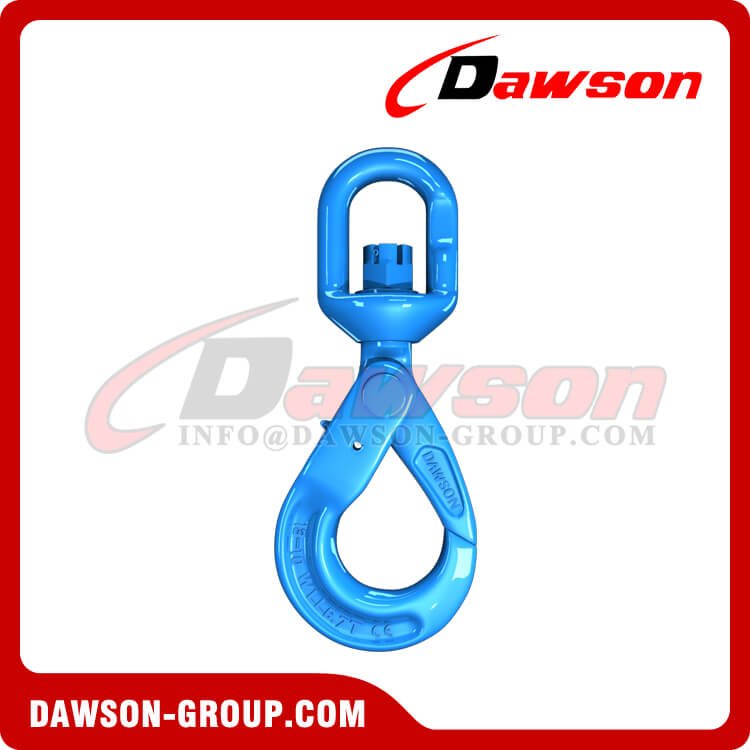

DS1007 G100 6-32MM European Type Swivel Self-Locking Hook for Crane Lifting Chain Slings

Forged or welded super alloy steel.
Suitable for use with G100 chain.
25% stronger than G80.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Powder plastified
Colour: blue RALcode: RAL5015
All load pin are 100% individually inspected and tested.
  • DAWSON/OEM

  • DS1007

  • 0.6-17.1kg

Availability:
Quantity:

G100 / Grade 100 6-32MM European Type Swivel Self-Locking Hook for Crane Lifting Chains Slings
G100 European Type Swivel Self-Locking Hook
Grade 100 European Type Swivel SelfLock Hook
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DS1007 G100 European Type Swivel Self-Locking Hook - DAWSON GROUP LTD. - CHINA MANUFACTURER SUPPLIER, FACTORY      DS1007 G100 European Type Swivel Self-Locking Hook for Crane Lifting Chain Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Grade 100 European Type Swivel Self-Locking Hook - Dawson Group Ltd. - China Factory      Grade 100 European Type Swivel Self-Locking Hook - Dawson Group Ltd. - China Supplier

Grade 100 European Type Swivel Self-Locking Hook - Dawson Group Ltd. - China Manufacturer      Grade 100 European Type Swivel Self-Locking Hook - Dawson Group Ltd. - China Supplier, Factory

Forged or welded super alloy steel.

The self locking structure of the hook will be automatically closed under the situation of load lifting, so that the lifting is much safer.

It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated

Suitable for use with G100 chain.

25% stronger than G80.

Individually proof tested at 2.5 times Working Load Limit.

100% Magnaflux Crack Detection.

Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.

Meet standard EN1677.

Strict break load test.

Surface finish: Powder plastified
Colour: blue RALcode: RAL5015, other colour is available as per request.

All load pin are 100% individually inspected and tested.


Item No. Weight/kg WLL/T B.L/T B C Φ E F M N K L
10-DS1007-06 0.6 1.4 5.6 32.5±2 25.5±2 11.5±1 28±2 31.5±2 73±2 15±1 152.5±4 184±5
10-DS1007-08 1.1 2.5 10 36±2 28.5±2 13±1 36±3 40±3 90±3 20±1 188±4 226±6
10-DS1007-10 2 4 16 42±3 35±3 15.5±1 45±3 46±3 108±3 26±2 225.5±5 269±6
10-DS1007-13 4 6.7 26.8 50±3 41±3 17±2 53.6±3 66±4 137.5±4 32.5±2 270±5 327±7
10-DS1007-16 6.8 10 40 70±4 58±4 21.5±2 61±4 75±4 170.5±4 38±3 342±6 413±7
10-DS1007-20 12.5 16 64 72±4 63±4 26±2 76.5±4 80±5 191.5±5 50±3 373±6 460±8
10-DS1007-22 17.1 19 76 97±5 96±5 33±2 76±4 104±5 205±5 52±3 468±7 566±8
10-DS1007-26 31.2 26.5 106 123±5 119±5 42±2 99±4 107±5 251±5 60±3 565±7 687±8
10-DS1007-32 59.9 40 160 140±5 144±5 52±2 135±4 142±5 329±5 75±3 680±7 834±8



SP-DS1005, DS1006, DS1007-SPARE PART FOR DS1005/1006/1007(LOAD PIN)

SP-DS1007 Item No. Size Item No. Size
SP-DS1005/6/7-6 6-10 SP- DS1005/6/7-20 20-10
SP- DS1005/6/7-8 8-10 SP- DS1005/6/7-22 22-10
SP- DS1005/6/7-10 10-10
SP- DS1005/6/7-13 13-10
SP- DS1005/6/7-16 16-10

Product specifications:

6MM G100 Swivel Self-Locking Hook, 8MM G100 Swivel Self-Locking Hook, 10MM G100 Swivel Self-Locking Hook, 13MM G100 Swivel Self-Locking Hook, 16MM G100 Swivel Self-Locking Hook, 20MM G100 Swivel Self-Locking Hook, 22MM G100 Swivel Self-Locking Hook, 26MM G100 Swivel Self-Locking Hook, 32MM G100 Swivel Self-Locking Hook


6MM Grade 100 Swivel Hook, 8MM Grade 100 Swivel Hook, 10MM Grade 100 Swivel Hook, 13MM Grade 100 Swivel Hook, 16MM Grade 100 Swivel Hook, 20MM Grade 100 Swivel Hook, 22MM Grade 100 Swivel Hook, 26MM Grade 100 Swivel Hook, 32MM Grade 100 Swivel Hook


1 SET = SELF COLOUR TRIGGER + BLACK SPRING + BLACK SPRING TYPE STRAIGHT PIN


G100 Rigging Hardware

All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.


Welcome to buy the newest and competitive price DAWSON G100 EUROPEAN TYPE SWIVEL SELF-LOCKING SAFETY HOOK forged super alloy steel from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

Products Show:

G100 European Type Swivel Self-Locking Hook - Dawson Group Ltd. - China Supplier  G100 European Type Swivel Self-Locking Hook - Dawson Group Ltd. - China Factory

G100 European Type Swivel Self-Locking Hook - Dawson Group Ltd. - China Factory, Exporter  G100 European Type Swivel Self-Locking Hook - Dawson Group Ltd. - China Factory, Manufacturer

G100 European Type Swivel Self-Locking Hook - Dawson Group Ltd. - China Manufacturer, Factory  G100 European Type Swivel Self-Locking Hook - Dawson Group Ltd. - China Manufacturer, Supplier

G100 European Type Swivel Self-Locking Hook - Dawson Group Ltd. - China Manufacturer  G100 European Type Swivel Self-Locking Hook - Dawson Group Ltd. - China Supplier, Factory

DS1007 G100 European Type Swivel Self-Locking Hook for Crane Lifting Chain Slings - Dawson Group Ltd. - China Supplier, Manufacturer, Factory
DS1007 G100 European Type Swivel Self-Locking Hook for Crane Lifting Chain Slings - Dawson Group Ltd. - China Factory, Manufacturer
DS1007 G100 European Type Swivel Self-Locking Hook for Crane Lifting Chain Slings - Dawson Group Ltd. - China Supplier, Manufacturer
DS1007 G100 European Type Swivel Self-Locking Hook for Crane Lifting Chain Slings - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
DS1007 G100 European Type Swivel Self-Locking Hook for Crane Lifting Chain Slings - Dawson Group Ltd. - China Supplier, Factory, Manufacturer
DS1007 G100 European Type Swivel Self-Locking Hook for Crane Lifting Chain Slings - Dawson Group Ltd. - China Supplier, Factory

DS-1007 G100 Swivel Selflocking Hook - Dawson Group Ltd. - China Manufacturer Supplier

DS-1007 G100 Swivel Selflocking Hook - Dawson Group Ltd. - China Supplier, Factory

DS-1007 G100 Swivel Selflocking Hook Grade 100 Self-Locking Safety Hook - Dawson Group Ltd. - China Manfuacturer Supplier

DS1007 G100 European Type Swivel Self-Locking Hook - DAWSON GROUP LTD. - CHINA MANUFACTURER SUPPLIER, FACTORY
DS1007 G100 Gray Painted European Type Swivel Self-Locking Hook for Crane Lifting Chain Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS1007 G100 Gray Painted European Type Swivel Self-Locking Hook for Crane Lifting Chain Slings - Dawson Group Ltd. - China Manufacturer, Supplier
