DS1006 G100 6-22MM European Type Forged Clevis Self-Locking Hook for Lifting Chain Slings

Forged or welded super alloy steel.
Suitable for use with G100 chain.
25% stronger than G80.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Power plastified Colour: blue RALcode: RAL5015
All load pin are 100% individually inspected and tested.
  • DAWSON/OEM

  • DS1006

  • 0.5-12.1kg

Availability:
Quantity:

G100 / Grade 100 6-22MM European Type Forged Clevis Self-Locking Hook for Lifting Chain Slings
DS1006 G100 European Type Clevis Self-Locking Hook - Chain Slings Components Assembly
G100 European Type Clevis Selflock Hook

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DS1006 G100 European Type Clevis Self-Locking Hook - Dawson Group Ltd. - China Manufacturer Supplier     DS1006 G100 European Type Clevis Self-Locking Hook - Dawson Group Ltd. - China Manufacturer Supplier, Factory

G100 European Type Clevis Self-Locking Hook - Dawson Group Ltd. - China Manufacturer     G100 European Type Clevis Self-Locking Hook - Dawson Group Ltd. - China Manufacturer, Supplier

G100 European Type Clevis Self-Locking Hook - Dawson Group Ltd. - China Supplier,Manufacturer     G100 European Type Clevis Self-Locking Hook - Dawson Group Ltd. - China Supplier, Factory

Forged or welded super alloy steel.

Suitable for use with G100 chain.

25% stronger than G80.

Individually proof tested at 2.5 times Working Load Limit.

100% Magnaflux Crack Detection.

Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.

Meet standard EN1677.

Strict break load test.

Surface finish: Power plastified Colour: blue RALcode: RAL5015, other colour is available as per request.

All load pin are 100% individually inspected and tested.

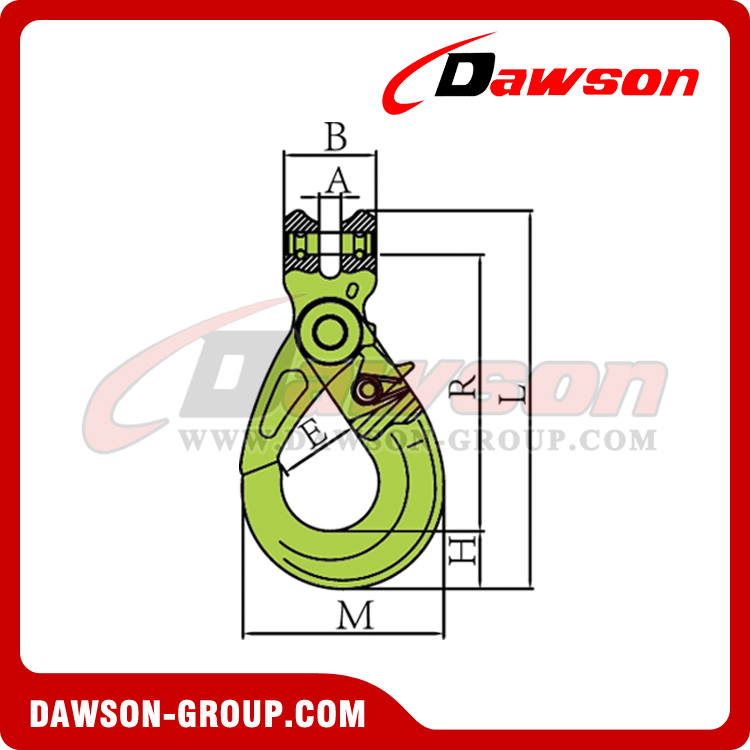

Item No. Weight/kg WLL/T B.L/T A±0.5 B±1 E±1 F±1 R±2 M±2 N±1 L±3
10-DS1006-06 0.5 1.4 5.6 8 32 28 31 96 70 15 131
10-DS1006-08 0.9 2.5 10 9.5 36 36 40 121 90 20 166
10-DS1006-10 1.6 4 16 12 46 45 50 144 109 26 196.5
10-DS1006-13 2.9 6.7 26.8 15 59 53.5 66 182 138.5 32.5 251
10-DS1006-16 5.8 10 40 18.5 70 62 75 220 170.5 39 303
10-DS1006-20 8.6 16 64 25 85 76.5 80 235 192.5 50 337
10-DS1006-22 12.1 19 76 25.5 98 80 104.6 271 205 52 386

SP-DS1006-SPARE PART FOR DS1006(LOAD PIN)

SP-DS1006 Item No. Size Item No. Size
SP-DS1006-6 6-10 SP-DS1006-20 20-10
SP-DS1006-8 8-10 SP-DS1006-22 22-10
SP-DS1006-10 10-10
SP-DS1006-13 13-10
SP-DS1006-16 16-10

Product specifications:

6MM G100 Clevis Self-Locking Hook, 8MM G100 Clevis Self-Locking Hook, 10MM G100 Clevis Self-Locking Hook, 13MM G100 Clevis Self-Locking Hook, 16MM G100 Clevis Self-Locking Hook, 20MM G100 Clevis Self-Locking Hook, 22MM G100 Clevis Self-Locking Hook

6MM Grade 100 Clevis Hook, 8MM Grade 100 Clevis Hook, 10MM Grade 100 Clevis Hook, 13MM Grade 100 Clevis Hook, 16MM Grade 100 Clevis Hook, 20MM Grade 100 Clevis Hook, 22MM Grade 100 Clevis Hook


1 SET = BLACK PIN + 2 BLACK SPRING TYPE STRAIGHT PINS

Grade 100 Rigging Hardware

All the G100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.


Welcome to buy the newest and competitive price DAWSON G100 European Type Clevis Self-Locking Hook forged super alloy steel from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
