G100 Rigging Hardware
All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.

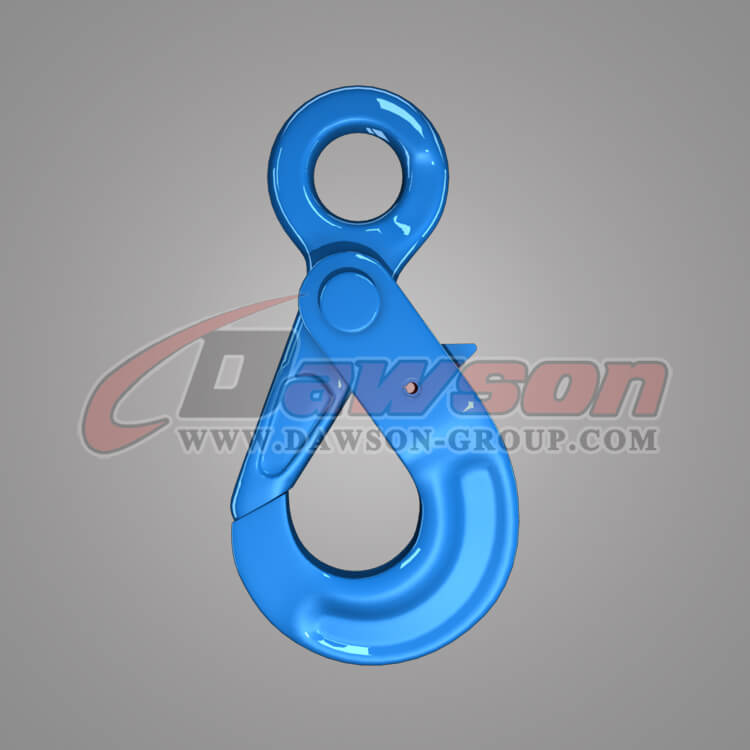

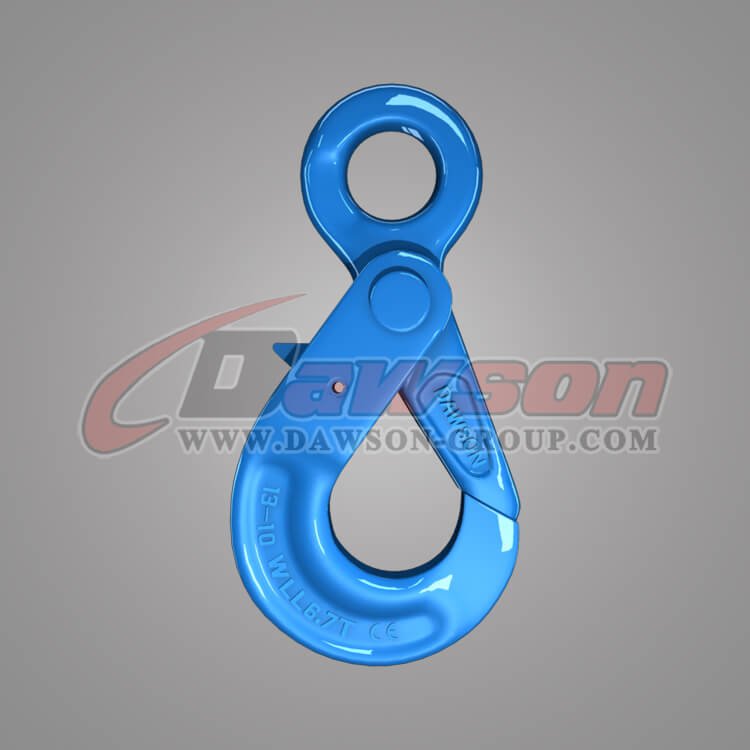

The alloy steel self locking eye hook has the following features
● The self locking structure of the hook will be automatically closed under the situation of load lifting, so that the lifting is much safer.
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chain;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying;
● Color code: Blue RAL5015, other colour is available as per request;
| Item No. | Weight/kg | WLL/T | B.L/T | Φ | D±1 | E±1 | F±1 | R±2 | M±2 | N±1 | L±3 |
| 10-DS1005-06 | 0.5 | 1.4 | 5.6 | 21 | 43 | 28 | 31 | 110 | 70 | 15 | 141 |
| 10-DS1005-07 | 0.72 | 1.9 | 7.6 | 27 | 52 | 31 | 34 | 127 | 81 | 12 | 162 |
| 10-DS1005-08 | 0.9 | 2.5 | 10 | 27 | 52 | 36 | 40 | 137 | 90 | 20 | 175 |
| 10-DS1005-10 | 1.5 | 4 | 16 | 34.5 | 64.5 | 45 | 50 | 170 | 108 | 26 | 212.5 |
| 10-DS1005-13 | 2.7 | 6.7 | 26.8 | 40 | 80 | 53.6 | 66 | 209 | 138.5 | 32.5 | 270 |
| 10-DS1005-16 | 5.7 | 10 | 40 | 50 | 104 | 61 | 75 | 256 | 170.5 | 38 | 333 |
| 10-DS1005-20 | 7.9 | 16 | 64 | 60 | 120 | 76.5 | 80 | 277 | 192.5 | 50 | 369 |
| 10-DS1005-22 | 11.2 | 19 | 76 | 70 | 134 | 80 | 104.6 | 319 | 205 | 52 | 417
|
SK-DS1005-SAFETY KITS FOR DS1005(SAFETY KITS)
| Item No. | Size | Item No. | Size |
| SK-DS1005-6 | 6-10 | SK-DS1005-20 | 20-10 |
| SK-DS1005-8 | 8-10 | SK-DS1005-22 | 22-10 |
| SK-DS1005-10 | 10-10 |
|
|
| SK-DS1005-13 | 13-10 |
|
|
| SK-DS1005-16 | 16-10 |
|
|
1 SET = 1 Roll Pin+1 Trigger+1 Spring

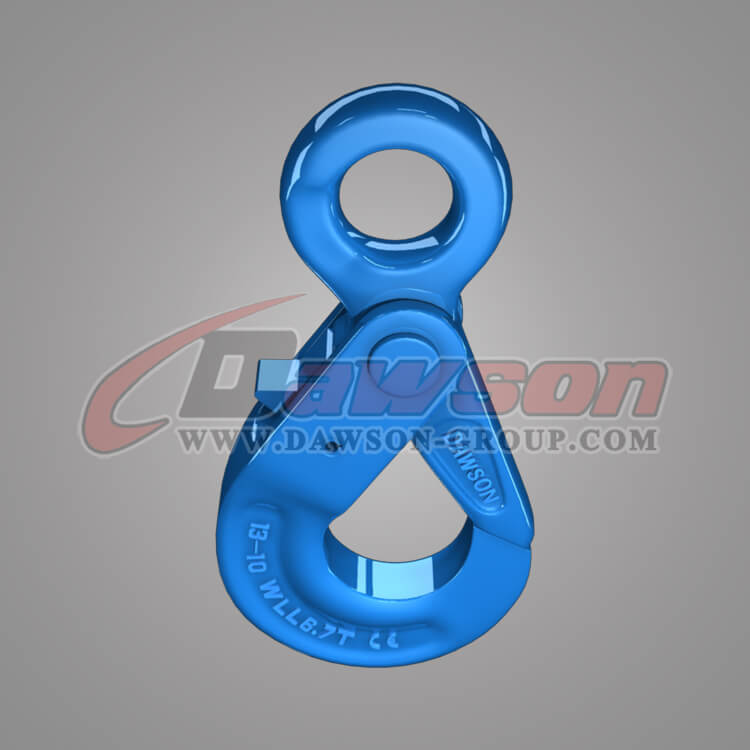

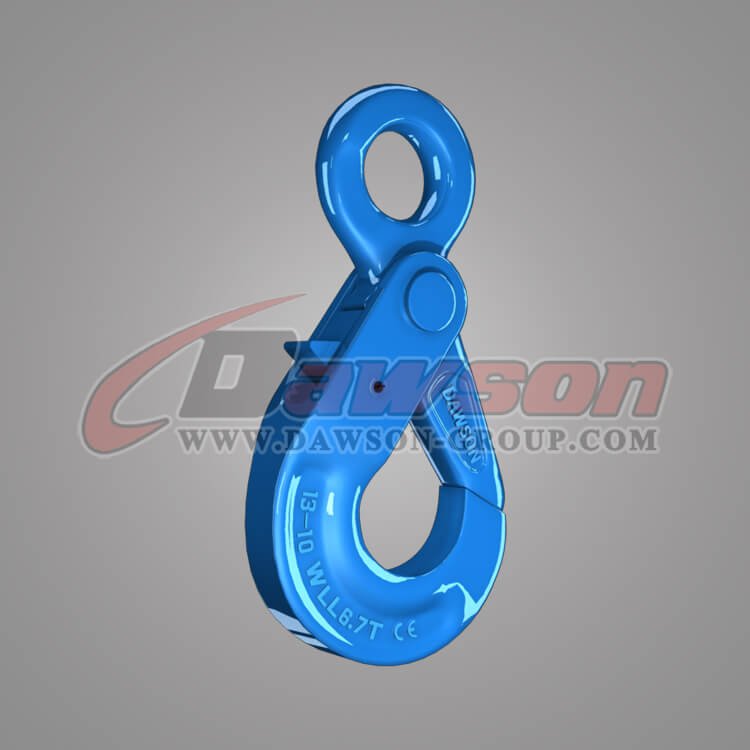

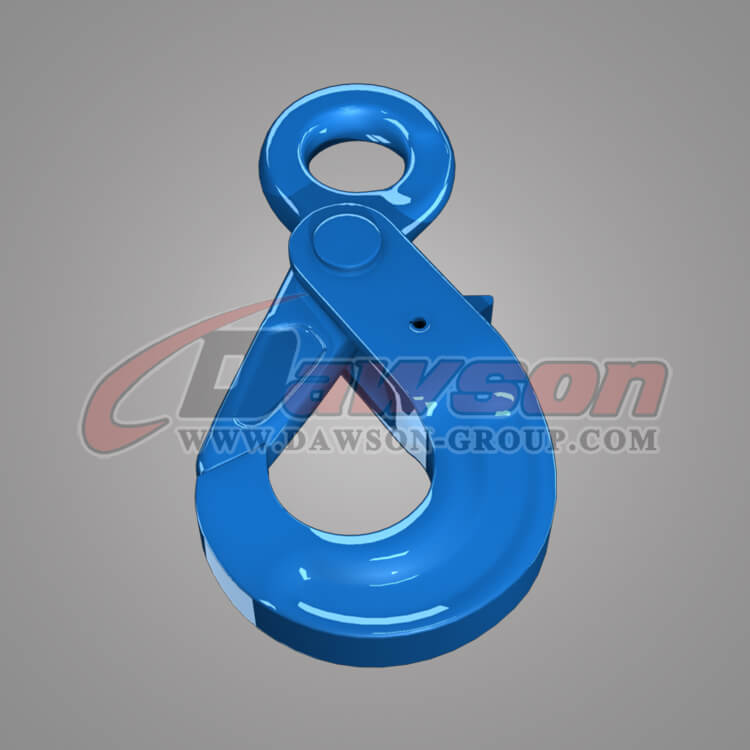

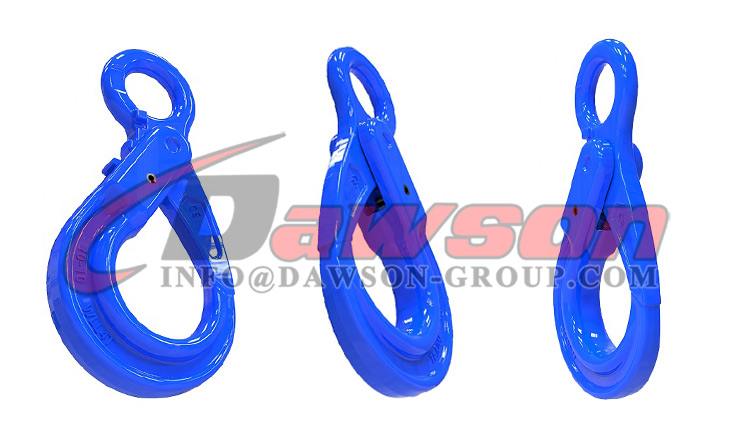

G100 Safety Hooks BK Eye Type with Recessed Trigger
Safety Hooks BK Eye Type G100 with Recessed Trigger, also known as BK self-locking hook, or just called it BK Safety Hook, some customer also called it Safety Cargo Hook bk.
BK Safety Hook is forged from alloy steel, hardened and tempered, and is suitable for attaching both chain and wire rope.
It is provided with a recessed trigger, which is embedded in the body of the hook in order to prevent the trigger from jamming or being damaged, and to help prevent accidental opening of the latch.
The Eye self-locking hook BK type is designed with a flat section for attaching other components.
Safety Hooks BK G10 has a latch rotation stop to protect the trigger mechanism from damage.
Product specifications:
6MM G100 Eye Self-Locking Hook, 7MM G100 Eye Self-Locking Hook, 8MM G100 Eye Self-Locking Hook, 10MM G100 Eye Self-Locking Hook, 13MM G100 Eye Self-Locking Hook, 16MM G100 Eye Self-Locking Hook, 20MM G100 Eye Self-Locking Hook, 22MM G100 Eye Self-Locking Hook
6MM Grade 100 Eye Hook, 7MM Grade 100 Eye Hook, 8MM Grade 100 Eye Hook, 10MM Grade 100 Eye Hook, 13MM Grade 100 Eye Hook, 16MM Grade 100 Eye Hook, 20MM Grade 100 Eye Hook, 22MM Grade 100 Eye Hook
Welcome to buy the newest and competitive price DAWSON g100 eye self-locking hook forged super alloy steel from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

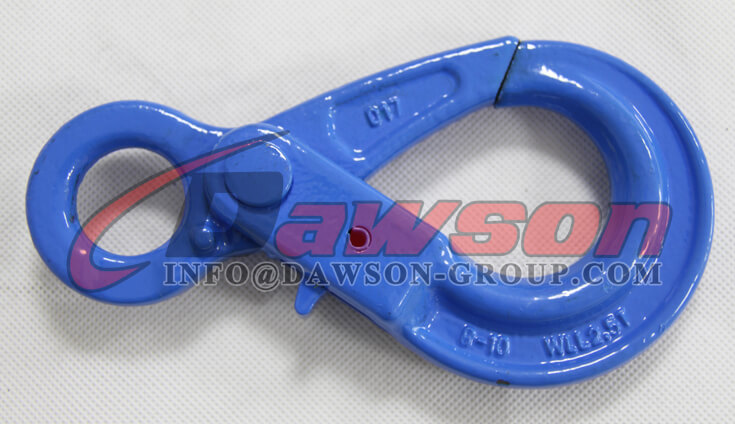

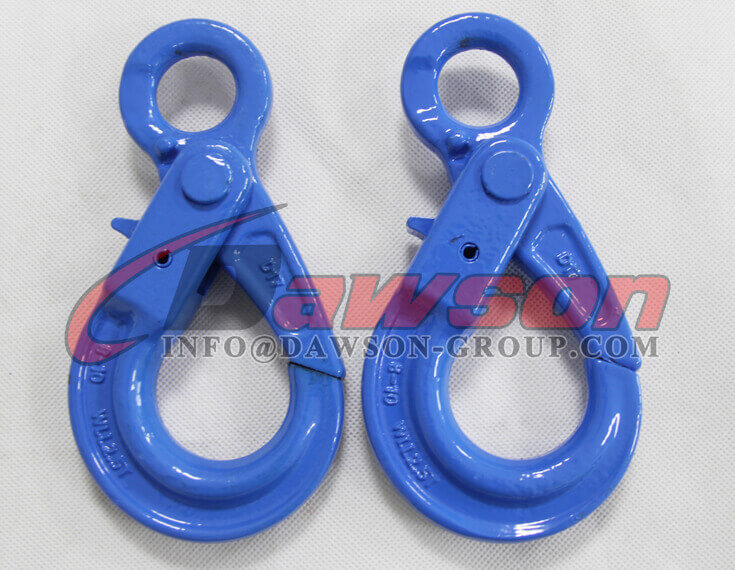

Products Show:
Hot Tags: Eye Self-Locking Hook, G100 Eye Self-locking Hook, Eye Self-locking Hook for Chain Slings, Grade 100 Eye Self-locking Hook for Chain Slings China, Forged Eye Self-Locking Hook Supplier, Alloy Steel Eye Self-Locking Hook Factory, Hot Sale Eye Self-Locking Hook for G100 Chains, Buy Discount Eye Self-Locking Hook, Eye Self-Locking Hook China Exporter, Low Price Eye Self-Locking Safety Hook, Self-Locking Eye Hook, Eye Self-Locking Safety Hook In Stock
TUV CE Certificate about DS1005 G100 Forged Eye Self-Locking Hook:
Other Related Products:
Other Related G100 COMPONENTS
Supply only on special request. Not for recommendation.
For further information, please contact us. Email:info@dawson-group.com
DS1016 |
DS1017 |
DS1018 |
DS1025 |
DS1026 |
DS1019 |
DS1028 |
|
Package of G100 Products:

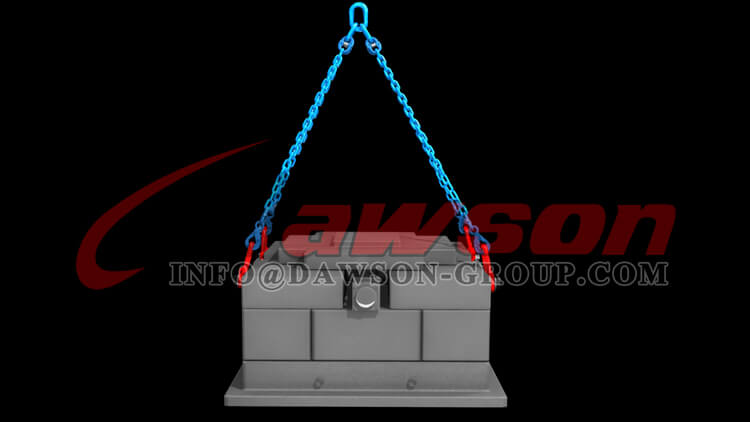

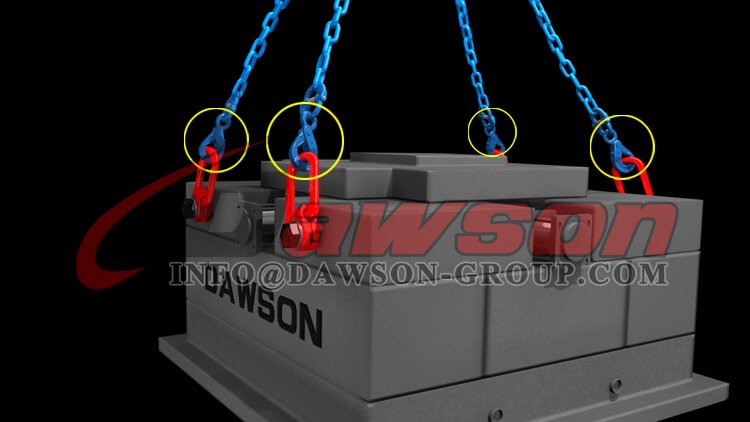

Application of G100 European Type Self-Locking Hook:
