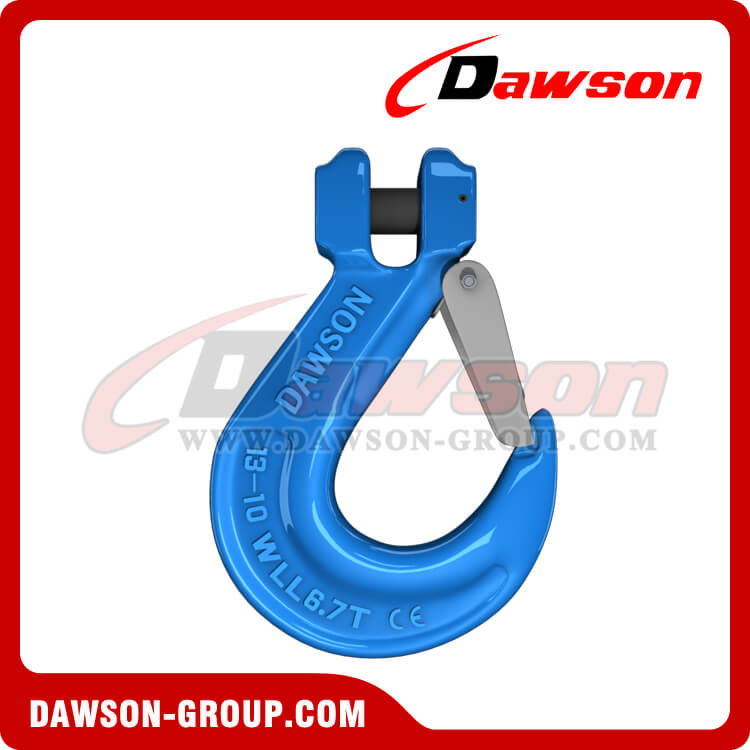

DS1004 G100 Clevis Sling Hook with Safety Latch for Chain Sling Fitting

Share to:

DS1004 G100 Clevis Sling Hook with Safety Latch for Chain Sling Fitting

● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chain;
● The performance is increased by 25% compared with G80 products;
● Each work piece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: Powder plastified;
● Color code: Blue RAL5015, other colour is available as per request;
● It is equipped with a spare part, cast latch.

Brand:
DAWSON/OEM
Code:
DS1004
Size:
0.33-12.1kg

Availability:

Quantity:


Inquire Add to Basket

Product Description

DS1004 G100 / Grade 100 Clevis Sling Hook with Safety Latch For Chain Sling Fitting
Grade 100 / G100 Clevis Sling Hook with Latch - Chain Slings Components Assembly
G100 Clevis Sling Hook
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

G100 Rigging Hardware

All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.

● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;

● It can be matched with G100 chain;

● The performance is increased by 25% compared with G80 products;

● Each workpiece should pass testing at 2.5 times of working load limit;

● We should carry out sampling and 20000 times of fatigue testing;

● We should carry out strict sampling and breakage testing for each batch of products;

● We should carry out 100% magnetic powder flaw detection;

● 100% of the pin should be tested to ensure that they have the same hardness;

● Surface treatment: Powder plastified;

● Color code: Blue RAL5015, other colour is available as per request;

● It is equipped with a spare part, cast latch.

Item No.	Weight/kg	WLL/T	B.L/T	A±0.5	B±1	E±1.5	H±1	M±2	L±2.5
10-DS1004-06	0.33	1.4	5.6	7.5	32	18.5	21	68.5	109
10-DS1004-08	0.7	2.5	10	9.5	37	25	27.5	88	134
10-DS1004-10	1.3	4	16	12	48	28	33.5	105.5	161.5
10-DS1004-13	2.3	6.7	26.8	15	59	38	42	134	203
10-DS1004-16	3.6	10	40	18.5	70	44	50	160.5	248
10-DS1004-20	7	16	64	25	85	52	56	190.5	297
10-DS1004-22	12.1	19	76	27	100	66	62	214.5	326

SP-DS1004-SPARE PART FOR DS1004(LOAD PIN)

Item No.	Size	Item No.	Size
SP-DS1004-6	6-10	SP-DS1004-20	20-10
SP-DS1004-8	8-10	SP-DS1004-22	22-10
SP-DS1004-10	10-10
SP-DS1004-13	13-10
SP-DS1004-16	16-10

1 SET = BLACK PIN + 2 BLACK SPRING TYPE STRAIGHT PINS

Welcome to buy the newest and competitive price DAWSON g100 clevis sling hook forged super alloy steel from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
