DAWSON/OEM
DS1001
0.1-8.5kg
Availability: | |
---|---|
Quantity: | |

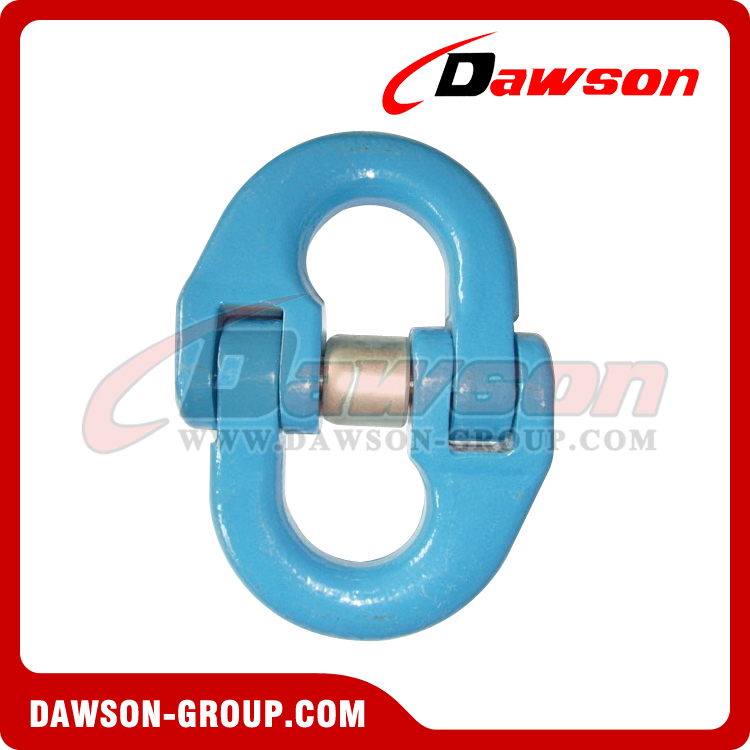

Forged super alloy steel-Quenched and Temered.
It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.
Suitable for use with G100 chain.
The performance is increased by 25% compared with G80 products.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: plastic spraying
Colour: blue RALcode: RAL5015, other colour is available as per request.
All load pin are 100% individually inspected and tested.
Item No. | Weight/kg | WLL/T | B.L/T | A | B | C | D | K | H | E | F | Φ | G | Q |
10-DS1001-06 | 0.08 | 1.4 | 5.6 | 14±0.8 | 16.9±0.8 | 8.5±0.8 | 7±0.5 | 44.5±2.5 | 11+0.5 | 16±1 | 5.5±0.2 | 11.4+0.5 | 7.4±0.2 | 12+0.5 |
11-1 | 11.4-0 | 12-1 | ||||||||||||
10-DS1001-7 | 0.166 | 1.9 | 7.6 | 18.5±0.8 | 22.5±0.8 | 10±0.8 | 8.2±0.5 | 59±3 | 12.5+0.5 | 23±1 | 7.2±0.2 | 13+0.5 | 8.2±0.2 | 15+0.5 |
12.5-1 | 13-0 | 15-1 | ||||||||||||
10-DS1001-7/8 | 0.17 | 2.5 | 10 | 18.5±0.8 | 22±0.8 | 11±0.8 | 8.5±0.8 | 59±3 | 13+0.5 | 23±1 | 7.8±0.2 | 14+0.5 | 8.5±0.2 | 15.5+0.5 |
13-1 | 14-0 | 15.5-1 | ||||||||||||
10-DS1001-8 | 0.18 | 2.5 | 10 | 18.5±0.8 | 22.7±1 | 10.5±0.8 | 10±0.8 | 63±3 | 14+0.5 | 24±1 | 7.8±0.2 | 15+0.5 | 10.2±0.5 | 14+0.5 |
14-1 | 15-0 | 14-1 | ||||||||||||
10-DS1001-10 | 0.34 | 4 | 16 | 23±1 | 27.7±1 | 12.6±1 | 12.6±1 | 71±3 | 18+0.8 | 28±2 | 9.6±0.5 | 19+0.5 | 12.6±0.5 | 18+0.8 |
18-1 | 19-0 | 18-1 | ||||||||||||
10-DS1001-13 | 0.68 | 6.7 | 26.8 | 28±1 | 33.2±1 | 16.5±1 | 16.5±1 | 92.5±3 | 23+0.8 | 34±2 | 12.5±0.5 | 24.5+1 | 17±0.5 | 23+0.8 |
23-1 | 24.5-0.5 | 23-1 | ||||||||||||
10-DS1001-16 | 1.22 | 10 | 40 | 33.5±1 | 39±2 | 20±1 | 20±1 | 106.5±3 | 29.5±1 | 39±2 | 16.2±0.5 | 31+1 | 20±0.5 | 29.5±1 |
31-0.5 | ||||||||||||||
10-DS1001-20 | 2.13 | 16 | 64 | 42±1 | 47.3±3 | 25±1.5 | 25±1.5 | 123±3 | 35.5±1.5 | 42±2 | 18±0.5 | 38+1 | 25.5±1 | 35.5±1.5 |
38-0.5 | ||||||||||||||
10-DS1001-22 | 3 | 19 | 76 | 48±1 | 55±3 | 27±1.5 | 27±1.5 | 137.5±3 | 39±2 | 50±3 | 21±0.8 | 41+1 | 27±1 | 39±2 |
41-0.5 | ||||||||||||||
10-DS1001-26 | 5.22 | 26.5 | 106 | 61±2 | 68±3 | 32±2 | 32±2 | 163±4 | 45±2.5 | 63±3 | 25±0.8 | 49+1 | 32±1 | 45±2.5 |
49-0.5 | ||||||||||||||
10-DS1001-32 | 9.55 | 40 | 160 | 80±2 | 87±3 | 40±3 | 40±3 | 197±4 | 54±3 | 78±3 | 33±0.8 | 61+2 | 38.5±1 | 54±3 |
61-1 |
SP-DS1001-SPARE PART FOR DS1001
Item No. | Size | Item No. | Size | |
SP-DS1001-6 | 6-10 | SP-DS1001-20 | 20-10 | |
SP-DS1001-8 | 8-10 | SP-DS1001-22 | 22-10 | |
SP-DS1001-10 | 10-10 | SP-DS1001-26 | 26-10 | |
SP-DS1001-13 | 13-10 | SP-DS1001-32 | 32-10 | |
SP-DS1001-16 | 16-10 |
1 SET = GALVANIZED SLEEVE + BLACK PIN
Grade 100 Rigging Hardware
All the G100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
Welcome to buy the newest and competitive price DAWSON g100 European type connecting link forged super alloy steel from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
