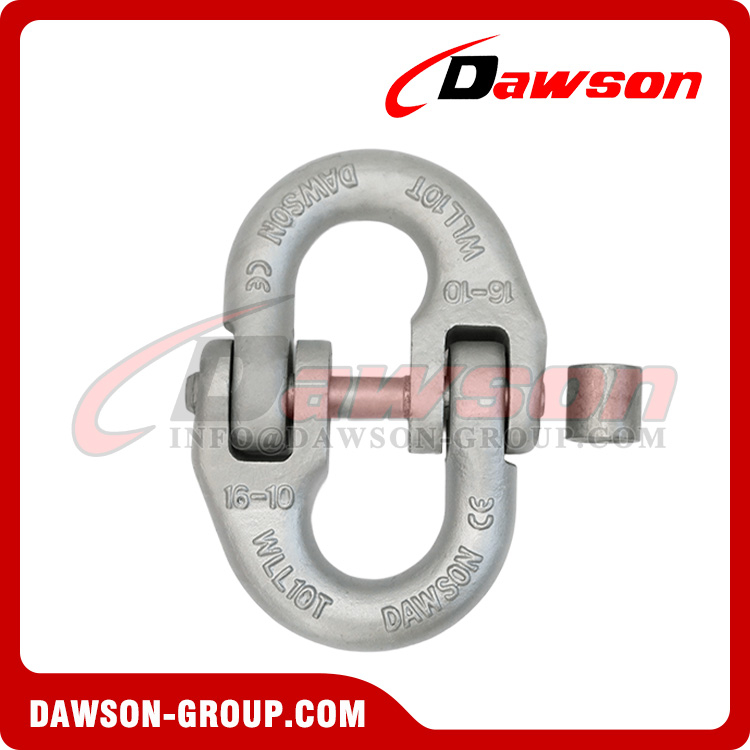

DS1001 G100 Dacromet European Type Connecting Link Hammer Lock Lifting Chain Connector,
G100 / Grade 100 European Type Connecting Link, G100 Chain Connector, Alloy Steel Connecting Link for Lifting Crane Chain Slings - Chain Slings Components Assembly
DS1001 G100 Connecting Link
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Forged super alloy steel-Quenched and Temered.
It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.
Suitable for use with G100 chain.
The performance is increased by 25% compared with G80 products.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: plastic spraying or Dacromet.
Dacromet surface finish for enhanced corrossion resistance.
Colour: blue RALcode: RAL5015, other colour is available as per request.
All load pin are 100% individually inspected and tested.
| Item No. | Weight/kg | WLL/T | B.L/T | A | B | C | D | K | H | E | F | Φ | G | Q |
| 10-DS1001-06 | 0.08 | 1.4 | 5.6 | 14±0.8 | 16.9±0.8 | 8.5±0.8 | 7±0.5 | 44.5±2.5 | 11+0.5 | 16±1 | 5.5±0.2 | 11.4+0.5 | 7.4±0.2 | 12+0.5 |
| 11-1 | 11.4-0 | 12-1 |
| 10-DS1001-07 | 0.166 | 1.9 | 7.6 | 18.5±0.8 | 22.5±0.8 | 10±0.8 | 8.2±0.5 | 59±3 | 12.5+0.5 | 23±1 | 7.2±0.2 | 13+0.5 | 8.2±0.2 | 15+0.5 |
| 12.5-1 | 13-0 | 15-1 |
| 10-DS1001-7/8 | 0.17 | 2.5 | 10 | 18.5±0.8 | 22±0.8 | 11±0.8 | 8.5±0.8 | 59±3 | 13+0.5 | 23±1 | 7.8±0.2 | 14+0.5 | 8.5±0.2 | 15.5+0.5 |
| 13-1 | 14-0 | 15.5-1 |
| 10-DS1001-08 | 0.18 | 2.5 | 10 | 18.5±0.8 | 22.7±1 | 10.5±0.8 | 10±0.8 | 63±3 | 14+0.5 | 24±1 | 7.8±0.2 | 15+0.5 | 10.2±0.5 | 14+0.5 |
| 14-1 | 15-0 | 14-1 |
| 10-DS1001-10 | 0.34 | 4 | 16 | 23±1 | 27.7±1 | 12.6±1 | 12.6±1 | 71±3 | 18+0.8 | 28±2 | 9.6±0.5 | 19+0.5 | 12.6±0.5 | 18+0.8 |
| 18-1 | 19-0 | 18-1 |
| 10-DS1001-13 | 0.68 | 6.7 | 26.8 | 28±1 | 33.2±1 | 16.5±1 | 16.5±1 | 92.5±3 | 23+0.8 | 34±2 | 12.5±0.5 | 24.5+1 | 17±0.5 | 23+0.8 |
| 23-1 | 24.5-0.5 | 23-1 |
| 10-DS1001-16 | 1.22 | 10 | 40 | 33.5±1 | 39±2 | 20±1 | 20±1 | 106.5±3 | 29.5±1 | 39±2 | 16.2±0.5 | 31+1 | 20±0.5 | 29.5±1 |
| 31-0.5 |
| 10-DS1001-20 | 2.13 | 16 | 64 | 42±1 | 47.3±3 | 25±1.5 | 25±1.5 | 123±3 | 35.5±1.5 | 42±2 | 18±0.5 | 38+1 | 25.5±1 | 35.5±1.5 |
| 38-0.5 |
| 10-DS1001-22 | 3 | 19 | 76 | 48±1 | 55±3 | 27±1.5 | 27±1.5 | 137.5±3 | 39±2 | 50±3 | 21±0.8 | 41+1 | 27±1 | 39±2 |
| 41-0.5 |
| 10-DS1001-26 | 5.22 | 26.5 | 106 | 61±2 | 68±3 | 32±2 | 32±2 | 163±4 | 45±2.5 | 63±3 | 25±0.8 | 49+1 | 32±1 | 45±2.5 |
| 49-0.5 |
| 10-DS1001-32 | 9.55 | 40 | 160 | 80±2 | 87±3 | 40±3 | 40±3 | 197±4 | 54±3 | 78±3 | 33±0.8 | 61+2 | 38.5±1 | 54±3 |
61-1
|
SP-DS1001-SPARE PART FOR DS1001
| Item No. | Size | Item No. | Size |
| SP-DS1001-6 | 6-10 | SP-DS1001-20 | 20-10 |
| SP-DS1001-8 | 8-10 | SP-DS1001-22 | 22-10 |
| SP-DS1001-10 | 10-10 | SP-DS1001-26 | 26-10 |
| SP-DS1001-13 | 13-10 | SP-DS1001-32 | 32-10 |
| SP-DS1001-16 | 16-10 | |
|
Product specifications:
6MM G100 Dacromet Connecting Link, 7/8MM G100 Dacromet Connecting Link, 8MM G100 Dacromet Connecting Link, 10MM G100 Dacromet Connecting Link, 13MM G100 Dacromet Connecting Link, 16MM G100 Dacromet Connecting Link, 20MM G100 Dacromet Connecting Link, 22MM G100 Dacromet Connecting Link, 26MM G100 Dacromet Connecting Link, 32MM G100 Dacromet Connecting Link
6MM Grade100 Connecting Link, 7/8MM Grade100 Connecting Link, 8MM Grade100 Connecting Link, 10MM Grade100 Connecting Link, 13MM Grade100 Connecting Link, 16MM Grade100 Connecting Link, 20MM Grade100 Connecting Link, 22MM Grade100 Connecting Link, 26MM Grade100 Connecting Link, 32MM Grade100 Connecting Link
1 SET = GALVANIZED SLEEVE + BLACK PIN
Grade 100 Rigging Hardware
All the G100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
Welcome to buy the newest and competitive price DAWSON DS1001 G100 Dacromet European Type Connecting Link Hammer Lock Lifting Chain Connector from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Products Show:
Hot Tags:Hammerlock Connecting Link, Chain Connecting Link Supplier China, Connecting Link Factory China, Connecting Link Manufacturer China, Connecting Link Exporter China, Alloy Steel Dacromet Connecting Link, Customized G100 Connecting Link, Low Price Grade 100 Dacromet Connecting Link, Connecting Link in Stock, Connecting Link Buy Discount, Connecting Link Dawson Brand, Chain Hardware, G100 Rigging Hardware, Grade 100 Chain Hardware, Connecting Link OEM
TUV CE Certificate about DS1001 G100 European Type Forged Connecting Link:
Other related products:
Package of G100 Products:
Application of Grade 100 European Type Chain Connecting Link:
G100 Products Catalogues Download:
Application of Connecting Link:
DAWSON Testing Center:
About DAWSON:
Other Related G100 COMPONENTS
Supply only on special request. Not for recommendation.
For further information, please contact us. Email:info@dawson-group.com
