Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.
All load pins are 100% individually inspected and tested.
Surface finish: Powder plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020, other colour is available as per request;
| ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | E±1 | A±0.5 | H±1 | W±1 | L±2 |
| 8-DS086-06 | 0.25 | 1.12 | 4.48 | 8 | 8 | 17.7 | 21.5 | 77.3 |
| 8-DS086-7/8 | 0.32 | 2 | 8 | 10.5 | 9.5 | 18.5 | 33.5 | 89 |
| 8-DS086-10 | 0.73 | 3.15 | 12.6 | 13 | 12.5 | 29 | 46 | 126 |
| 8-DS086-13 | 1.6 | 5.3 | 21.2 | 16.5 | 15 | 42.7 | 57.5 | 163.5 |
| 8-DS086-16 | 2.8 | 8 | 32 | 19 | 18.5 | 45.4 | 74 | 183.5 |
| 8-DS086-20 | 5 | 12.5 | 50 | 24 | 23 | 56 | 74 | 219 |
| 8-DS086-22 | 6.3 | 15 | 60 | 27 | 27 | 68.5 | 90 | 254 |
| 8-DS086-26 | 14.5 | 21.2 | 84.8 | 30 | 30 | 77 | 102 | 309
|
Ultimate load id 4 times the Working Load Limit.
Above Working Load Limit is based on side pull.
SP-DS086-SPARE PART FOR DS086(LOAD PIN)
| Item No. | Size | Item No. | Size |
| SP-DS086-6 | 6-8 | SP-DS086-20 | 20-8 |
| SP-DS086-7/8 | 7/8-8 | SP-DS086-22 | 22-8 |
| SP-DS086-10 | 10-8 | SP-DS086-26 | 26-8 |
| SP-DS086-13 | 13-8 |
|
|
| SP-DS086-16 | 16-8 |
|
|
1 SET = BLACK PIN + 2 BLACK SPRING TYPE STRAIGHT PINS
Product specifications:
6MM G80 Clevis Grab Hook, 7/8MM G80 Clevis Grab Hook, 10MM G80 Clevis Grab Hook, 13MM G80 Clevis Grab Hook, 16MM G80 Clevis Grab Hook, 18/20MM G80 Clevis Grab Hook, 22MM G80 Clevis Grab Hook
6MM Grade 80 Alloy Clevis Hook, 7/8MM Grade 80 Alloy Clevis Hook, 10MM Grade 80 Alloy Clevis Hook, 13MM Grade 80 Alloy Clevis Hook, 16MM Grade 80 Alloy Clevis Hook, 18/20MM Grade 80 Alloy Clevis Hook, 22MM Grade 80 Alloy Clevis Hook
Welcome to buy the newest and cheap DAWSON g80 clevis grab hook from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

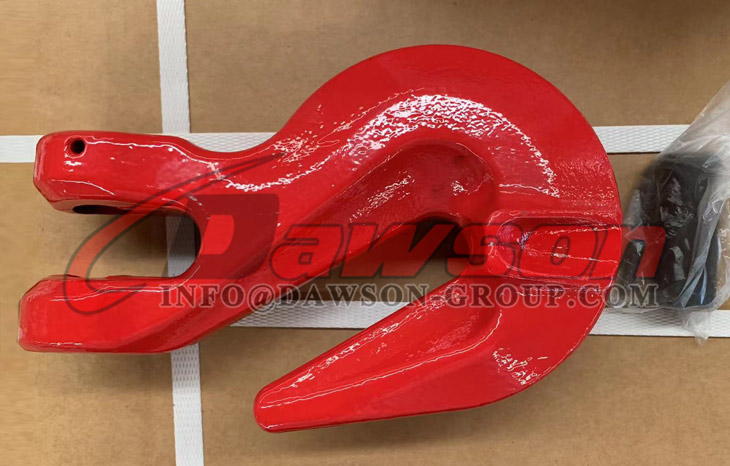

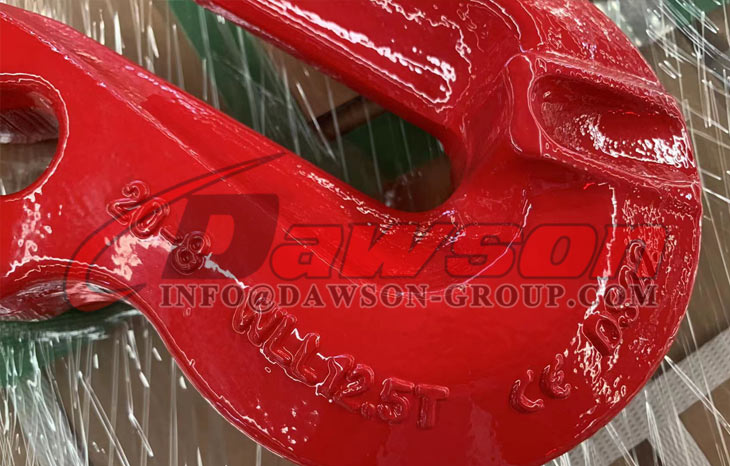

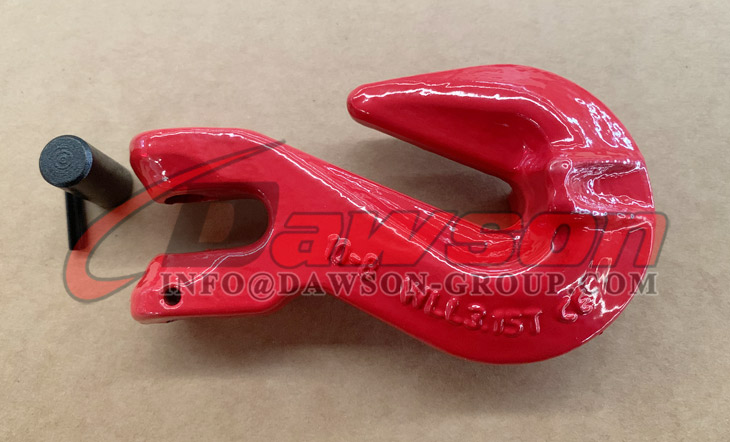

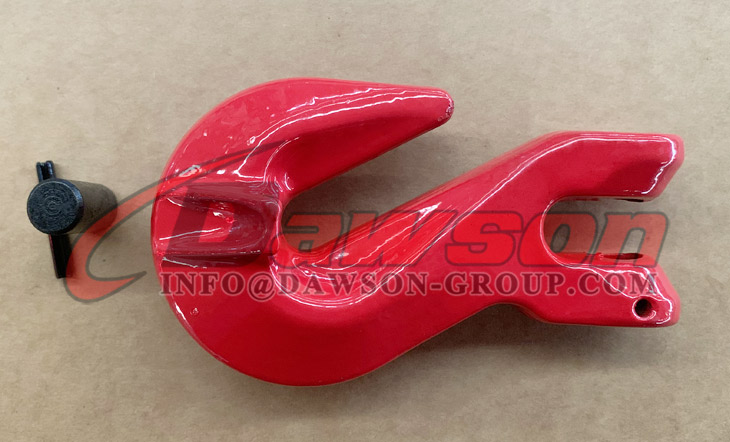

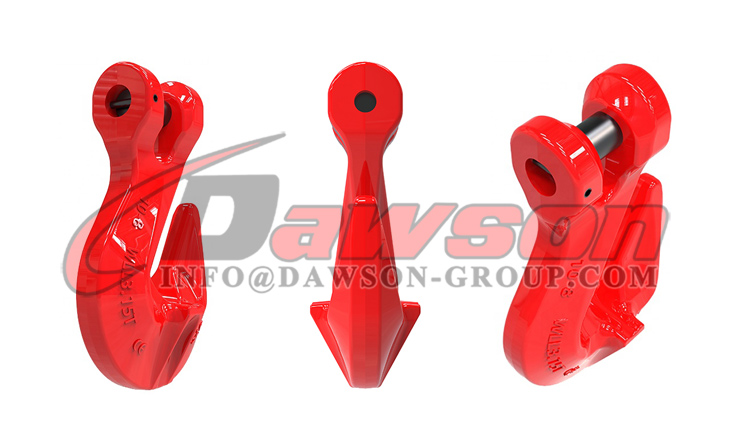

Products Show:
Hot Tags: Clevis Grab Hook, G80 Clevis Grab Hook China, Grade 80 Clevis Grab Hook Factory, Forged Steel Clevis Grab Hook Supplier, Alloy Steel Clevis Grab Hook Manufacturer, Low Price Clevis Grab Hook, Clevis Grab Hook for lifting Chains, Cheap Price Clevis Grab Hook, Buy Discount Clevis Grab Hook, Bulk Clevis Grab Hook, Clevis Grab Hook for Chain Slings in Stock, Wholesale Clevis Grab Hook, Hot Sale Clevis Grab Hook, Customized Clevis Grab Hook, Clevis Grab Hook OEM, Clevis Grab Hook Free Sample, Dawson Brands Clevis Grab Hook with Wings, Alloy Clevis Grab Hook, Grade 80 Forged Steel Clevis Hook, Clevis Cradle Grab Hook, Clevis Shortening Grab Hook

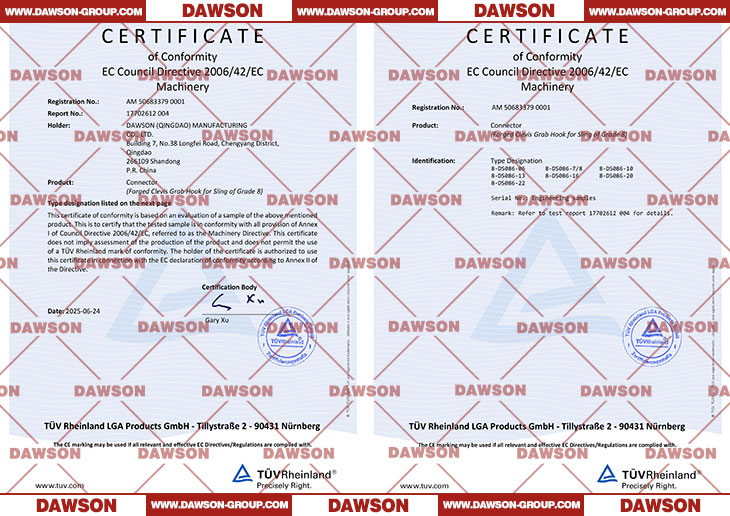

TUV CE Certificate about DS086 G80 Forged Clevis Shortening Cradle Grab Hook with Wings:

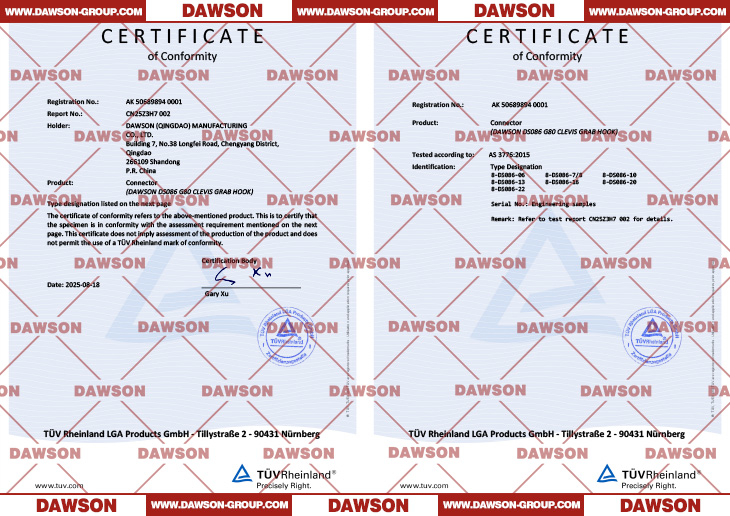

TUV AK Certificate, Certificate of Conformity (CoC) by TUV for Australia & New Zealand Standard ABOUT DAWSON DS086 G80 Forged Clevis Shortening Grab Hook:
