DAWSON/OEM

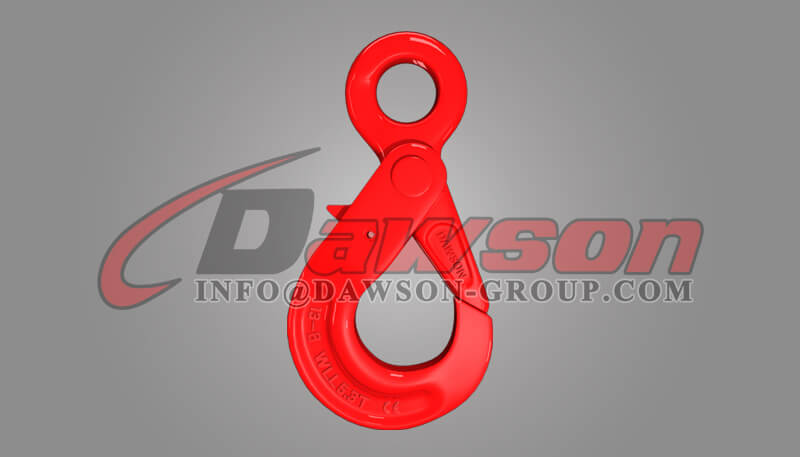

DS081 G80 / Grade 80 European Type Eye Selflock Hook for Crane Lifting Chain Slings
6-32MM
Availability: | |
---|---|
Quantity: | |
Forged or welded super alloy steel.
Suitable for use with G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
All load pin are 100% individually inspected and tested.
ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | M | R | D | R | H | E |
8-DS081-06 | 0.5 | 1.12 | 4.48 | 22 | 110.5 | 10 | 34 | 19.5 | 28 |
8-DS081-7/8 | 0.8 | 2 | 8 | 25 | 136 | 12 | 46 | 24 | 34 |
8-DS081-10 | 1.55 | 3.15 | 12.6 | 32 | 171 | 15 | 56 | 28.5 | 44 |
8-DS081-13 | 3.2 | 5.3 | 21.2 | 40.5 | 208.5 | 19.5 | 69 | 40 | 52 |
8-DS081-16 | 5.74 | 8 | 32 | 56 | 257.5 | 22 | 86 | 50.5 | 60 |
8-DS081-20 | 8.5 | 12.5 | 50 | 64.5 | 275 | 27 | 100 | 55 | 81 |
8-DS081-22 | 13 | 15 | 60 | 70 | 320 | 30 | 98 | 67 | 82 |
8-DS081-26 | 18 | 21.2 | 84.8 | 80 | 363 | 34 | 110 | 75 | 110 |
8-DS081-32 | 44.5 | 31.5 | 126 | 105 | 472 | 45 | 166 | 97 | 168 |
Withselflock device.

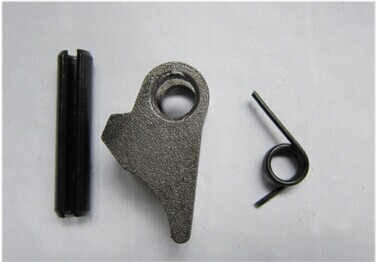

SP-DS081 TRIGGER PARTS
Item No. | Size | Item No. | Size | |
SP-DS081-6 | 6-8 | |||
SP-DS081-7/8 | 7/8-8 | SP-DS081-20 | 20-8 | |
SP-DS081-10 | 10-8 | SP-DS081-22 | 22-8 | |
SP-DS081-13 | 13-8 | SP-DS081-26 | 26-8 | |
SP-DS081-16 | 16-8 | SP-DS081-32 | 32-8 |
1 SET = SELF COLOUR TRIGGER + BLACK SPRING + BLACK SPRING TYPES STRAIGHT PIN
Product specifications:
6MM G80 Eye Self-locking Hook, 7/8MM G80 Eye Self-locking Hook, 10MM G80 Eye Self-locking Hook, 13MM G80 Eye Self-locking Hook, 16MM G80 Eye Self-locking Hook, 18/20MM G80 Eye Self-locking Hook, 22MM G80 Eye Self-locking Hook, 26MM G80 Eye Self-locking Hook, 32MM G80 Eye Self-locking Hook
6MM Grade 80 Eye Hook, 7/8MM Grade 80 Eye Hook, 10MM Grade 80 Eye Hook, 13MM Grade 80 Eye Hook, 16MM Grade 80 Eye Hook, 18/20MM Grade 80 Eye Hook, 22MM Grade 80 Eye Hook, 26MM Grade 80 Eye Hook, 32MM Grade 80 Eye Hook
Welcome to buy the newest and cheap DAWSON g80 eye selflock hook from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Products Show:
Other related products:

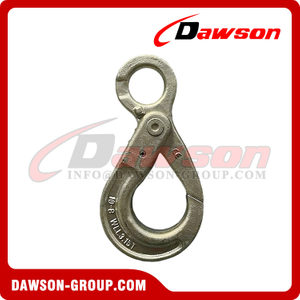

G80 SELFLOCK HOOK
Supply only on special request. Not for recommendation.
For further information,please contact us. Email:info@dawson-group.com
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Hot Tags: Eye Self-Locking Hook, Dawson Brands Eye SelfLock Hook, G80 European Type Eye Self-Locking Hook, Grade 80 Eye Self-Locking Hook China, Eye Self-Locking Hook Supplier China, Forged Eye Self-Locking Hook Factory China, Eye Self-Locking Hook Manufacturer China, Hot Sale Alloy Steel Eye Self-Locking Hook, Wholesale Grade 80 Eye Self-Locking Hook, Buy Discount Eye Self-Locking Hook, Low Price Eye Self-Locking Hook, Eye Self-Locking Hook Exporter China, Eye Self-Locking Safety Hook In Stock, Cheap Price Eye Self-Locking Safety Hook, Forged Alloy Eye Self-Locking Hook Free Sample
