Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.
All load pins are 100% individually inspected and tested.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.

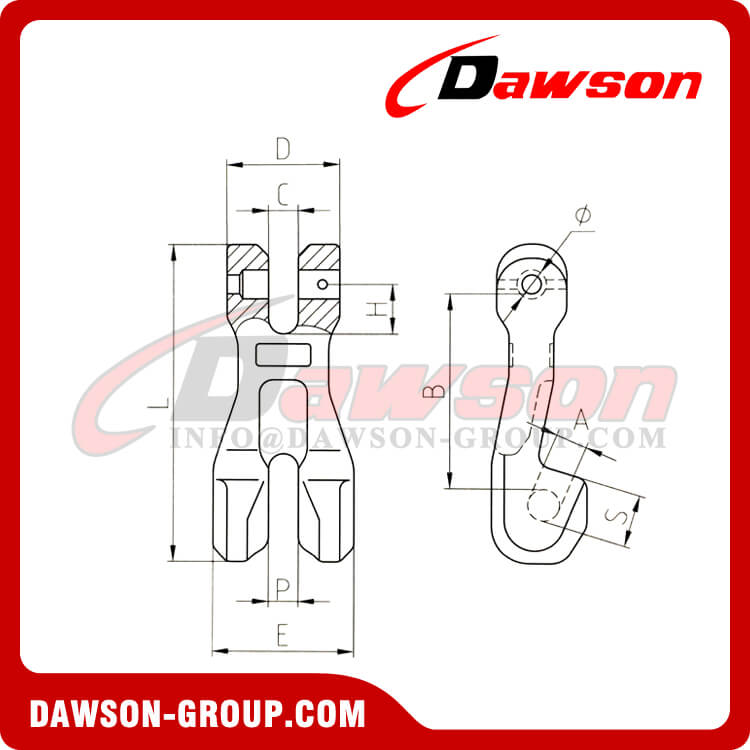

| Item No. | Weight/kg | WLL/T | B.L/T | A±0.3 | B±2 | C±0.5 | D±1 | E±2 | H±1 | L±2 | Φ±0.5 | P±0.5 | S±0.3 |
| 8-DS073-06 | 0.18 | 1.12 | 4.48 | 8 | 44 | 7.5 | 30 | 32.8 | 11.8 | 73.5 | 7.8 | 7.5 | 12 |
| 8-DS073-7/8 | 0.45 | 2 | 8.0 | 10.5 | 61.7 | 9.5 | 36 | 45 | 15.7 | 101 | 9.2 | 9.5 | 17 |
| 8-DS073-10 | 0.93 | 3.15 | 12.6 | 12.4 | 92 | 13 | 48 | 55 | 20 | 138 | 13.2 | 13 | 28 |
| 8-DS073-13 | 1.88 | 5.3 | 21.2 | 16 | 115 | 16.5 | 59 | 75 | 24.5 | 177 | 16.2 | 16.5 | 34.5 |
| 8-DS073-16 | 3.5 | 8 | 32 | 19.5 | 143 | 21 | 73 | 93 | 30.5 | 220 | 20 | 21 | 40 |
| 8-DS073-18/20 | 4.43 | 12.5 | 50 | 23 | 152 | 23.5 | 81 | 102 | 36 | 238 | 24.3 | 23.5 | 46 |
| 8-DS073-22 | 8.05 | 15 | 60 | 26 | 195 | 25.5 | 98 | 118 | 42 | 295 | 28.1 | 25.5 | 57.5
|
Adjust Chain Length!!!
Ultimate load id 4 times the Working Load Limit.
SP-DS073-SPARE PART FOR DS073(LOAD PIN)
| Item No. | Size | Item No. | Size |
| SP-DS073-6 | 6-8 | SP-DS073-20 | 20-8 |
| SP-DS073-7/8 | 7/8-8 | SP-DS073-22 | 22-8 |
| SP-DS073-10 | 10-8 |
|
|
| SP-DS073-13 | 13-8 |
|
|
| SP-DS073-16 | 16-8 |
|
|
1 SET = BLACK PIN + 2 BLACK SPRING TYPE STRAIGHT PINS
Product specifications:
6MM G80 Clevis Chain Clutch, 7/8MM G80 Clevis Chain Clutch, 10MM G80 Clevis Chain Clutch, 13MM G80 Clevis Chain Clutch, 16MM G80 Clevis Chain Clutch, 18/20MM G80 Clevis Chain Clutch, 22MM G80 Clevis Chain Clutch
6MM Grade 80 Alloy Clevis Hook, 7/8MM Grade 80 Alloy Clevis Hook, 10MM Grade 80 Alloy Clevis Hook, 13MM Grade 80 Alloy Clevis Hook, 16MM Grade 80 Alloy Clevis Hook, 18/20MM Grade 80 Alloy Clevis Hook, 22MM Grade 80 Alloy Clevis Hook
Welcome to buy the newest and cheap DAWSON g80 clevis shortening chain clutch for adjust chain length from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

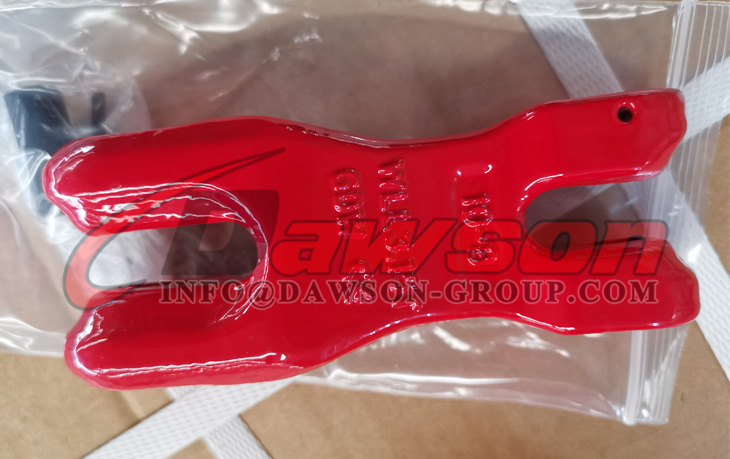

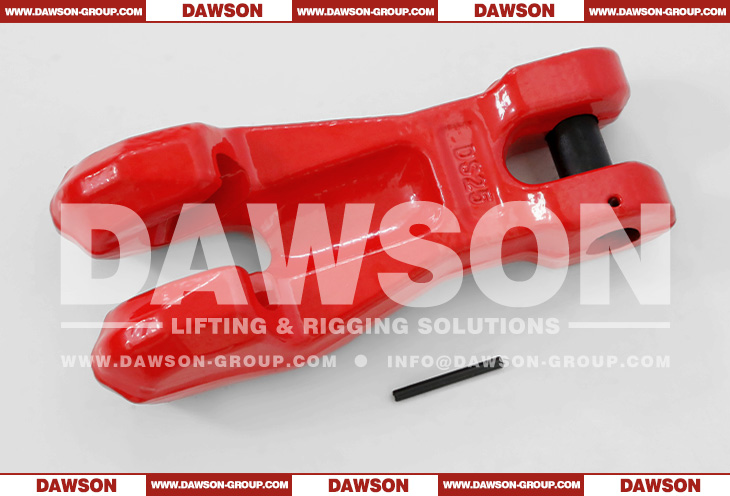

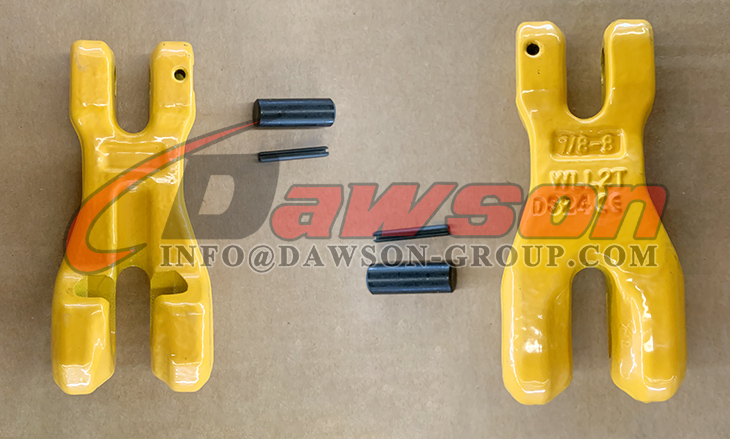

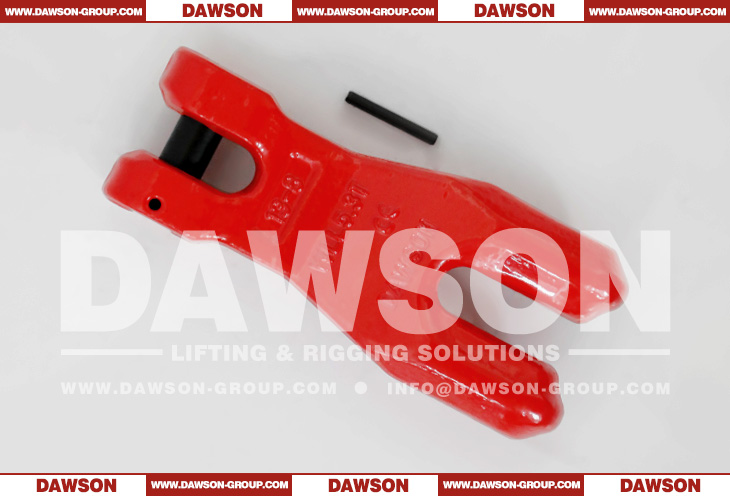

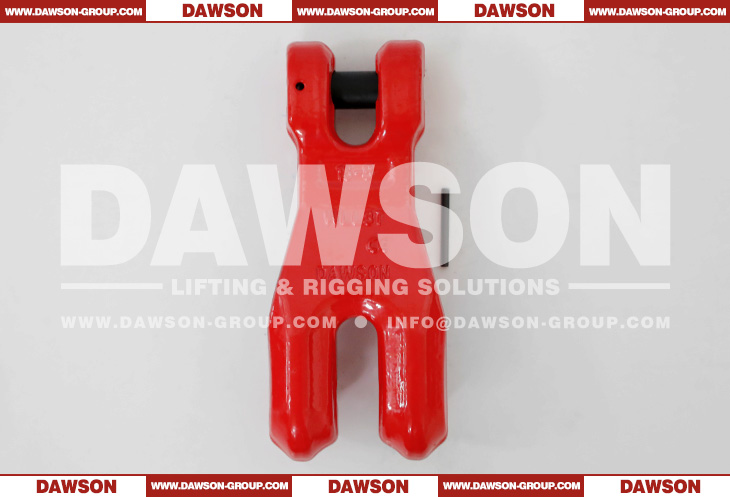

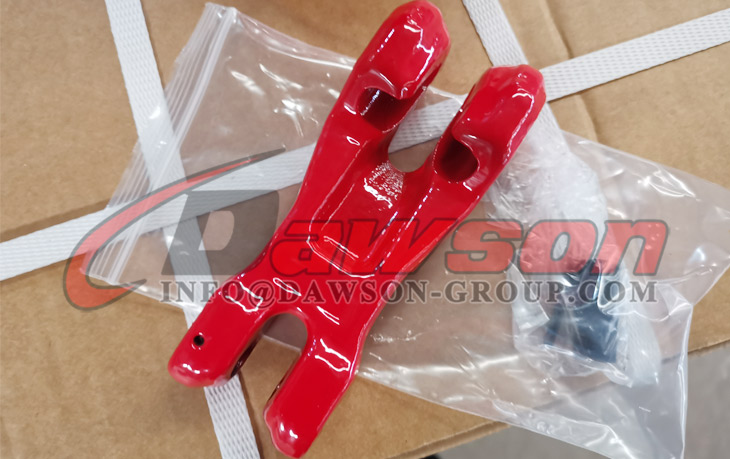

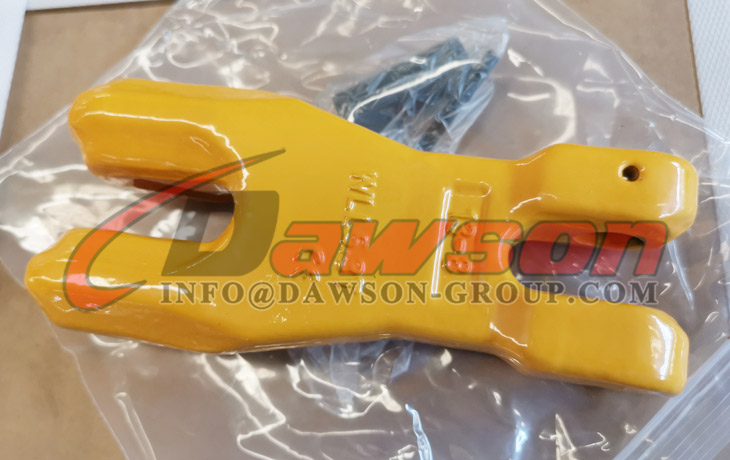

Products Show:
Hot tags: clevis clutch,g80 clevis clutch,grade 80 clevis clutch,g80 alloy clevis clutch,clevis shortening chain clutch,clevis clutch for adjust chain length,forged clevis clutch,forged steel clevis shortening clutch,alloy steel clevis shortening clutch,clevis chain shortening clutch

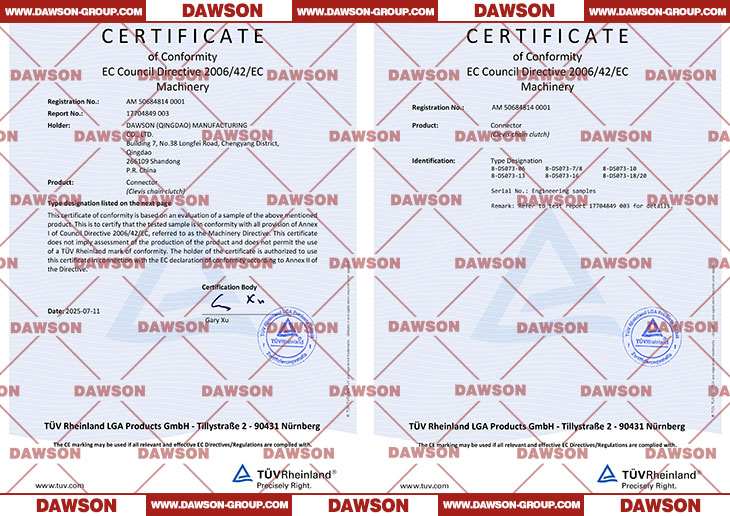

TUV CE Certificate about DS073 G80 Clevis Shortening Chain Clutch:
TUV AK Certificate, Certificate of Conformity (CoC) by TUV for Australia & New Zealand Standard ABOUT DAWSON DS073 G80 Clevis Shortening Chain Clutch:
Other related products:
G80 GRAB HOOK & CLUTCH
Supply only on special request. Not for recommendation.
For further information,please contact us. Email:info@dawson-group.com
DS065 |
DS217 |
DS331 |
DS555 |
DS064 |
DS712 |
DS549 |
DS686 |
DS338 |
DS301 |
|
|

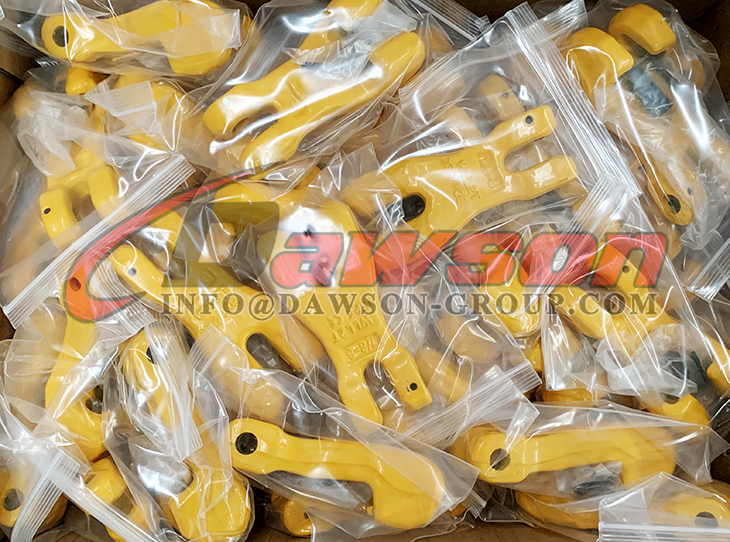

Packge about G80 Alloy Steel Products:
