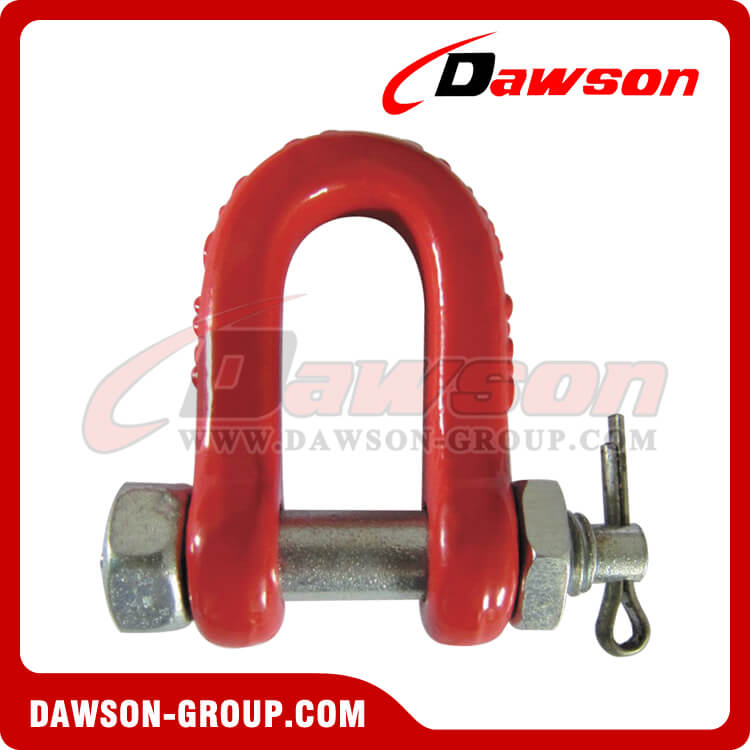

DS049 G80 Bolt Type Dee Shackle, Chain Shackle with Bolt for Lifting

Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof test at 2.5 times Working Load Limit.
Fatiuge tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% magnaflux crack detection.
All load pins are 100% individually inspected and tested.
Surface finish:Powder plastified.
Colour code:Red RAL3020/Yellow RAL1003.
  • DAWSON/OEM
  • DS049
  • 0.14-0.89kg
  • 1000pcs
Availability:
Quantity:

DS049 G80 Bolt Type Dee Shackle, Chain Shackle with Bolt for Lifting

Grade 80 Bolt Type Chain Shackle, Bolt Type Shackle for Lifting

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DS049 G80 BOLT TYPE DEE SHACKLE - DAWSON GROUP LTD. - CHINA MANUFACTURER, SUPPLIER, FACTORY      DS049 G80 BOLT TYPE DEE SHACKLE - DAWSON GROUP LTD. - CHINA MANUFACTURER, SUPPLIER, FACTORY

G80 Bolt Type Chain Shackle Grade Grade 80 Alloy Steel - Dawson Group Ltd. - China Manufacturer, Supplier, Factory      G80 Bolt Type Chain Shackle Grade Grade 80 Alloy Steel - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Forged super alloy steel - Quenched and Tempered.

Suitable for EN818-2 G80 chain.

Individually proof test at 2.5 times Working Load Limit.

Fatiuge tested at 1.5 times Working Load Limit for 20000 cycles.

Breakage test.

100% magnaflux crack detection.

All load pins are 100% individually inspected and tested.

Surface finish:Powder plastified.

Colour code:Red RAL3020/Yellow RAL1003.

Item No. Weight/kg WLL/T B.L/T A±1.2 B±2 D±0.5 L±2
8-DS049-7/8 0.14 2 8 15 33 9 56
8-DS049-10 0.274 3.15 12.6 21 44 11.5 71
8-DS049-13 0.5 5.3 21.2 25 54 14.5 91
8-DS049-16 0.89 8 32 30 65 17.5 111

Ultimate load is 4 times the Working Load Limit.

Welcome to buy the newest and cheap DAWSON DS049 G80 Bolt Type Dee Shackle, Chain Shackle with Bolt for Lifting from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
