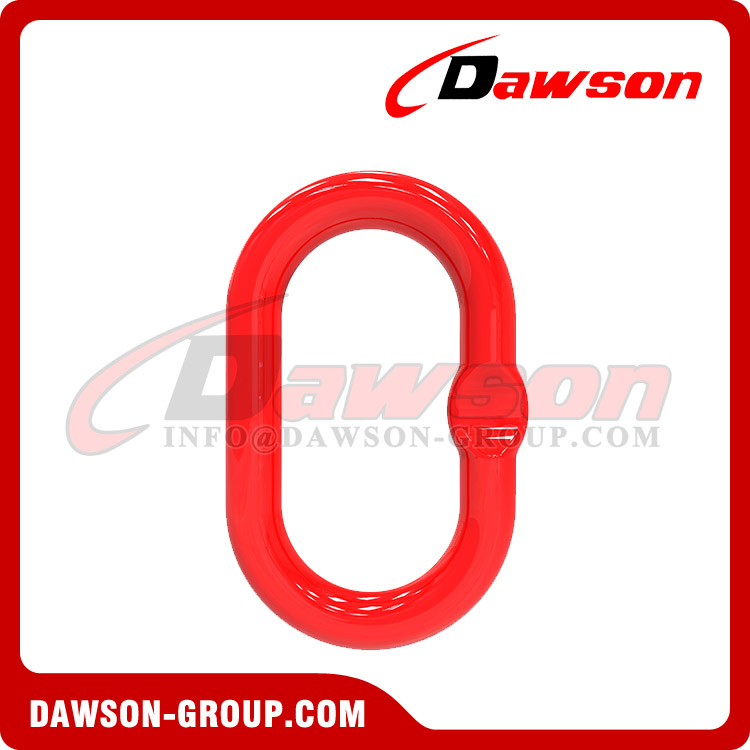

DS033 A-343 G80 European Type Master Link for Chain Lifting Slings / Wire Rope Lifting Slings

Forged or welded super alloy steel.
Suitable for use with G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
All load pin are 100% individually inspected and tested.
  • DAWSON/OEM

  • DS033 A-343 G80 European Type Master Link for Chain Lifting Slings / Wire Rope Lifting Slings

  • 1.6-63T

Availability:
Quantity:

G80 / Grade 80 A-343 European Type Master Link for Chain Lifting Slings / Wire Rope Lifting Slings
Grade 80 / G80 A343 European Type Master Link
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DS033 A-343 G80 European Type Master Link for Chain Lifting Slings Wire Rope Lifting Slings - Dawson Group Ltd. - China Manufacturer, Factory, Supplier   DS033 A-343 G80 European Type Master Link - Dawson Group Ltd. - China Manufacturer, Factory
DS033-G80 A343 EUROPEAN TYPE MASTER LINK - DAWSON GROUP LTD. - CHINA MANUFACTURER SUPPLIER   DS033 A-343 G80 European Type Master Link for Chain Lifting Slings Wire Rope Lifting Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory


Standard EN1677(Supersedes DIN5688-3).

Forged or welded super alloy steel.

Super alloy steel - Quenched and tempered.

Individually proof tested at 2.5 times Working Load Limit.

Breaking test and fatigue test.

100% Magnaflux Crack Detection.

Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.

Strict break load test.

Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020.

All load pin are 100% individually inspected and tested.

Suitable for 1 leg or 2 legs G80 chain sling as per EN818-4.

Item No. Weight(KG) WLL(T) A B D S×H
8-DS033-76-8 0.34 1.6 110 60 13 7+0.3×25
8-DS033-76-8B 0.43 1.6 140 80 13 7+0.3×25
8-DS033-87-8 0.54 2.12 110 60 16 7+0.5×25
8-DS033-87-8B 0.66 2.12 140 80 16 7+0.5×25
8-DS033-108-8 0.823 3.15 135 75 18 8+0.5×28
8-DS033-108-8B 1.1 3.15 180 120 18 8+0.5×28
8-DS033-1310-8 1.5 5.3 160 90 22 11±0.5×35
8-DS033-1310-8B 1.68 5.3 180 120 22 11±0.5×35
8-DS033-16 13-8 2.32 8 180 100 26 13±0.5×43
8-DS033-18 16-8 3.95 11.2 200 110 32 17±0.5×55
8-DS033-20 18-8 6.34 14 260 140 36 19±0.5×60
8-DS033-22 20-8 8.96 17 300 160 40 20±0.5×64
8-DS033-26 22-8 12.8 21.2 340 180 45 -
8-DS033-32 26-8 16.55 31.5 350 190 50 -
8-DS033-36 32-8 23.28 45 400 200 56 -
8-DS033-40 36-8 32 56 430 220 63 -
8-DS033-72-8 45.76 63 460 250 72 -

BLACK WORD AREAS: WELDED

RED WORD AREAS: FORGED



ITEM 8-DS033-76 to 8-DS033-2220: there will be pressing flat only on request.

ITEM 8-DS033-2622 to 8-DS033-80MM: there is no pressing flat.

For use with wire rope sling, refer to DIN3088 standard.

For use with synthetic sling, refer to EN1492-1 standard.

The pressing flat for use with DS002 G80 OMEGA LINK.
