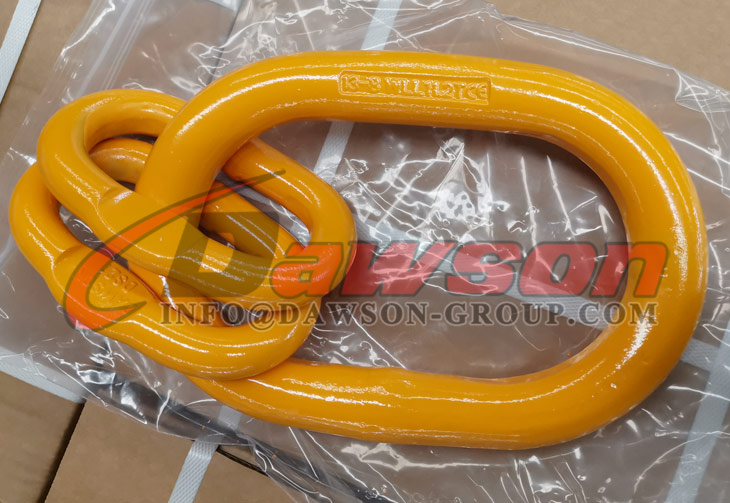

G80 Master Link Assembly European Type, also known as G8 Multi-leg Master Link, Multi-leg Oblong Link, and some customers also called it Grade 80 QUAD Master Link.
Grade 80 Alloy Steel Multi Master Link Sub Assembly, manufactured using superior grade raw material as per international qualitative standards, available in Pressing Flat, for use with G80 Omega Hook.
Our range of G80 master link sub assembly is available in standard: 6mm, 7mm, 8mm, 10mm, 13mm, 16mm, 18mm, 20mm, 22mm, 26mm, 28mm, 32mm, as well as customized sharps and sizes.
Standard EN1677(Supersedes DIN5688-3).
Forged or welded super alloy steel.
Super alloy steel - Quenched and tempered.
Individually proof tested at 2.5 times Working Load Limit.
Breaking test and fatigue test.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Strict break load test.
Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Suitable for 3 or 4 legs G80 chain sling as per EN818-4.
| Item No. | Weight(KG) | WLL(T) | A | B | D | a | b | d | S×H |
| 8-DS032-W-6 | 1.18 | 2.36 | 135 | 75 | 18 | 54 | 25 | 13 | 7+0.3×25 |
| 8-DS032-W-7 | 1.24 | 3.15 | 135 | 75 | 18 | 60 | 38 | 13 | 7+0.5×25 |
| 8-DS032-W-8 | 2.2 | 4.25 | 160 | 90 | 22 | 70 | 34 | 16 | 8+0.5×28 |
| 8-DS032-W-10 | 3.4 | 6.7 | 180 | 100 | 26 | 85 | 40 | 18 | 11±0.5×35 |
| 8-DS032-W-13 | 6.1 | 11.2 | 200 | 110 | 32 | 115 | 50 | 22 | 13±0.5×43 |
| 8-DS032-W-16 | 9.98 | 17 | 260 | 140 | 36 | 140 | 65 | 26 | 17±0.5×55 |
| 8-DS032-W-18B | 19.1 | 19.5 | 300 | 160 | 40 | 270 | 140 | 32 | 18±0.5×59 |
| 8-DS032-W-18C | 19.4 | 21.2 | 340 | 180 | 45 | 160 | 90 | 32 | 18±0.5×59 |
| 8-DS032-W-18 | 18.9 | 21.2 | 340 | 190 | 45 | 180 | 100 | 32 | 18±0.5×59 |
| 8-DS032-W-20C | 23.1 | 26.5 | 350 | 190 | 50 | 160 | 90 | 32 | 18±0.5×59 |
| 8-DS032-W-20 | 23.7 | 26.5 | 350 | 190 | 50 | 180 | 100 | 32 | 20±0.5×64 |
| 8-DS032-W-22 | 25.2 | 31.5 | 350 | 190 | 50 | 180 | 100 | 36 | - |
| 8-DS032-W-26 | 35.2 | 45 | 400 | 200 | 56 | 180 | 100 | 40 | - |
| 8-DS032-W-28 | 47 | 50 | 430 | 220 | 63 | 180 | 100 | 45 | - |
| 8-DS032-W-32 | 66.46 | 67 | 460 | 250 | 72 | 200 | 110 | 50 | -
|
BLACK WORD AREAS: MAIN LINK: WELDED SUB LINKS: WELDED
RED WORD AREAS: MAIN LINK: FORGED SUB LINKS: WELDED
ITEM 8-DS032-6 to 8-DS032-20: there will be pressing flat only on request.
ITEM 8-DS032-22 to 8-DS032-32: there is no pressing flat.
The pressing flat for use with DS002 G80 OMEGA LINK.
For use with wire rope sling, refer to DIN3088 standard.
For use with synthetic sling, refer to EN1492-1 standard.
Product specifications:
6MM G80 Master Link Assembly, 7MM G80 Master Link Assembly, 8MM G80 Master Link Assembly, 10MM G80 Master Link Assembly, 13MM G80 Master Link Assembly, 16MM G80 Master Link Assembly, 18MM G80 Master Link Assembly, 20MM G80 Master Link Assembly, 22MM G80 Master Link Assembly, 26MM G80 Master Link Assembly, 28MM G80 Master Link Assembly, 32MM G80 Master Link Assembly
6MM Grade 80 Alloy Master Link, 7MM Grade 80 Alloy Master Link, 8MM Grade 80 Alloy Master Link, 10MM Grade 80 Alloy Master Link, 13MM Grade 80 Alloy Master Link, 16MM Grade 80 Alloy Master Link, 18MM Grade 80 Alloy Master Link, 20MM Grade 80 Alloy Master Link, 22MM Grade 80 Alloy Master Link, 26MM Grade 80 Alloy Master Link, 28MM Grade 80 Alloy Master Link, 32MM Grade 80 Alloy Master Link
Welcome to buy the newest and cheap DAWSON g80 A-346 Master Link Assembly from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Products Show:
Hot Tags: Master Link Assembly, G80 A-346 Master Link Assembly, Grade 80 A-346 Master Link Assembly, European Type A-346 Master Link Assembly, Alloy Steel A346 Master Link Assembly Exporter China, China Master Link Assembly for Chain Slings, Grade 80 Forged Master Link Assembly, Forged Master Link Assembly China Supplier, Forged A-346 Master Link Assembly Factory China, Low Price A346 G80 Master Link Assembly, Buy Discount Forged Master Link Assembly, Cheap Price Forged Master Link Assembly, Hot Sale Forged Master Link Assembly, Forged Master Link Assembly In Stock, Wholesale Forged Master Link Assembly, Master Link Assembly for Chain Slings, China Forged Master Link Assembly Manufacturer, Forged Master Link Assembly for Crane Lifting Chains

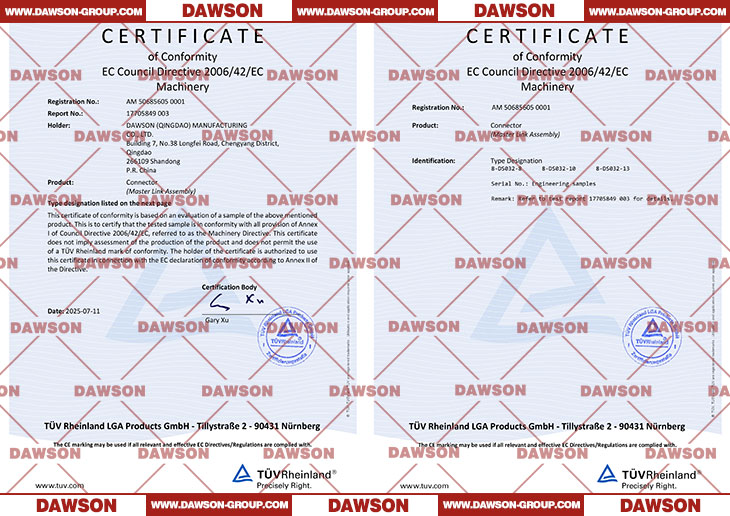

TUV CE Certificate about DS032 A-346 G80 European Type Master Link Assembly:

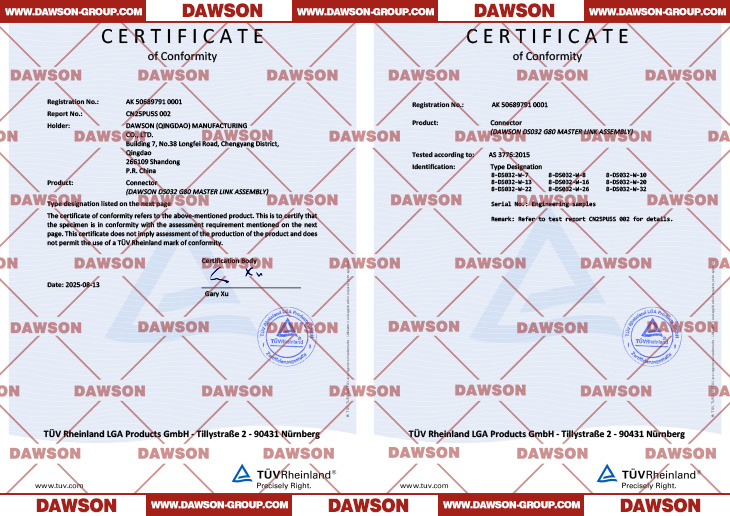

TUV AK Certificate, Certificate of Conformity (CoC) by TUV for Australia & New Zealand Standard ABOUT DAWSON DS032 A-346 G80 European Type Master Link Assembly:
