Technical specifications/testing machine model	DS-YAW-300	DS-YAW-600	DS-YAW-1000
Maximum test force kN	300	600	1000
Test force measurement range	4%~100%(12kN-300kN)	4%-100%(24kN-600kN)	4%-100%(10kN-1000kN)
Relative error of test force indication value	≤±1%	±1%	±1%
Piston no-load maximum moving speed mm/min	About 175	About 80	About 75
Maximum compression space mm	250	500	500
Pressure plate size mm	上Φ150、下Φ160	204x204	320x320
Piston stroke mm	0-150	0-200	0-150
The net distance between columns is mm	280	425	460
Oil pump motor power kW	1.5	1.5	1.5
Lifting motor power kW			0.55
Main machine dimensions mm	610×510×1690	About 680x440×2580	About 780×540x2650
Oil source control cabinet dimensions mm	About 1100x700x930
Main machine weight kg	1000	About 1800	About 2000



1. Adjustable test space.

2. Column electroplating process, beautiful, no rust.

3. Cylinder piston clearance seal, durable, high-precision oil pressure sensor, located outside the cylinder, easy to repair and replace.

4. DAWSON independent property rights controller, computer direct control of the test process, stable and reliable, easy to operate.

5. Imported servo valves and imported oil pumps improve system reliability and reduce operating costs.

PRODUCT DESCRIPTION

DS-YAW-300/600/1000 microcomputer controlled electro-hydraulic servo pressure testing machine is mainly used for various refractories and other materials compressive and bending test. Suitable for metallurgy, building materials, aviation, aerospace, colleges and universities, scientific research institutions and other fields. Test operation and data processing meet the requirements of the standard.

HOST MACHINE

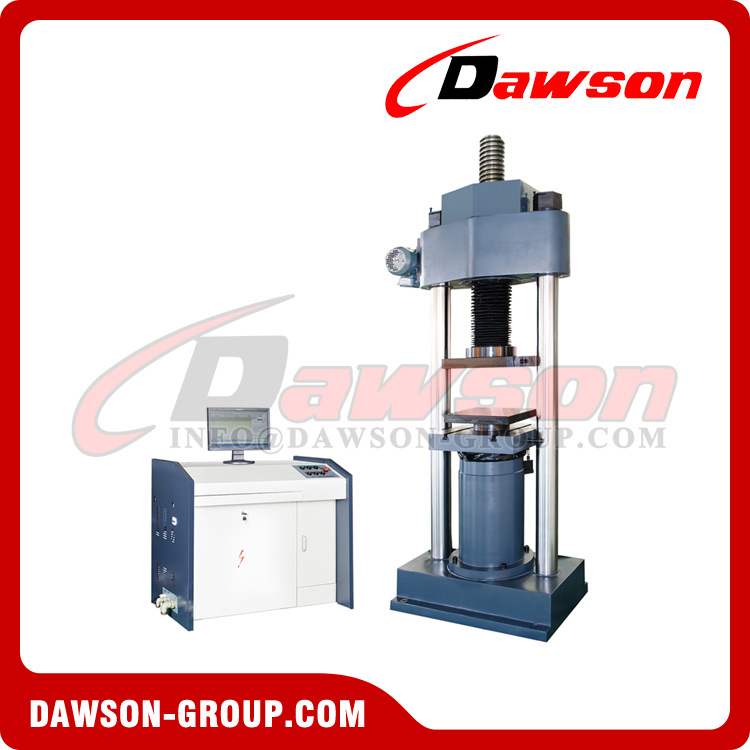

The main engine is a two-column frame loading structure, and the oil cylinder is placed under the main engine. It is composed of beam, base, cylinder, piston, column, table, pressure plate, etc. The beam is supported on the base by two columns and fastened by nuts to form a loading frame. The upper pressure plate is installed on the screw of the beam, and the nut is rotated by the hand wheel, and the nut drives the screw up and down, so that the upper pressure plate moves up and down to adjust the test space. The cylinder and piston are located in the center of the work table, and the spherical seat and the lower pressure plate are placed on the work table. The oil pipe on the main engine is connected with the oil source control cabinet. When the control oil enters the oil cylinder, the piston is pushed up together with the fixed workbench and the lower pressure plate to make the test force gradually act on the sample.

CONTROL SYSTEM

The electro-hydraulic servo measuring and control system is controlled by microcomputer, and the force is measured by sensor. Set full digital electro-hydraulic servo closed-loop control, data processing, data analysis in one, with a complete file operation function, such as test reports, test parameters, system parameters can be stored in file mode.

The software system provides rich test curve display. Such as test force-displacement curve, test force-time curve, stress-strain curve, displacement-time curve. The software provides four control modes: open loop, speed closed loop control, single step closed loop control and programming closed loop control. Flexible test process "programming" function, according to the need to complete any complex, any control mode of the test process editing. The test program control scheme can be stored, imported and re-edited.
