DS-SCC Type Universal Shackle Type Bolt Lifter Screw Cam Lifting Clamp

  • DAWSON/OEM
  • DS-SCC
  • 0-75mm
Availability:
Quantity:

DS-SCC Type Universal Shackle Type Bolt Lifter Screw Cam Lifting Clamp, Lifting Plate Clamp, Lifting Clamp

 - Dawson Group Ltd. - China Manufacturer, Supplier, Factory


DS-SCC Type Screw Cam Clamp, Lifting Clamp - Dawson Group Ltd. - China Supplier   DS-SCC Type Screw Cam Clamp, Lifting Clamp - Dawson Group Ltd. - China Manufacturer, Supplier

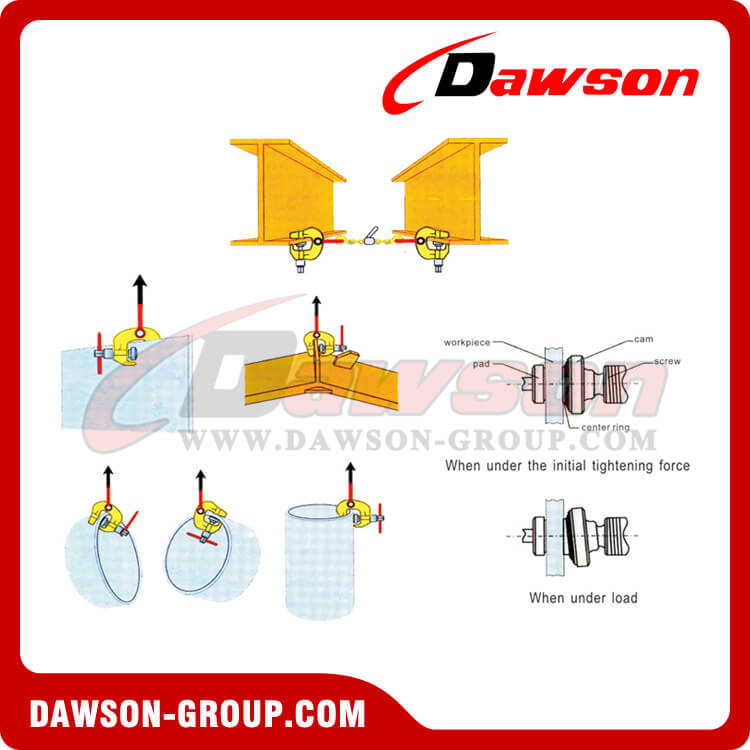

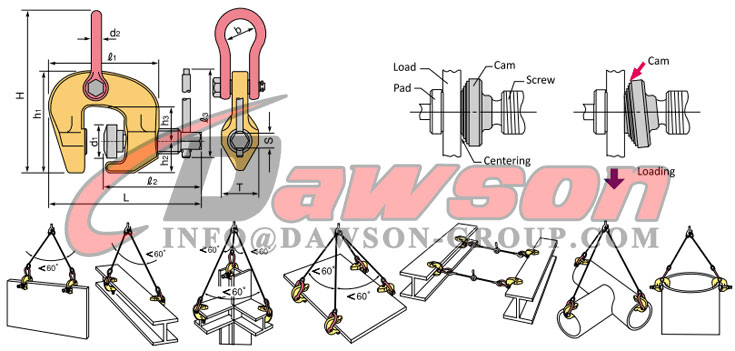

DS-SCC Type Screw Cam Clamp, Lifting Clamp - Dawson Group Ltd. - China Factory   Application of DS-SCC Type Screw Cam Clamp 1.5-3T - Dawson Group Ltd. - China Manufacturer, Supplier


Suitable for lifting of a large variety of different shaped steel. Ranging from steel plates and structures steel to curved and spherical shaped steels.
They are designed to be used in conjunction with ratchet lever hoists to align steel structures of fabrications. They are ideally suited for the construction industry.
The DS-SCC screw clamp is fitted with a moveable cam on the thread spindle which provides o powerful clamping force on the workplace.

Inspection, care & use:
Do not lift plates with a temperature greater than 100℃
Do not use with stainless steel, lead or copper
Do not over torque the threaded axle. This could cause damage to the pad. For more information, please contact us, Email: info@dawson-group.com

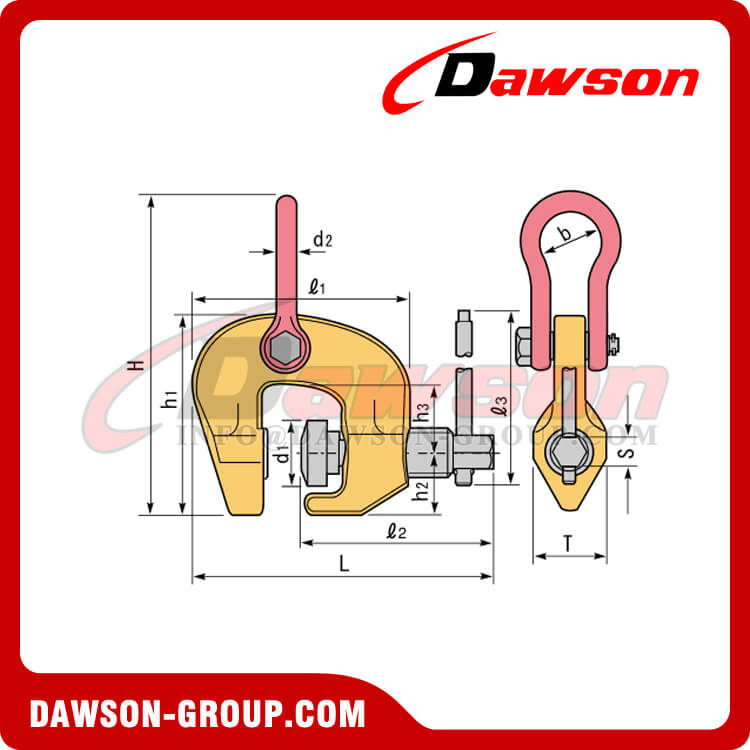

Item No. WLL(T) Jaw Opening(MM) L(MM) screw cam clamp - Dawson Group Ltd. - China Factory1
(MM)
screw cam clamp - Dawson Group Ltd. - China Factory2
(MM)
screw cam clamp - Dawson Group Ltd. - China Factory3
(MM)
H(MM) h1(MM) h2(MM) h3(MM) d1(MM) d2(MM) b(MM) T(MM) S(MM) Weight(kg)
DS-SCC0.5 0.5 0-22 156 104 89 60 113 76 16 27 26 10 17 30 14 0.8
DS-SCC0.75 0.75 0-28 167 135 120 190 201 125 38 44 42 12 38 46 21 3
DS-SCC1.5 1.5 0-32 187 154 135 190 229 143 39 52 42 16 45 46 21 4
DS-SCC3 3 0-50 224 190 165 240 265 165 45 60 49 19 50 54 21 6
DS-SCC6 6 0-75 291 255 215 240 365 214 54 76 49 19 50 54 21 18



Welcome to buy the newest and competitive price DAWSON DS-SCC Type Universal Shackle Type Bolt Lifter Screw Cam Lifting Clamp from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

DS-SCC Type Universal Shackle Type Bolt Lifter Screw Cam Lifting Clamp - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Safety lifting
● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm⊃2;).
● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃
● Never overload a clamp and prevent the jerking of loads.
● When loading always use the whole jaw depth.
● Never lift more than one plate at the same time.
● Always keep your distance during lifting and descending of a load.
● Prevent situations that anybody is under the load.
● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.



Application of Safety Lifting Clamp - Dawson Group Ltd. - China Supplier, Factory

Products Show:

0.5Ton Screw Cam Clamp - Dawson Group Ltd.- China Supplier

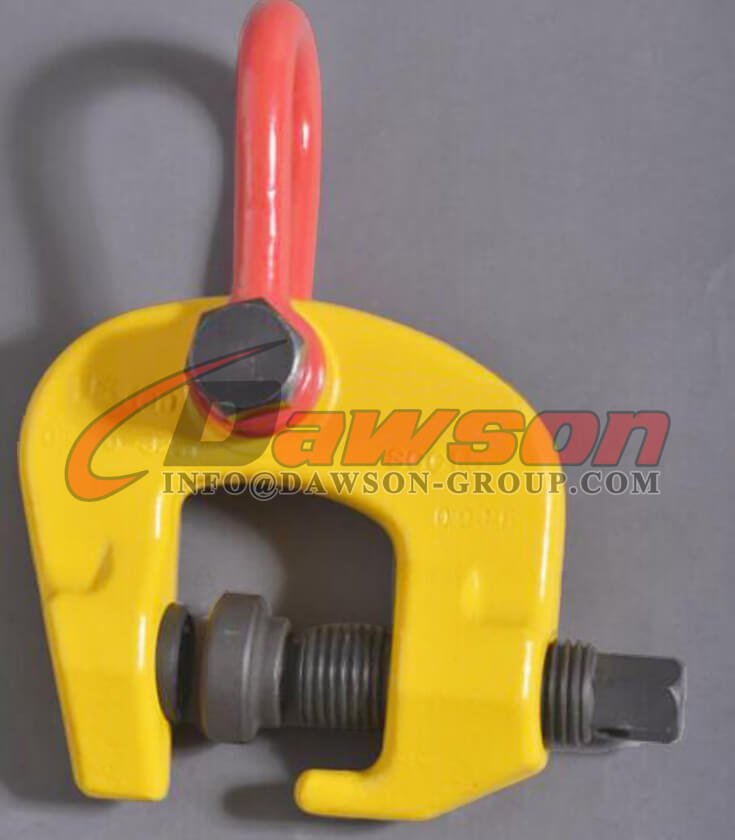

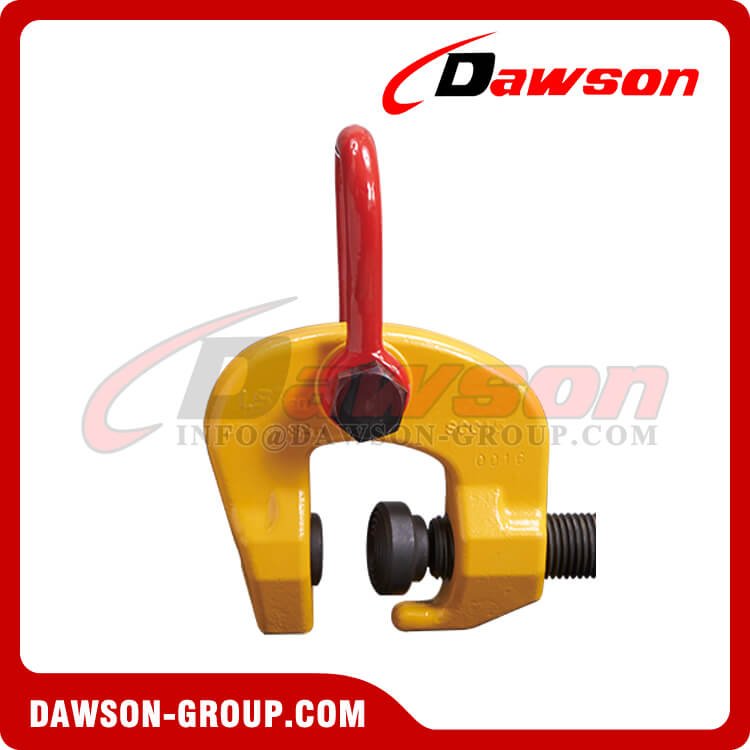

DS-SCC Type Screw Cam Clamp, Lifting Clamp - Dawson Group Ltd. - China Manufacturer
