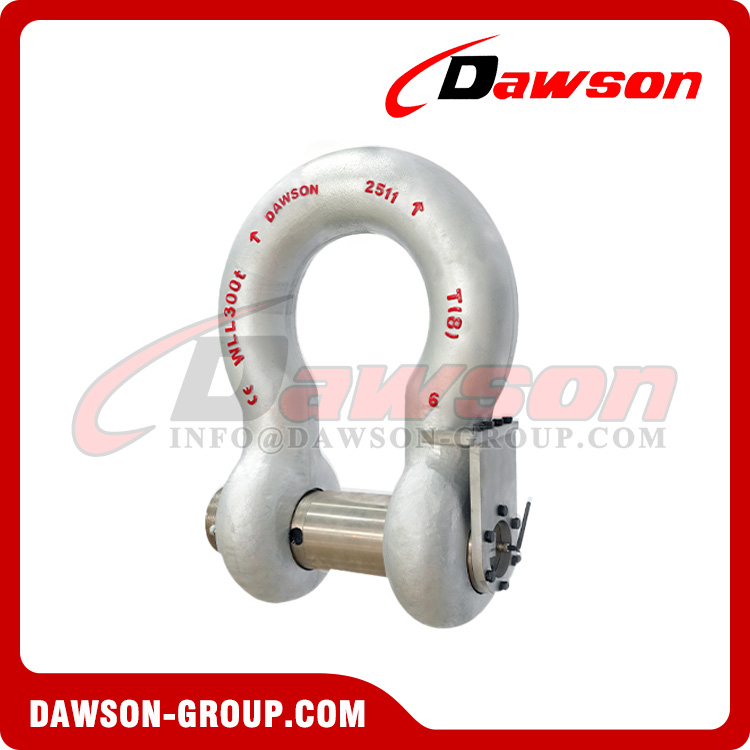

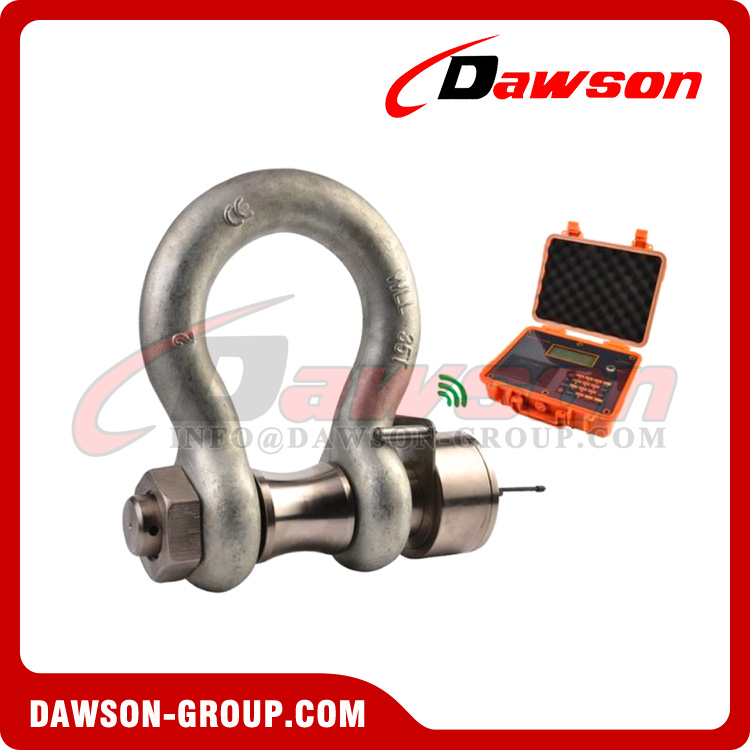

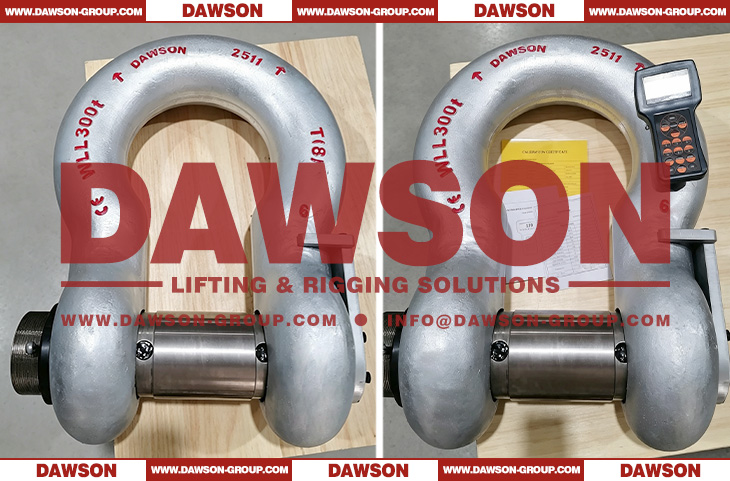

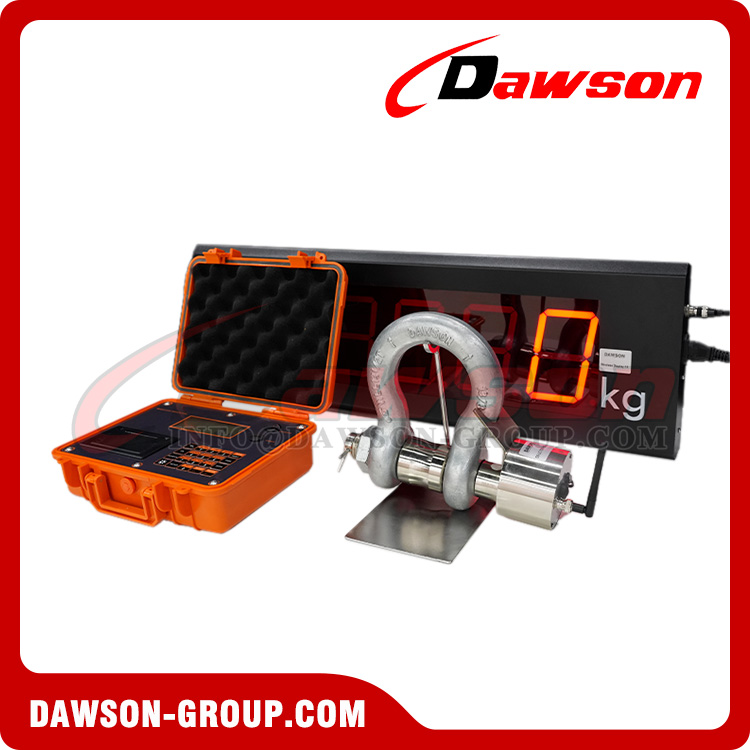

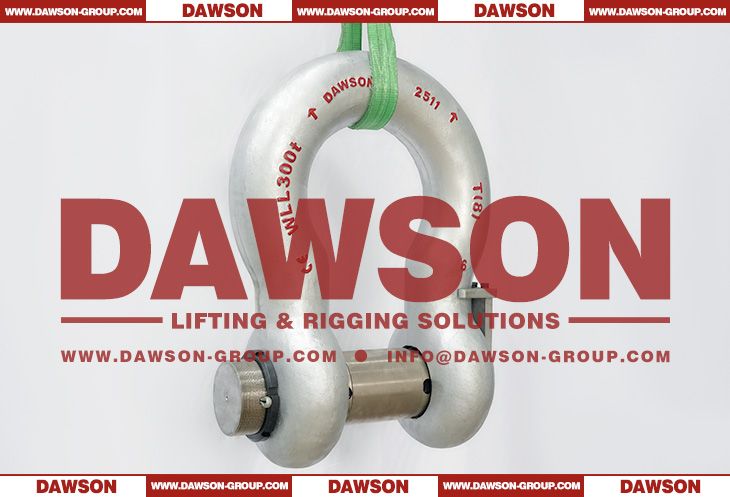

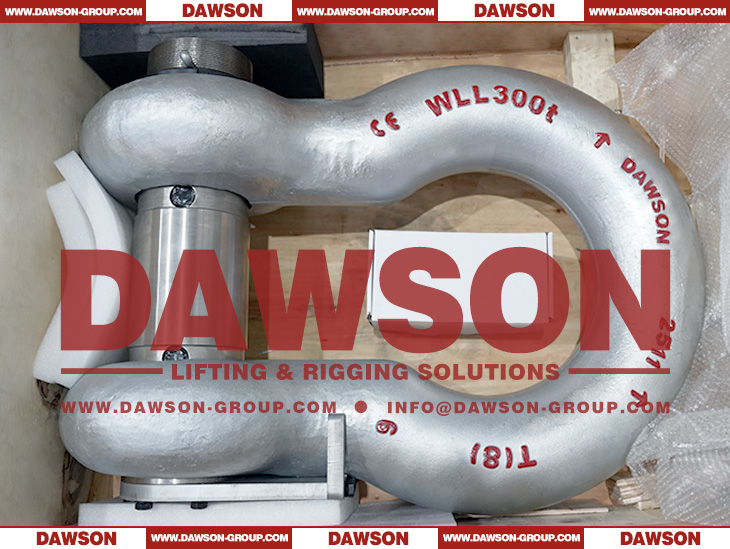

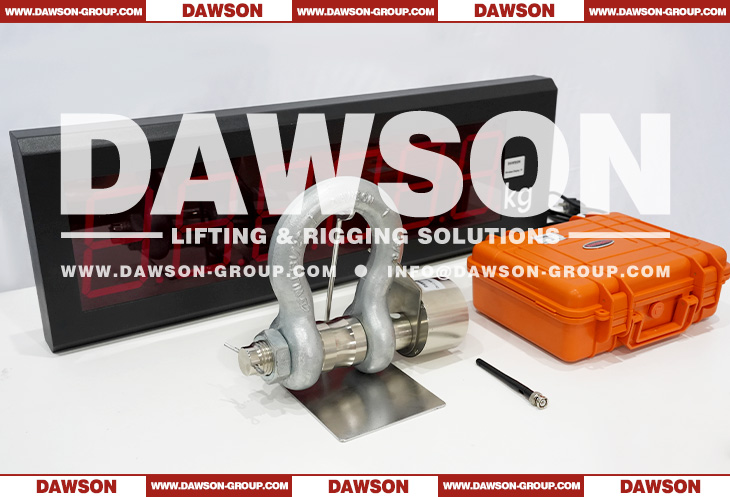

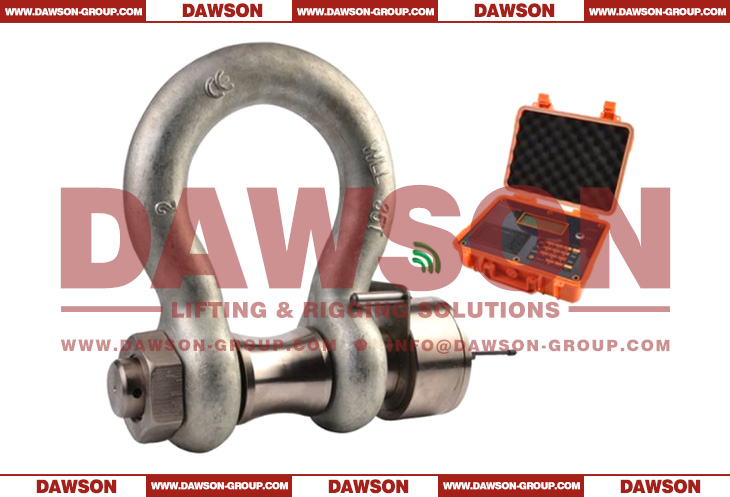

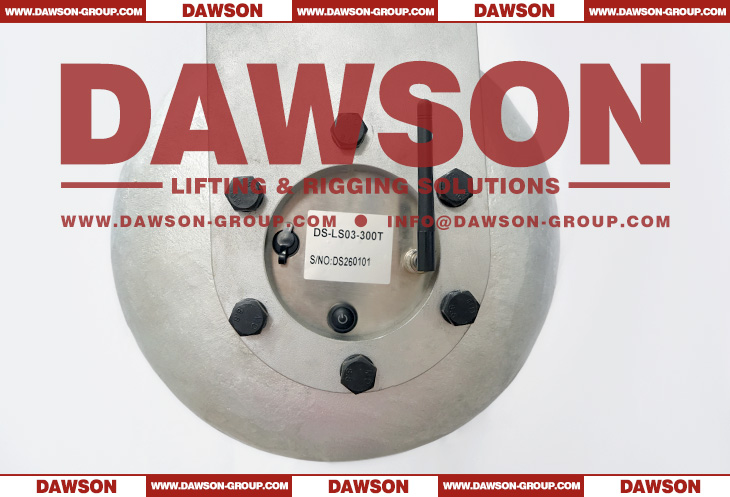

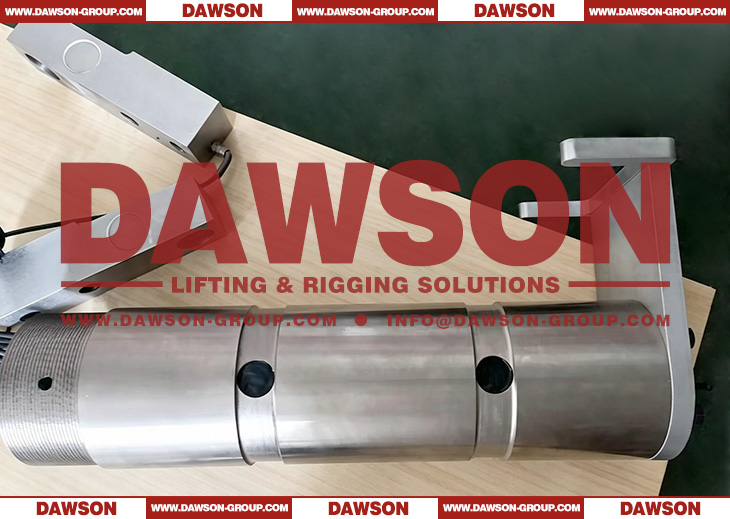

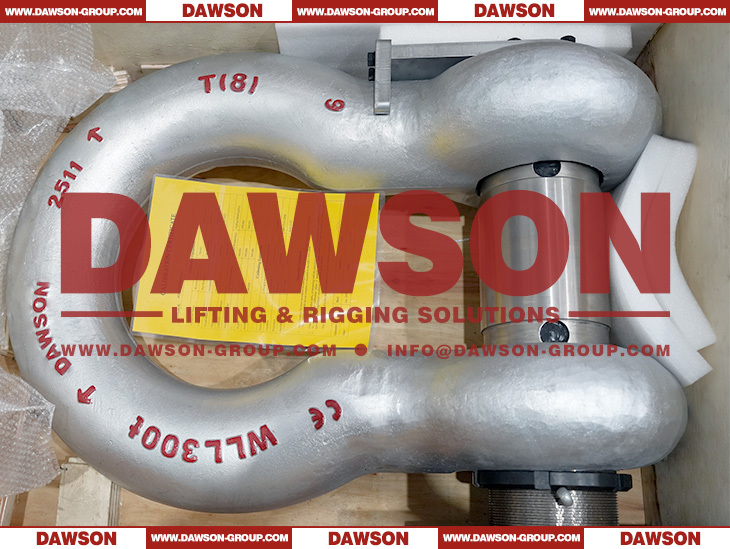

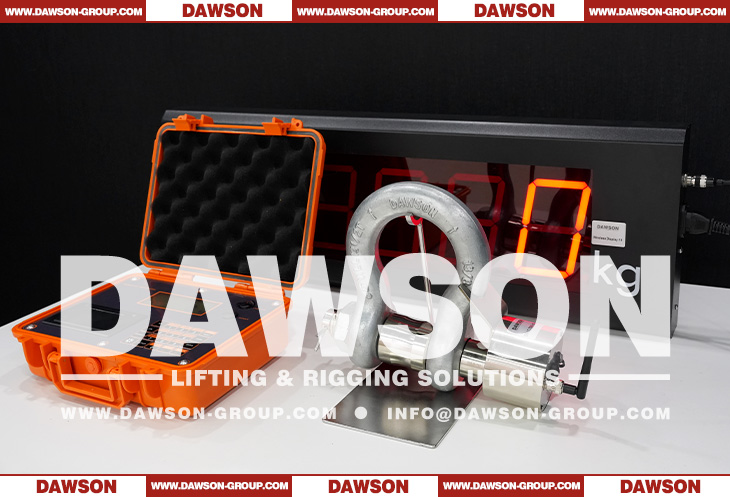

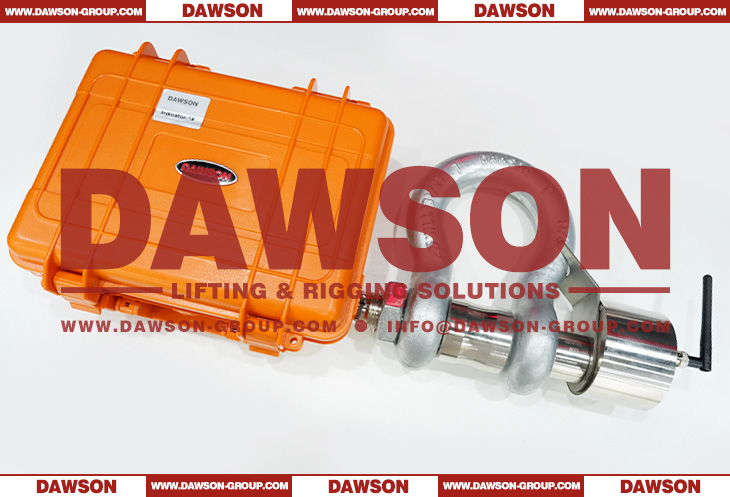

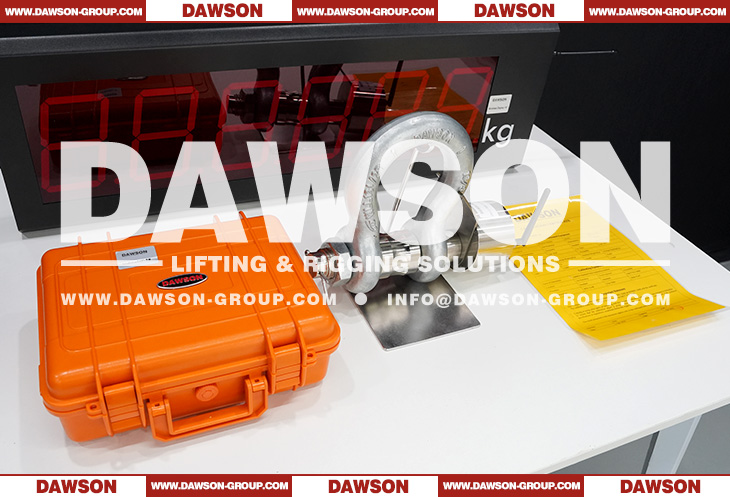

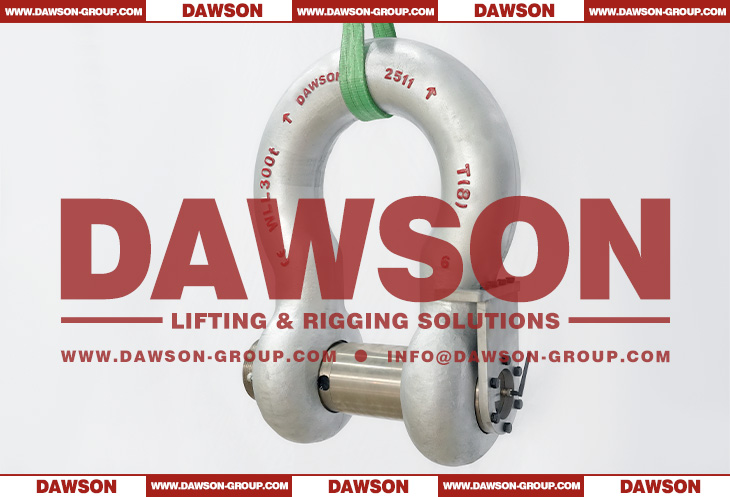

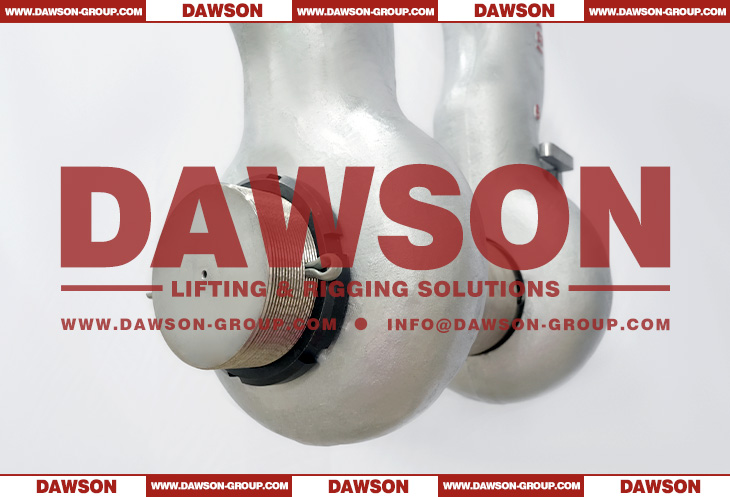

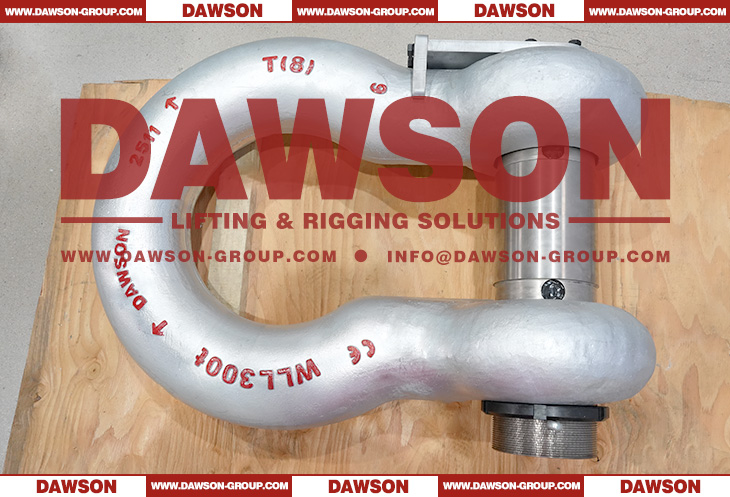

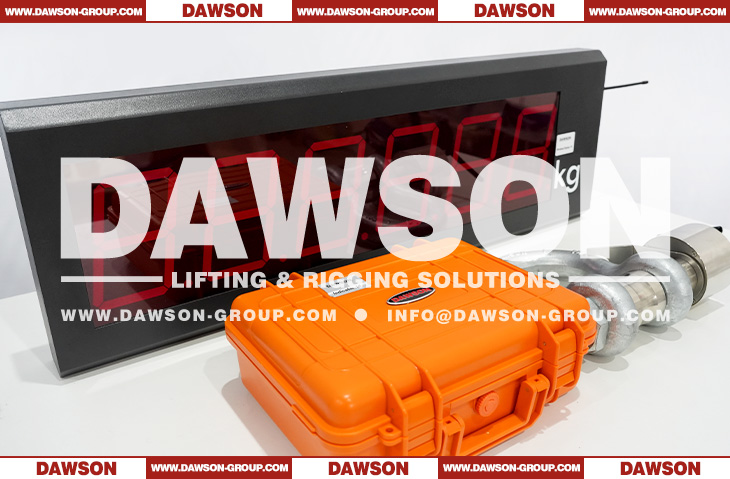

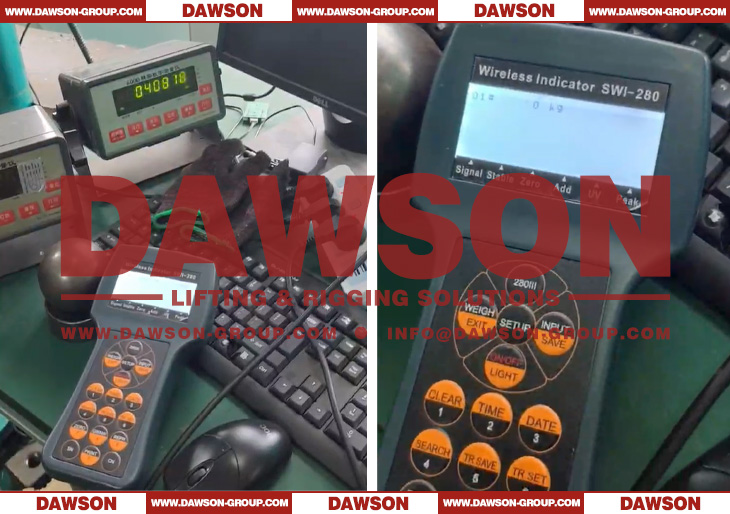

DS-LS03-300T Wireless Load Shackles, H.D.G. Wireless Pin Load Cell Shackle
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Features:
◎The shackle S6 grade:0.5t-1250t;
◎S6 grade is structural alloy steel;
◎The maximum testing load of 0.5t-150t shackle is 2 times of the working load,the maximum testing load 200t of 500t shackle is 1.5 times of the working load.
◎The maximum testing load of 800t-1250t shackle is 1.33 times of the working load, the minimum breaking load is 1.5 times of the working load;
◎Monitors traction force and other force measurement;
◎Available in 7 standard ranges between 0.5t-1250t;
◎Alloy steel and Stainless steel construction;
◎Special execution for harsh environmental conditions (IP66);
◎High reliability for strict safety requirements;
◎Simple installation for cost-saving solutions to measurement problems;

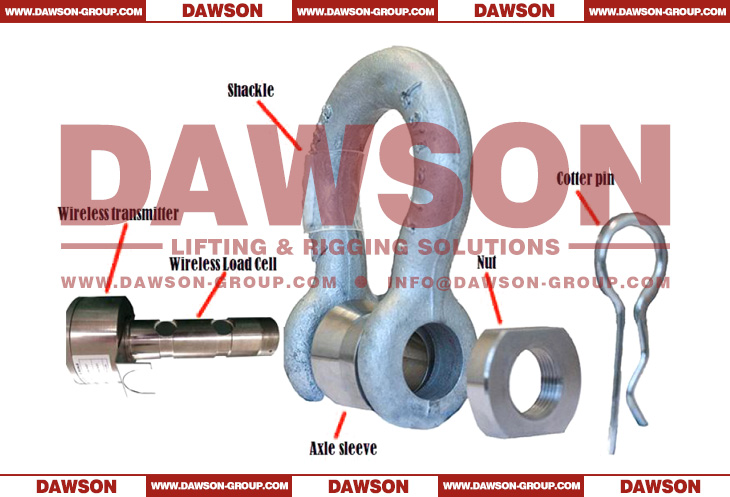

Description:

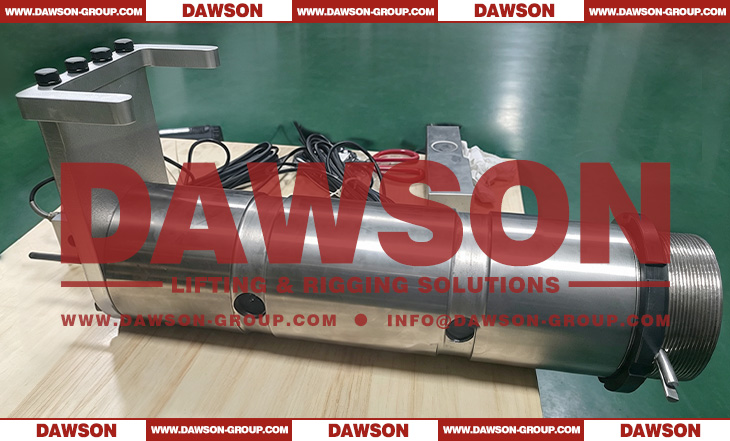

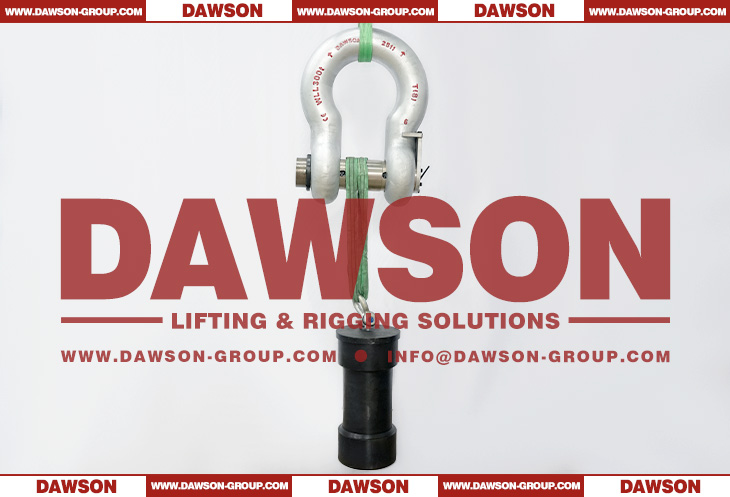

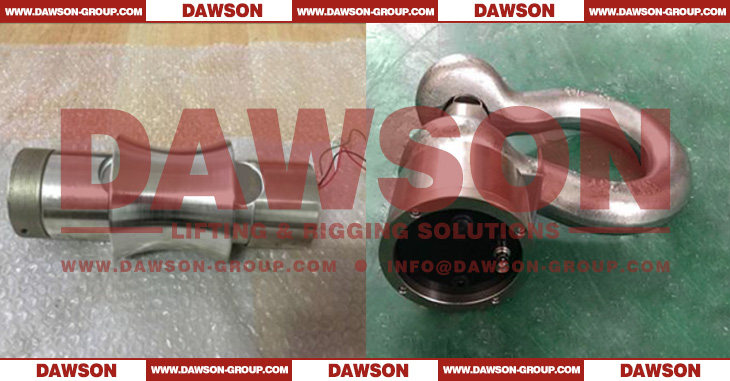

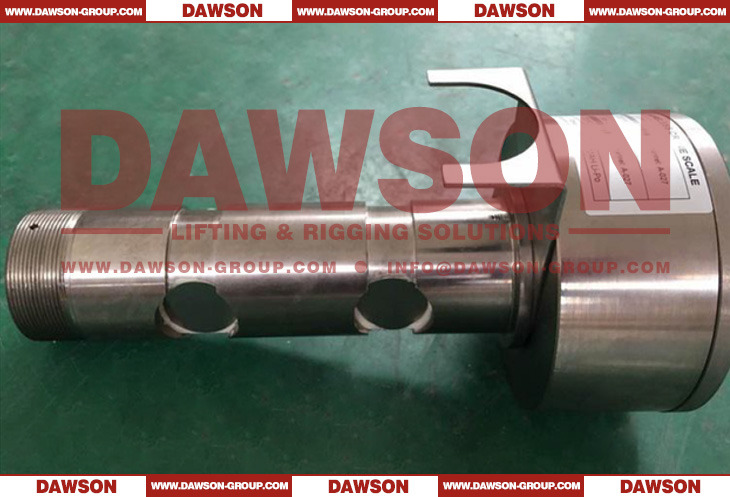

The Shackles Load Pin can be used in all applications where a load measuring survey is necessary. The load pin included on the shackle provides a proportional electrical signal according to the applied load. The transducer is constructed with high resistance stainless steel and is insensitive to external mechanical, chemical or marine effects making them ideal for use in harsh environmental conditions.

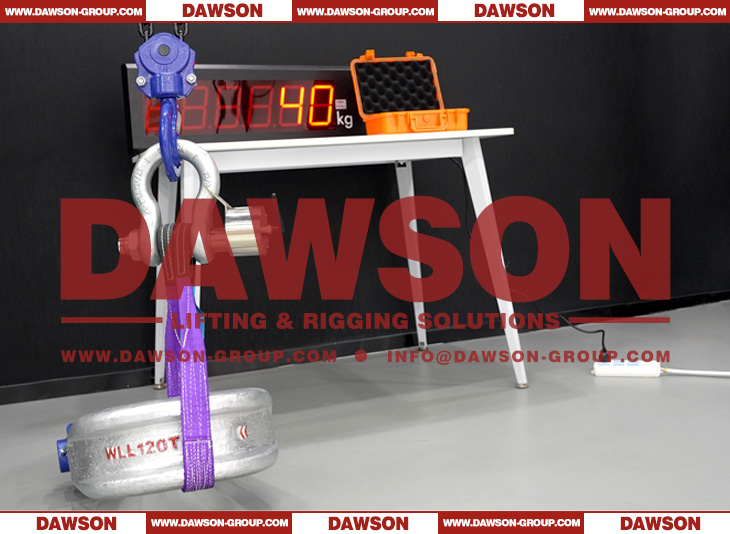

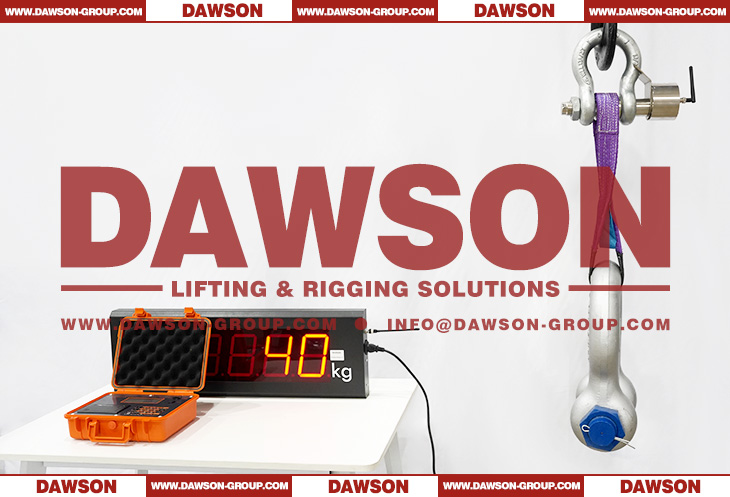

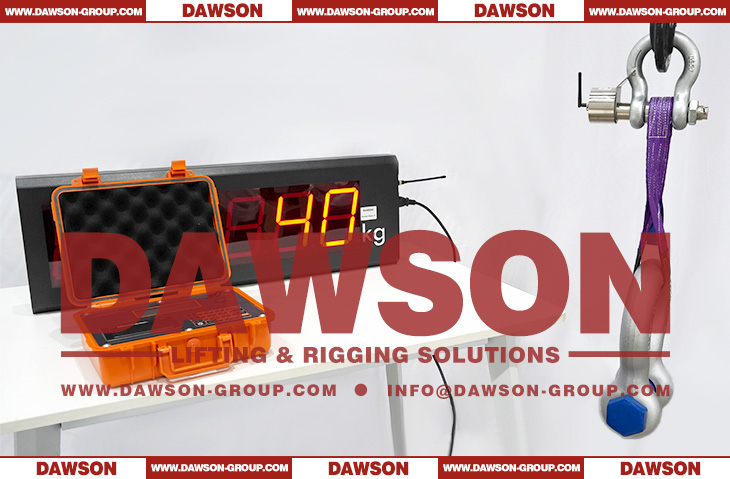

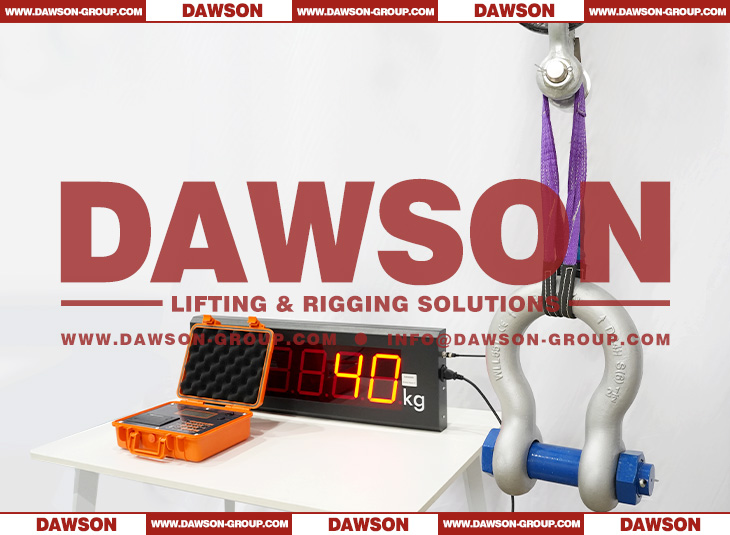

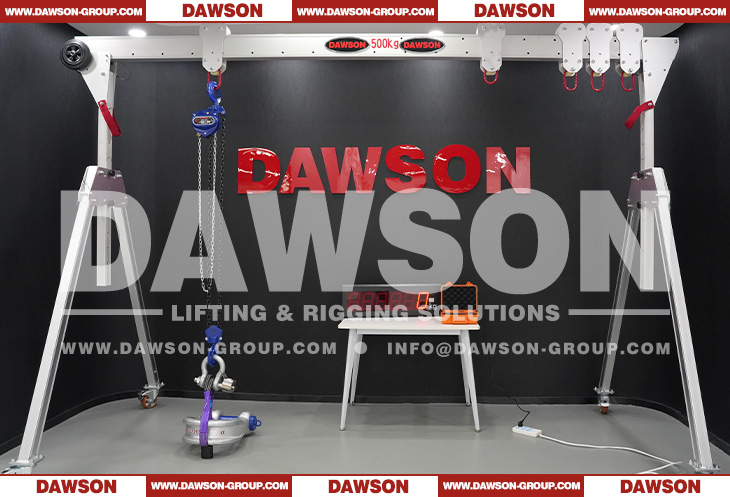

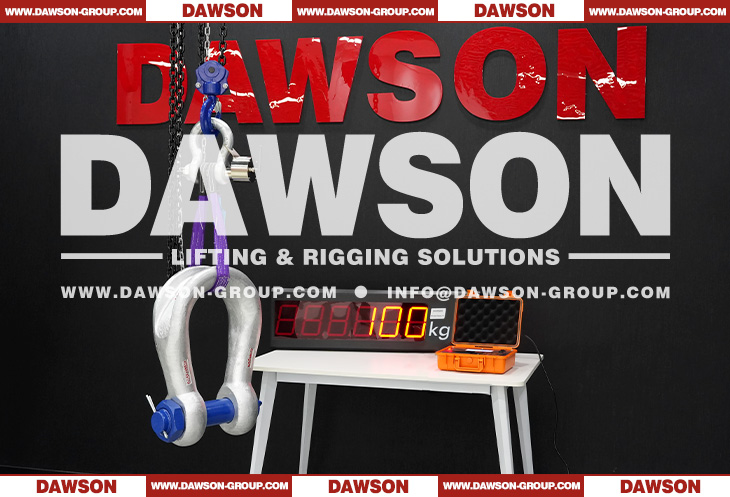

Applications:

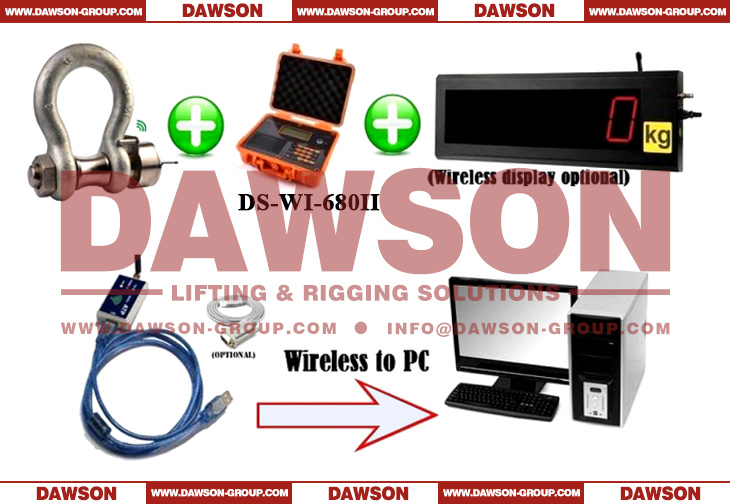

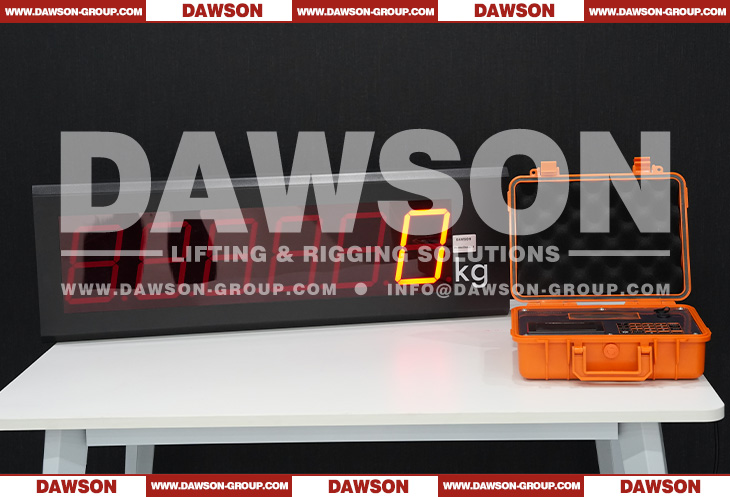

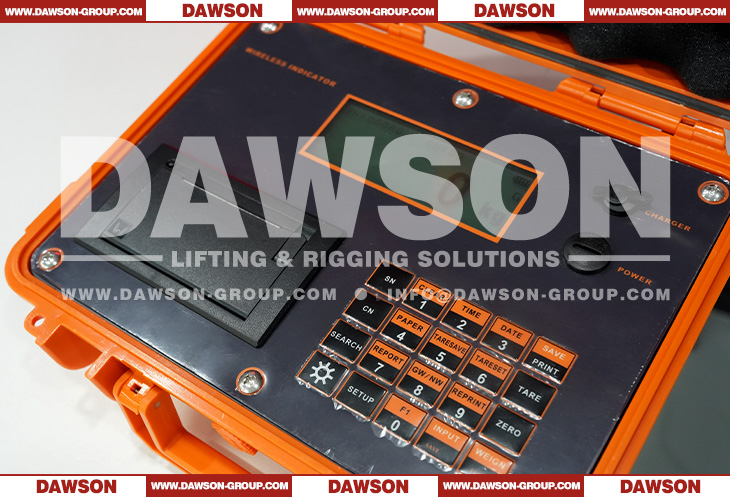

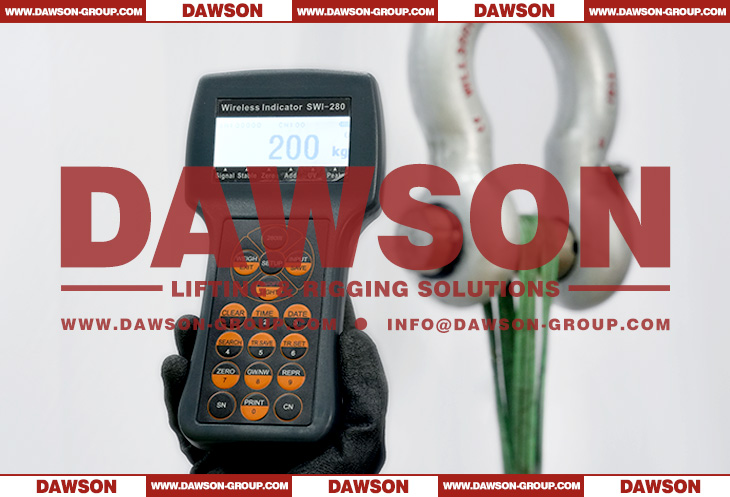

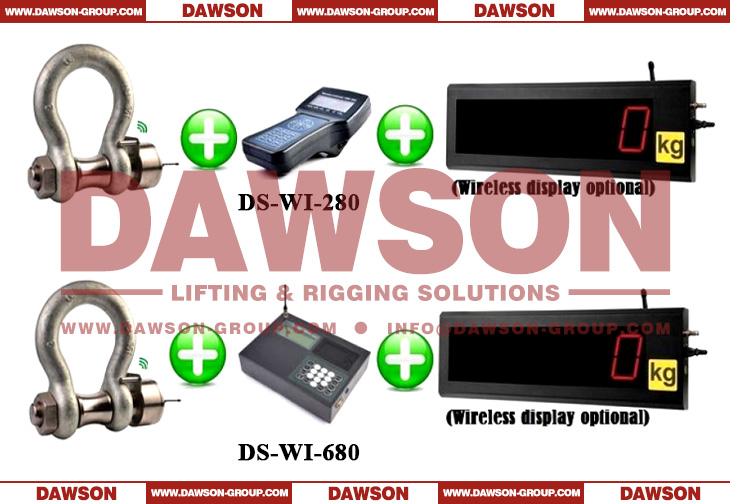

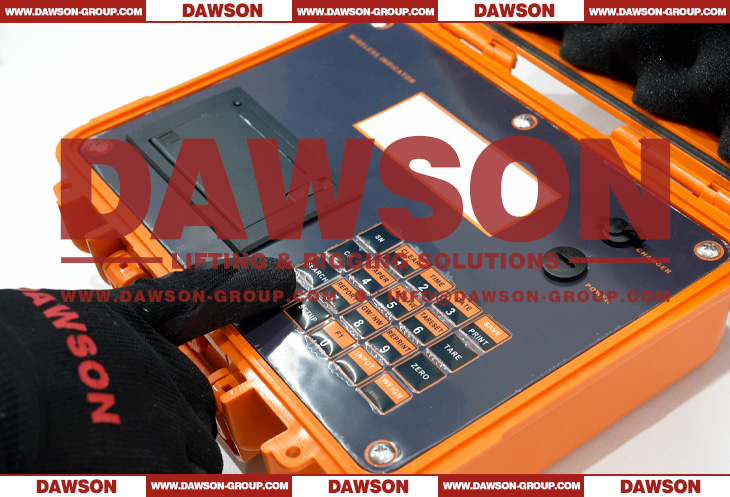

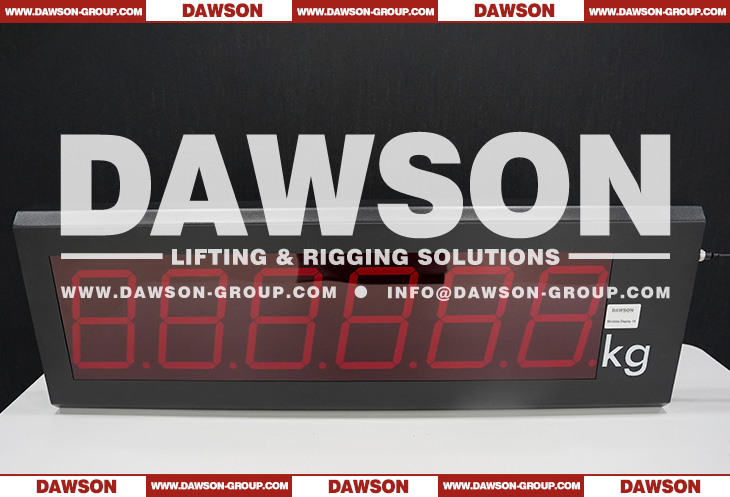

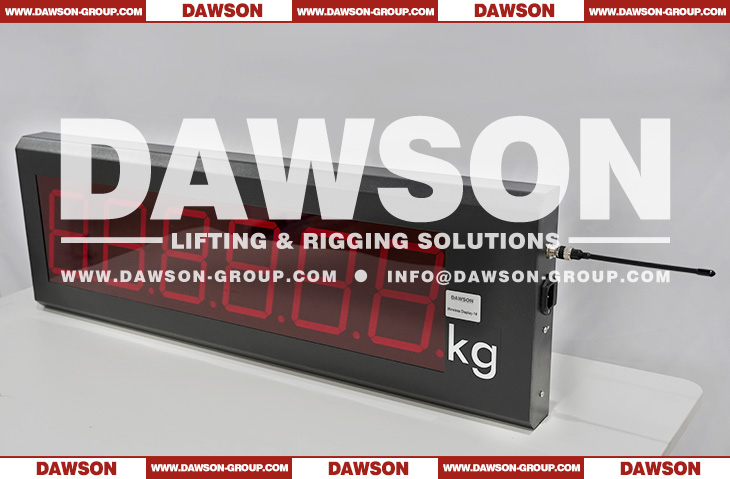

The DS-LS03 is designed for hoisting in several applications like cranes winches, lifting, and other marine applications. In combination with a portable GM 80 or LMU (Load Monitoring Unit), the DS-LS03 is the most reliable and simplest method to control your load application. Whether used in heavy lifting, mooring anchor placement or sub-sea applications, our cabled Load shackle offers robust construction, advanced electronics, industry leading resolution and accuracy all at a cost-effective, affordable price.
Specifications:
| Rate Load: | 0.5t-1250t | Overload Indication: | 100% F.S. + 9e |
| Proof Load: | 150% of rate load | Max. Safety Load: | 125% F.S |
| Ultimate Load: | 400% F.S. | Battery Life: | ≥40 hours |
| Power On Zero Range: | 20% F.S. | Operating Temp.: | - 10℃ ~ + 40℃ |
| Manual Zero Range: | 4% F.S. | Operating Humidity: | ≤85% RH under 20℃ |
| Tare Range: | 20% F.S. | Remote Controller Distance: | Min.15m |
| Stable Time: | ≤10seconds; | Telemetry Frequency: | 470mhz |
| System Range: | 500~800m (In Open Area) |
| Battery Type | 18650 rechargeable batteries or polymer batteries (7.4v 2000Mah)
|

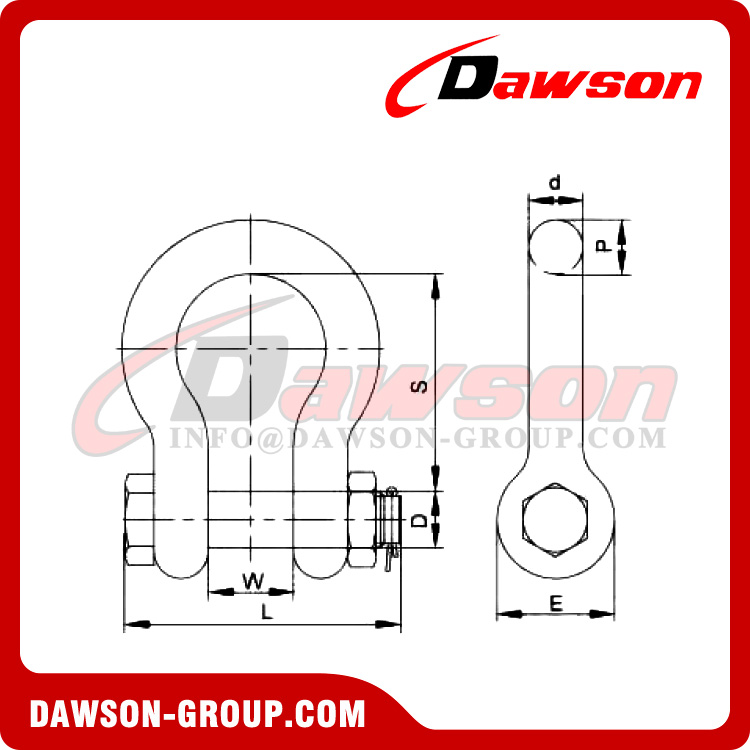

Dimension: (Unit:mm)
| Load(t) | Shackle Load(t) | W | D | d | E | P | S | L | O | Weight
(kg) |
| DS-LS03-0.5t | 0.5 | 12 | 8 | 6.5 | 15.5 | 6.5 | 29 | 37 | 20 | 0.05 |
| DS-LS03-0.7t | 0.75 | 13.5 | 10 | 8 | 19 | 8 | 31 | 45 | 21.5 | 0.1 |
| DS-LS03-1t | 1 | 17 | 12 | 9.5 | 23 | 9.5 | 36.5 | 54 | 26 | 0.13 |
| DS-LS03-1.5t | 1.5 | 19 | 14 | 11 | 27 | 11 | 43 | 62 | 29.5 | 0.22 |
| DS-LS03-2t | 2 | 20.5 | 16 | 13 | 30 | 13 | 48 | 71.5 | 33 | 0.31 |
| DS-LS03-3t | 3.25 | 27 | 20 | 16 | 38 | 17.5 | 60.5 | 89 | 43 | 0.67 |
| DS-LS03-4t | 4.75 | 32 | 22 | 19 | 46 | 20.5 | 71.5 | 105 | 51 | 1.14 |
| DS-LS03-5t | 6.5 | 36.5 | 27 | 22.5 | 53 | 24.5 | 84 | 121 | 58 | 1.76 |
| DS-LS03-8t | 8.5 | 43 | 30 | 25.5 | 60.5 | 27 | 95 | 136.5 | 68.5 | 2.58 |
| DS-LS03-9t | 9.5 | 46 | 33 | 29.5 | 68.5 | 32 | 108 | 149.5 | 74 | 3.96 |
| DS-LS03-10t | 12 | 51.5 | 36 | 33 | 76 | 35 | 119 | 164.5 | 82.5 | 5.06 |
| DS-LS03-13t | 13.5 | 57 | 39 | 36 | 84 | 38 | 133.5 | 179 | 92 | 7.29 |
| DS-LS03-15t | 17 | 60.5 | 42 | 39 | 92 | 41 | 146 | 194.5 | 98.5 | 8.75 |
| DS-LS03-25t | 25 | 73 | 52 | 47 | 106.5 | 57 | 178 | 234 | 127 | 14.22 |
| DS-LS03-30t | 35 | 82.5 | 60 | 53 | 122 | 61 | 197 | 262.5 | 146 | 21 |
| DS-LS03-50t | 55 | 105 | 72 | 69 | 144.5 | 79.5 | 267 | 339 | 184 | 42.12 |
| DS-LS03-80t | 85 | 127 | 85 | 76 | 165 | 92 | 330 | 394 | 200 | 74.8 |
| DS-LS03-100t | 120 | 133.5 | 95 | 92 | 203 | 104.5 | 371.4 | 444 | 228.5 | 123.6 |
| DS-LS03-150t | 150 | 140 | 110 | 104 | 228.5 | 116 | 368 | 489 | 254 | 165.9 |
| DS-LS03-200t | 200 | 184 | 130 | 115 | 270 | 115 | 396 | 580 | 280 | 237 |
| DS-LS03-300t | 300 | 200 | 150 | 130 | 320 | 130 | 450 | 644 | 300 | 363 |
| DS-LS03-500t | 500 | 240 | 185 | 165 | 390 | 165 | 557.5 | 779 | 360 | 684 |
| DS-LS03-800t | 800 | 300 | 240 | 207 | 493 | 207 | 660 | 952 | 440 | 1313 |
| DS-LS03-1000t | 1000 | 390 | 270 | 240 | 556 | 240 | 780.5 | 1136 | 560 | 2024 |
| DS-LS03-1250t | 1250 | 400 | 300 | 260 | 620 | 260 | 850 | 1225 | 560 | 2511
|

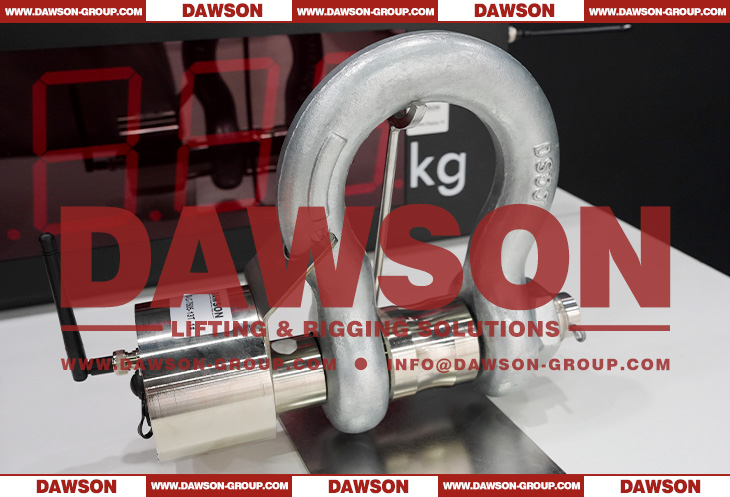

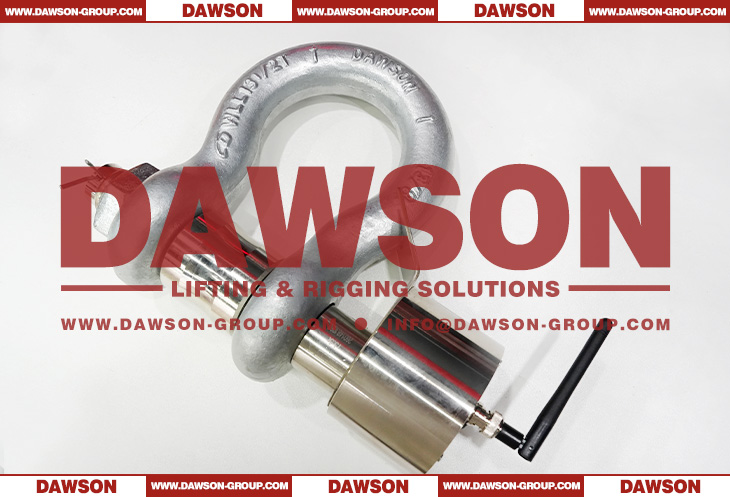

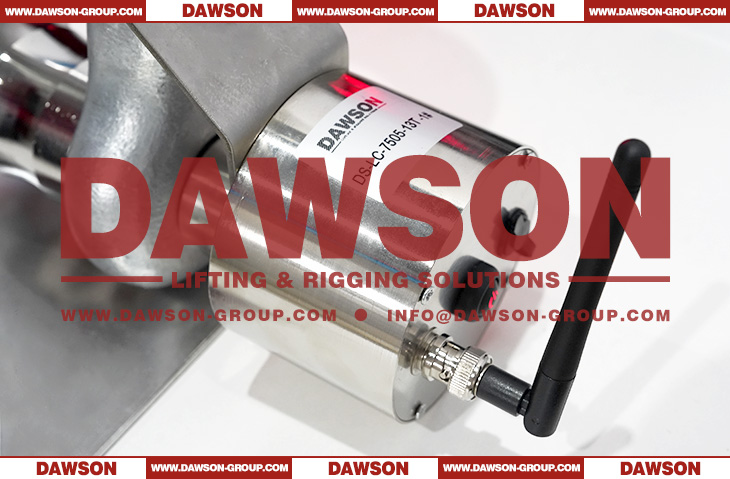

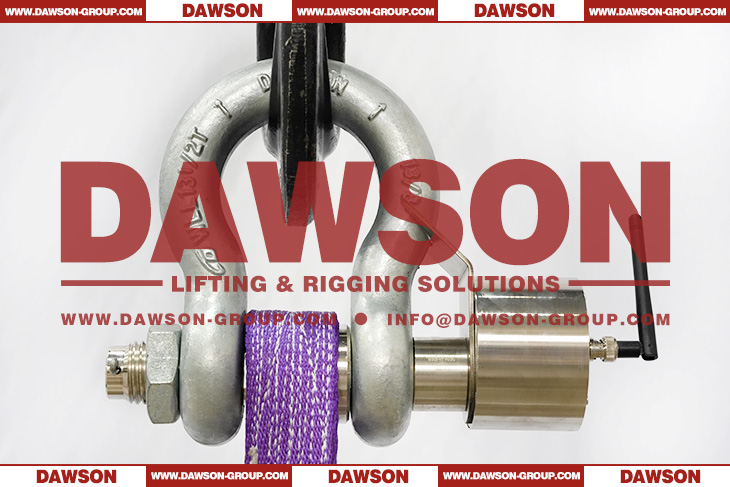

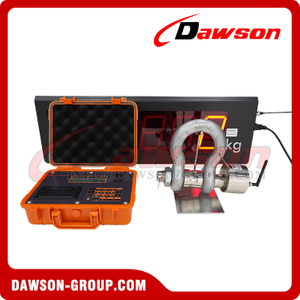

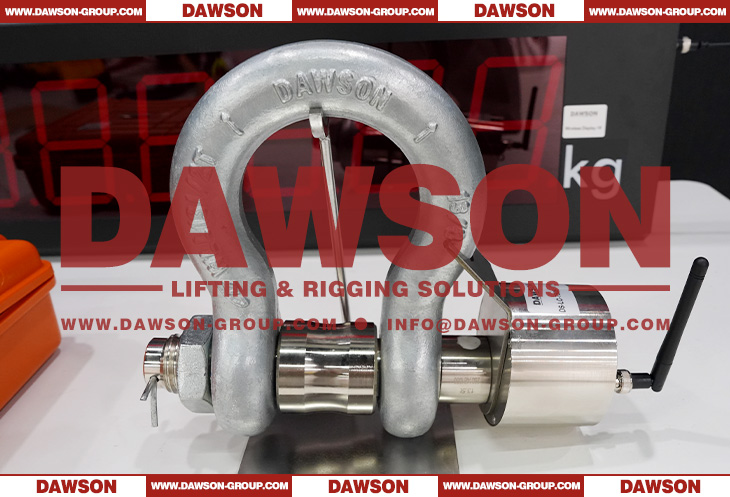

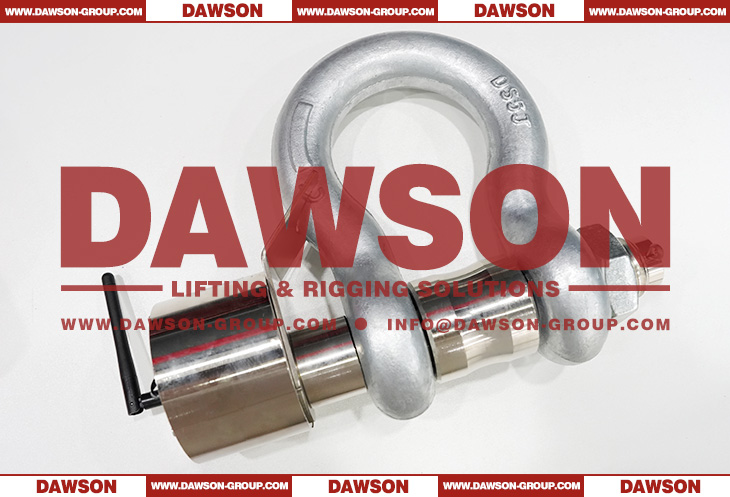

New Model: DS-LC-7505W
Multiple Wireless Optional
