DS-DD Type Rubber Fender

  • DAWSON/OEM

  • DS-DD

Availability:
Quantity:
Inquire Add to Basket

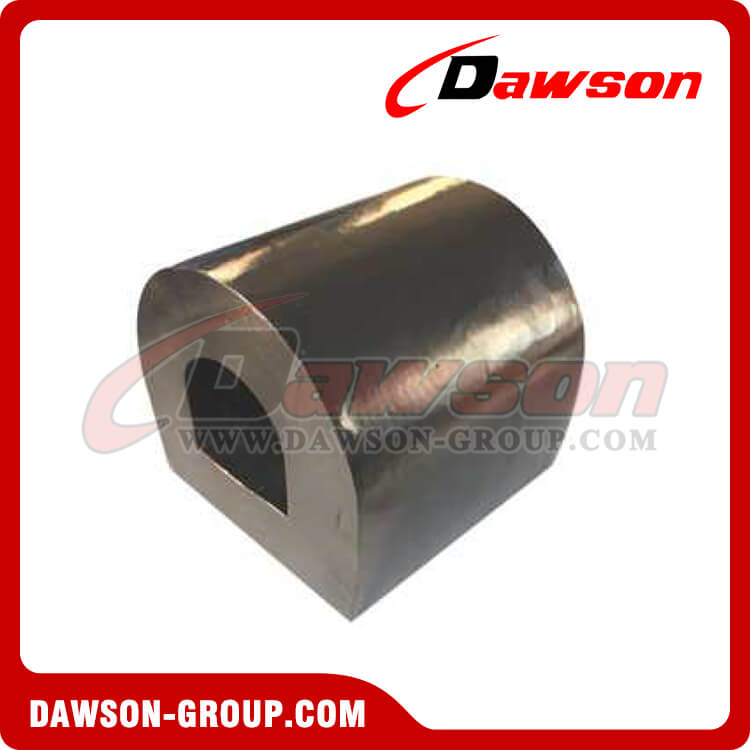

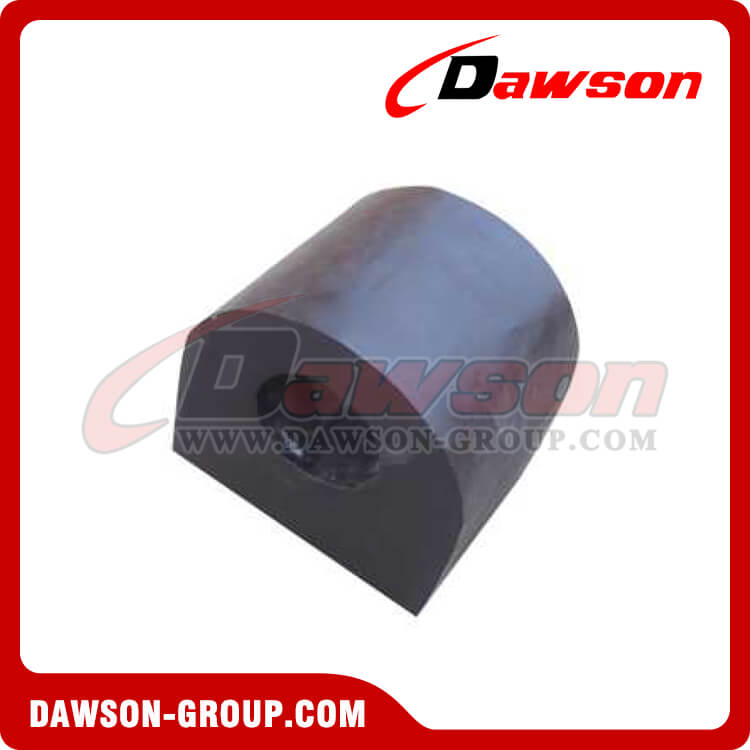

DS-DD Type Rubber Fender

- Dawson Group Ltd. - China Manufacturer Supplier, Factory

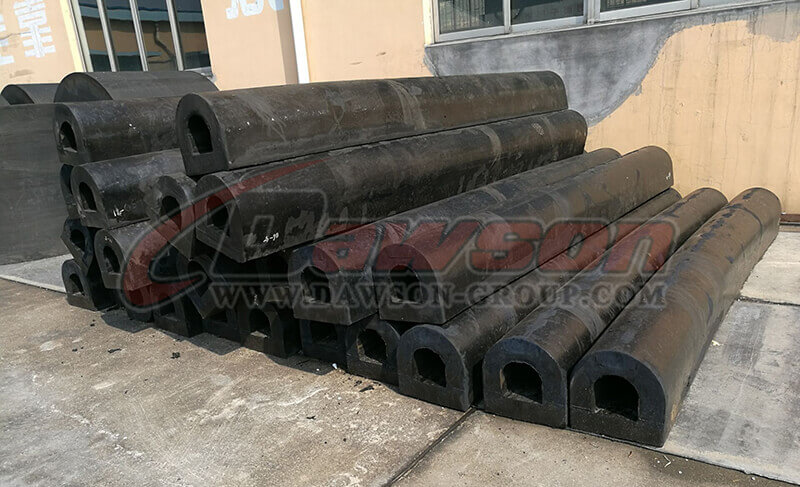

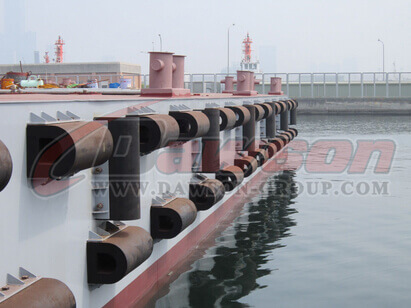

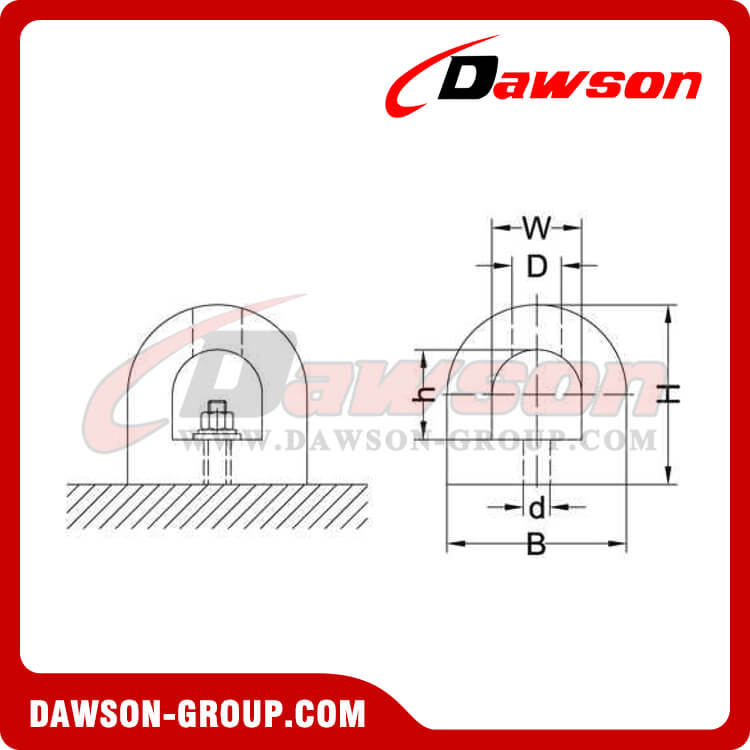

     DS-DD Type Rubber Fender - Dawson Group Ltd. - China Manufacturer, Supplier, Factory     DS-DD Type Rubber Fender Painting - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Item DD100 DD150 DD200 DD250 DD300 DD350 DD400 DD500


H 100 150 200 250 300 350 400 500


B 100 150 200 250 300 350 400 500


D(φ) 45 55 55 65 65 85 85 97


d 25 27 30 32 36 40 42 45


h 45 75 100 125 150 175 200 250


w 50 75 100 125 150 172 200 250


Bolt sizes M22 M24 M26 M27 M30 M36 M38 M42


End distance 100-150 100-150 100-150 100-150 100-150 100-150 100-150 100-150


Bolt pitch 350-440 350-440 325-600 325-450 325-600 325-600 350-600 400-620


Max. length 2000 2000 2000 3000 3000 3000 3000 3000


KN/m reaction force 54.91 83.2 105.7 132.2 158.4 184.8 211.2 316.8


KN-M/m Energy absorption 0.91 3.50 4.61 6.40 9.50 11.2 16.1 36.0


Deflection 40%
Reference weight(kg/m) 10 22 38 59 84 115 150 234



Note

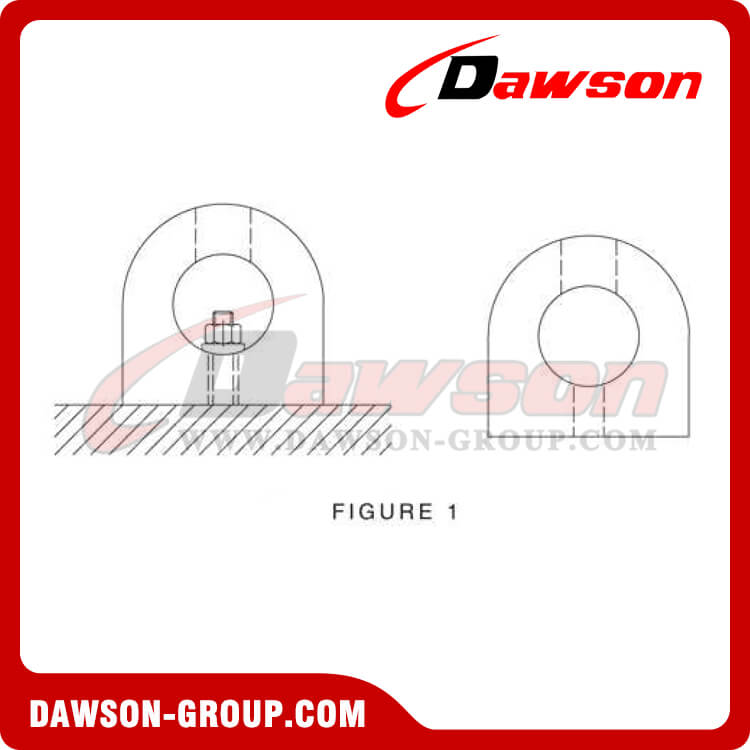

(1)This type of fender also can be installed as shown in figure 1.

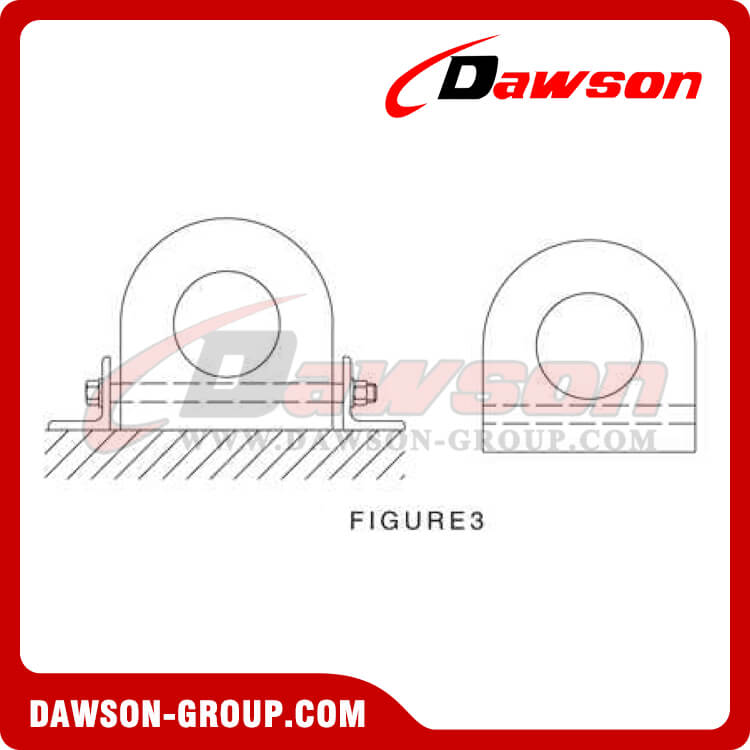

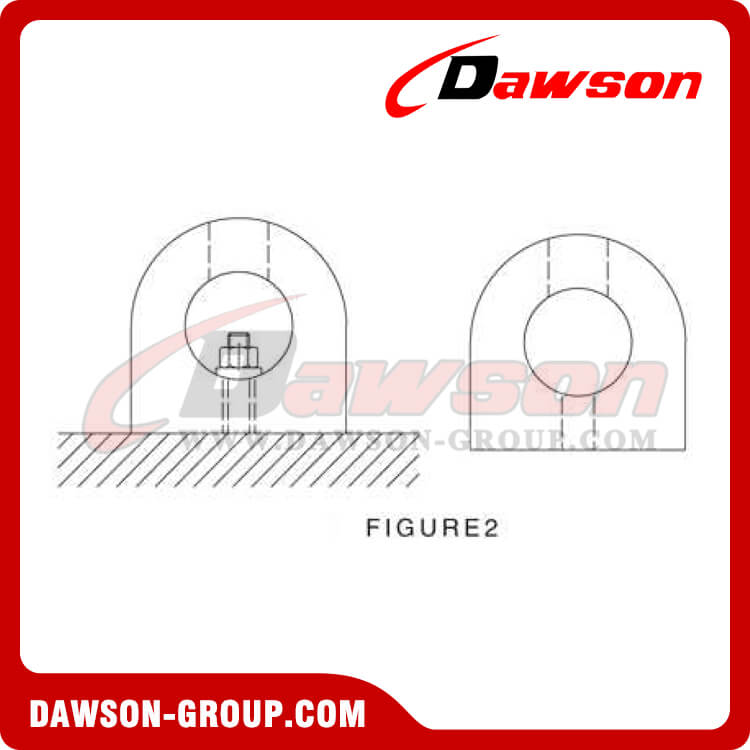

(2)The round holes is also available, as shown in figure 2&3.
(3)All the bolts in the same diameter.
(4)Production in accordance with standard performance and size tolerance.
Accessories for Rubber Fenders:
Accessories for Rubber Fenders - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Accessories for Rubber Fenders - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Equipments:

2000 Tons Pressure Testing Machine - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Floating Rubber Fenders - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Marine Rubber Fenders - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Rubber Fenders - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Rubber Fenders - Dawson Group Ltd. - China Manufacturer, Supplier, Factory


Application of DD Type Rubber Fender:

Application for DAWSON Rubber Fenders - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

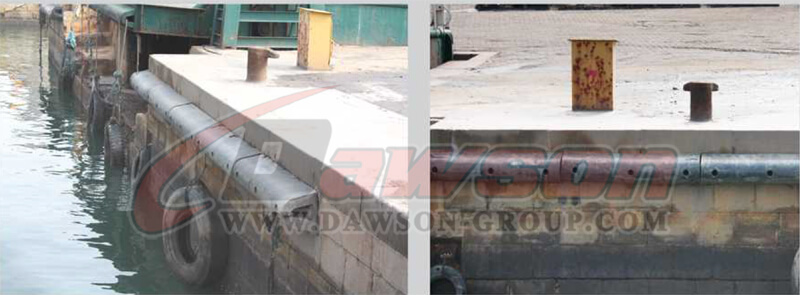

Application of DS-DD Type Rubber Fender - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

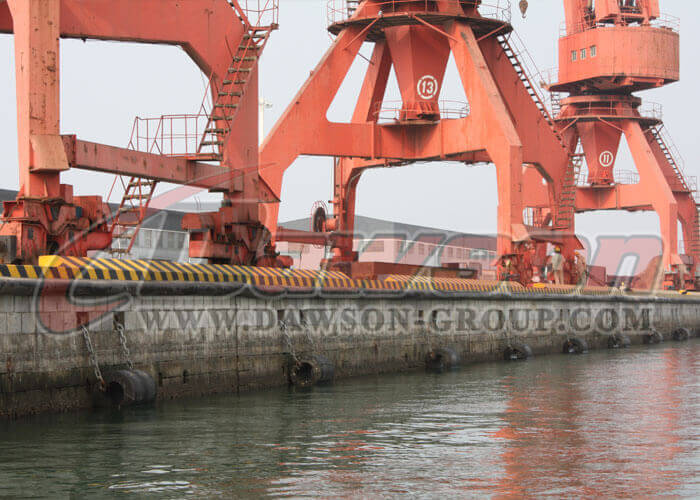

D Type and Cylindrical Type Rubber Fender - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

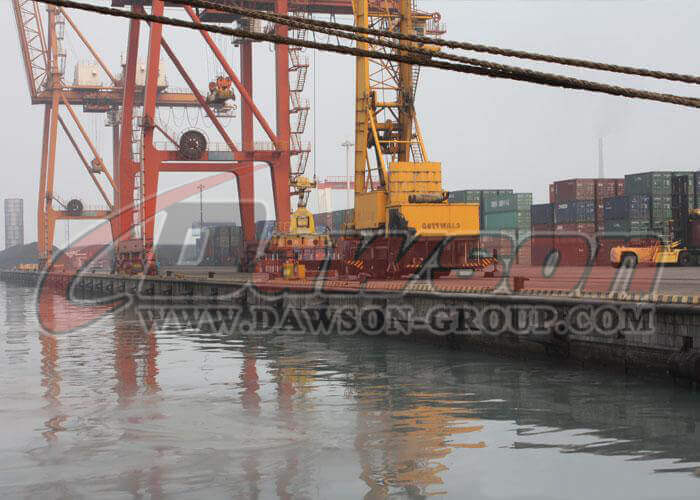

D Type and Super Arch Type Rubber Fender - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
