DS-CDK Type Vertical Plate Clamp with Lock Device

Working load limit(WLL):0.8-5T.
Use:
● For lifting and transporting of thick steel plates.
● Articulated lifting shackle.
● The clamp is fitted with a locking device for both open and closed positions, which ensures complete safety.
● The clamp is locked in closed as well as in open position.
● Manufactured from high quality carbon steel.
  • DAWSON/OEM
  • DS-CDK
  • 15 - 60mm
Availability:
Quantity:
DS-CDK Type Vertical Plate Clamp with Lock Device

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

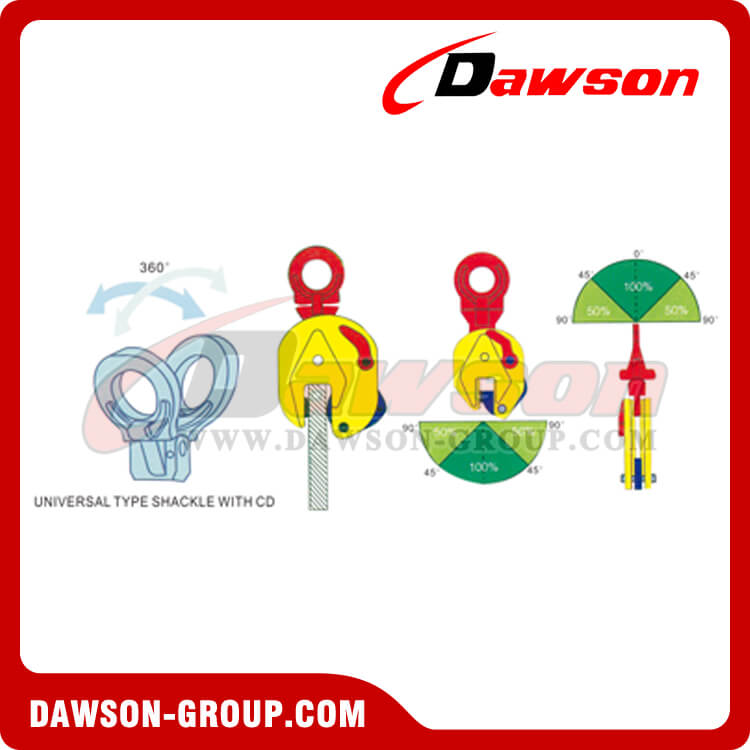

DS-CDK Vertical Plate Clamp - lifting clamps - china manufacturer supplier - Dawson Group       Application of DS-CDK Type Vertical Plate Clamp 0.8-5T
Working load limit(WLL):0.8-5T.
Use:
● For lifting and transporting of thick steel plates.
● Articulated lifting shackle.
● The clamp is fitted with a locking device for both open and closed positions, which ensures complete safety.
● The clamp is locked in closed as well as in open position.
● Manufactured from high quality carbon steel.

Part No. Model WLL (tonnes) Jaw Opening(mm) Weight(kg)
DS-0016 DS-CDK0.8 0.8 15-30 2
DS-0017 DS-CDK1.6 1.6 20-40 7
DS-0018 DS-CDK3.2 3.2 25-50 15
DS-0019 DS-CDK4.5 4.5 25-50 15
DS-0020 DS-CDK5 5.0 36-60 23

Welcome to buy the newest and cheap DAWSON vertical plate clamp lock device from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

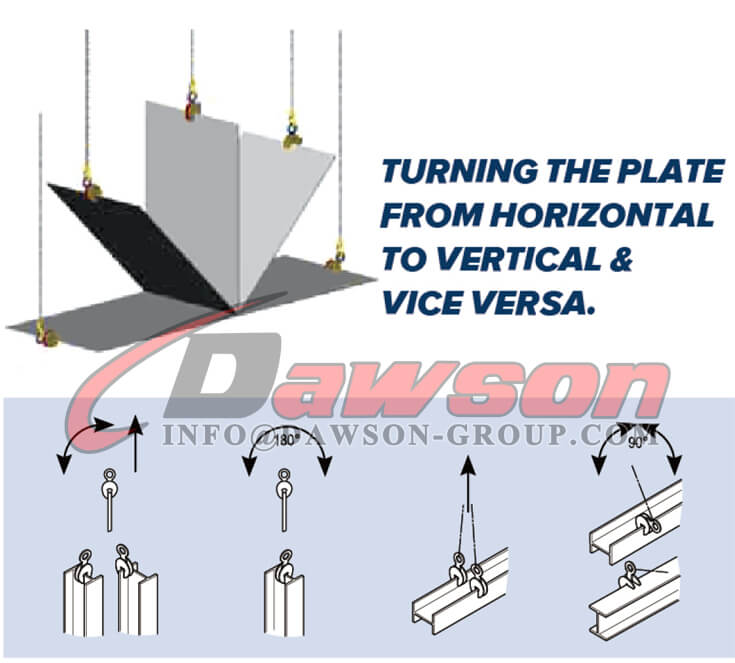

Application of Vertical Lifting Clamp for Steel Plate - China Supplier


Safety lifting
● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm⊃2;).
● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃
● Never overload a clamp and prevent the jerking of loads.
● When loading always use the whole jaw depth.
● Never lift more than one plate at the same time.
● Always keep your distance during lifting and descending of a load.
● Prevent situations that anybody is under the load.
● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.
Application of Safety Lifting

For further information, please contact usEmail:info@dawson-group.com


Lifting Clamps
DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates DS-LC Type Horizontal Plate Clamp
DS-PDB Type Industry Standard Horizontal Plate Clamp for Lifting and Transport DS-CDK Type Vertical Plate Clamp with Lock Device
DS-CDD Type Vertical Plate Clamp with Safety Lock DS-SCDH Type Vertical Plate Clamp for Lifting with Safety Lock
DS-CDH Type Vertical Plate Clamp with Safety Lock Device DS-TMS Type Horizontal Plate Clamp with Lock Device
DS-TMG Type Horizontal Clamp with Lock Device DS-THK/THKS Type Horizontal Plate Clamp for Transporting Steel Plate

Products Show:

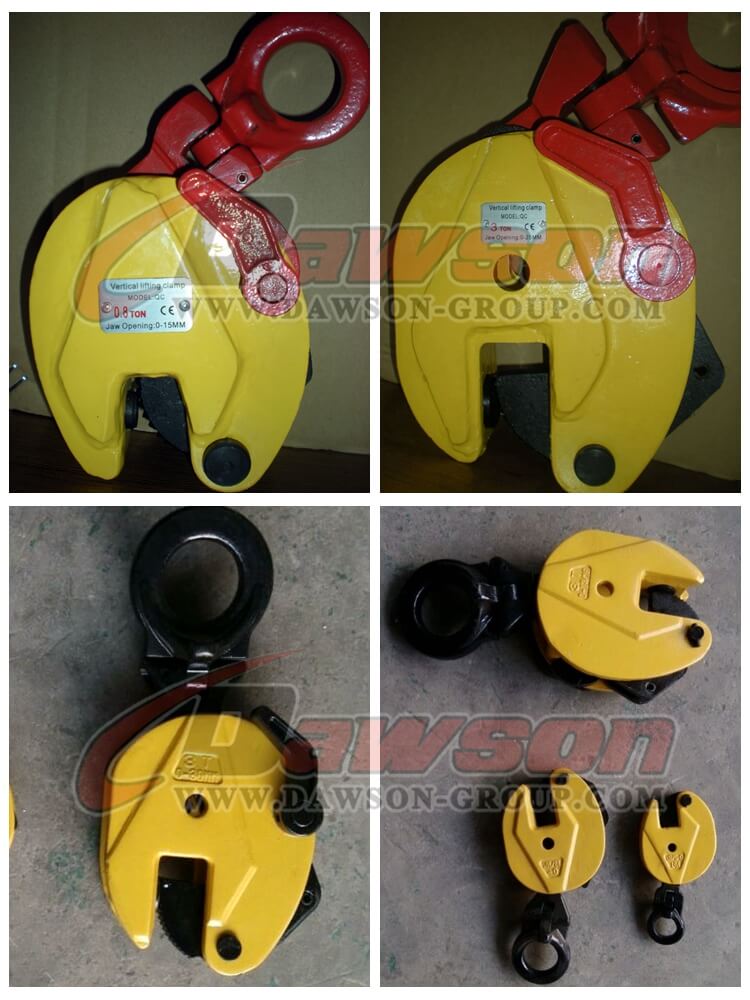

DS-QC Type Vertical Lifting Clamp - China manufacturer supplier

Hot Tags: Vertical ClampVertical Plate ClampVertical Lifting ClampLifting Plate ClampSteel Plate Clamp for LiftingChina Steel Plate Lifting Clamp SupplierWholesale Vertical Plate ClampHot Sale Steel Plate ClampPlate Lifting Clamp FactoryVertical Plate Lifting Clamp ManufacturerSteel Plate Clamp Factory ChinaChina Exporter Clamp for Steel PlateCheap Price Lifting Clamp for Steel PlateLow Price Vertical Plate ClampDawson Brands Plate Lifting ClampStandard Plate Lifting Clamp In StockLifting Clamp for Steel Plate Free SampleVertical Plate Lifting Clamp OEMBuy Discount Vertical Plate Lifting ClampCustomized Steel Plate Lifter Clamp


Other Related Products:

DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates - Dawson Group Ltd. - China Manufacturer, Factory

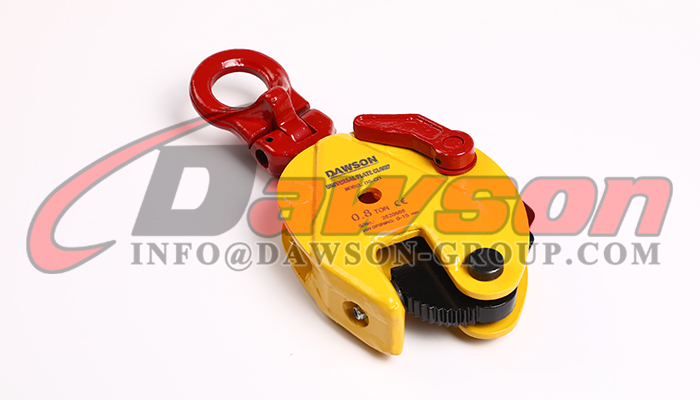

Universal Plate Clamp for Lifting and Transporting Steel Plates - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

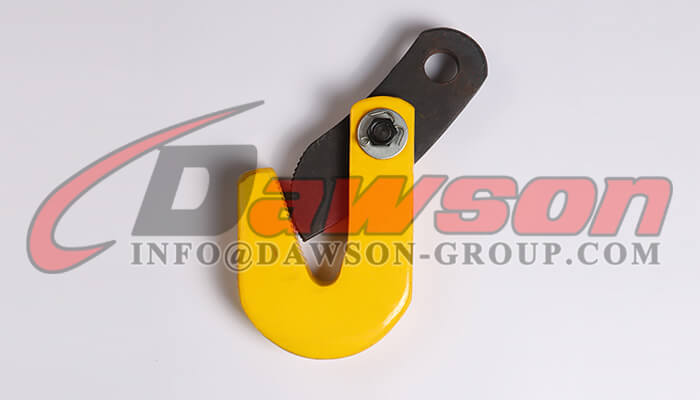

DS-L Type Horizontal Plate Clamp - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS-PDB Type Industry Standard Horizontal Plate Clamp for Lifting and Transport - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS-TPH Type Pipe Plate Clamp for Horizontal Lifting and Transporting - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Lifting Clamps, Steel Plate Clamp for Lifting - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

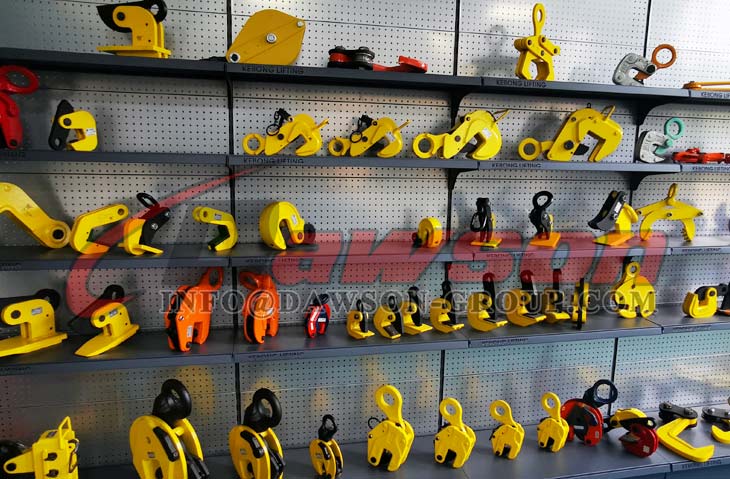

Lifting Clamps, Vertical Plate Clamp - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

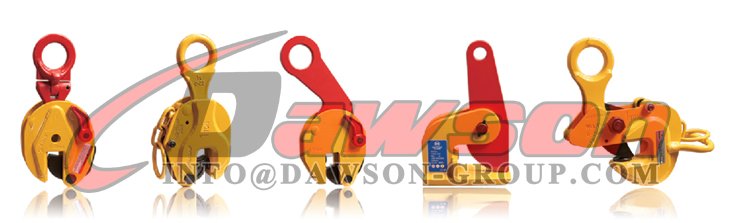

DAWSON Lifting Clamps, Vertical Plate Clamp - Dawson Group Ltd. - China Suppleir

other related products

DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates - Dawson Group Ltd. - China Supplier, Manufacturer, Factory
DS-CDK Type Vertical Plate Clamp with Lock Device - Dawson Group Ltd. - China Manufacturer, Factory, Supplier

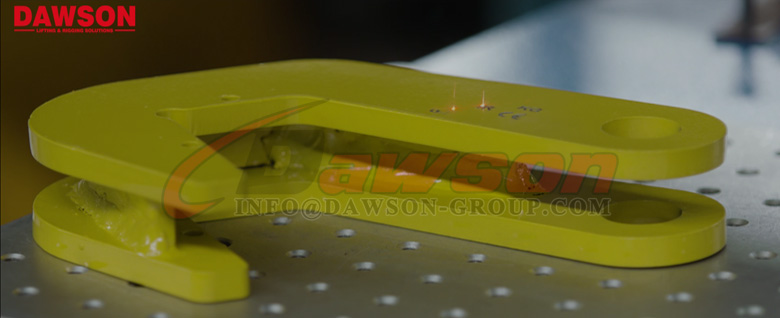

DS-PDL Type Horizontal Plate Clamp - Dawson Group Ltd. - China Supplier, Manufacturer, Factory

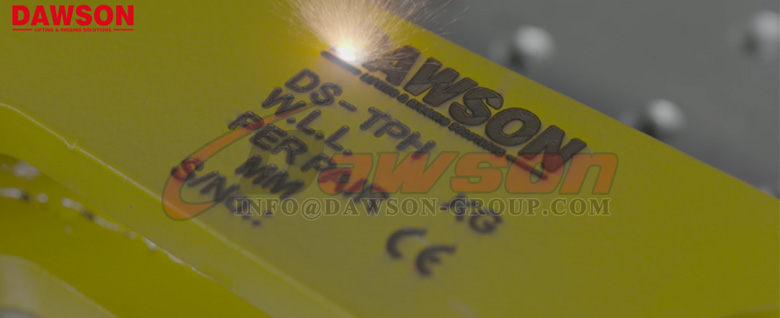

DS-PDL Type Horizontal Plate Clamp - Dawson Group Ltd. - China Manufacturer, Factory, Supplier

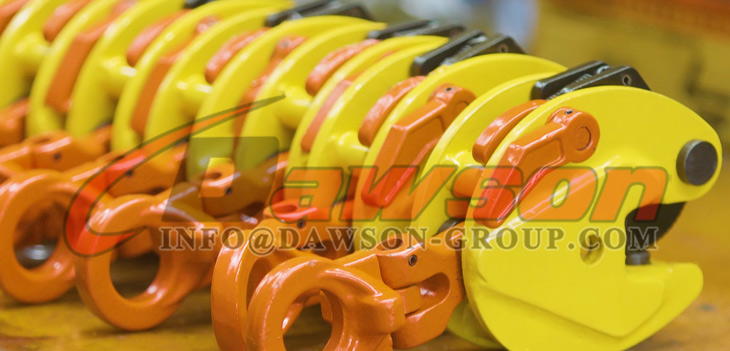

DAWSON Plate Clamp for Lifting - Dawson Group Ltd. - China Manufacturer, Supplier
DAWSON Plate Clamp for Lifting and Transport - Dawson Group Ltd. - China Manufacturer, Supplier
DAWSON Plate Clamp for Lifting - Dawson Group Ltd. - China Factory, Manufacturer, Supplier

Application of Vertical Plate Clamps:

Application of Lifting Clamp - Dawson Group Ltd. - China Supplier

Application of Lifting Clamps - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

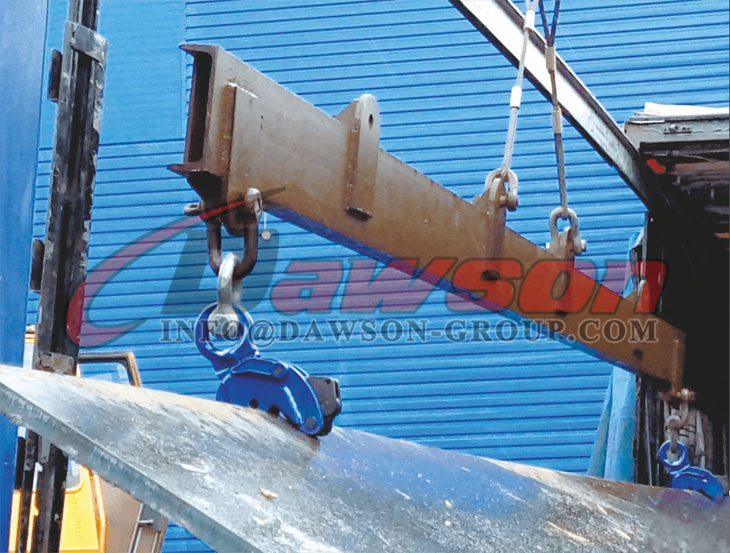

Application for Universal Plate Clamp - Dawson Group Ltd. - China Supplier, Manufacturer
