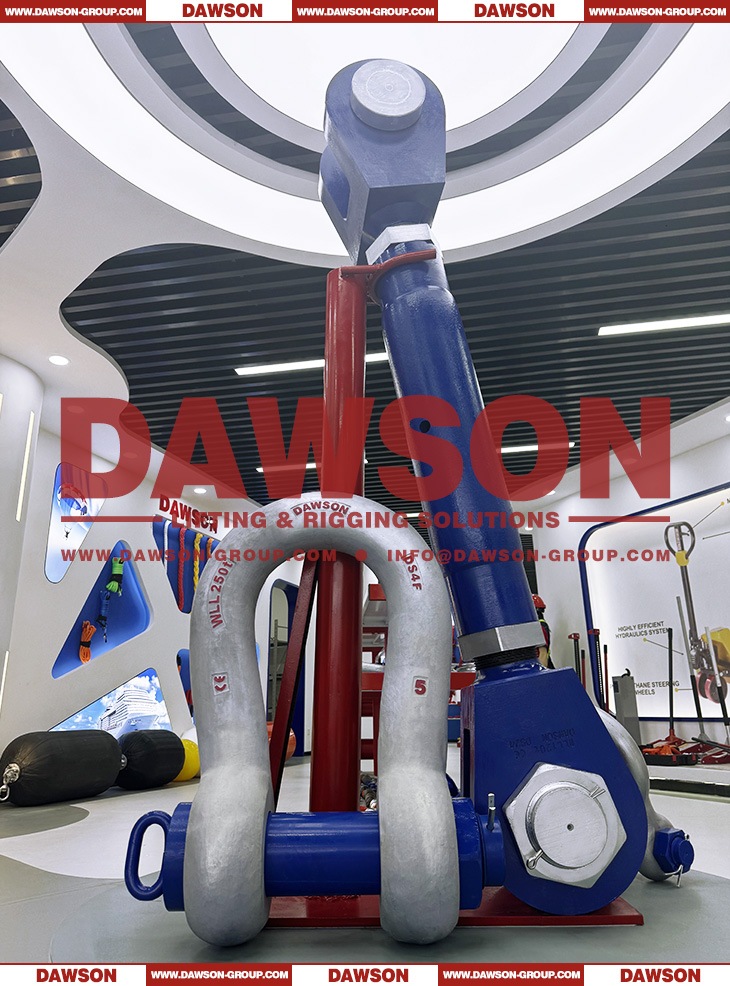

DG3140 DAWSON Heavy Duty Bow Shackle BN, High Load Capacity Bow Shackle with Safety Bolt

DG3140 DAWSON Heavy Duty Bow Shackle BN, High Load Capacity Bow Shackle with Safety Bolt, Heavy Duty Lifting Shackles
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory



Material: Bow and pin alloy steel, Grade 8 quenched and tempered

Safety Factor: MBL equals 5×WLL

Standard: ASME B30.26

Fishish: Shackle bow hot dipped galvanized, pin painted BLUE, ORANGE

Model	Working load limit	Weight shackle pin	Diameter bow	Diameter pin	Diameter eye	Width eye	Width inside	Length inside	Width bow	Length	Length bolt	Width	Thickness nut	Net weight
	(ton)	(kg)	a(mm)	b(mm)	c(mm)	d(mm)	e(mm)	f(mm)	g(mm)	h(mm)	i(mm)	j(mm)	k(mm)	(kg)
DG3140-0120	120	28,12	95	95	204	95	147	400	238	644	453	428	50	116
DG3140-0150	150	39,15	105	108	235	105	169	410	275	686	496	485	50	161
DG3140-0200	200	69,15	120	130	270	120	179	513	290	833	564	530	71	252
DG3140-0250	250	85,5	130	140	284	130	205	554	305	896	614	565	71	317
DG3140-0300	300	102	140	150	308	140	205	618	305	987	644	585	81	386
DG3140-0400	400	126,66	170	175	376	164	231	669	325	1115	698	665	70	620
DG3140-0500	500	147,51	180	185	398	164	256	719	350	1191	728	710	70	720
DG3140-0600	600	204,43	200	205	444	189	282	719	375	1244	810	775	70	975
DG3140-0700	700	241,66	210	215	454	204	308	718	400	1263	870	820	70	980
DG3140-0800	800	253,47	210	220	464	204	308	718	400	1270	870	820	70	1100
DG3140-0900	900	292,09	220	230	485	215	328	718	420	1296	920	860	70	1280
DG3140-1000	1000	325,46	240	240	515	215	349	718	420	1336	940	900	70	1460
DG3140-1250	1250	449,98	260	270	585	230	369	768	450	1456	1025	970	70	1990
DG3140-1500	1500	519,27	280	290	625	230	369	818	450	1556	1025	1010	70	2400

INCH

Model

Working load limit

Weight shackle pin

Diameter bow

Diameter pin

Diameter eye

Width eye

Width inside

Length inside

Width bow

Length

Length bolt

Width

Thickness nut

Net weight

(ton)

(lb)

a(inch)

b(inch)

c(inch)

d(inch)

e(inch)

f(inch)

g(inch)

h(inch)

i(inch)

j(inch)

k(inch)

(LBS)

DG3140-0120

120

61,99

3 3/4

3 3/4

8 1/32

3 3/4

5 25/32

15 3/4

9 3/8

25 11/32

17 27/32

16 27/32

1 31/32

256

DG3140-0150

150

86,31

4 1/8

4 1/4

9 1/4

4 1/8

6 21/32

16 5/32

10 13/16

27

19 17/32

19 3/32

1 31/32

355

DG3140-0200

200

152,45

4 23/32

5 1/8

10 5/8

4 23/32

7 1/16

20 3/16

11 13/32

32 25/32

22 7/32

20 7/8

2 25/32

556

DG3140-0250

250

188,5

5 1/8

5 1/2

11 3/16

5 1/8

8 1/16

21 13/16

12

35 9/32

24 3/16

22 1/4

2 25/32

699

DG3140-0300

300

224,87

5 1/2

5 29/32

12 1/8

5 1/2

8 1/16

24 11/32

12

38 27/32

25 11/32

23 1/32

3 3/16

851

DG3140-0400

400

279,25

6 11/16

6 7/8

14 13/16

6 15/32

9 3/32

26 11/32

12 25/32

43 29/32

27 15/16

26 3/16

2 3/4

1367

DG3140-0500

500

325,2

7 3/32

7 9/32

15 21/32

6 15/32

10 3/32

28 5/16

13 25/32

46 7/8

28 21/32

27 15/16

2 3/4

1588

DG3140-0600

600

450,69

7 7/8

8 1/16

17 15/32

7 7/16

11 3/32

28 5/16

14 3/4

48 31/32

31 7/8

30 1/2

2 3/4

2150

DG3140-0700

700

532,77

8 9/32

8 15/32

17 7/8

8 1/32

12 1/8

28 9/32

15 3/4

49 23/32

34 1/4

32 9/32

2 3/4

2161

DG3140-0800

800

558,81

8 9/32

8 21/32

18 9/32

8 1/32

12 1/8

28 9/32

15 3/4

50

34 1/4

32 9/32

2 3/4

2426

DG3140-0900

900

643,95

8 21/32

9 1/16

19 3/32

8 15/32

12 19/32

28 9/32

16 17/32

51 1/32

36 7/32

33 27/32

2 3/4

2822

DG3140-1000

1000

717,51

9 7/16

9 7/16

20 9/32

8 15/32

13 3/4

28 9/32

16 17/32

52 19/32

37

35 7/16

2 3/4

3219

DG3140-1250

1250

992,03

10 1/4

10 5/8

23 1/32

9 1/16

14 17/32

30 1/4

17 23/32

57 5/16

40 11/32

38 3/16

2 3/4

4388

DG3140-1500

1500

1144,79

11 1/32

11 13/32

24 19/32

9 1/16

14 17/32

32 7/32

17 23/32

61 1/4

40 11/32

39 3/4

2 3/4

5292

Welcome to buy the newest and competitive price DAWSON DG3140 DAWSON Heavy Duty Bow Shackle BN, High Load Capacity Bow Shackle with Safety Bolt from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

WLL 120T Heavy Duty Bow Shackle, WLL 150T Heavy Duty Bow Shackle, WLL 200T Heavy Duty Bow Shackle, WLL 300T Heavy Duty Bow Shackle, WLL 400T Heavy Duty Bow Shackle, WLL 500T Heavy Duty Bow Shackle, WLL 600T Heavy Duty Bow Shackle, WLL 700T Heavy Duty Bow Shackle, WLL 800T Heavy Duty Bow Shackle, WLL 900T Heavy Duty Bow Shackle, WLL 1000T Heavy Duty Bow Shackle, WLL 1250T Heavy Duty Bow Shackle, WLL 1500T Heavy Duty Bow Shackle

WLL 120TON Heavy Duty Bow Shackle, WLL 150TON Heavy Duty Bow Shackle, WLL 200TON Heavy Duty Bow Shackle, WLL 300TON Heavy Duty Bow Shackle, WLL 400TON Heavy Duty Bow Shackle, WLL 500TON Heavy Duty Bow Shackle, WLL 600TON Heavy Duty Bow Shackle, WLL 700TON Heavy Duty Bow Shackle, WLL 800TON Heavy Duty Bow Shackle, WLL 900TON Heavy Duty Bow Shackle, WLL 1000TON Heavy Duty Bow Shackle, WLL 1250TON Heavy Duty Bow Shackle, WLL 1500TON Heavy Duty Bow Shackle

WLL 120000KG Heavy Duty Bow Shackle, WLL 150000KG Heavy Duty Bow Shackle, WLL 200000KG Heavy Duty Bow Shackle, WLL 300000KG Heavy Duty Bow Shackle, WLL 400000KG Heavy Duty Bow Shackle, WLL 500000KG Heavy Duty Bow Shackle, WLL 600000KG Heavy Duty Bow Shackle, WLL 700000KG Heavy Duty Bow Shackle, WLL 800000KG Heavy Duty Bow Shackle, WLL 900000KG Heavy Duty Bow Shackle, WLL 1000000KG Heavy Duty Bow Shackle, WLL 1250000KG Heavy Duty Bow Shackle, WLL 1500000KG Heavy Duty Bow Shackle

Products Show:

Hot Tags: heavy duty bow shackle,high load capacity bow shackle,heavy duty bow shackle for lifting,heavy duty bow shackle with safety bolt,heavy duty bow shackle BN,lifting shackles,DG3140 heavy duty lifting shackles,heavy duty lifting shackles,lifting shackles with safety bolt,high load capacity lifting shackles

Other related products:

Dawson Quality Management System:

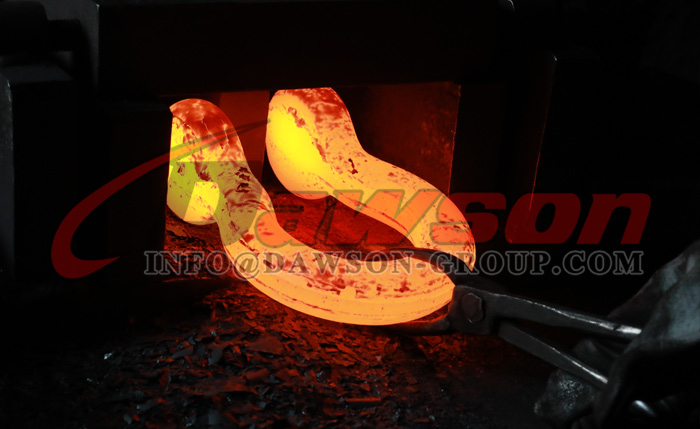

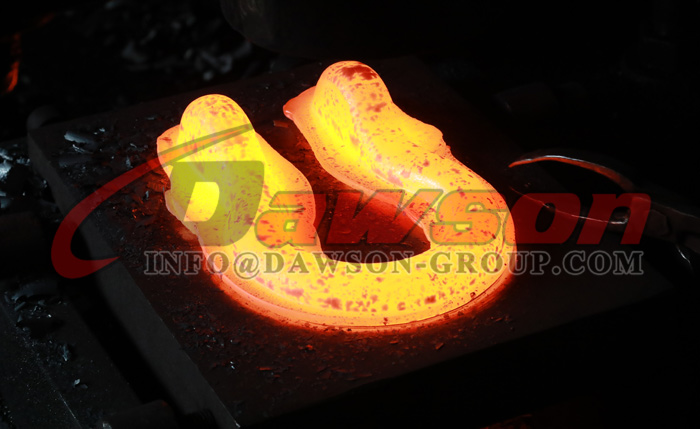

Dawson Forging:

Application of Heavy Duty Lifting Shackles:
