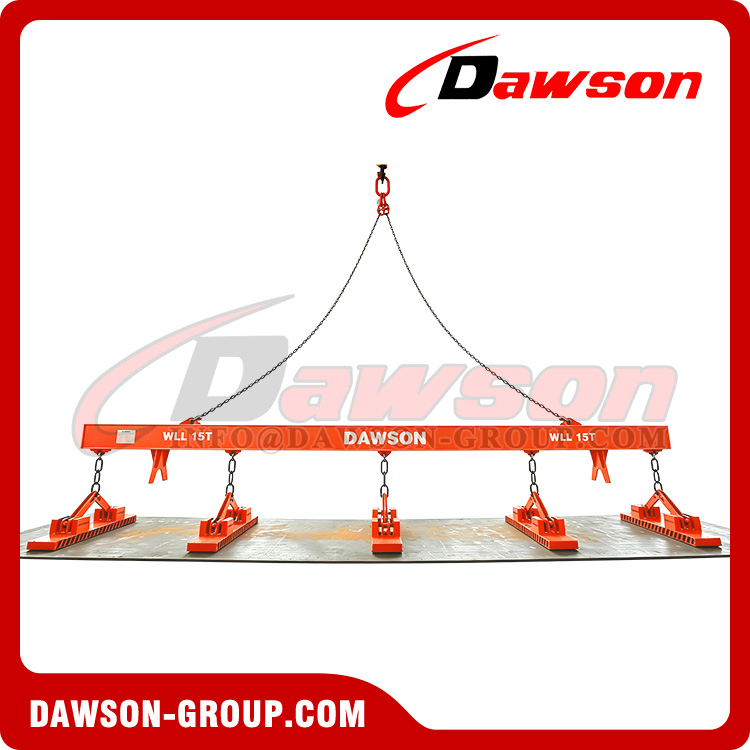

DAWSON WLL 15Ton Spreading Bar with Automatic Permanent Magnet Lifter

WLL:15T

Various specifications can be customized

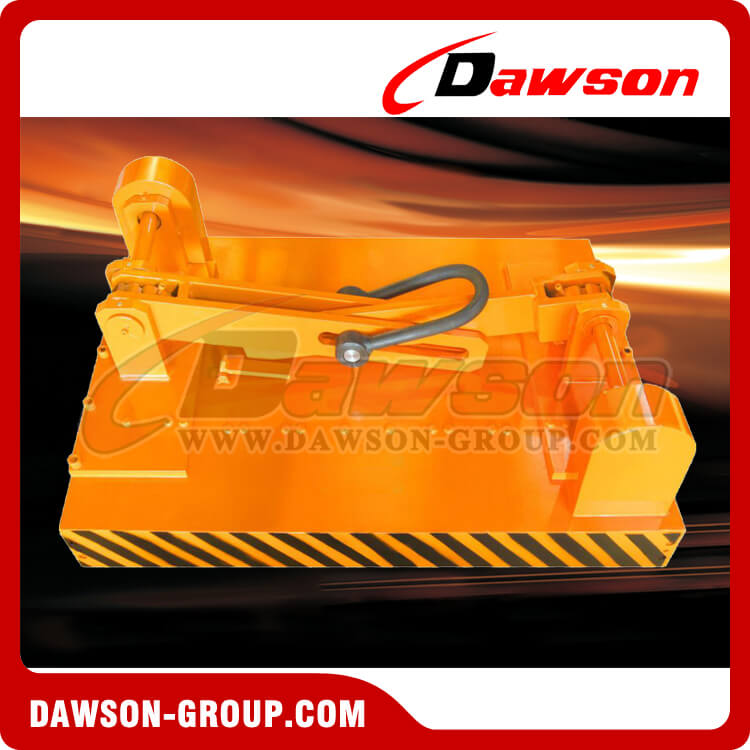

DS-HC Dawson Automatic Permanent Magnetic Lifter for Lifting Steel Plate

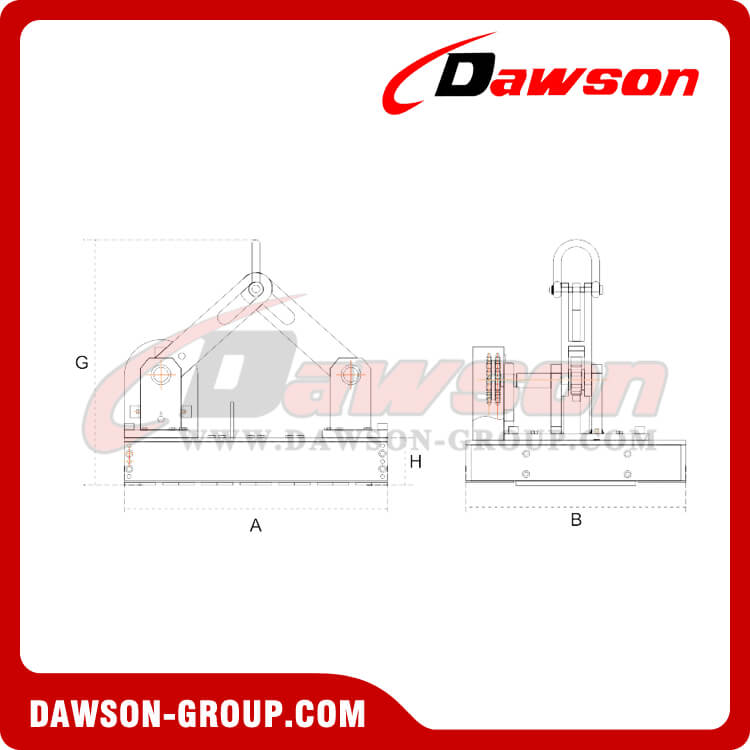

DS-HC Automatic Permanent Magnetic Lifter × Dimension

Model	Fixed Power(KG)	Max Power(KG)	A (mm)	B (mm)	H(mm)	G(mm)	Weight(KG)
DS-HC-1	1000	3500	550	500	105	410	230
DS-HC-2	2000	6000	650	560	115	500	320
DS-HC-3	3000	9000	867	520	115	650	380
DS-HC-5	5000	15000	1060	700	145	900	620

DS-HC Dawson Automatic Permanent Magnetic Lifter × Lifting Steel Plate Condition Chart

/	Steel Plate Thickness		Rate of Hoisting Capacity
	mm	inch	DS-HC-15	DS-HC-10	DS-HC-5	DS-HC-3	DS-HC-2	DS-HC-1
T1	Up60	Up2.36	100%	100%	100%	100%	100%	100%
T2	55	2.16”	95%
T3	50	1.97”	90%	95%
T4	45	1.77”	85%	90%
T5	40	1.57”	80%	85%
T6	35	1.38”	70%	75%	90%
T7	30	1.18”	60%	66%	80%
T8	25	0.98”	50%	55%	70%	90%
T9	20	0.79”	40%	45%	60%	75%	90%
T10	15	0.59”	30%	35%	50%	60%	70%
T11	10	0.39”	20%	25%	35%	45%	50%	70%
T12	5	0.20”	10%	15%	20%	25%	30%	40%

DS-HC Dawson Automatic Permanent Magnetic Lifter × Lifting Material Condition Chart

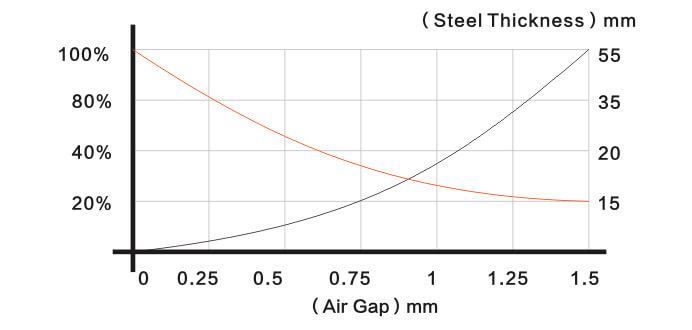

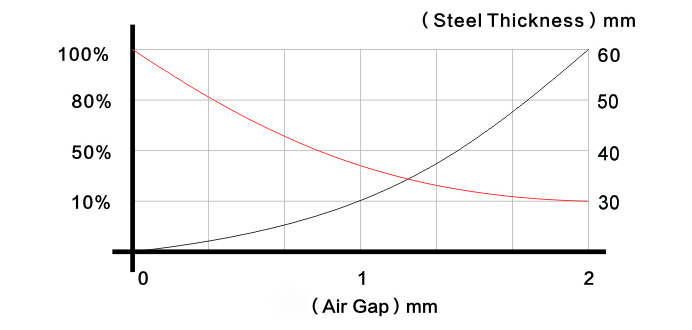

DS-HC-1-DS-HC-2 Lifting Curve	DS-HC-3 Lifting Curve
DS-HC-5 Lifting Curve

Welcome to buy the newest and cheap DAWSON WLL 15Ton Spreading Bar with Automatic Permanent Magnet Lifter, Spreading Beam with  Automatic Permanent Magnet Lifters from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

For further information,please contact us. Email:info@dawson-group.com

CE VERIFICATION OF CONFORMITY CERTIFICATE ABOUT DAWSON LIFTING BEAMS:
