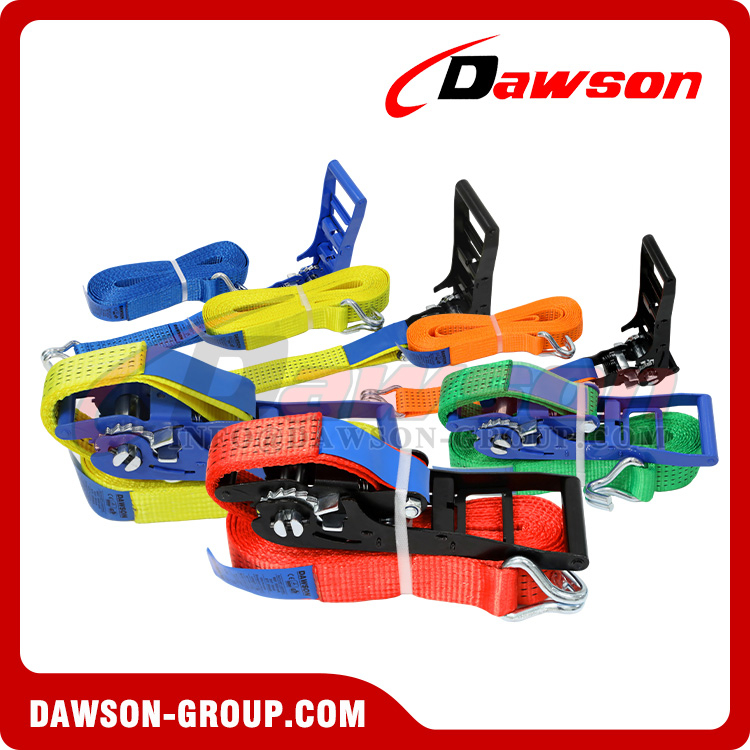

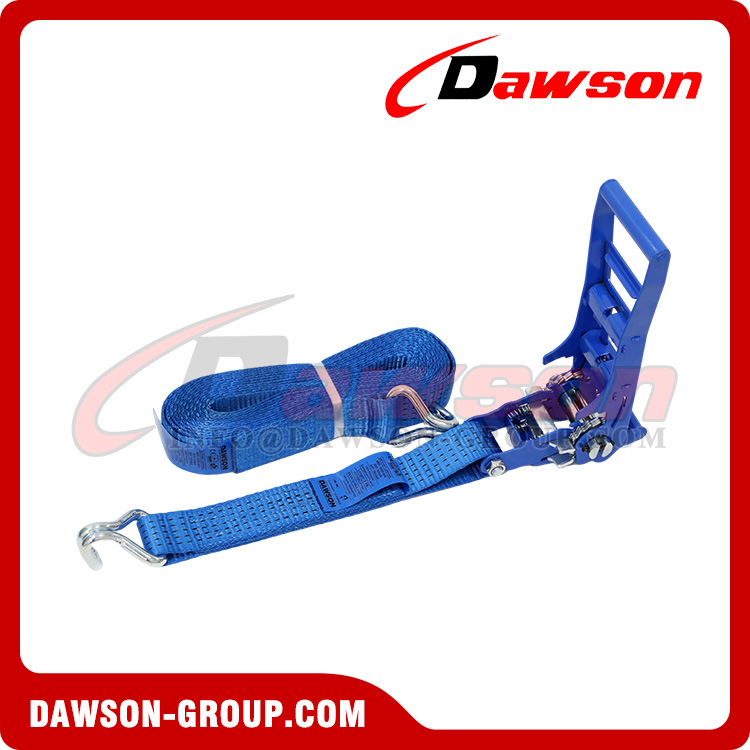

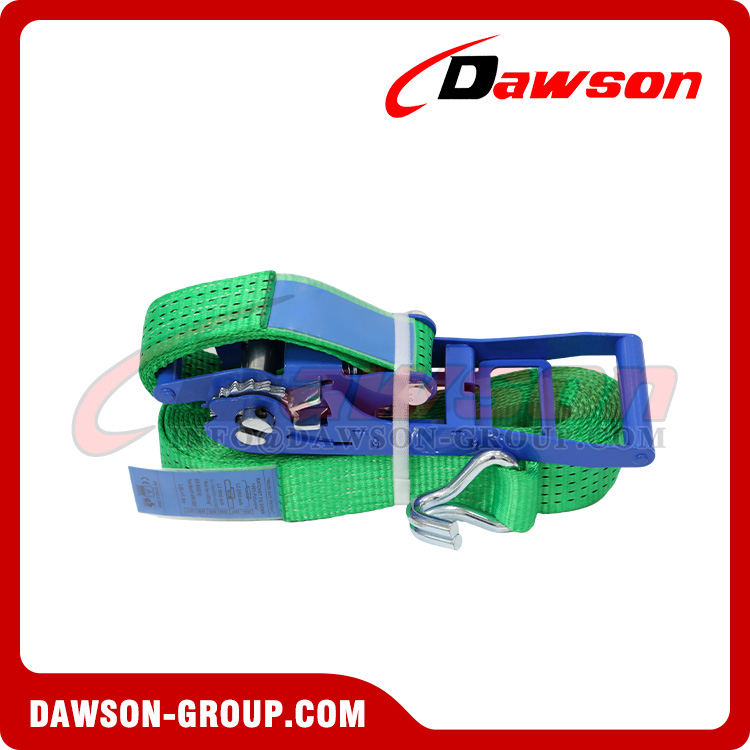

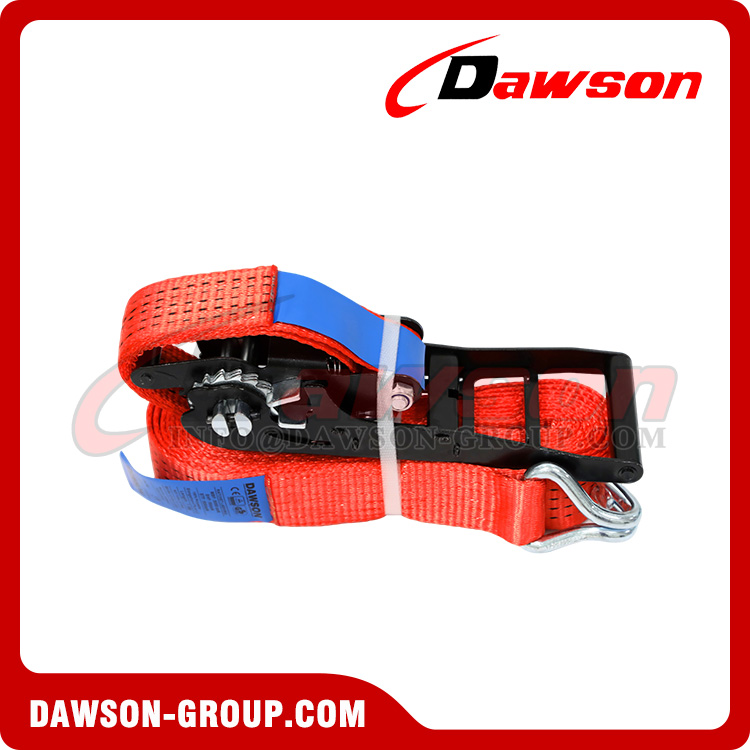

DAWSON × TYSONNEEMA ABS Ergo Ratchet Tie Down Straps, Long Lever Reverse Ergonomic Handle Ratchet Lashing Straps
- Dawson Group Ltd. - China Manfacturer Supplier, Factory

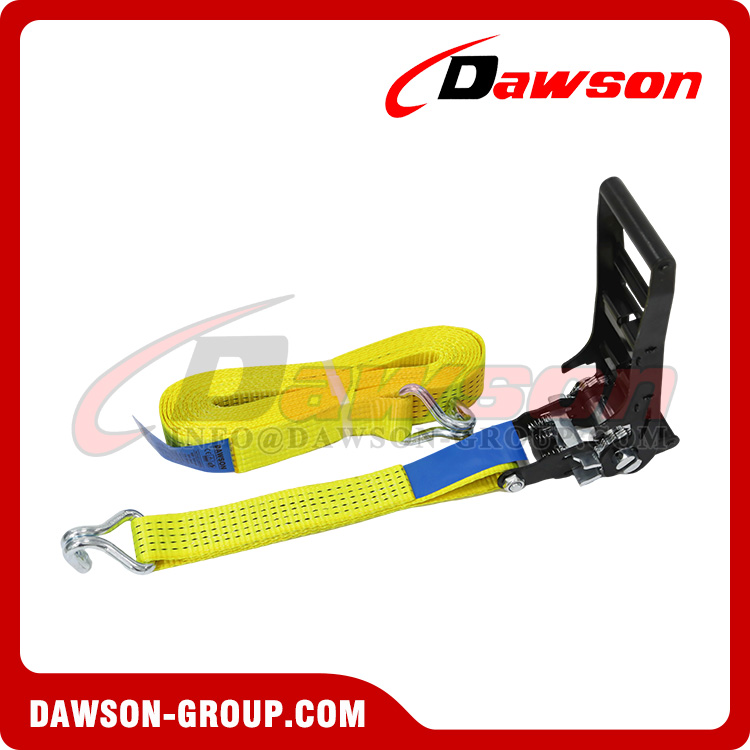

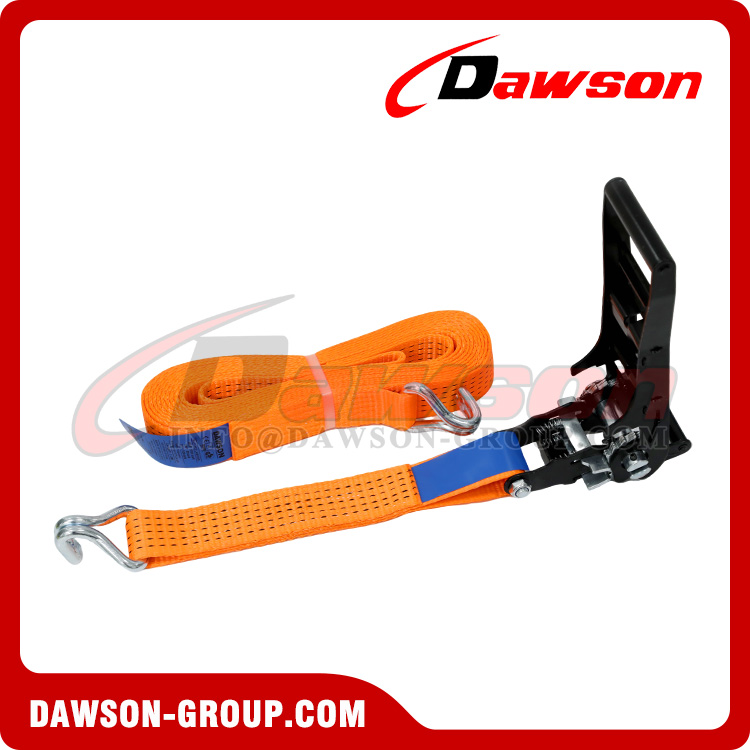

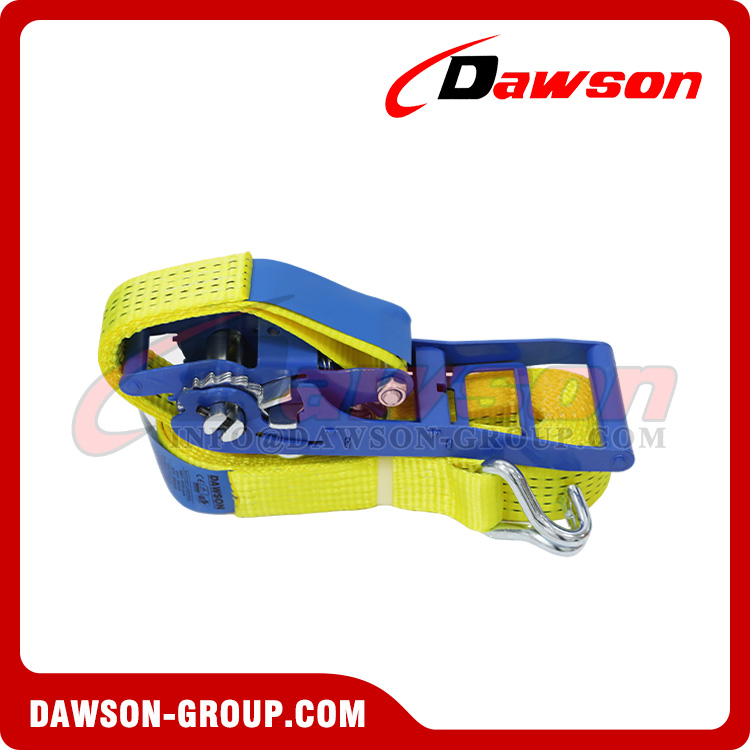

The DAWSON × TYSONNEEMA ABS Ergo Ratchet Tie Down Straps combine heavy-duty lashing capacity with operator-focused safety features. Designed for professional cargo securing, these straps integrate advanced ABS technology and ergonomic engineering to deliver superior performance in demanding transport applications.
Key Features & Benefits

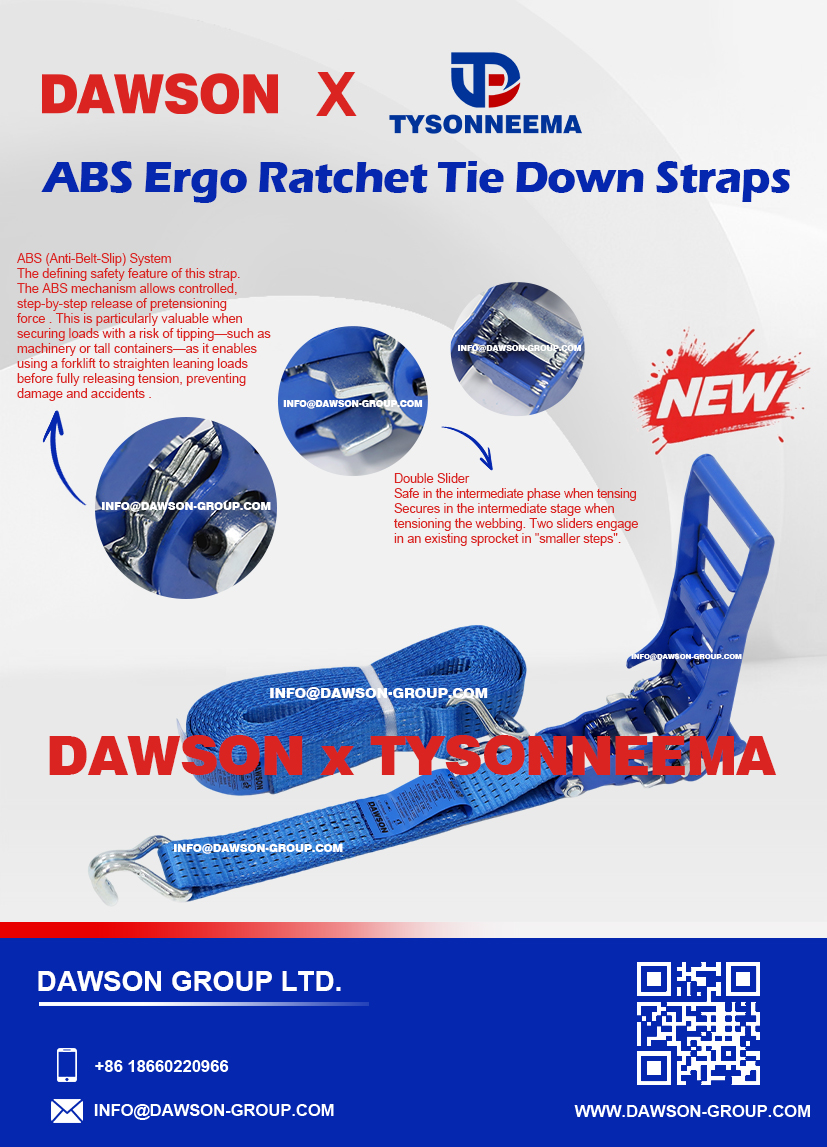

| ABS (Anti-Belt-Slip) System | The defining safety feature of this strap. The ABS mechanism allows controlled, step-by-step release of pretensioning force . This is particularly valuable when securing loads with a risk of tipping—such as machinery or tall containers—as it enables using a forklift to straighten leaning loads before fully releasing tension, preventing damage and accidents. |
| ERGO Long Lever Handle | The extended ratchet lever significantly increases mechanical advantage, allowing operators to achieve higher pretensioning forces with considerably less muscle effort . This back-friendly design reduces operator fatigue and minimizes the risk of strain injuries during repeated daily use . |
| Verify Pretensioning Forces | This products allows operators to verify pretensioning forces quickly and easily . The indicator shows when maximum achievable pretension (typically 550 daN) is reached, enabling accurate load control calculations and ensuring compliance with safety standards. |
| Self-Locking Ratchet Lever | Prevents unintentional opening during transport. The ratchet automatically engages in the locked position when closed, effectively ruling out accidental release even under strong vibrations and jolting movements . |
| Double Slider Mechanism | Secures the strap in the intermediate stage when tensioning. Two sliders engage the sprocket alternately in smaller steps than single-slider ratchets, providing greater tensioning force while saving muscle power . |
| Epoxy Resin Coating | Ratchets are first galvanized, then chromated, and coated with impact-resistant epoxy resin for maximum corrosion protection |
| Reinforced Selvedges | Webbing features reinforced edges resistant to wear and abrasion, even on rough loads—extending service life and reducing replacement costs |

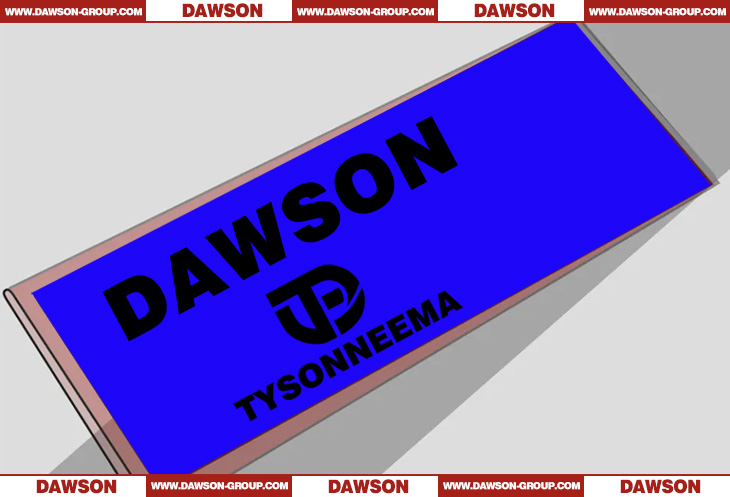

| Protected Safety Label | Tear-resistant design with robust plastic sleeve protects the identification label from abrasion and dirt. Note: Straps with missing or illegible labels may not be used |
| Low-Stretch Precision Webbing | Thermofixed polyester webbing with less than 4% elongation . Lower stretch maintains tension longer and reduces the need for frequent readjustment during transit.
|
Technical Specifications (Standard Model)
| Compatible Webbing Width | 50 mm (2 inches) |
| Lashing Capacity (LC) | 2,500 daN (approx. 2,500 kg / 5,500 lbs) |
| Breaking Strength (BS) | 5,000 daN (approx. 5,000 kg / 11,000 lbs) |
| Standard Tension Force | 550 daN |
| Webbing Elongation | <4% (low-stretch) |
| Temperature Range | -40°C to +100°C |
| Webbing Material | Polyester, thermofixed |
| Ratchet Surface Coating | Epoxy resin / Galvanized + Chromated |
| Safety Standard | EN 12195-2:2001
|
Length Customer's requirement is available!!

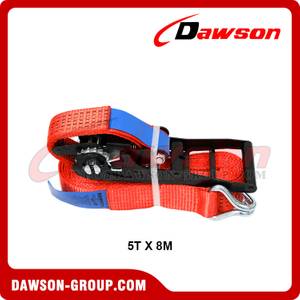

5T X 5M , 5T X 6M, 5T X8M , 5T X9M, 5T X 10M, 5T X 12M, 5T X 15M
5000KG X 5M, 5000KG X 6M, 5000KG X8M, 5000KG X9M, 5000KG X 10M, 5000KG X 12M, 5000KG X 15M

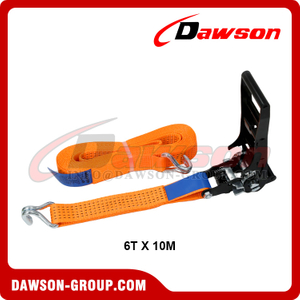

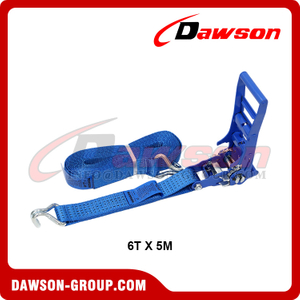

6T X 5M 6T X 6M, 6T X8M , 6T X9M, 6T X 10M, 6T X 12M, 6T X 15M
6000KG X 5M，6000KG X 6M, 6000KG X8M, 6000KG X9M, 6000KG X 10M, 6000KG X 12M, 6000KG X 15M
Optional for Hook:
Applications
The DAWSON × TYSONNEEMA ABS Ergo Ratchet Tie Down Straps are ideal for:
Securing heavy machinery on flatbed trucks and trailers
Tipping-prone cargo requiring controlled tension release
Industrial coil and timber transport
Vehicle tie-down during transport
Warehouse load securing
Why Choose DAWSON × TYSONNEEMA?
By incorporating ABS technology, Ergo lever design, these straps address the three critical challenges of cargo securing:
1.Safety — Controlled release prevents accidents
2.Efficiency — Less muscle effort, faster operation
3.Compliance — EN 12195-2 certification support regulatory requirements
Note: As with all lashing equipment, protect against sharp edges, hot surfaces, and chemicals. For lashing only—not for lifting applications
Long-lever Ergo ratchet Straps, Ergonomic Ratchet Straps, Ergo ratchet tie down,
Ergo ratchet lashing, Ergo ratchet straps, Long Handle Ergo Type Ratchet Tie Down
Products Show:
Hot Tags: ergo ratchet straps,ergo tiedown,ergo ratchet tie down strap,ergo ratchet lashing,ergonomic ratchet straps,long lever ergo ratchet tie down strap,50mm ergo ratchet tie downs,heavy duty ergo ratchet tie down strap,controlled release tie down,flatbed truck securing strap,epoxy coated ratchet,low-stretch polyester webbing,self-locking ratchet buckle,ABS anti-belt-slip ratchet,EN 12195-2 certified

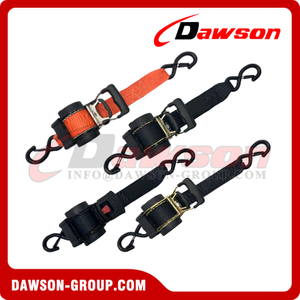

Other Related Ratchet Strap:
Application for DAWSON Ratchet Strap:
DAWSON Testing Center:
About DAWSON:
Sometimes you may heard of some one talking about ergo ratchet tie down, ergo ratchet lashing.
They are not a common name in China, usually we say longer ratchet tie down, long lever ratchet tie downs, as the ratchet buckle is longer than normal one, so we call it longer ratchet tie down.
In the activity of business, there are clients from worldwide, everyone may have different names for a same product, just for the ratchet tie down, we have heard of ratchet straps, ratchet lashing, fastlash, tie down straps, cargo lashing, cargo control systems, web lashing, car lashing, tent straps, webbing load restraint systems, and so on, the ratchet tie down is the most common name.
In order to avoid any mistake, we think it’s better to provide photo for each other to check. Wish everyone can buy the ideal ratchet tie down products from Dawson Group Ltd.
DAWSON manufacture supply all kinds of ratchet tie down with high quality and competitive price to meet your lashing safety. More information, please contact us : info@dawson-group.com
English

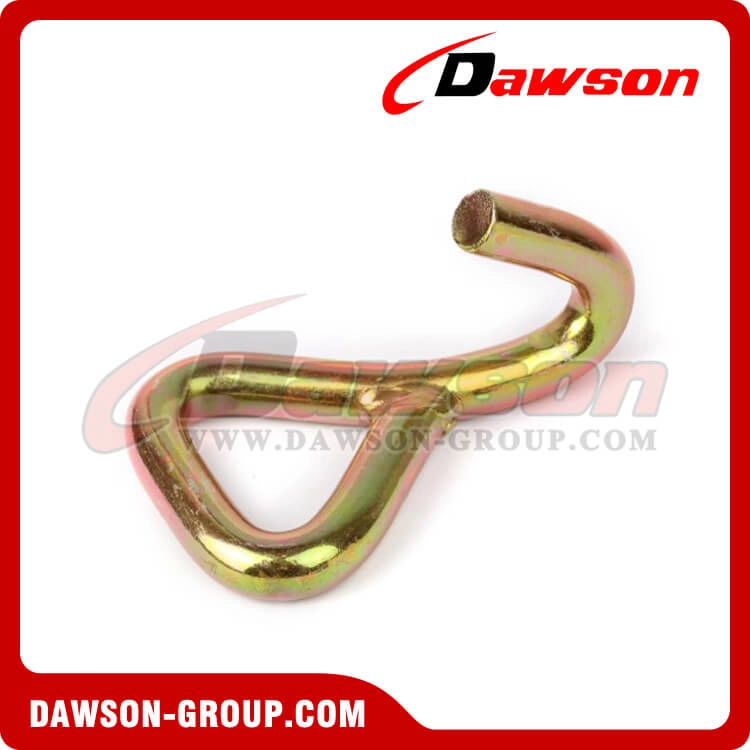

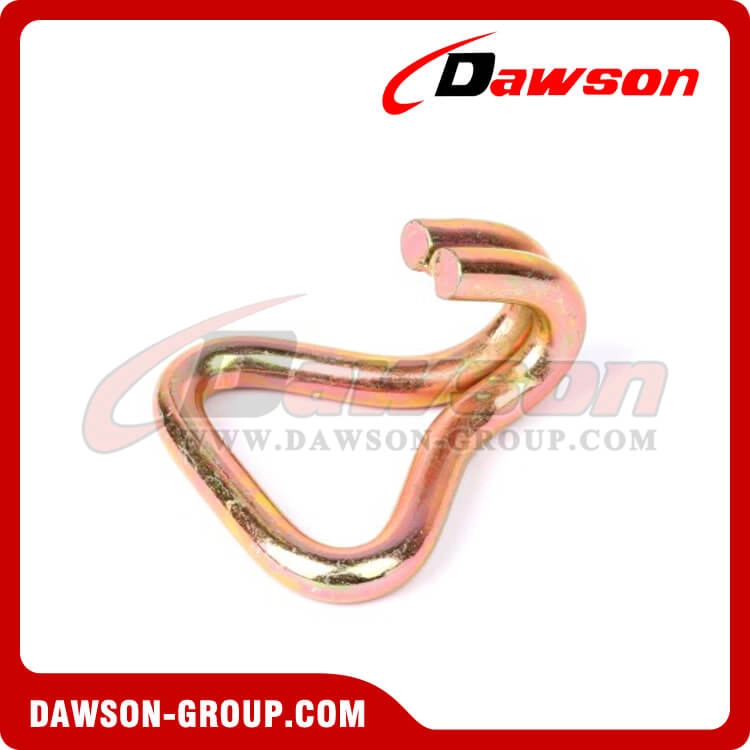

Double J Hook

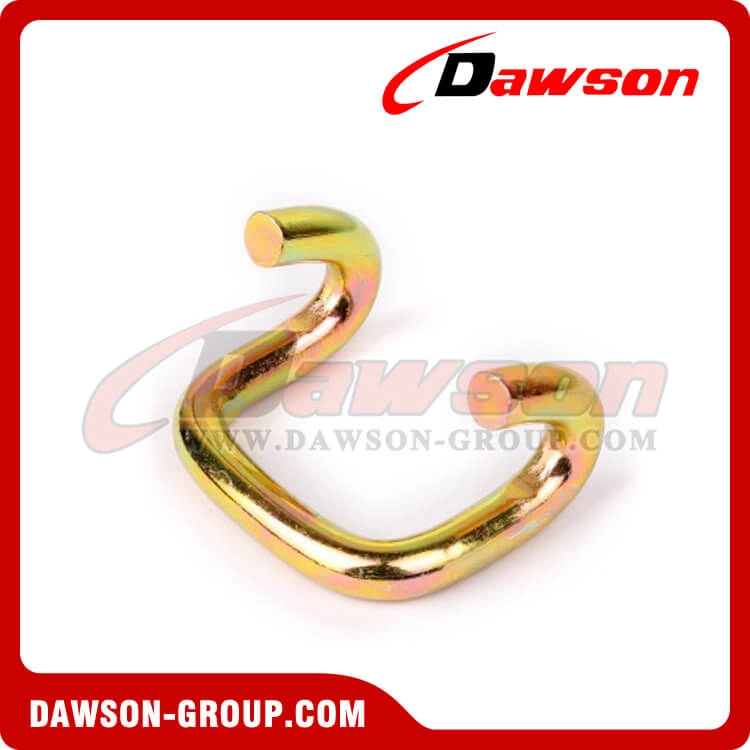

Single J Hook
Claw Hook

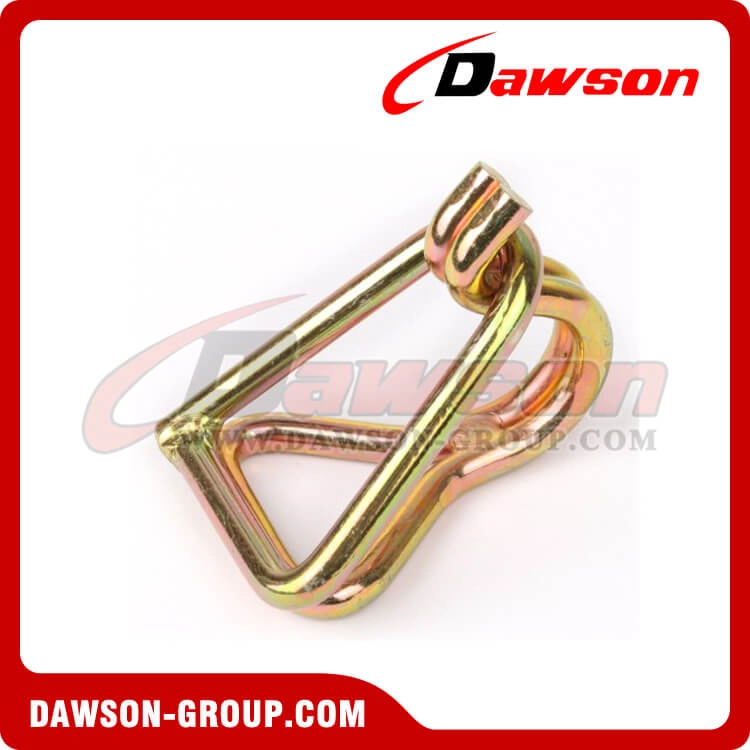

Swan Hook

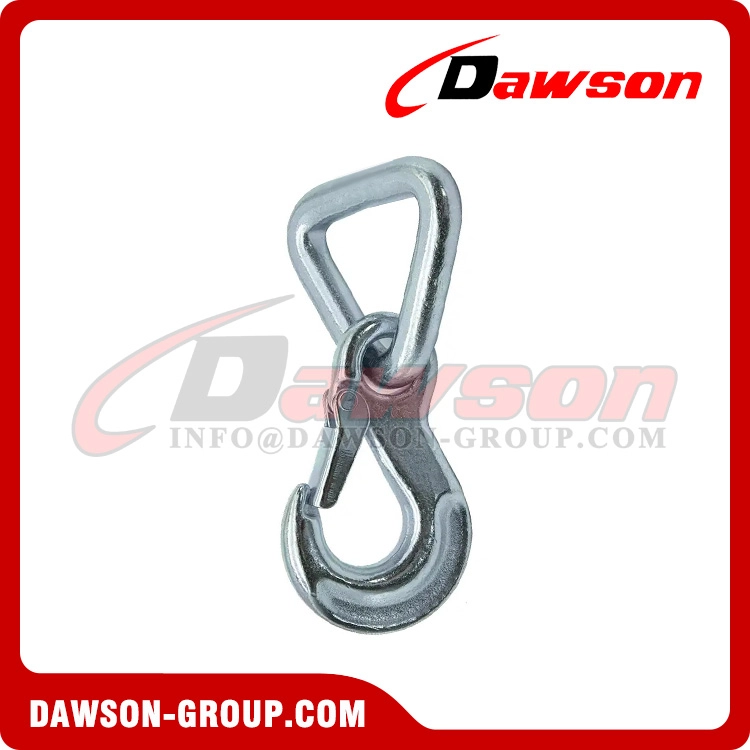

Triangle Snap Hook

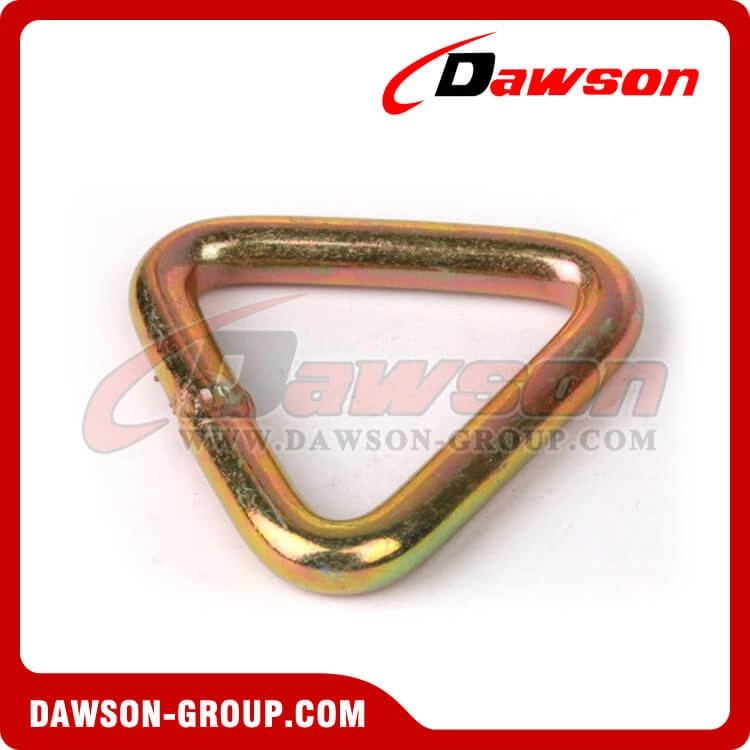

Delta Ring

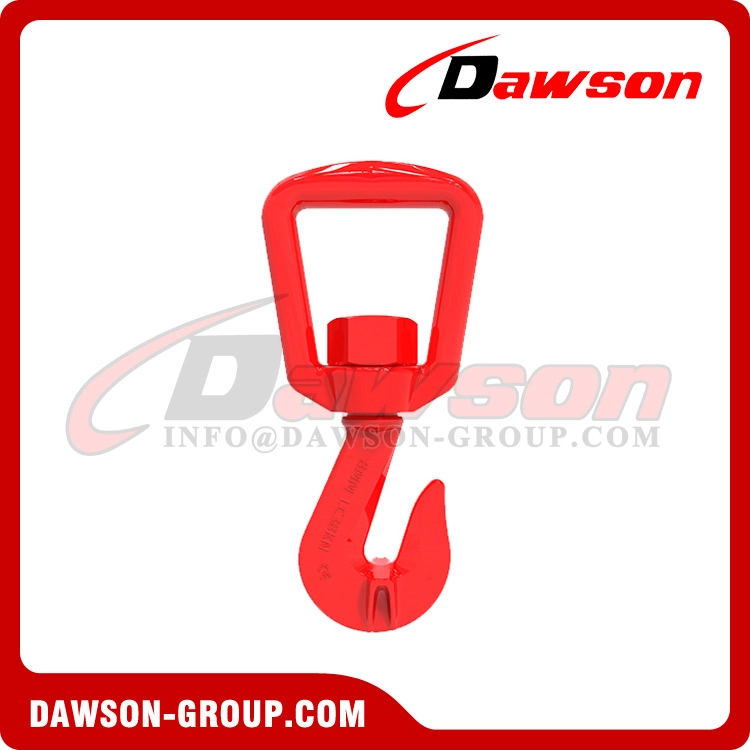

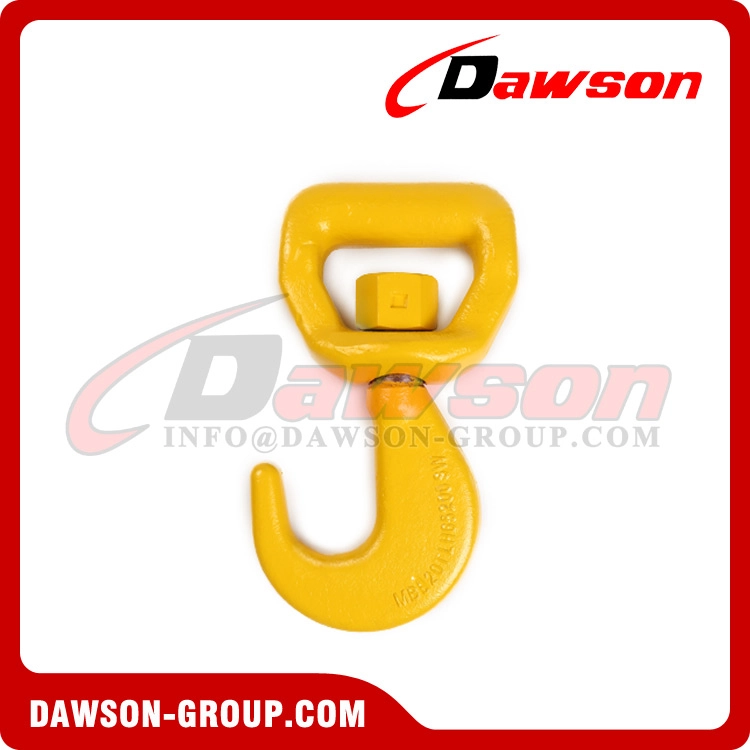

Swivel J Hook
