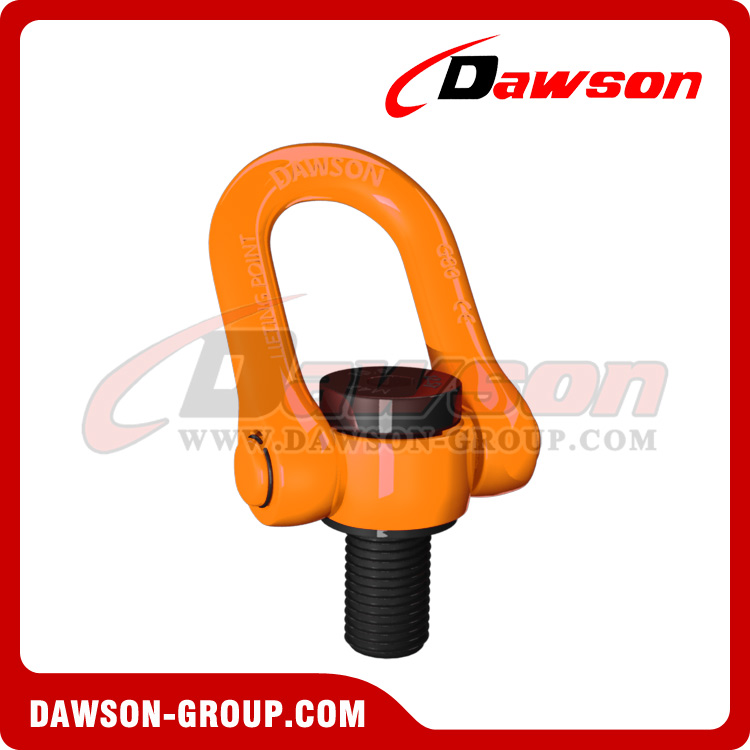

DAWSON Metric Thread Double Swivel Shackle G80 Swivel Hoist Ring

Share to:

DAWSON Metric Thread Double Swivel Shackle G80 Swivel Hoist Ring

Brand:
DAWSON/OEM
Code:
DS888YDS
Size:
M8-M100

Availability:

Quantity:


Inquire Add to Basket

Product Description

DAWSON Metric Thread Double Swivel Shackle G80 Swivel Hoist Ring, G80 Alloy Steel Swivel Hoist Ring for Lifting

- Dawson Group Ltd. - China Manufacturer Supplier, Factory

Metric Thread:

Item No.	WLL/T	Thread M	Technical parameter/mm									Tightening Torque/Nm	Weight/kg
Item No.	WLL/T	Thread M	L	A±3	B±3	C	D	F	K±3	H	S	Tightening Torque/Nm	Weight/kg
DS888YDS-M8	0.5	M8×1.25	12	50.5	37	76	14	101.5	49.5	38	8	10-40	0.8
DS888YDS-M10	0.7	M10×1.5	16	50.5	37	76	14	101.5	49.5	38	8	10-40	0.8
DS888YDS-M12	1	M12×1.75	18	50.5	37	76	14	101.5	49.5	38	8	15-40	0.8
DS888YDS-M14	1.5	M14×2.0	21	50.5	37	76	14	101.5	49.5	38	8	30-100	0.8
DS888YDS-M16	2	M16×2.0	24	50.5	37	76	14	101.5	49.5	38	8	45-130	0.8
DS888YDS-M18	2.5	M18×2.5	40	74.5	54	105	20	145	77	48	12	100-170	1.9
DS888YDS-M20	3	M20×2.5	40	74.5	54	105	20	145	77	48	12	100-170	2
DS888YDS-M22	3	M22×2.5	40	74.5	54	105	20	145	77	48	12	100-170	2.1
DS888YDS-M24	4.5	M24×3.0	40	74.5	54	105	20	145	77	48	12	190-280	2.5
DS888YDS-M27	5	M27×3.0	40	98.5	73	146	30	201.5	103.5	68	17	250-500	5.5
DS888YDS-M30	7.3	M30×3.5	45	98.5	73	146	30	201.5	103.5	68	17	270-600	5.5
DS888YDS-M33	8	M33×3.5	50	98.5	73	146	30	201.5	103.5	68	17	270-600	5.5
DS888YDS-M36	10	M36×4.0	54	98.5	73	146	30	201.5	103.5	68	17	270-600	5.5
DS888YDS-M39	10	M39×4.0	58	98.5	73	146	30	201.5	103.5	68	17	350-800	6
DS888YDS-M42	12.5	M42×4.5	63	98.5	73	146	30	201.5	103.5	68	17	350-800	6
DS888YDS-M45	15	M45×4.5	63	98.5	73	146	30	201.5	103.5	68	17	350-800	6
DS888YDS-M48S	16	M48×5.0	63	98.5	73	146	30	201.5	101.5	70	17	350-800	6.5
DS888YDS-M48B	20	M48×5.0	68	120	93	182	36	249	125	84	19	350-800	11.5
DS888YDS-M52	20	M52×5.0	68	120	93	182	36	249	125	84	19	350-900	12
DS888YDS-M56	25	M56×5.5	78	120	93	182	36	249	125	84	19	350-900	12
DS888YDS-M60	25	M60×5.5	90	120	93	182	36	253	125	88	19	350-600	13
DS888YDS-M64S	32	M64×6.0	90	120	93	182	36	253	125	88	19	500-1000	13
DS888YDS-M64B	33	M64×6.0	100	185	144	280	58	395	195	136	36	500-1000	42
DS888YDS-M72×4	35	M72×4.0	110	185	144	280	58	395	195	136	36	500-1200	43
DS888YDS-M72×6	35	M72×6.0	110	185	144	280	58	395	195	136	36	500-1200	43
DS888YDS-M80	40	M80×6.0	120	185	144	280	58	395	195	136	36	500-1200	44.5
DS888YDS-M90	45	M90×6.0	135	185	144	280	58	395	195	136	36	500-1500	46.5
DS888YDS-M100	50	M100×6.0	150	185	144	280	58	395	195	136	36	500-1700	49

Safety factor 4:1, bolt length and thread specifications can be made according to requirements;

Safety Information:

Lifting Method
Legs		1	2	1	2	2		2	3-4		3-4
Lifting Angle		0°	0°	90°	90°	0-45°	45-60°	Asymmetry	0-45°	45-60°	Asymmetry
Model No.	Thread/M	WLL/T
DS888YDS-M8	8	0.5	1	0.5	1	0.7	0.5	0.5	1.1	0.8	0.5
DS888YDS-M10	10	0.7	1.4	0.7	1.4	1	0.7	0.7	1.5	1.1	0.7
DS888YDS-M12	12	1	2	1	2	1.4	1	1	2.1	1.5	1
DS888YDS-M14	14	1.5	3	1.5	3	2.1	1.5	1.5	3.15	2.3	1.5
DS888YDS-M16	16	2	4	2	4	2.8	2	2	4.2	3	2
DS888YDS-M18	18	2.5	5	2.5	5	3.5	2.5	2.5	5.25	3.75	2.5
DS888YDS-M20	20	3	6	3	6	4.2	3	3	6.3	4.5	3
DS888YDS-M22	22	3	6	3	6	4.2	3	3	6.3	4.5	3
DS888YDS-M24	24	4.5	9	4.5	9	6.3	4.5	4.5	9.45	6.8	4.5
DS888YDS-M27	27	5	10	5	10	7	5	5	10.5	7.5	5
DS888YDS-M30	30	7.3	14.6	7.3	14.6	10.2	7.3	7.3	15.3	11	7.3
DS888YDS-M33	33	8	16	8	16	11.2	8	8	16.8	12	8
DS888YDS-M36	36	10	20	10	20	14	10	10	21	15	10
DS888YDS-M39	39	10	20	10	20	14	10	10	21	15	10
DS888YDS-M42	42	12.5	25	12.5	25	17.5	12.5	12.5	26.3	18.8	12.5
DS888YDS-M45	45	15	30	15	30	21	15	15	31.5	22.5	15
DS888YDS-M48S	48	16	32	16	32	22.4	16	16	33.5	24	16
DS888YDS-M48B	48	20	40	20	40	28	20	20	42	30	20
DS888YDS-M52	52	20	40	20	40	28	20	20	42	30	20
DS888YDS-M56	56	25	50	25	50	35	25	25	53	37.5	25
DS888YDS-M60	60	25	50	25	50	35	25	25	52.5	37.5	25
DS888YDS-M64S	64	32	64	32	64	45	32	32	67	48	32
DS888YDS-M64B	64	33	66	32	66	46.2	33	33	69.3	49.5	33
DS888YDS-M72×4	72	35	70	35	70	49	35	35	73.5	52.5	35
DS888YDS-M72×6	72	35	70	35	70	49	35	35	73.5	52.5	35
DS888YDS-M80	80	40	80	40	80	56	40	40	84	60	40
DS888YDS-M90	90	45	90	45	90	63	45	45	94.5	67.5	45
DS888YDS-M100	100	50	100	50	100	70	50	50	105	75	50

Note: Inch or non-standard lengthened bolts can be made according to customer's requirements.

Brief Introduction:

Forged super alloy steel-Quenched Tempered.

Individually proof test at 2.5 times working load limit.

Fatigue tested at 1.5 times working load limit for 20000 cycles.

Breaking test magnaflux crack detection.

Grade 100 lifting point are 360°rotation with 90°pivot function.

Rated at 100% at 90°angle.
