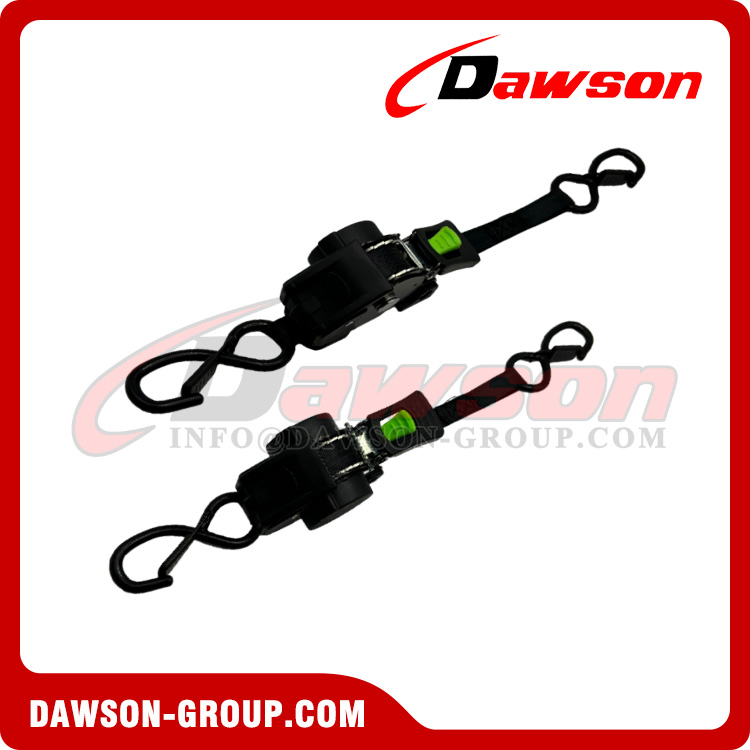

Automatic Retractable Ratchet Tie Down Straps with Damping Version, Auto Retractable Ratchet Strap with Non-damping Version and Push Button Release, Cargo Ratchet Lashing Belt, Web Lashing System
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
| Picture | MODEL | SIZE | MBL | U/WEIGHT |

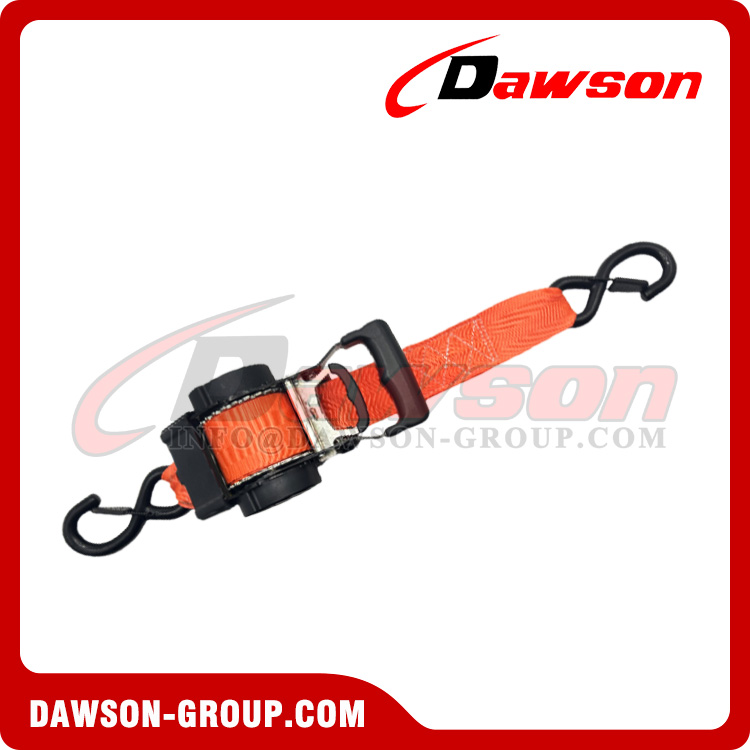

| DSSLRS001 | 2"X15FT (50MMX4.5M) Damping version | 1800KGS | 1930g |

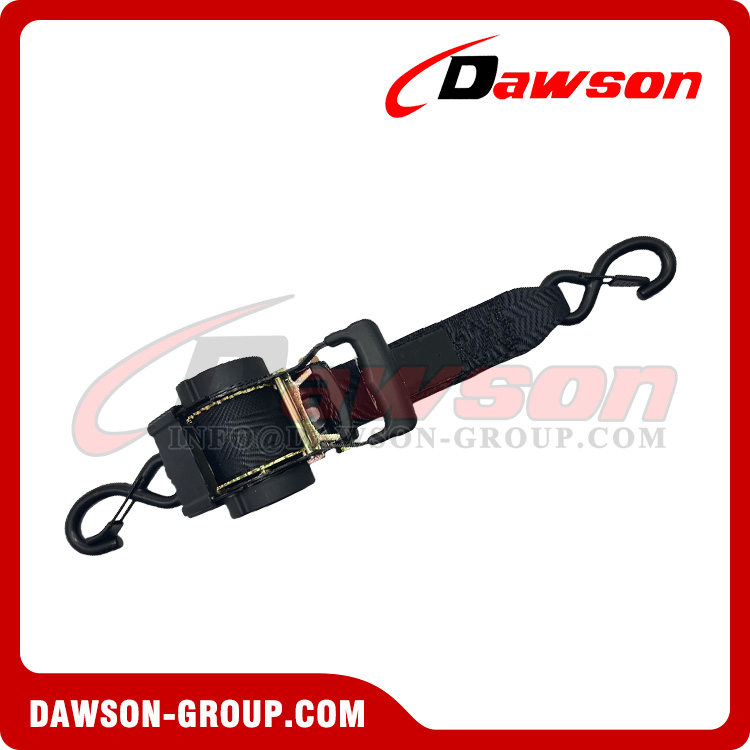

| DSSLRS002 | 2"X10FT (50MMX3.05M) Damping version | 2000KGS | 1830g |

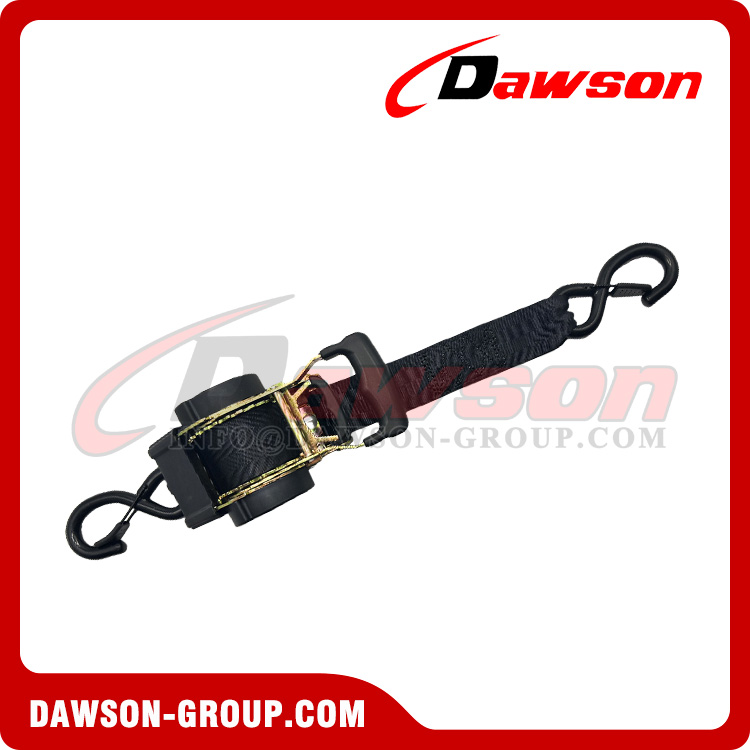

| DSSLRS003 | 1.73"X10FT (44MMX3.05M) Damping version | 2000KGS | 1775g |

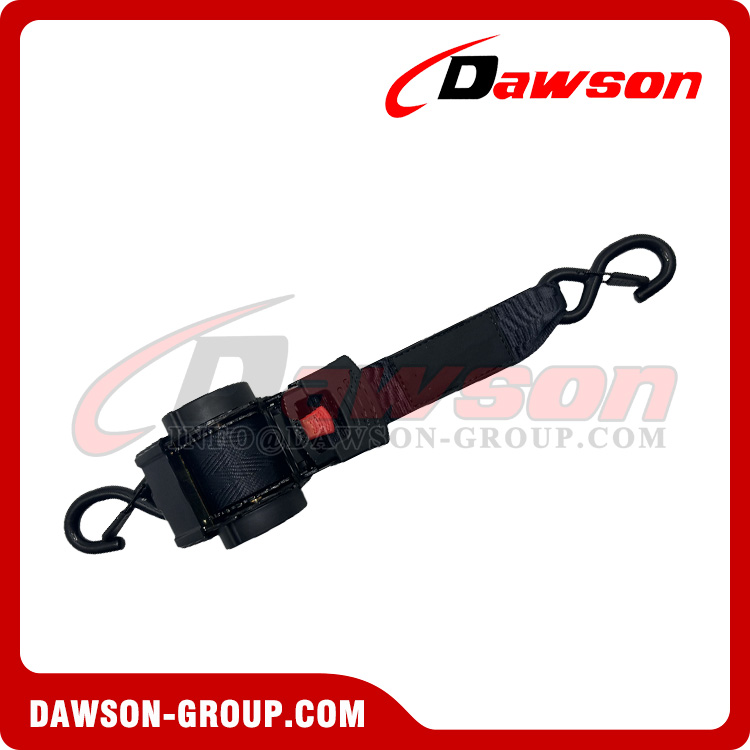

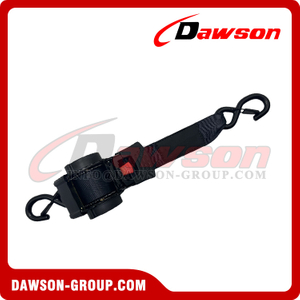

| DSSLRS004 | 2"X15FT (50MMX4.5M) Damping version | 1800KGS | 1840g |

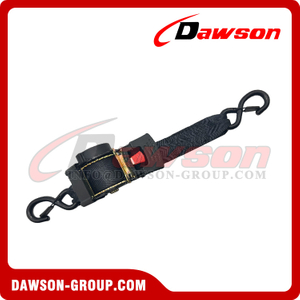

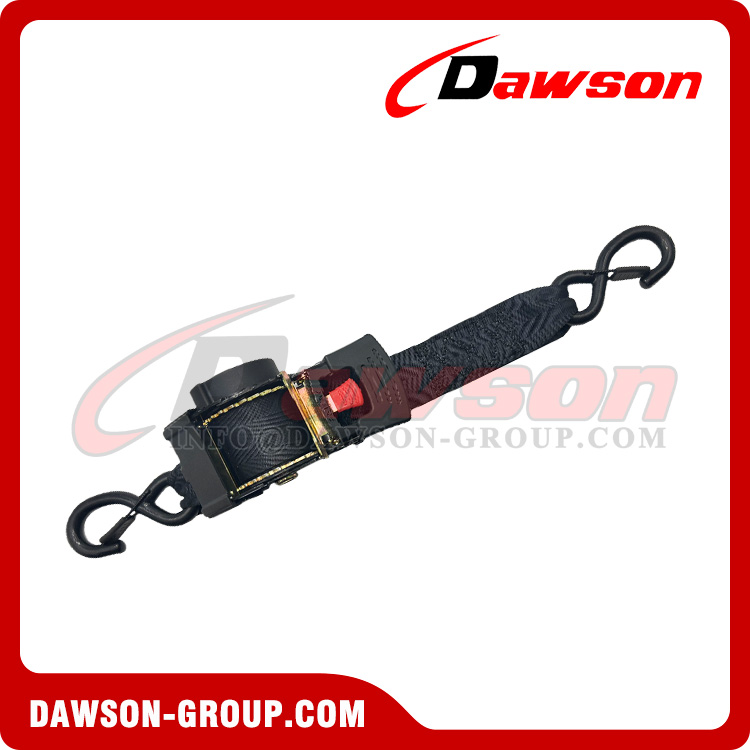

| DSSLRS005 | 2"X10FT (50MMX3.05M) Non-damping version | 2000KGS | 1780g |

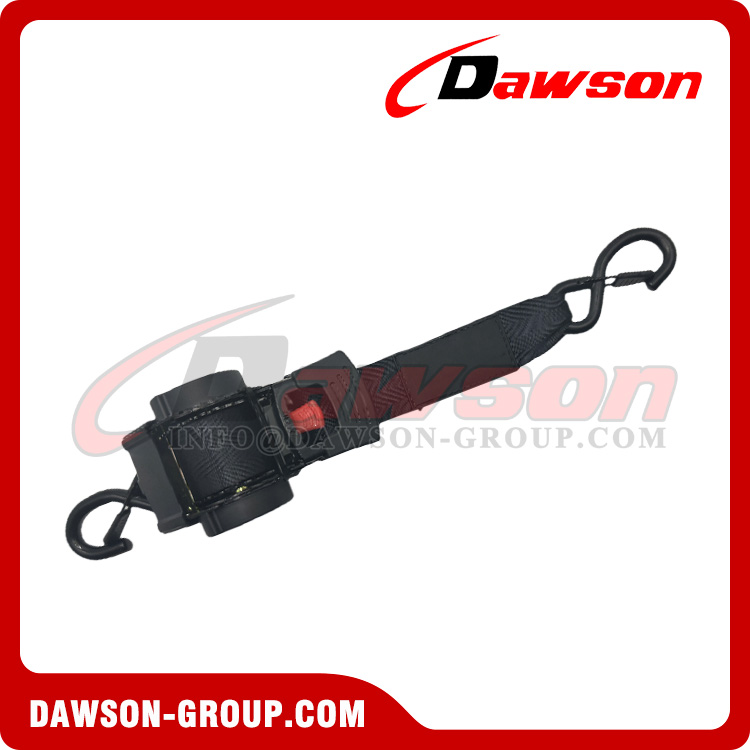

| DSSLRS006 | 2"X10FT (50MMX3.05M) Damping version | 2000KGS | 1820g |

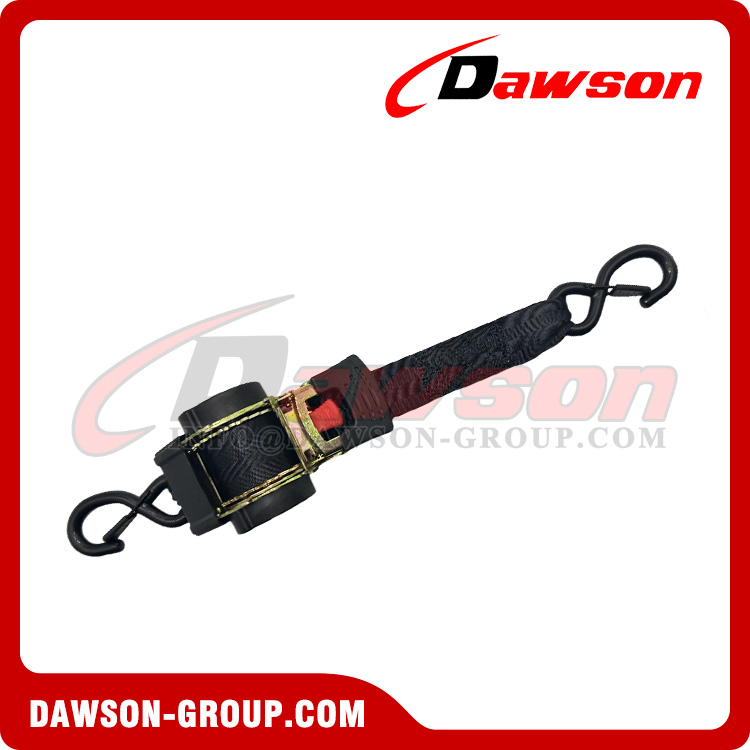

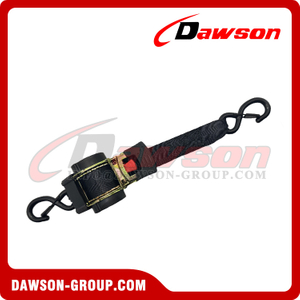

| DSSLRS007 | 1.73"X10FT (44MMX3.05M) Damping version | 2000KGS | 1728g |

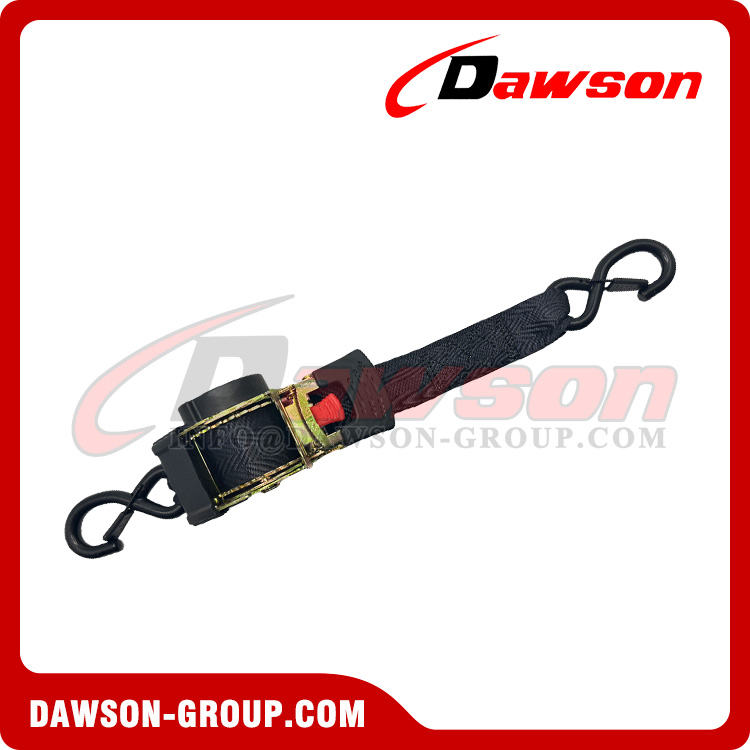

| DSSLRS008 | 1.73"X10FT (44MMX3.05M) Non-damping version | 2000KGS | 1700g |

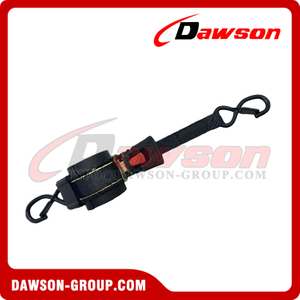

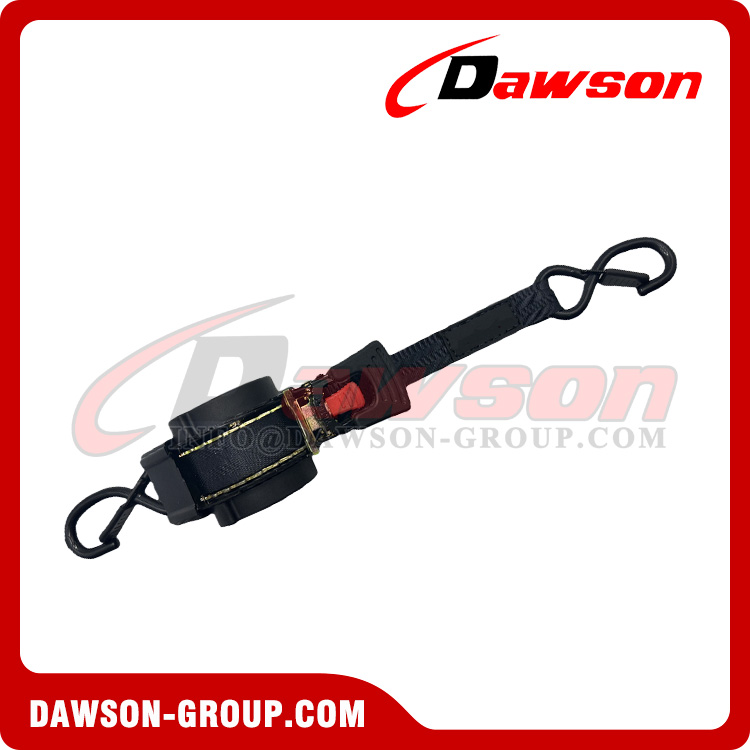

| DSSLRS009 | 1"X15FT (25MMX4.5M) Damping version | 800KGS | 1080g |

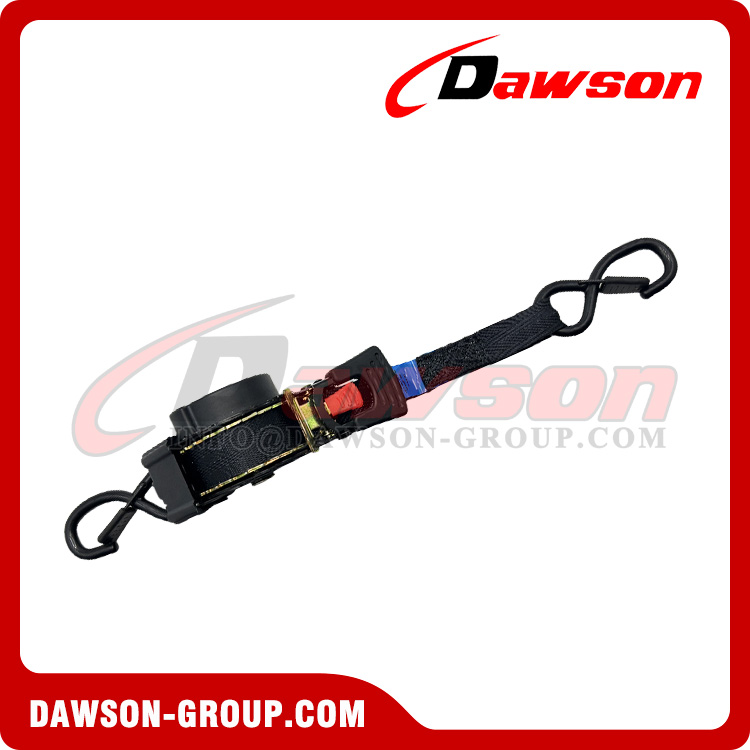

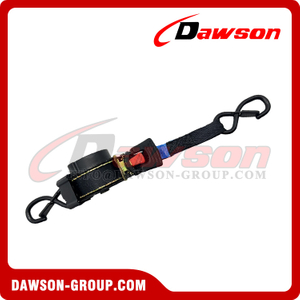

| DSSLRS0010 | 1"X15FT (25MMX4.5M) Non-damping version | 800KGS | 1040g |

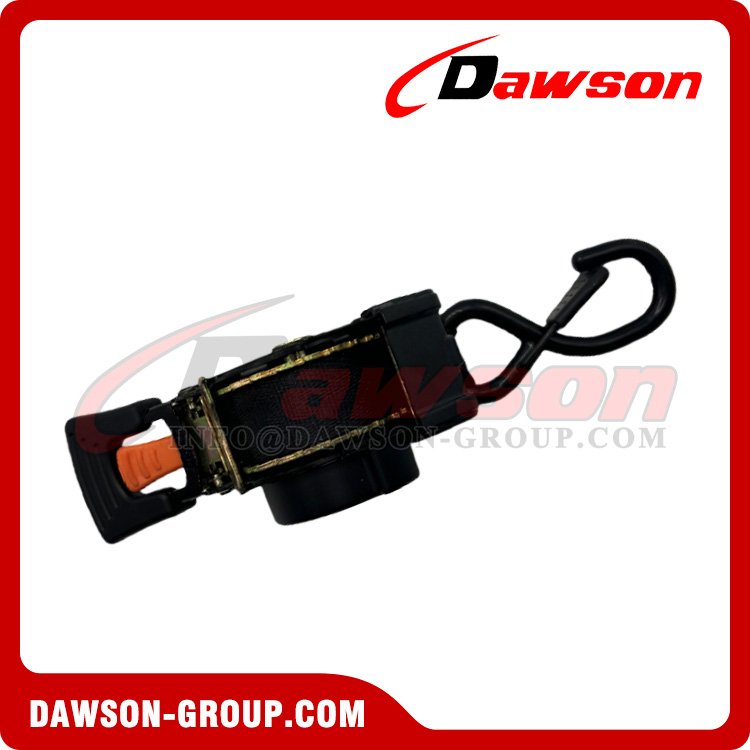

| DSSLRS0011 | 1"X10FT (25MMX3.05M) Non-damping version, no short belt | 800KGS | 730g |

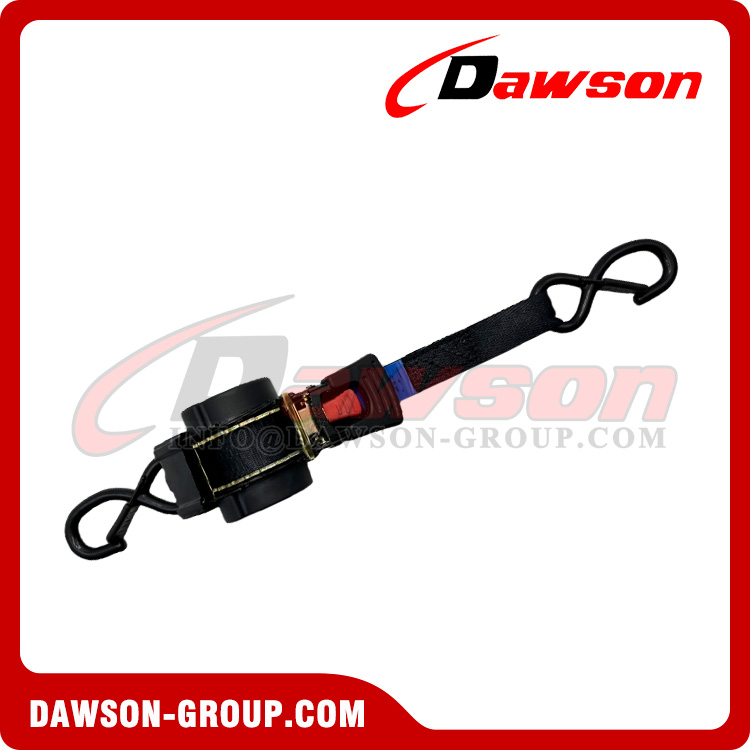

| DSSLRS0012 | 1"X10FT (25MMX3.05M) Damping version | 800KGS | 870g |

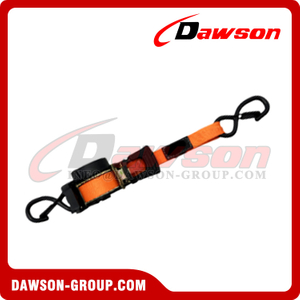

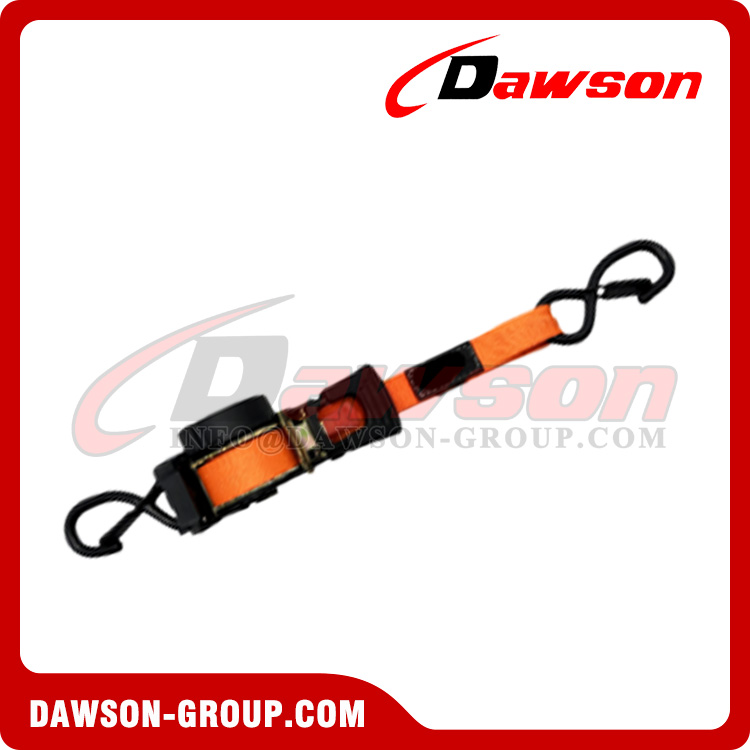

| DSSLRS0013 | 1"X10FT (25MMX3.05M) Non-damping version | 800KGS | 835g |
| DSSLRS0014 | 1"X10FT (25MMX3.05M) Damping version | 800KGS | 900g |

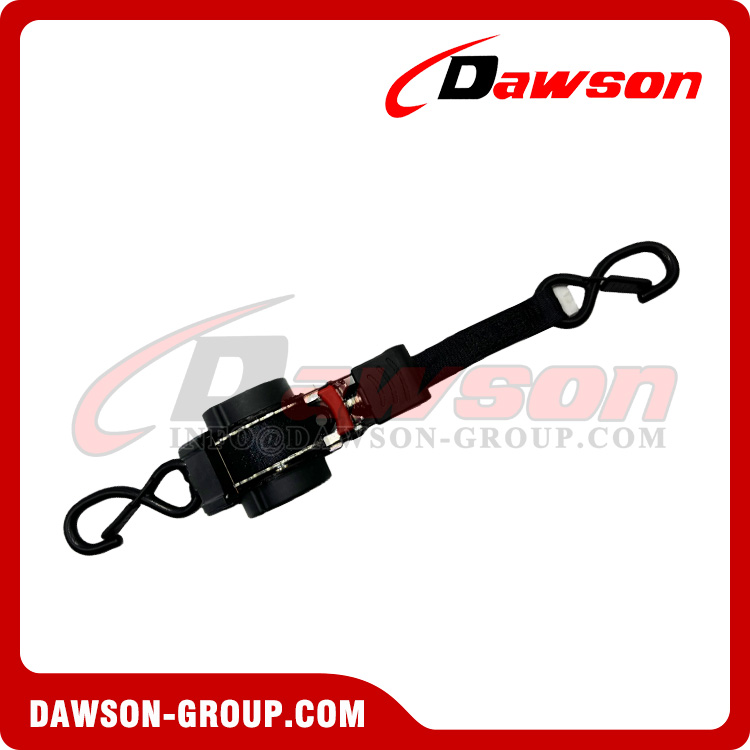

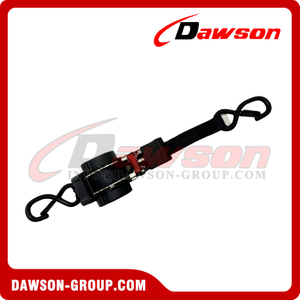

| DSSLRS0015 | 1"X10FT (25MMX3.05M) Damping version | 800KGS | 900g |

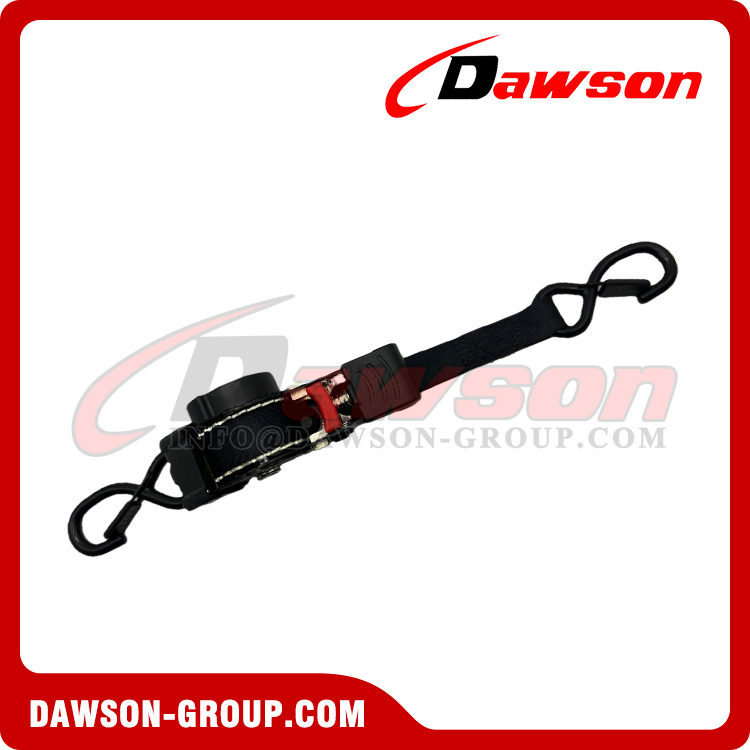

| DSSLRS0016 | 1"X10FT (25MMX3.05M) Non-damping version | 800KGS | 860g |

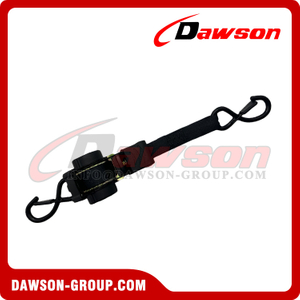

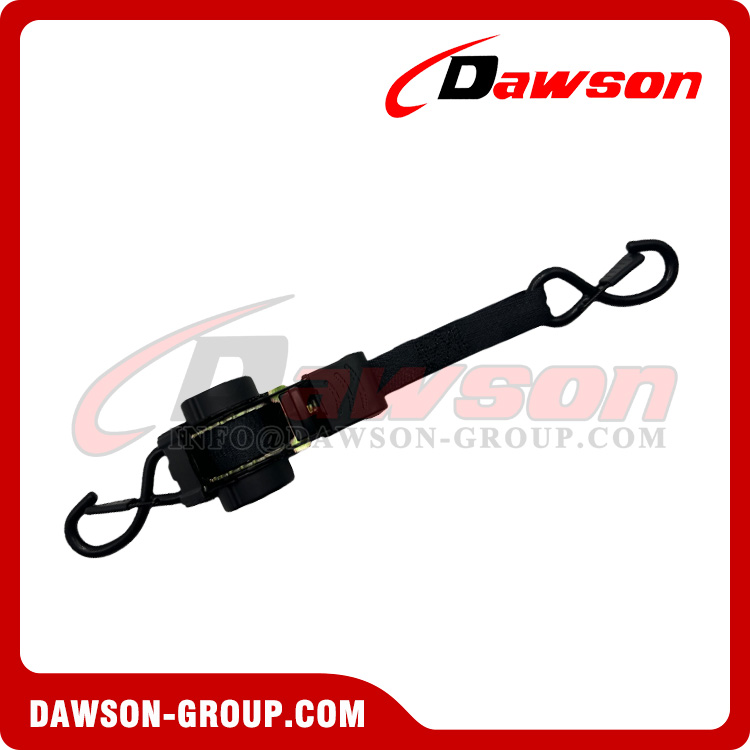

| DSSLRS0017 | 1"X6FT (25MMX1.8M) Damping version | 800KGS | 715g |

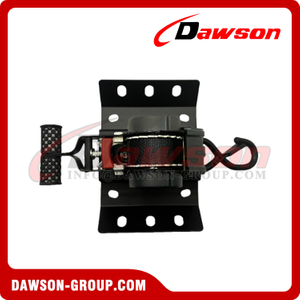

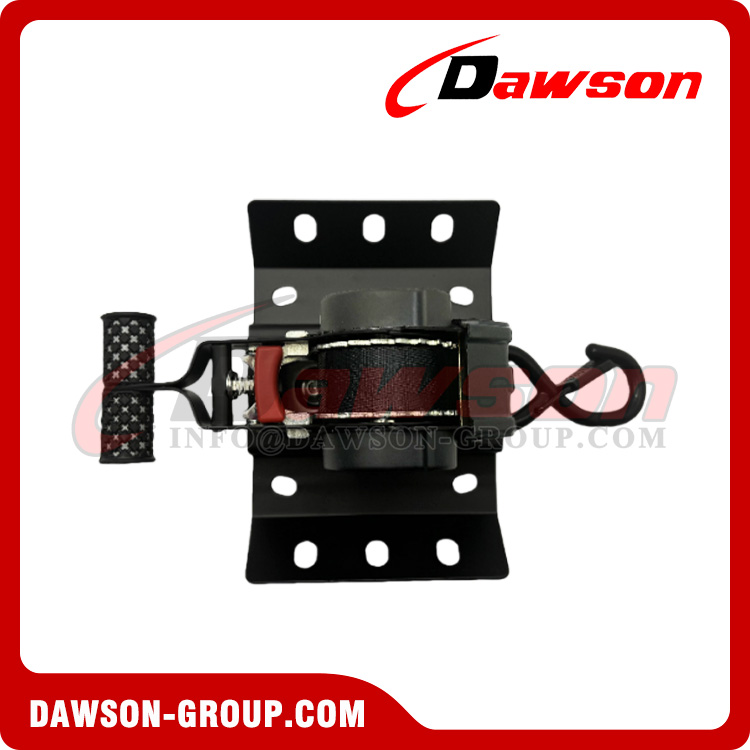

| DSSLRS0018 | 1"X9FT (25MMX2.7M) Damping version | 800KGS | 1260g |

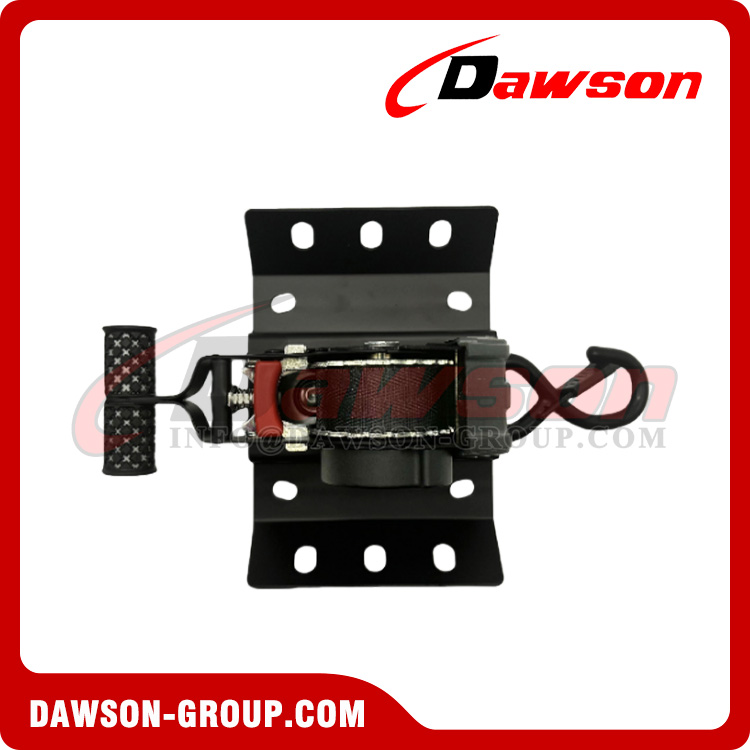

| DSSLRS0019 | 1"X9FT (25MMX2.7M) Non-damping version | 800KGS | 1225g |
| DSSLRS0020 | 1"X10FT (25MMX3.05M) Damping version | 800KGS | 905g |

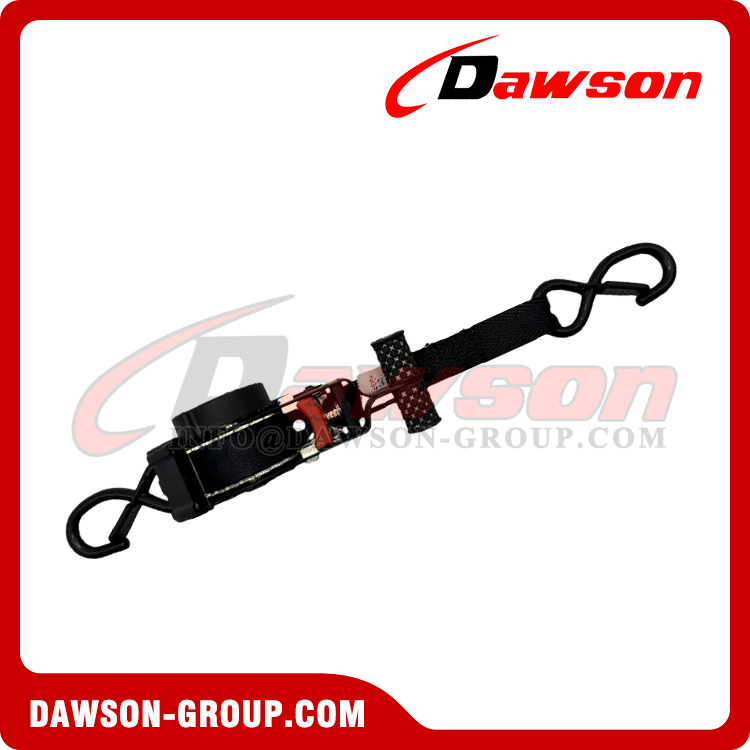

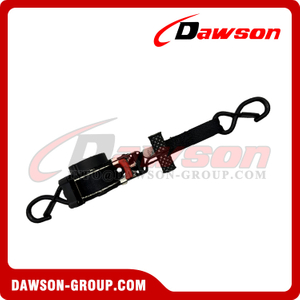

| DSSLRS0021 | 1"X10FT (25MMX3.05M) Non-damping version | 800KGS | 865g |

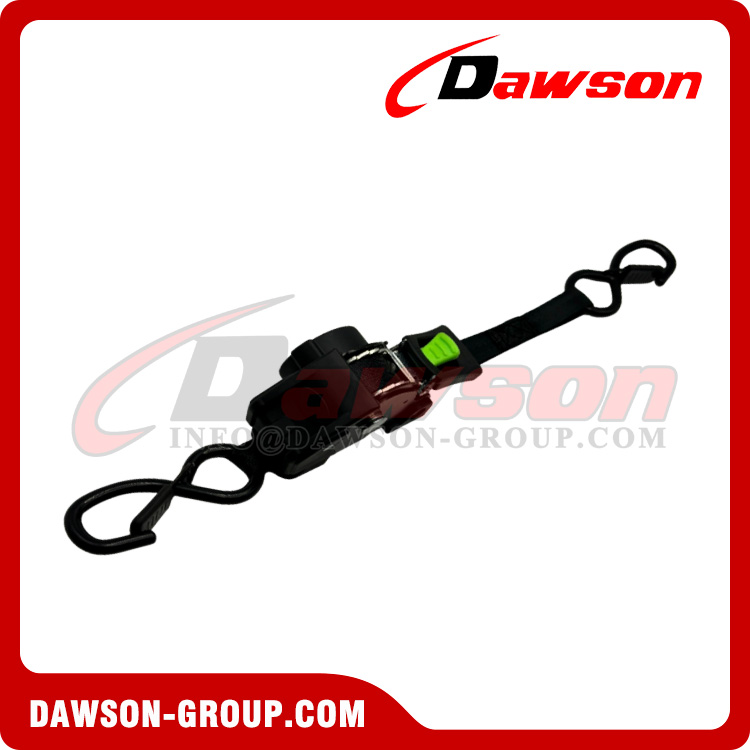

| DSSLRS0022 | 0.75"X10FT (19MMX3M) Non-damping version | 500KGS | 640g |

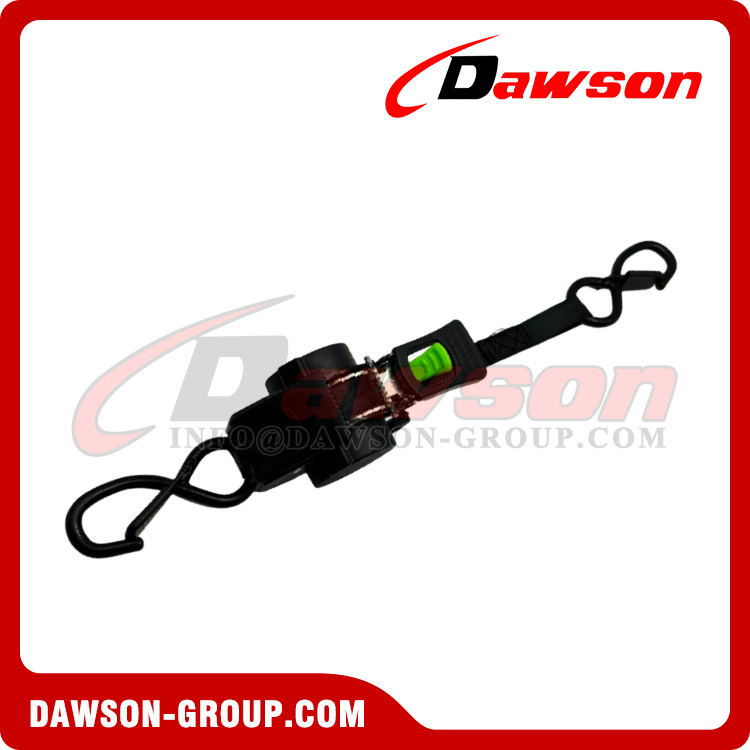

| DSSLRS0023 | 0.75"X10FT (19MMX3M) Damping version | 500KGS | 660g
|
With Damping (Two Covers – Red Circle Area):
This version has two covers and includes a damper inside. When the webbing retracts, it does so slowly and smoothly. This prevents injury to hands or fingers and provides added safety.
Without Damping (One Cover):
This version has only one cover and retracts the webbing very quickly.
Ratchet Lashings are used for tying down loads whilst transporting , shifting or moving them. They have replaced traditional jute ropes, chains and wires used for transportation and for a variety of other applications.
The main advantages of ratchet lashings are :
1. Load restraint using a tensioning device (ratchet)
2. Effective and safe control of loads whilst transportation
3. Extremely quick and efficient tie down and release of load thus saving time.
4. No damage to the load being tied down.
They are available in a large variety of configurations of different ratchets of various capacities and end fittings. Pictures shown here are only indicative and not exhaustive.
Warning:
1.Only use undamaged ratchet lashing, the label indicating the capacity must be clearly legible.
2. Ratchet lashings must not be overload.
3. Do not tie knots in the webbing.
4.Protect the webbing against abrasion and/or cutting by using edge protectors and sleeves for sharp edges.
5.Avoid twisted positioning of the ratchet lashing.
6.Do not place loads on the ratchet lashing, which could cause damage.
7. Ratchet lashings should not be used as a load lifting gear.
