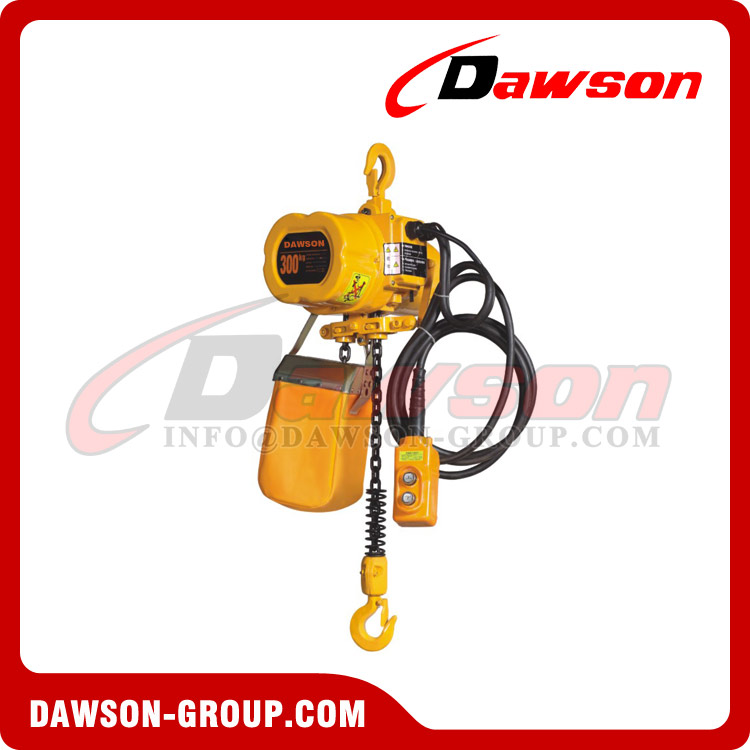

300KG Electric Chain Hoist with the Hook

  • DAWSON/OEM
  • 300KG Electric Chain Hoist with the Hook
  • 300kg
  • 100pcs
Availability:
Quantity:

300KG Electric Chain Hoist with the Hook
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
300KG Electric Chain Hoist with the Hook - Dawson Group Ltd. - China Manufacturer, Supplier, Factory   300KG Electric Chain Hoist with the Hook - Dawson Group Ltd. - China Manufacturer, Supplier


Technical Parameters

Type Capacity
(Ton)
Lifting Height
(m)
Lifting
Speed
(m/min)
Lifting motor Operating motor I-Beam
(mm)
Power
(kw)
Rotation
Speed(r/min)
Phases Voltage(V) Frequency
(Hz/s)
Power
(kw)
Rotation
Speed(r/min)
Phases Voltage(V) Frequency
(Hz/s)
DS-HHBB001S 0.3 3/9 7.2 0.75 1440 3 220-440 50/60 / / / / / /

Size specification

Type Capacity
(Ton)
Unit(mm)
H A B D E K L N Chain
DS-HHBB0.3-01S 0.3 530 455 210 225 120 Φ32 25 13 Φ6.3

Welcome to buy the newest and competitive price DAWSON 300KG Electric Chain Hoist with the Hook from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.



For further information, please contact us. Email:info@dawson-group.com

Hot Tags: electric chain hoist,electric chain hoist with the hook,electric chain hoist with hook,300kg electric chain hoist,0.3t electric chain hoist,300kg electric chain hoist with hook,0.3 ton electric chain hoist with hook,electric hoist,electric hoist with hook,electric hoist with the hook

Products Show:

Electric Chain Hoist - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Standard Fittings: Chain bag(1) Control Cable(3m) Push - Button Switch(1)

Lifting Chain - Dawson Group Ltd. - China Manufacturer, Supplier, Factory


Applicable Type Diameter
(mm)D
Inside length (mm)P Inside width
(mm)A
Outside width
(mm)B
Work width
(mm)B
Guaranteed
load(KN)
Break
load(KN)
DS-HHBB0.3-01 6.3 19 7.9 20.5 1200 27 47
DS-HHBB0.5-01 6.3 19 7.9 20.5 1200 27 47
DS-HHBB01-01
DS-HHBB02-02
DS-HHBB03-03
7.1 21 8.8 23.5 1600 37 61.6
DS-HHBB1.5-01
DS-HHBB02-01
DS-HHBB03-02
10.0 30 12.5 33 3200 76 125
DS-HHBB2.5-01
DS-HHBB03-01
DS-HHBB05-02
DS-HHBB7.5-03
DS-HHBB10-04
DS-HHBB15-06
DS-HHBB20-08
DS-HHBB25-10
DS-HHBB30-12
DS-HHBB35-16
11.2 34 14 38 3800 92 154

Hook: It is hot forging with perfect strength that Is hard to break. The operation safety of the lower hook is ensured by Its 360 degrees rotation and safety tongue piece.

360 Degrees Lower Hook, Hot Forging Hook - Dawson Group Ltd. - China Manufacturer, Supplier, Factory


Type Load(T) T B A B C D E G
DS-HHBB 0.3,0.5 T B 27 18 25 17 32 25
1 T B 36 25 30 24 42 32
2 T B 46 29 39 30 49 40
3 T B 56 36 49 34 59 48
5 T B 67 43 57 44 60 48
7.5 T B 82 55 80 50 60 70
10 T B 82 55 80 50 90 70
15,20 T B 125 90 115 85 110 80
25,30 T B 142 95 155 98 150 115
35 T B 210 140 210 135 200 140

T - upper hook / B - lower hook

Electric Chain Hoist - Dawson Group Ltd. - China Manufacturer, Supplier

ALWAYS:

• Store and handle power operated blocks correctly.
• Inspect the block and accessories before use and before placing into storage.
• For top hook suspension, use hooks that are fitted with safety catches or mouse the hook and ensure the support fits freely into the seat of the hook.
• For trolley suspension, ensure the trolley is correctly set for the beam width.
• Check that the bottom hook will reach its lowest point without running the chain or rope fully out.
• Raise the load just clear then halt the lift to ensure the integrity of the block before continuing with the lift. If the block has more than one speed, start in the slow speed.

NEVER:
• Expose power operated blocks to chemicals, particularly acids, without consulting the supplier.
• Expose power operated blocks directly to the elements, water spray, steam etc without consulting the supplier.
• Replace the load chain or rope with a longer one without consulting the supplier.
• Use the load chain or rope to form a sling.
• Change motions without first allowing the motor to stop.
• Allow persons to ride on power operated blocks.

Selecting the Correct Block
Power operated blocks are available in a range of capacities, designs and suspensions with electric or pneumatic power options. Select the block to be used and plan the lift taking the
following into account:
Type of block - chain, wire rope - electric, pneumatic - class of use - capacity and range of lift etc.
Type of suspension - hook, trolley, fixed.
Speeds and control - single speed, dual speed - pendant push button, pull cord, remote etc.
Power operated blocks are designed for vertical lifting only.
Consult the supplier if the block is to be used in areas of high risk, exposed to the elements, water, steam etc, with hazardous substances, eg acids or chemicals, or subjected to extremes of temperature.

Storing and Handling Power Operated Blocks
Never return damaged blocks to storage. They should be dry, clean and protected from corrosion.
In the case of blocks used for temporary applications, store them on a purpose made rack or suspended from their top suspension fitting. Trailing cables, pendants etc may be removed, identified and stored separately to prevent loss or damage whilst in store. In the case of blocks left in situ, park the block in a suitable
position so that it is protected from damage and does not present a danger. Raise the bottom hook so that it is not a  danger to persons or liable to become accidentally engaged. Isolate the power supply.

Installing and Commissioning
Follow the specific instructions for installation and commissioning issued by the supplier and the general
requirements given overleaf. Ensure the controls work in the correct direction and that motion limits are set and operate correctly. If the block fails to operate correctly contact the supplier.

Using Power Operated Blocks Safely
Do not use defective blocks, slings or accessories. Check the slinging arrangement, that the block is safely rigged, that the chain or rope is not twisted and that the load is free to move. Raise the load just clear, halt the lift to ensure the integrity of the block, slinging arrangement etc. Always commence lifting in the slow speed. Avoid unnecessary inching of the load. Check the travel path is clear and that you have a clear view so as to avoid accidental hook engagement or collision. Follow any particular site safety rules applicable to the movement of suspended loads. Keep fingers, toes etc clear when lowering loads.

In-service Inspection and Maintenance
Follow the specific instructions for maintenance issued by the supplier. These should be incorporated into the site maintenance programme observing any particular needs due to the site or working conditions.
Regularly inspect the block and, in the event of the following defects, refer the block to a Competent Person for thorough examination: operational faults; block will not lift; slips back; motion commands reversed; over-runs when command released; wear; damage to trolley, hooks and fittings; damaged, worn or corroded chain or rope; other visible defects.
