DAWSON/OEM
Marine Pneumatic Rubber Fenders
Availability: | |
---|---|
Quantity: | |

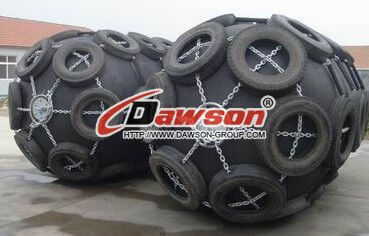

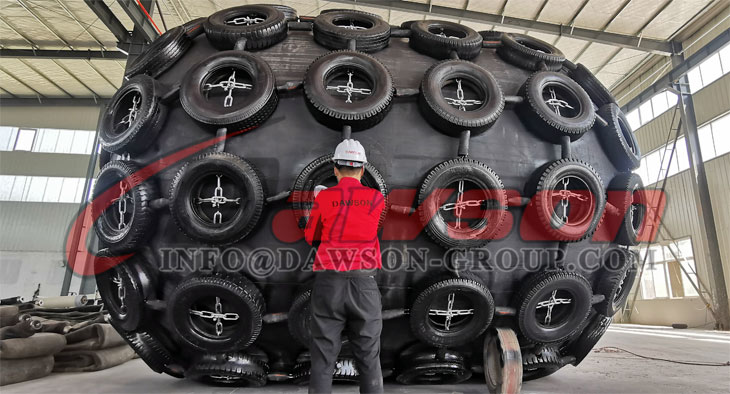

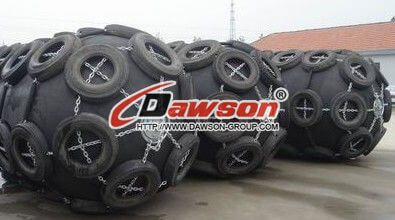

Pneumatic Rubber Fender
Pneumatic Rubber Fenders Introduction
Pneumatic fenders is a leading anti-collision device for marine application in the world today. This compressed air rubber fender is used as a protective medium. Therefore, pneumatic rubber fenders serves as a protective medium against collision when ship-to-ship contact (STS) and ship-to-berthing (STB). Pneumatic fenders has the advantages of massive energy absorption with low unit surface pressure acted upon the ship. So penumatic fenders has become an ideal ship protection medium used extensively by large tankers, LPG vessels, ocean platforms, large docks, harbor and wharfs.
This marine fender catalog | ||||||
Nominal size diameter×length | Initial pressure(Po) is 0.05Mpa | Initial pressure(Po) is 0.08Mpa | ||||
weight(kg) | R(KN) | GEA(KJ) | weight(kg) | R(KN) | GEA(KJ) | |
0.5*1.0 | 25 | 64 | 6 | 25 | 83 | 8 |
0.6*1.0 | 32 | 74 | 8 | 32 | 96 | 11 |
0.7*1.5 | 50 | 137 | 17 | 50 | 178 | 24 |
1.0*1.5 | 80 | 182 | 32 | 80 | 235 | 44 |
1.0*2.0 | 100 | 257 | 45 | 125 | 335 | 63 |
1.2*2.0 | 120 | 297 | 63 | 165 | 386 | 86 |
1.35*2.5 | 165 | 427 | 102 | 226 | 554 | 140 |
1.5*3.0 | 315 | 597 | 153 | 370 | 751 | 211 |
1.7*3.0 | 405 | 639 | 191 | 436 | 860 | 263 |
2.0*3.5 | 590 | 875 | 308 | 632 | 1138 | 424 |
2.5*4.0 | 1050 | 1381 | 663 | 1110 | 1815 | 925 |
2.5*5.5 | 1333 | 2019 | 943 | 1410 | 2653 | 1317 |
3.0*5.0 | 1880 | 2104 | 1210 | 2155 | 2709 | 1571 |
3.0*6.0 | 2160 | 2583 | 1485 | 2470 | 3292 | 1888 |
3.3*4.5 | 2020 | 1884 | 1175 | 2300 | 2476 | 1640 |
3.3*6.0 | 2300 | 2783 | 1675 | 2600 | 3652 | 2338 |
3.3*6.5 | 2700 | 3015 | 1814 | 3080 | 3961 | 2532 |
Note: The weight of the ball by ball weight (without jacket), the weight of error of ± 10%; reaction force error of ±10% |

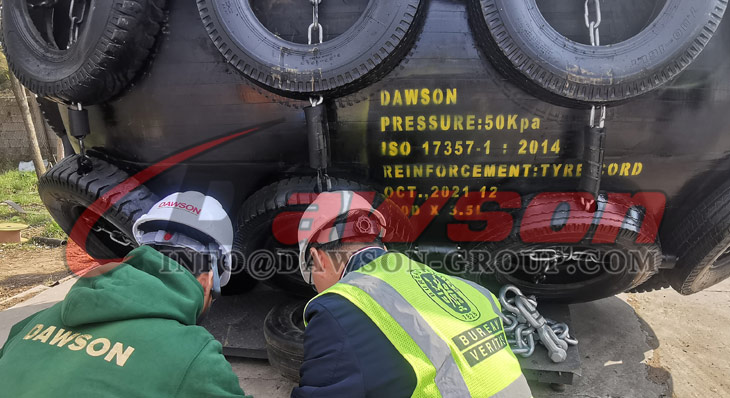

BV Testing:

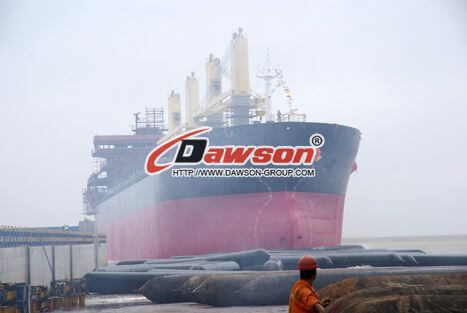

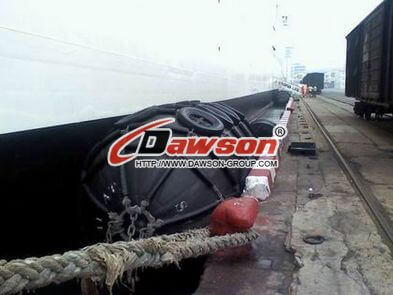

Application of Marine Rubber Fenders:
