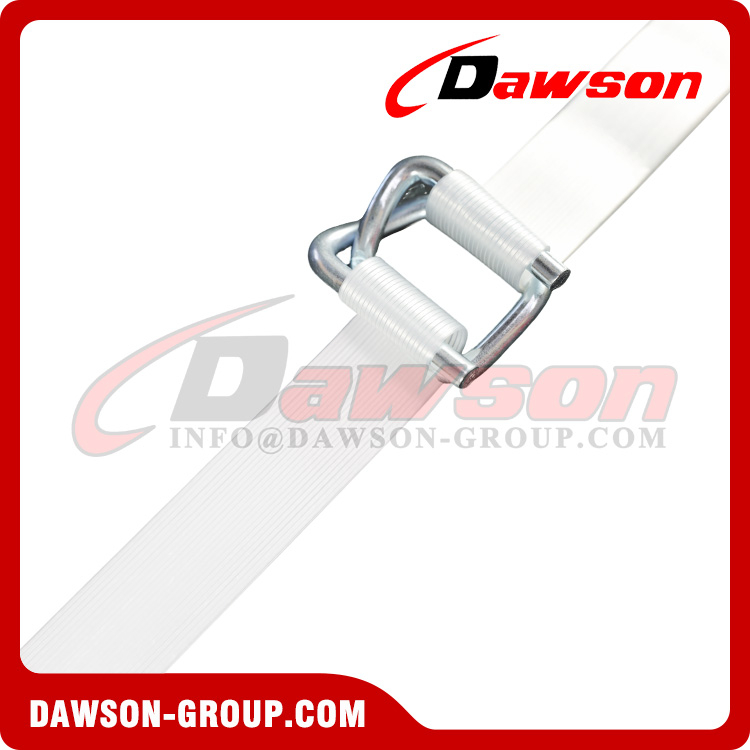

13MM - 32MM Composite Straps, Polyester Composite Strapping, Cord Composite Strap
- China Manufacturer, Supplier, Factory

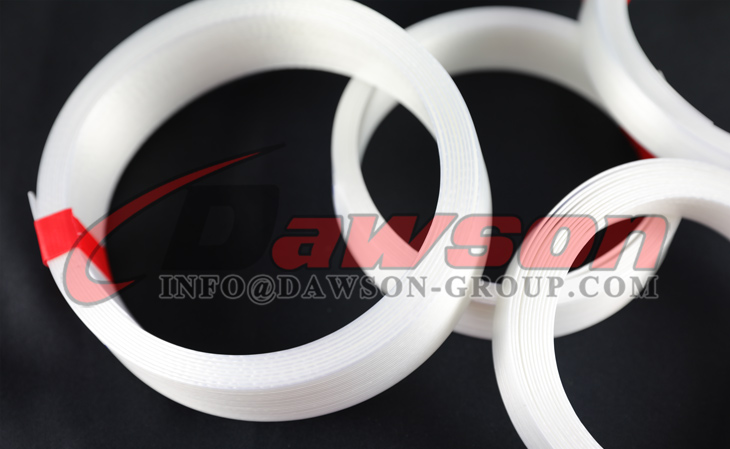

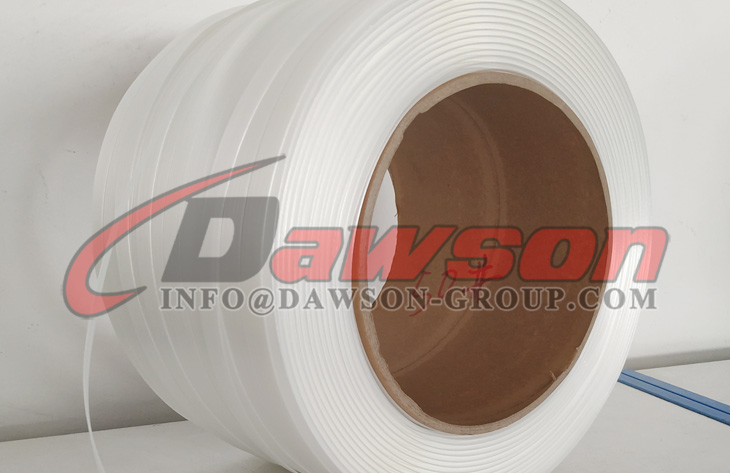

Polyester composite cord strap are manufactured from high tenacity, strongest synthetic fibers embedded in a polymer coating. It is quickly replacing steel banding as a safe, cost effective and environmentally friendly method of securing loads in many industrial applications. Due to its unique combination of elongation and memory, Composite Strapping can absorb impacts and load shifting that would normally break steel banding. Composite Strapping is soft, pliable and will not rust, so it will not cause injuries or damage valuable cargo, it is the ideal material to protect heavy loads, as well as irregular shaped goods during transportation
Features and Benefits:
♦ Stronger than steel strap
♦ Safe for users & receivers
♦ Does not damage to products
♦ Shock absorbent
♦ Light weight & portable
♦ Chemical resistant
♦ Will not rust or rot
♦ Weather and chemical resistant
Polyester composite strapping is the best solution for many applications.
It does not split, its flexible and can be used universally.
It is small, manageable and consignees in using or opening the strapping.
No damage to painted surfaces.
No corrosion and its easy to handle.
Low investment cost.
Available with: from 13mm to 32mm.
Strap breaking strength from 300daN to 1,500daN.

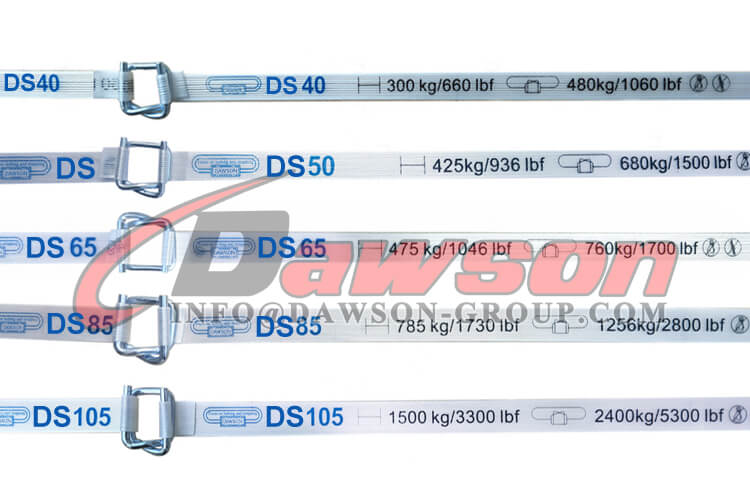

Item | Width | Min. Linear
Breaking Strength | Min. System
Breaking Strength | Meters/Coil | Coils/Box |

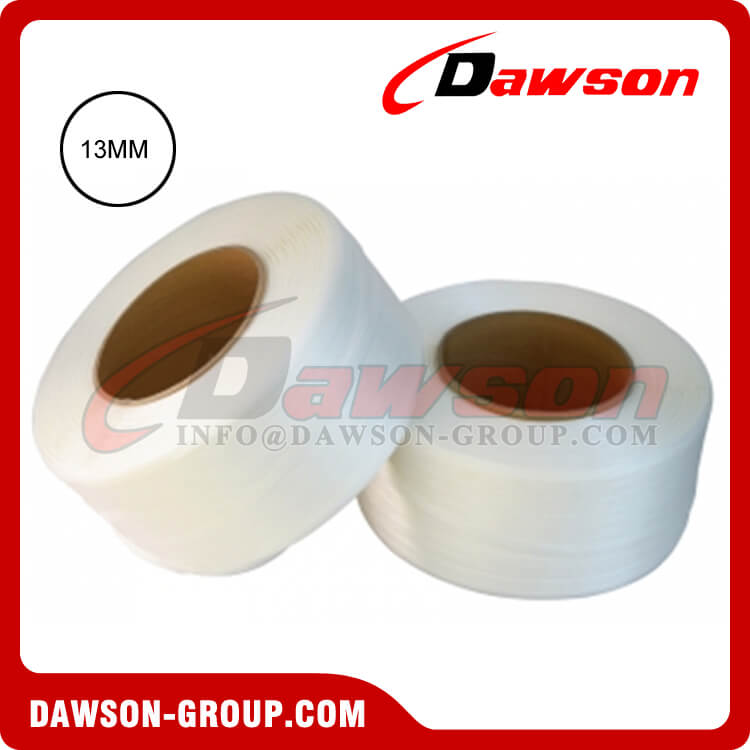

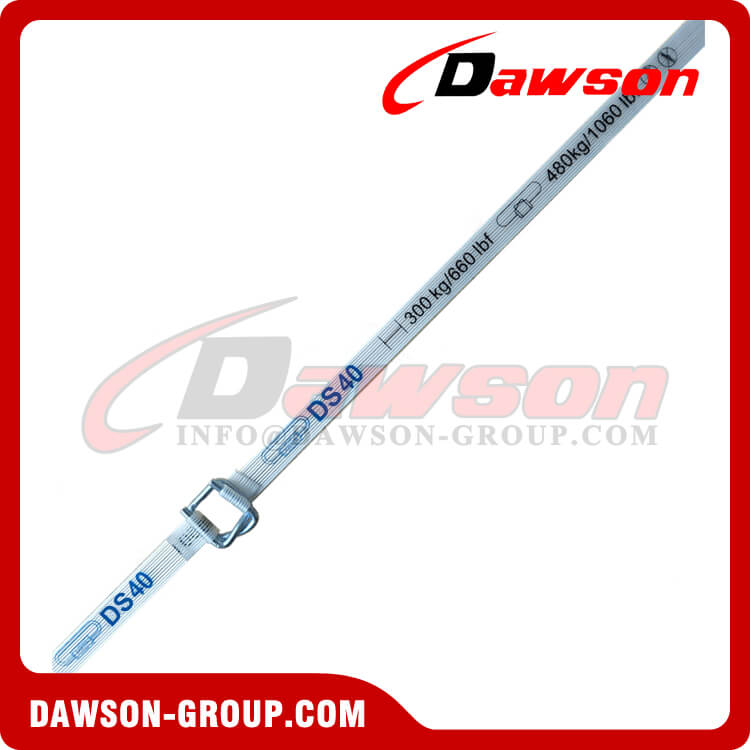

DS-DS40 | 13mm | 300 kg | 480 kg | 1100 m | 2 |
DS-DS50 | 16mm | 285 kg | 456 kg | 1000 m | 2 |
16mm | 425 kg | 680 kg | 850 m | 2 |
16mm | 482 kg | 770 kg | 850 m | 2 |
16mm | 550 kg | 880 kg | 600 m | 2 |
DS-DS65 | 19mm | 380 kg | 608 kg | 600 m | 2 |
19mm | 475 kg | 760 kg | 500 m | 2 |
19mm | 625 kg | 1000 kg | 500 m | 2 |
19mm | 760 kg | 1216 kg | 500 m | 2 |
DS-DS85 | 25mm | 785 kg | 1256 kg | 500 m | 2 |
25mm | 800 kg | 1280 kg | 500 m | 2 |
25mm | 925 kg | 1480 kg | 450 m | 2 |

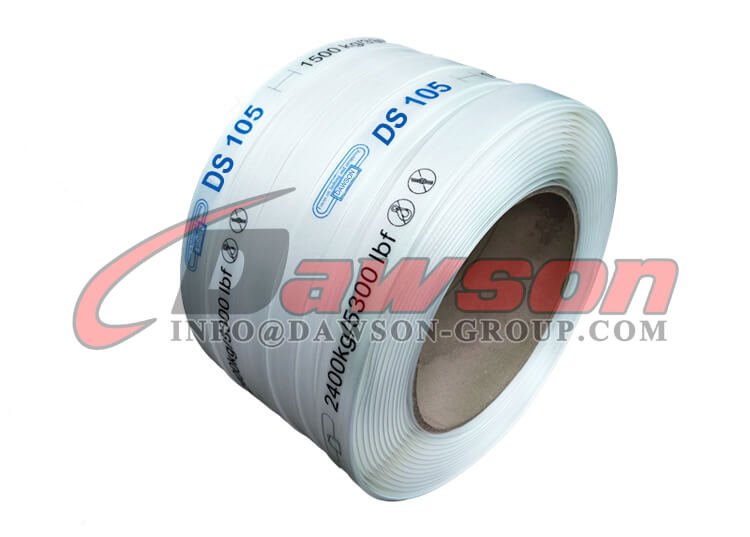

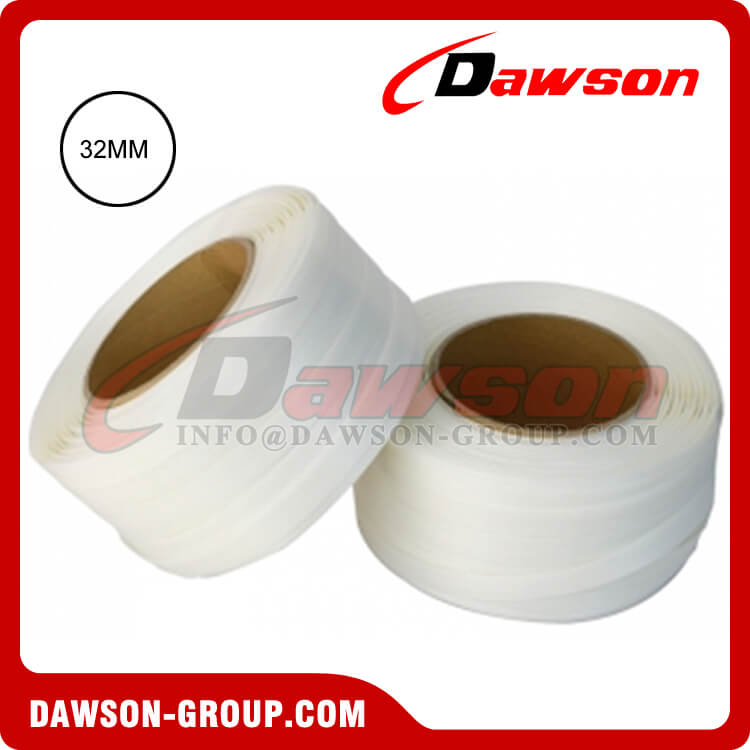

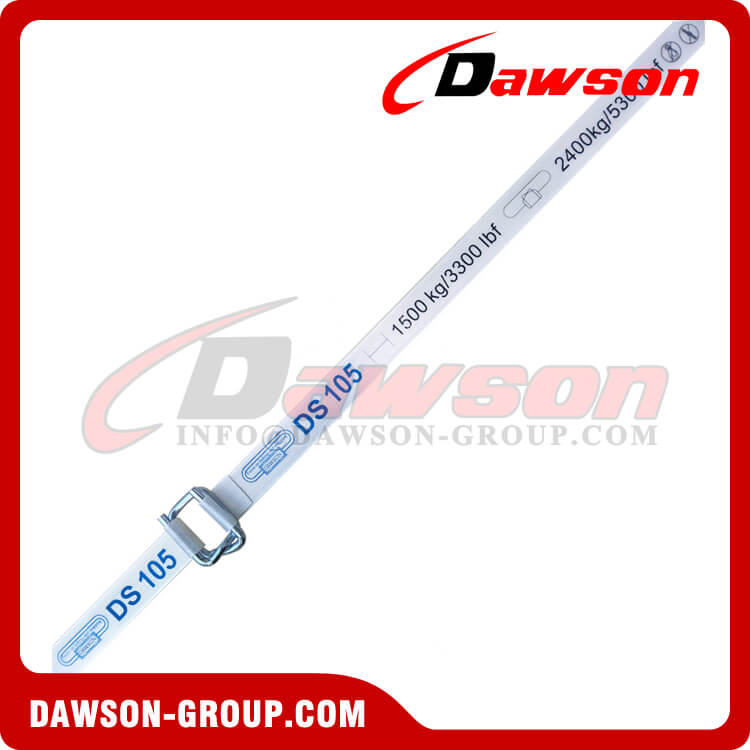

DS-DS105 | 32mm | 1500 kg | 2400 kg | 250 m | 2 |
32mm | 1625 kg | 2600 kg | 250 m | 2 |

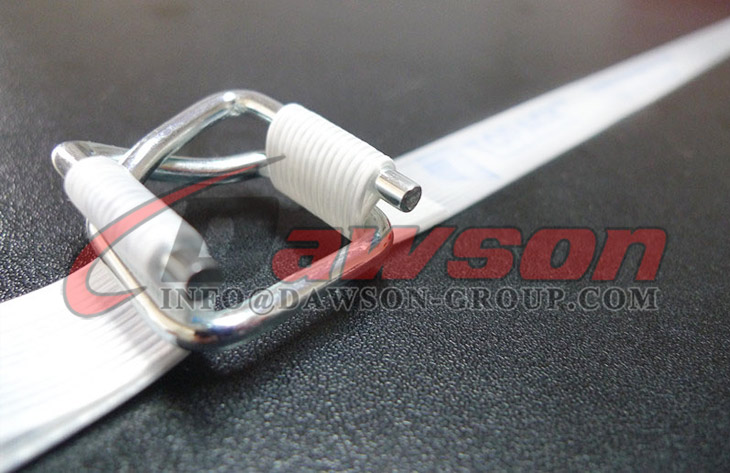

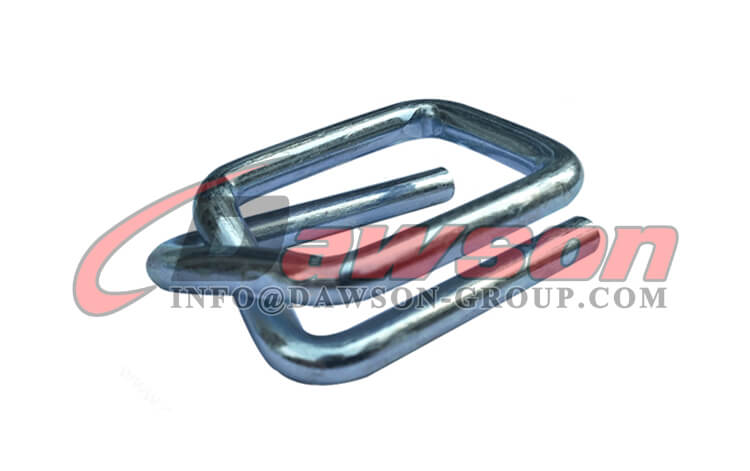

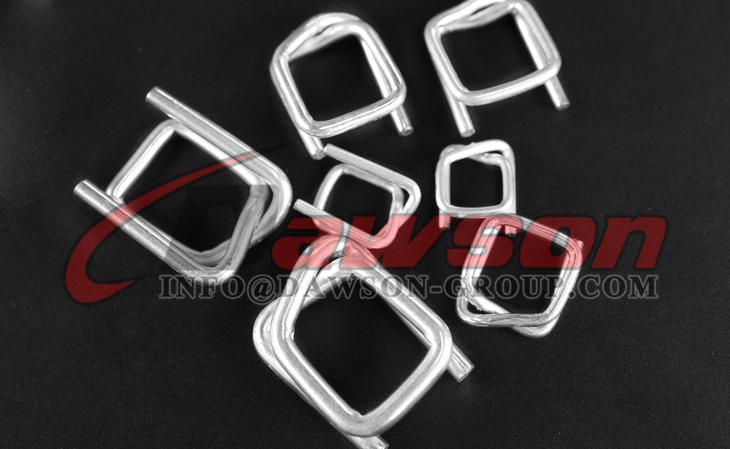

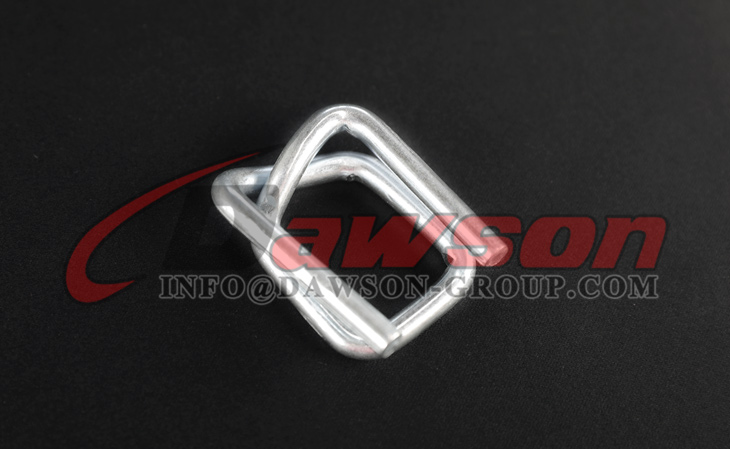

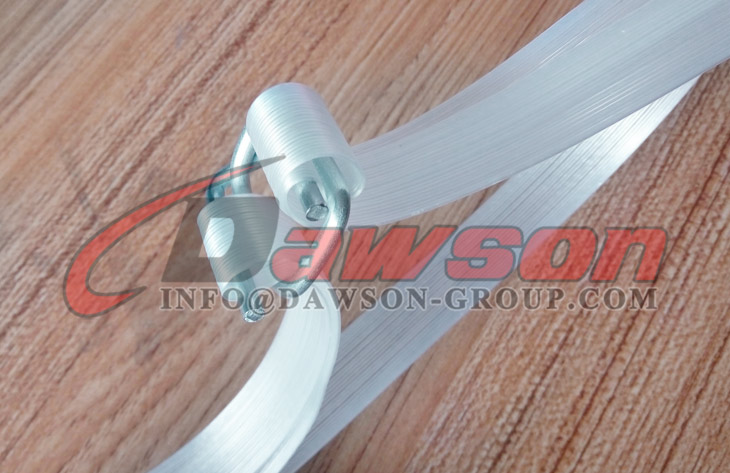

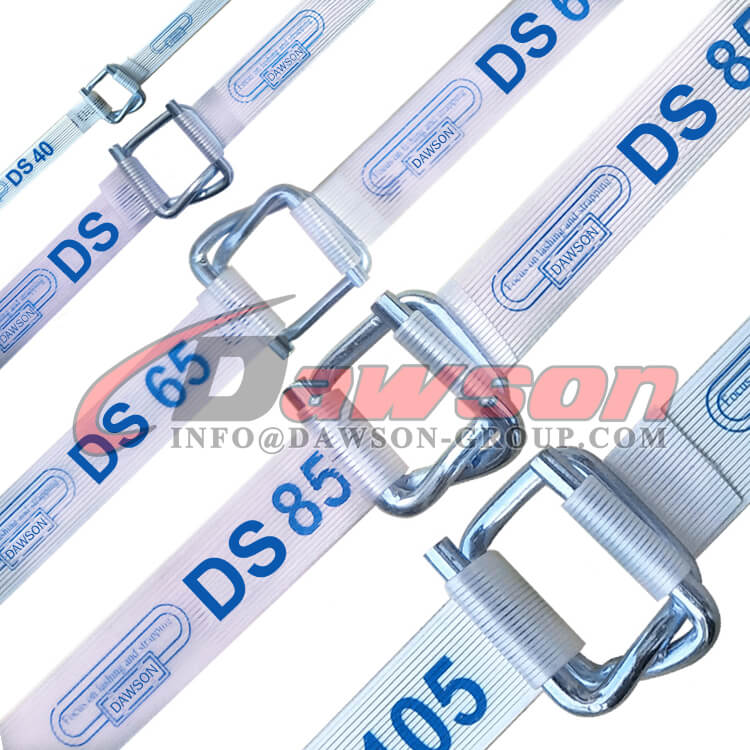

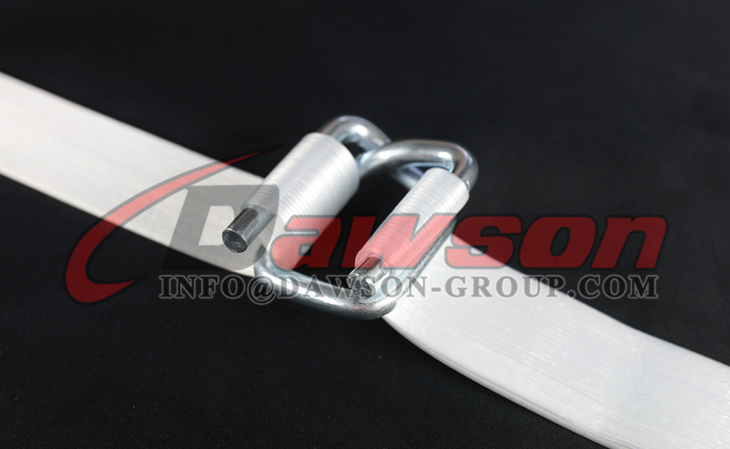

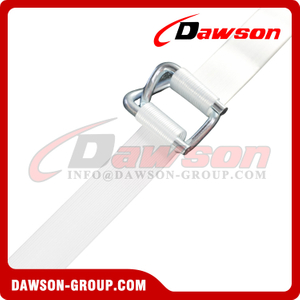

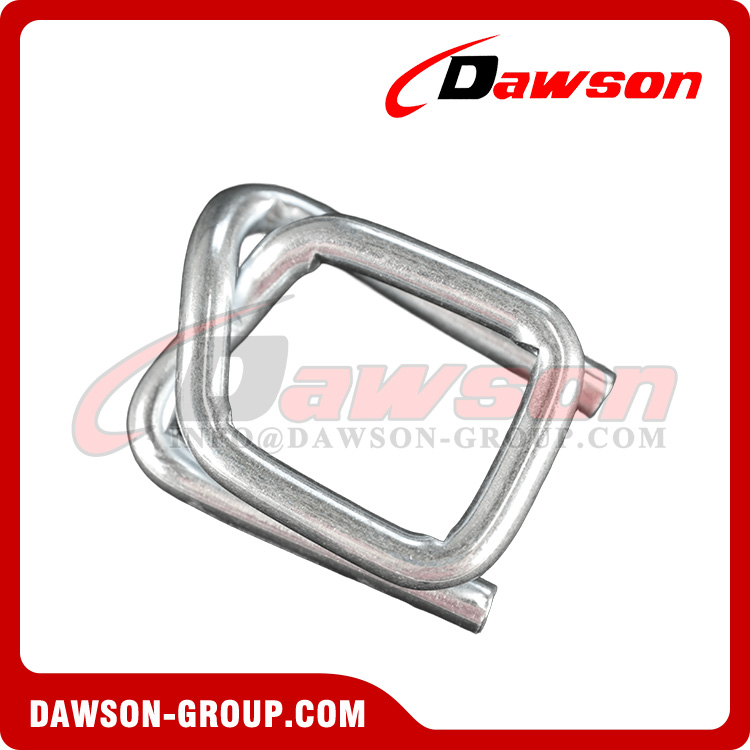

Steel Wire Buckles for Composite Straps
| Item Code | Width | Diameter | Tensile Strength | Surface Treatment | Suitable strap | Packing |
| DS-DSB1335 | 13mm | Φ3.5mm | 480kg | Galvanized and phosphated | 13mm strap | 1000P/Box |
| DS-DSB1635 | 16mm | Φ3.5mm | 680kg | Galvanized and phosphated | 16mm strap | 1000P/Box |
| DS-DSB1940 | 19mm | Φ4.0mm | 760kg | Galvanized and phosphated | 19mm strap | 1000P/Box |
| DS-DSB2550 | 25mm | Φ5.0mm | 1256kg | Galvanized and phosphated | 25mm strap | 500P/Box |
| DS-DSB3270 | 32mm | Φ7.0mm | 2600kg | Galvanized and phosphated | 32mm strap | 250P/Box |
Remarks: Buckles both with zinc plated or black finished are available.

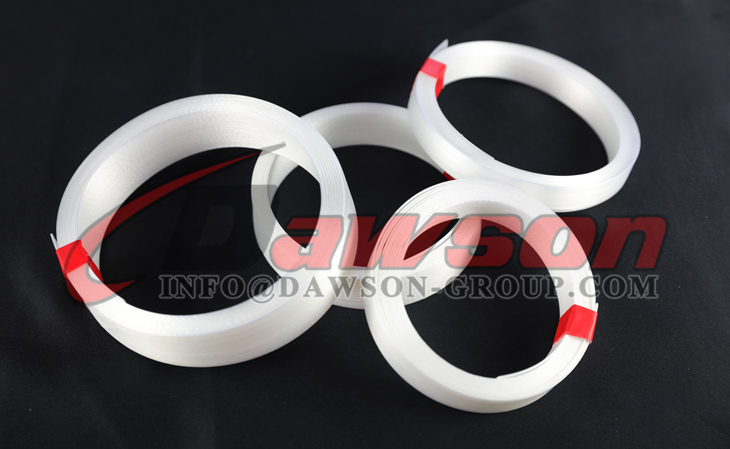

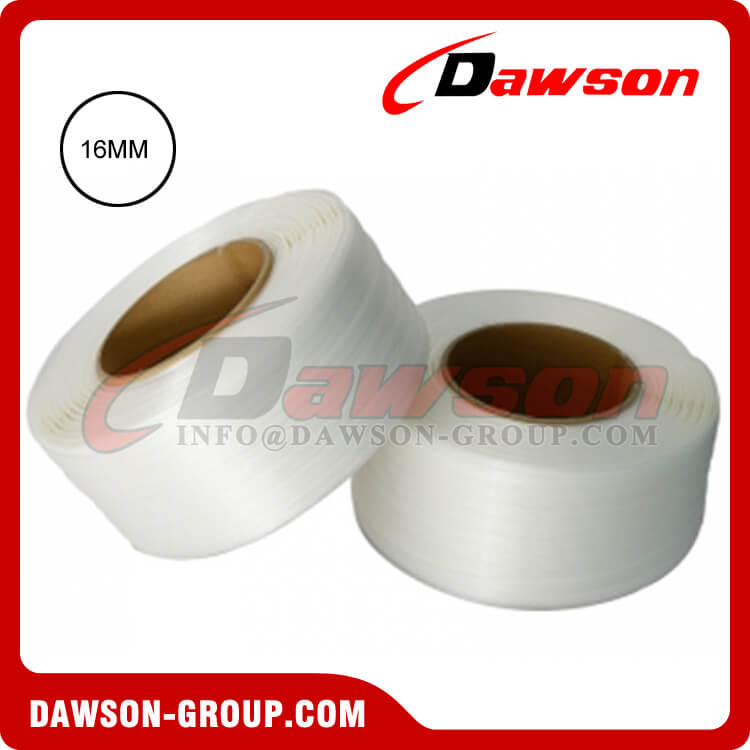

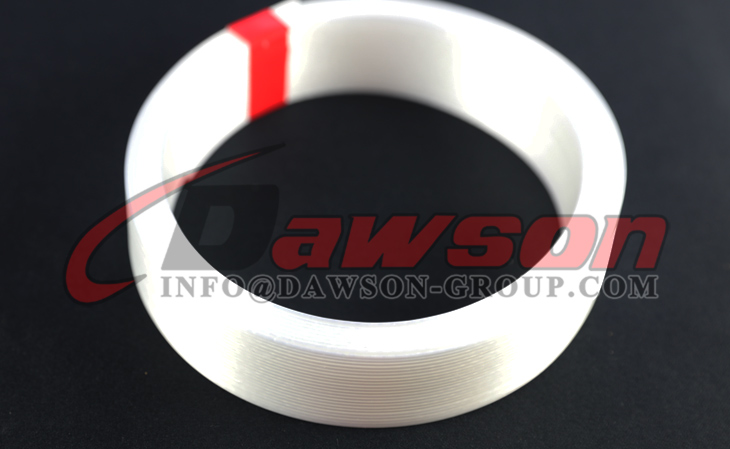

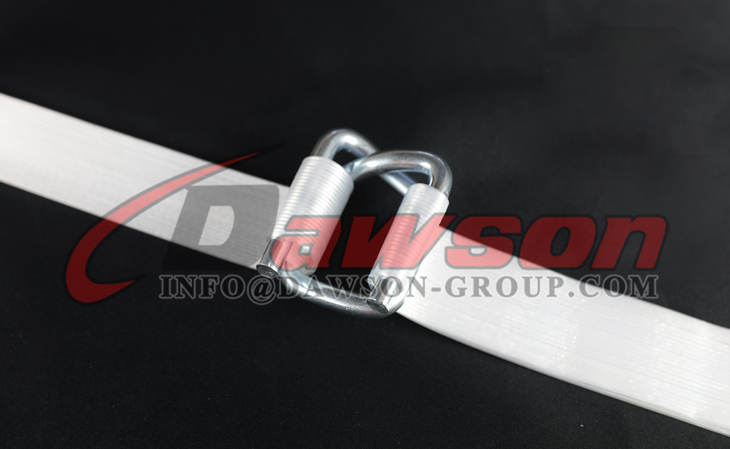

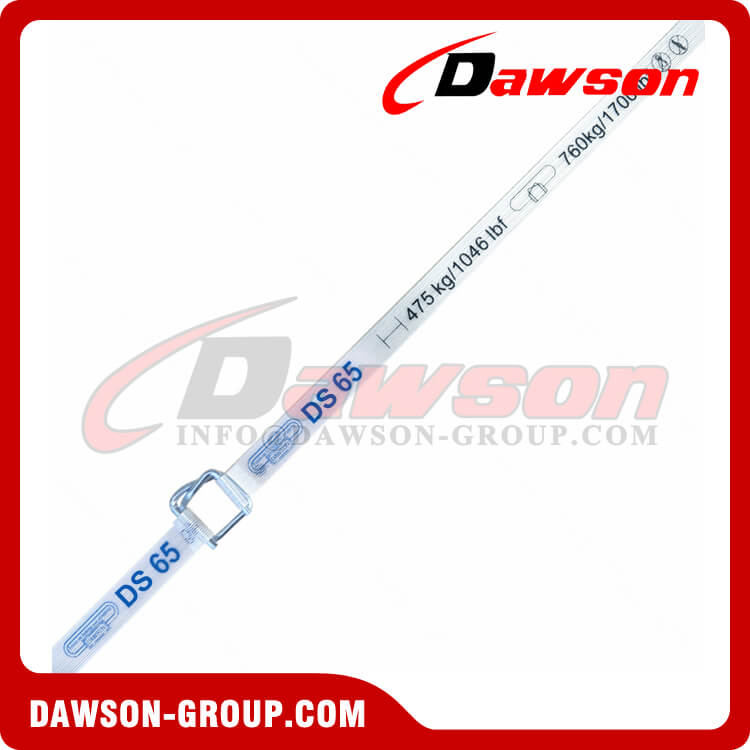

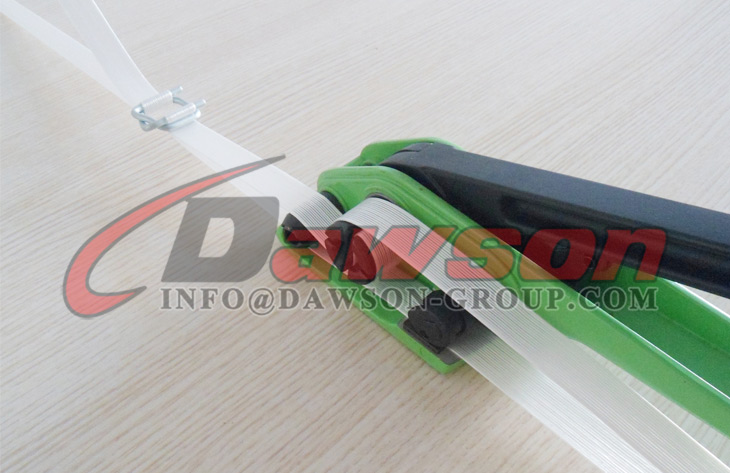

Products Show:
Hot Tags: Composite Straps, Wholesale Polyester Composite Straps, Hot Sale Polyester Composite Strapping, Low Price Composite Cord Strapping, Cheap Price Cord Composite Strap, Cord Strap China Manufacturer, Polyester Composite Cord Strap Factory, China Composite Straps Supplier, Cord Composite Strapping Exporter, Composite Strap In Stock, Cord Strap Free Sample, One Way Composite Strap OEM, Dawson Brands Polyester Composite Strap, Customized Composite Cord Strapping, 13mm Composite Cord Strapping, 16mm Cord Composite Strap, 19mm Cord Strap, 25mm Composite Strap, 32mm Composite Strapping

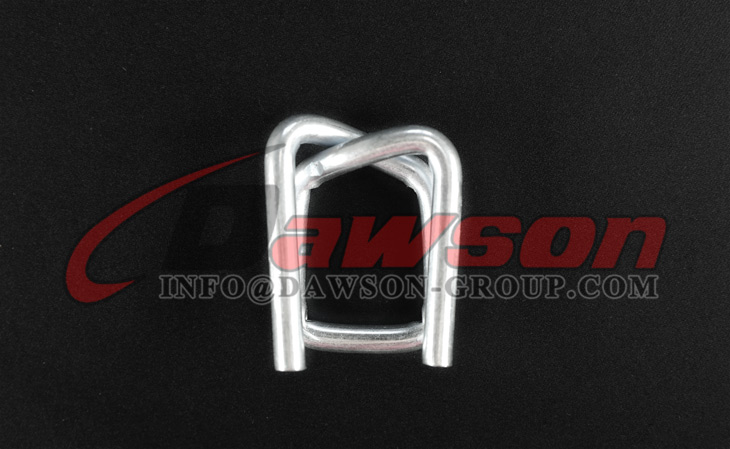

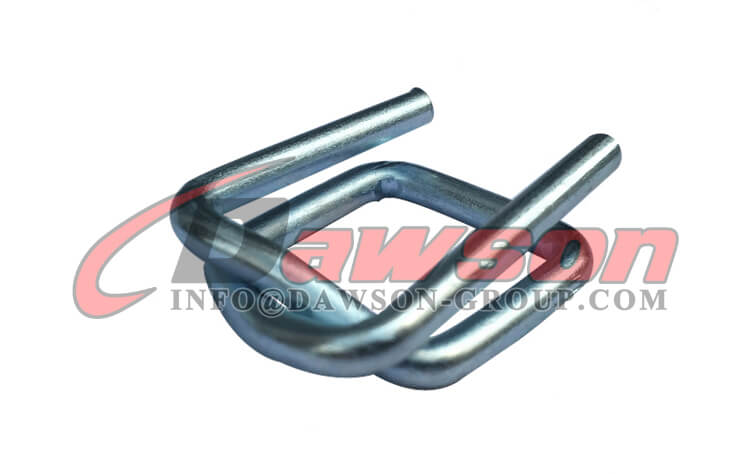

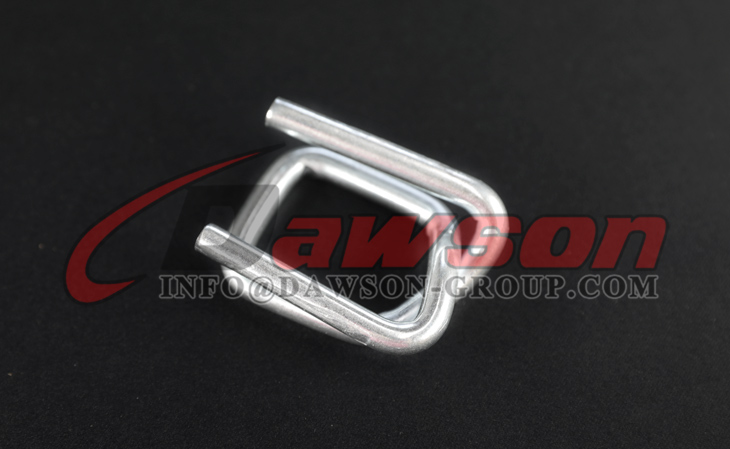

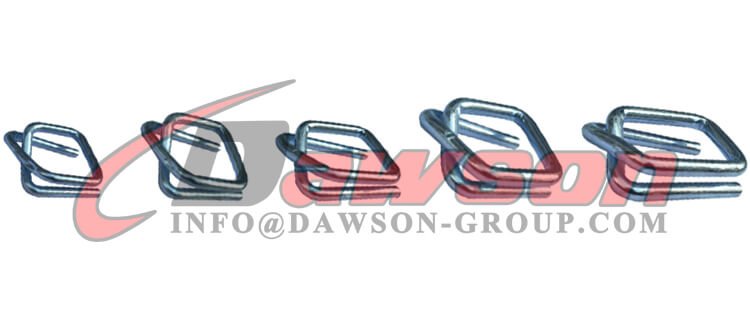

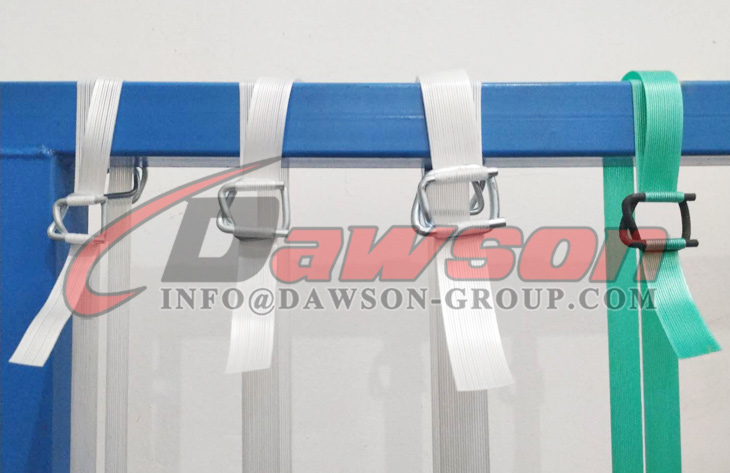

Other Steel Wire Buckle Show:

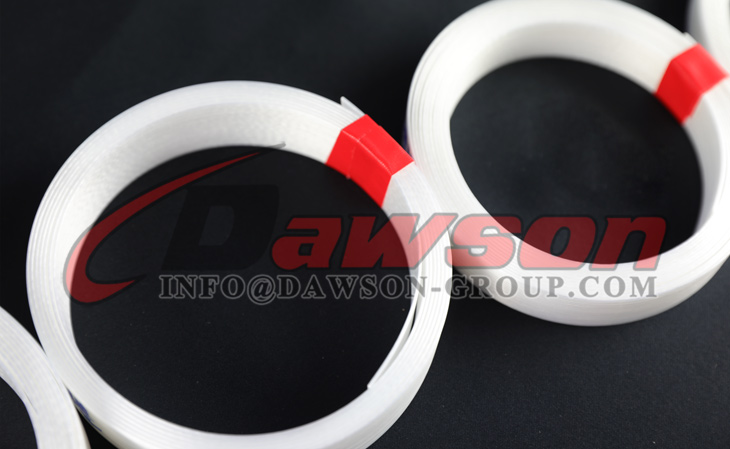

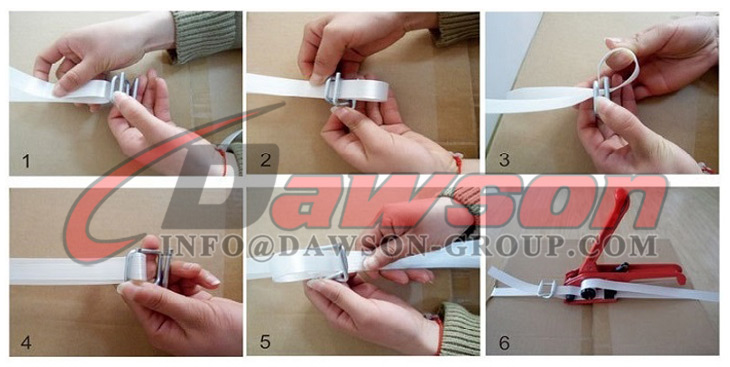

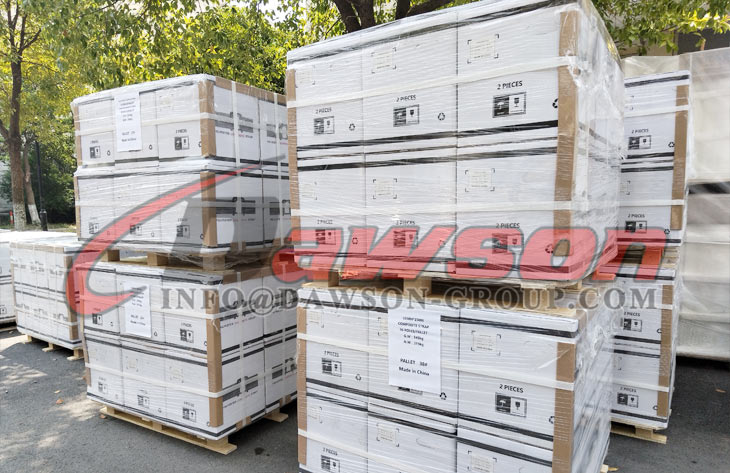

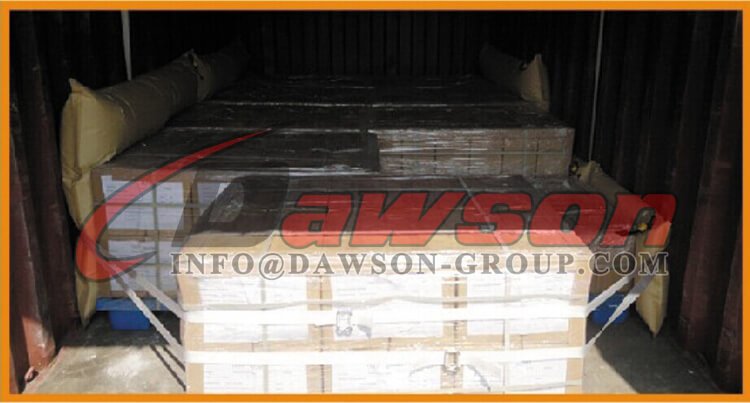

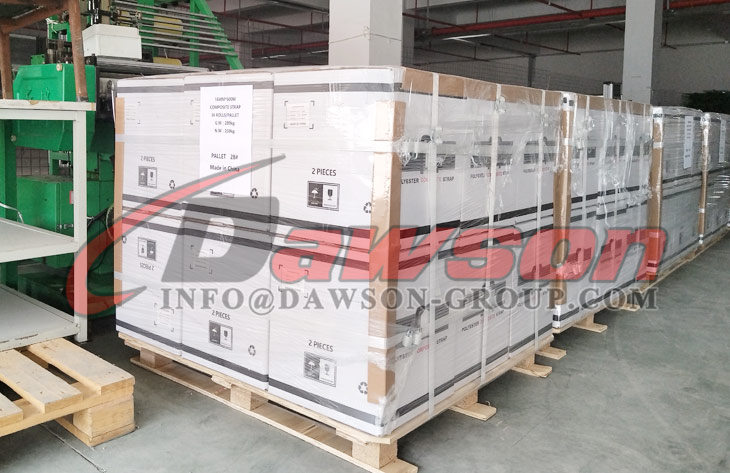

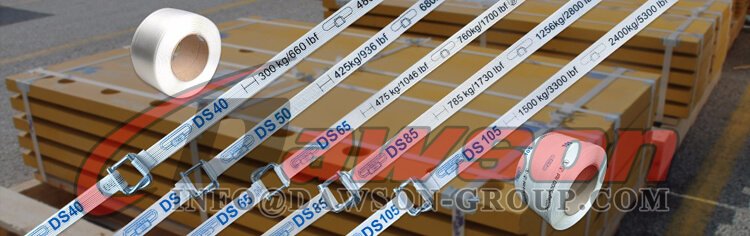

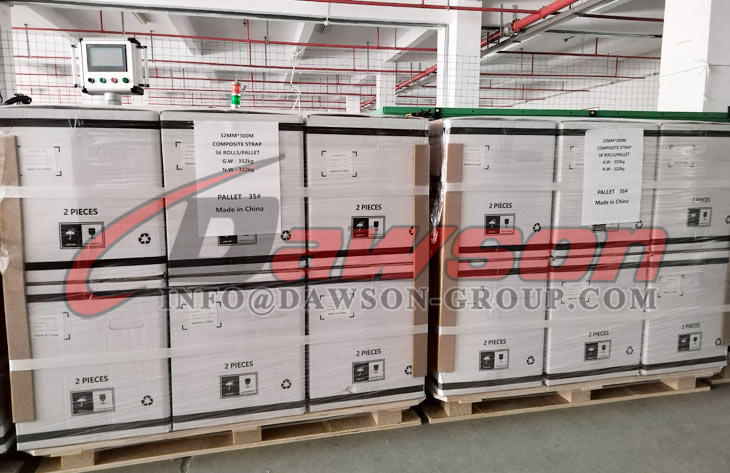

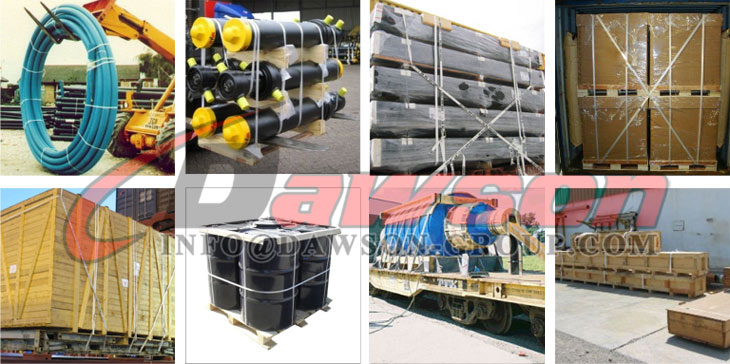

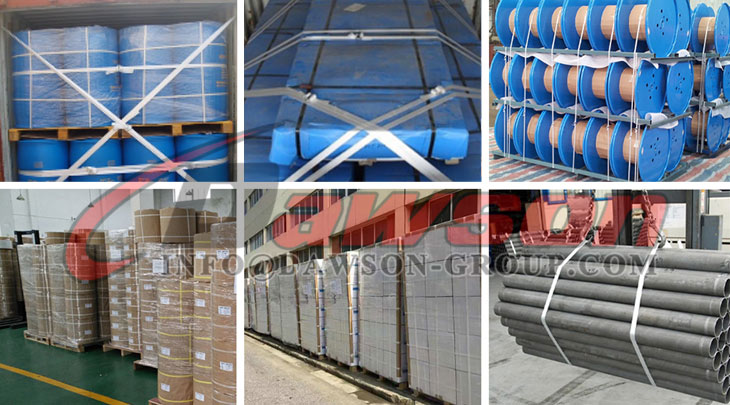

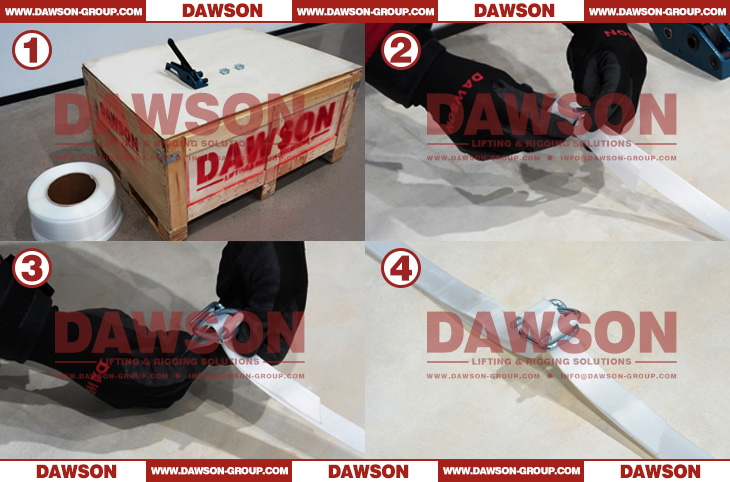

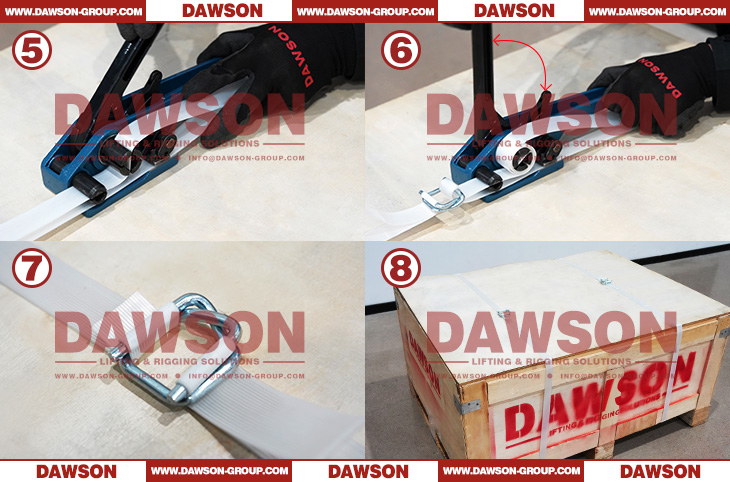

Application of 13MM - 32MM Composite Straps, Polyester Composite Strapping, Cord Composite Strap:

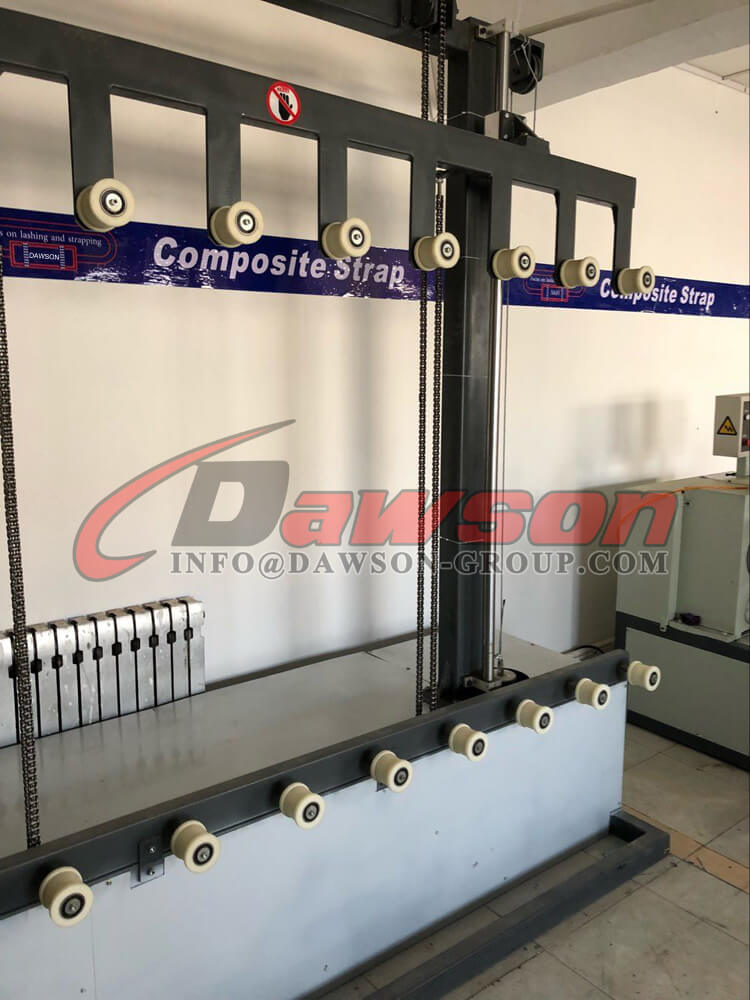

Factory About 13MM - 32MM Composite Straps, Polyester Composite Strapping, Cord Composite Strap:
